Toyota Celica
1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe
Discontinued model
Data version 1987-01

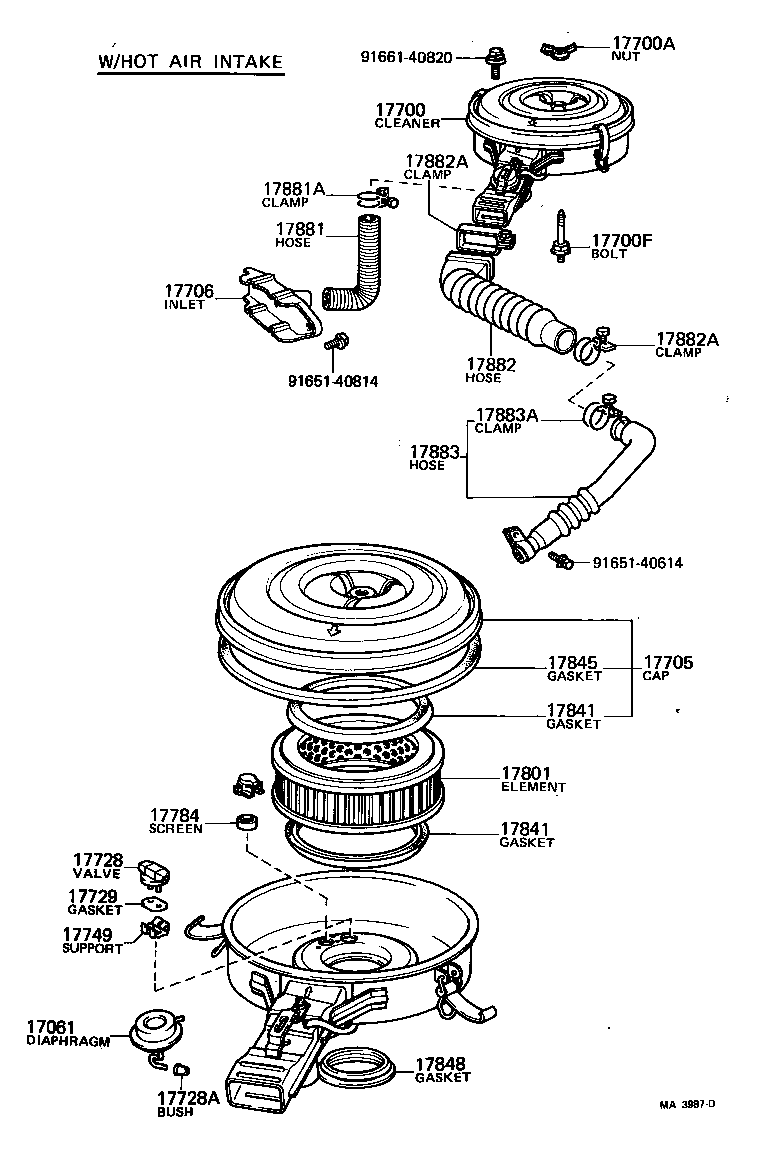

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17061 — Diaphragm Sub-assy | ||||
| 17061-34010 note |
Diaphragm Sub-assy
1979-08 → 1981-07
ended
|
18R RA40 | — | |
| 17700 — Cleaner Assy, Air | ||||
| 17700-26180 note |
Cleaner Assy, Air
1977-08 → 1981-07
ended
|
2TB TA40 | — | |
| 17700-26190 note |
Cleaner Assy, Air
1977-08 → 1981-07
ended
|
2TB TA40 | — | |
| 17700-26201 note |
Cleaner Assy, Air
1977-08 → 1981-07
ended
|
2T TA40 | — | |
| 17700-26211 note |
Cleaner Assy, Air
1977-08 → 1981-07
ended
|
2T TA40 | — | |
| 17700-34410 |
Cleaner Assy, Air
1977-08 → 1979-08
ended
|
18RC RA40 | — | |
| 17700-34490 |
Cleaner Assy, Air
1977-08 → 1978-09
ended
|
18RG RA40 | — | |
| 17700-34490 |
Cleaner Assy, Air
1977-08 → 1978-09
ended
|
2TG TA40 | — | |
| 17700-34491 |
Cleaner Assy, Air
1978-09 → 1981-07
ended
|
18RG RA40 | — | |
| 17700-34491 |
Cleaner Assy, Air
1978-09 → 1981-07
ended
|
2TG TA40 | — | |
| 17700-34540 note |
Cleaner Assy, Air
1979-08 → 1981-07
ended
|
18R RA40 | — | |
| 17700-34550 note |
Cleaner Assy, Air
1979-08 → 1981-07
ended
|
18R RA40 | — | |
| 17700-34630 |
Cleaner Assy, Air
1979-08 → 1981-07
ended
|
18RC RA40 | — | |
| 17700-36190 note |
Cleaner Assy, Air
1977-08 → 1979-08
ended
|
18R RA40 | — | |
| 17700-36200 note |
Cleaner Assy, Air
1977-08 → 1979-08
ended
|
18R RA40 | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1977-08 → 1981-07
ended
|
2T TA40 | — | |
| 94271-00600 |
Nut, Wing(FOR AIR CLEANER)
1977-08 → 1981-07
ended
|
2TB TA40 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1977-08 → 1981-07
ended
|
2TB TA40 | — | |
| 90116-06143 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 90116-06222 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1977-08 → 1981-07
ended
|
2T TA40 | — | |
| 90116-06230 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1977-08 → 1981-07
ended
|
2TB TA40 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-25012 |
Cap Sub-assy, Air Cleaner
1977-08 → 1980-08
ended
|
2T TA40 | — | |
| 17705-25013 |
Cap Sub-assy, Air Cleaner
1980-08 → 1981-07
ended
|
2T TA40 | — | |
| 17705-26011 |
Cap Sub-assy, Air Cleaner
1977-08 → 1981-07
ended
|
2TB TA40 | — | |
| 17705-34190 |
Cap Sub-assy, Air Cleaner
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 17705-34211 |
Cap Sub-assy, Air Cleaner
1977-08 → 1981-07
ended
|
18RG RA40 | — | |
| 17705-34211 |
Cap Sub-assy, Air Cleaner
1977-08 → 1981-07
ended
|
2TG TA40 | — | |
| 17706 — Inlet Sub-assy, Air Cleaner, NO.2 | ||||
| 17752-25010 note |
Inlet Sub-assy, Air Cleaner, NO.2
1977-08 → 1981-07
ended
|
2T,2TB TA40 | — | |
| 17895-34011 note |
Inlet Sub-assy, Air Cleaner, NO.2
1977-08 → 1979-08
ended
|
18R RA40 | — | |
| 17895-34050 |
Inlet Sub-assy, Air Cleaner, NO.2
1980-08 → 1981-07
ended
|
18RC RA40 ARL | — | |
| 17895-34060 |
Inlet Sub-assy, Air Cleaner, NO.2
1977-08 → 1979-08
ended
|
18RC RA40 | — | |
| 17895-34060 |
Inlet Sub-assy, Air Cleaner, NO.2
1979-08 → 1980-08
ended
|
18R,18RC RA40 | — | |
| 17895-34060 |
Inlet Sub-assy, Air Cleaner, NO.2
1980-08 → 1981-07
ended
|
18R,18RC RA40 EUR,GEN | — | |
| 17728 — Valve, Thermostatic | ||||
| 17728-34010 note |
Valve, Thermostatic
1979-08 → 1981-07
ended
|
18R RA40 | — | |
| 17728A — Bush | ||||
| 90386-03001 note |
Bush
1979-08 → 1981-07
ended
|
18R RA40 | — | |
| 17729 — Gasket, Thermostat Valve | ||||
| 17729-34010 note |
Gasket, Thermostat Valve
1979-08 → 1981-07
ended
|
18R RA40 | — | |
| 17749 — Support, Thermostat Valve | ||||
| 17749-34010 note |
Support, Thermostat Valve
1979-08 → 1981-07
ended
|
18R RA40 | — | |
| 17784 — Screen, Air Cleaner | ||||
| 17784-31010 |
Screen, Air Cleaner
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-24010 |
Element Sub-assy, Air Cleaner Filter
1977-08 → 1981-07
ended
|
18RG RA40 | — | |
| 17801-24010 |
Element Sub-assy, Air Cleaner Filter
1977-08 → 1981-07
ended
|
2TG TA40 | — | |
| 17801-24020 |
Element Sub-assy, Air Cleaner Filter
1977-08 → 1981-07
ended
|
2TB TA40 | — | |
| 17801-25010 |
Element Sub-assy, Air Cleaner Filter
1977-08 → 1981-07
ended
|
2T TA40 | — | |
| 17801-34060 |
Element Sub-assy, Air Cleaner Filter
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-24011 |
Gasket, Filter Element
1977-08 → 1981-07
ended
|
2TB TA40 | — | |
| 17841-24020 |
Gasket, Filter Element
1977-08 → 1981-07
ended
|
18RG RA40 | — | |
| 17841-24020 |
Gasket, Filter Element
1977-08 → 1981-07
ended
|
2TG TA40 | — | |
| 17841-31020 |
Gasket, Filter Element
1977-08 → 1981-07
ended
|
2T TA40 | — | |
| 17841-33011 |
Gasket, Filter Element
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-25010 |
Gasket, Air Cleaner Cap
1977-08 → 1981-07
ended
|
2T TA40 | — | |
| 17845-26010 |
Gasket, Air Cleaner Cap
1977-08 → 1981-07
ended
|
2TB TA40 | — | |
| 17845-33011 |
Gasket, Air Cleaner Cap
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 17845-37010 |
Gasket, Air Cleaner Cap
1977-08 → 1981-07
ended
|
18RG RA40 | — | |
| 17845-37010 |
Gasket, Air Cleaner Cap
1977-08 → 1981-07
ended
|
2TG TA40 | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 17848-88110 |
Gasket, Air Cleaner TO Carburetor
1977-08 → 1979-08
ended
|
2TG TA40 | — | |
| 17848-88110 |
Gasket, Air Cleaner TO Carburetor
1977-08 → 1979-08
ended
|
18RG RA40 | — | |
| 17848-88250 |
Gasket, Air Cleaner TO Carburetor
1979-08 → 1981-07
ended
|
18RG RA40 | — | |
| 17848-88250 |
Gasket, Air Cleaner TO Carburetor
1979-08 → 1981-07
ended
|
2TG TA40 | — | |
| 90430-63187 |
Gasket, Air Cleaner TO Carburetor
1977-08 → 1981-07
ended
|
2T,2TB TA40 | — | |
| 90430-72003 |
Gasket, Air Cleaner TO Carburetor
1979-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 90430-72114 |
Gasket, Air Cleaner TO Carburetor
1977-08 → 1979-08
ended
|
18R,18RC RA40 | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-26010 note |
Hose, Air Cleaner, NO.1
1977-08 → 1980-10
ended
|
2T TA40 | — | |
| 17881-26020 note |
Hose, Air Cleaner, NO.1
1977-08 → 1980-10
ended
|
2TB TA40 | — | |
| 17881-26020 note |
Hose, Air Cleaner, NO.1
1980-10 → 1981-07
ended
|
2T,2TB TA40 | — | |
| 17881-34011 |
Hose, Air Cleaner, NO.1
1977-08 → 1981-07
ended
|
18RG RA40 | — | |
| 17881-34011 |
Hose, Air Cleaner, NO.1
1977-08 → 1981-07
ended
|
2TG TA40 | — | |
| 17881-34110 note |
Hose, Air Cleaner, NO.1
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90072-46002 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1977-08 → 1981-07
ended
|
2TG TA40 | — | |
| 90072-46002 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1977-08 → 1981-07
ended
|
18RG RA40 | — | |
| 90460-47036 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 17882 — Hose, Air Cleaner, NO.2 | ||||
| 17882-27020 |
Hose, Air Cleaner, NO.2
1977-08 → 1978-05
ended
|
2T,2TB TA40 | — | |
| 17882-27030 |
Hose, Air Cleaner, NO.2
1978-05 → 1981-07
ended
|
2T,2TB TA40 | — | |
| 17882-34070 |
Hose, Air Cleaner, NO.2
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01003 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1977-08 → 1981-07
ended
|
2T,2TB TA40 | — | |
| 90460-01003 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 90460-58004 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-12 → 1981-01
ended
|
18R,18RC RA40 | — | |
| 90460-58004 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-12 → 1981-01
ended
|
2T,2TB TA40 | — | |
| 90460-58013 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-08 → 1978-12
ended
|
2T,2TB TA40 | — | |
| 90460-58013 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-08 → 1978-12
ended
|
18R,18RC RA40 | — | |
| 96111-10560 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1977-08 → 1978-08
ended
|
2T,2TB TA40 | — | |
| 96111-10560 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1977-08 → 1978-08
ended
|
18R,18RC RA40 | — | |
| 96111-10570 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-01 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 96111-10570 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-01 → 1981-07
ended
|
2T,2TB TA40 | — | |
| 17883 — Hose, Air Cleaner, NO.3 | ||||
| 17883-26020 |
Hose, Air Cleaner, NO.3
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 17883-26020 |
Hose, Air Cleaner, NO.3
1977-08 → 1981-07
ended
|
2T,2TB TA40 | — | |
| 17883A — Clamp(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-60001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1977-08 → 1981-07
ended
|
18R,18RC RA40 | — | |
| 90460-60001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1977-08 → 1981-07
ended
|
2T,2TB TA40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
