Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

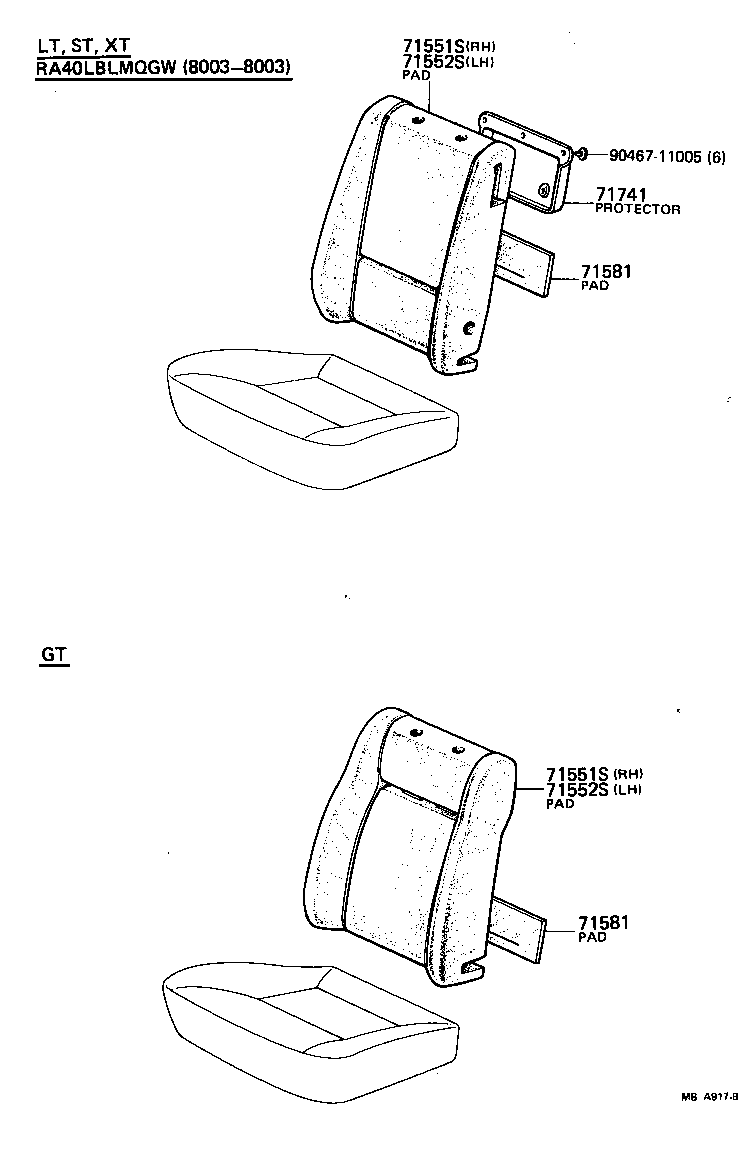

Exploded illustration MBA917B 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (5 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (5 parts) 9046711005 — not listed in this catalogue 71741 — PROTECTOR, FRONT SEATBACK HEADREST STAY (2 parts) 71581 — PAD, FRONT SEATBACK SILENCER (1 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (5 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (5 parts) 71581 — PAD, FRONT SEATBACK SILENCER (1 parts)
MBA917B · 7 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
13 parts on this figure
Part number Description Fitment Price
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-14070 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1979-08 → 1980-10 ended
RA40,TA40 GT —
71551-14090 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1980-10 → 1981-07 ended
RA40,TA40 —
71561-14110 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1980-03 → 1980-03 ended
RA40 LHD GT EUG —
71561-14110 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1979-08 → 1980-10 ended
RA40,TA40 LT,ST,XT —
71561-14120 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1980-08 → 1980-10 ended
RA40,TA40 ST (EUR,GEN) —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71551-14070 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1979-08 → 1980-10 ended
RA40,TA40 GT —
71551-14090 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1980-10 → 1981-07 ended
RA40,TA40 —
71561-14110 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1980-03 → 1980-03 ended
RA40 LHD GT EUG —
71561-14110 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1979-08 → 1980-10 ended
RA40,TA40 LT,ST,XT —
71561-14120 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1980-08 → 1980-10 ended
RA40,TA40 ST (EUR,GEN) —
71581 — Pad, Front Seatback Silencer
71571-14070 Pad, Front Seatback Silencer
1979-08 → 1981-07 ended
RA40,TA40 —
71741 — Protector, Front Seatback Headrest Stay
71741-14050 note Protector, Front Seatback Headrest Stay
1980-03 → 1980-03 ended
RA40 LHD GT EUG —
71741-14050 Protector, Front Seatback Headrest Stay
1979-08 → 1981-07 ended
RA40,TA40 LT,ST,XT —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
