Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

17 part groups · 5 illustrations

Illustrations

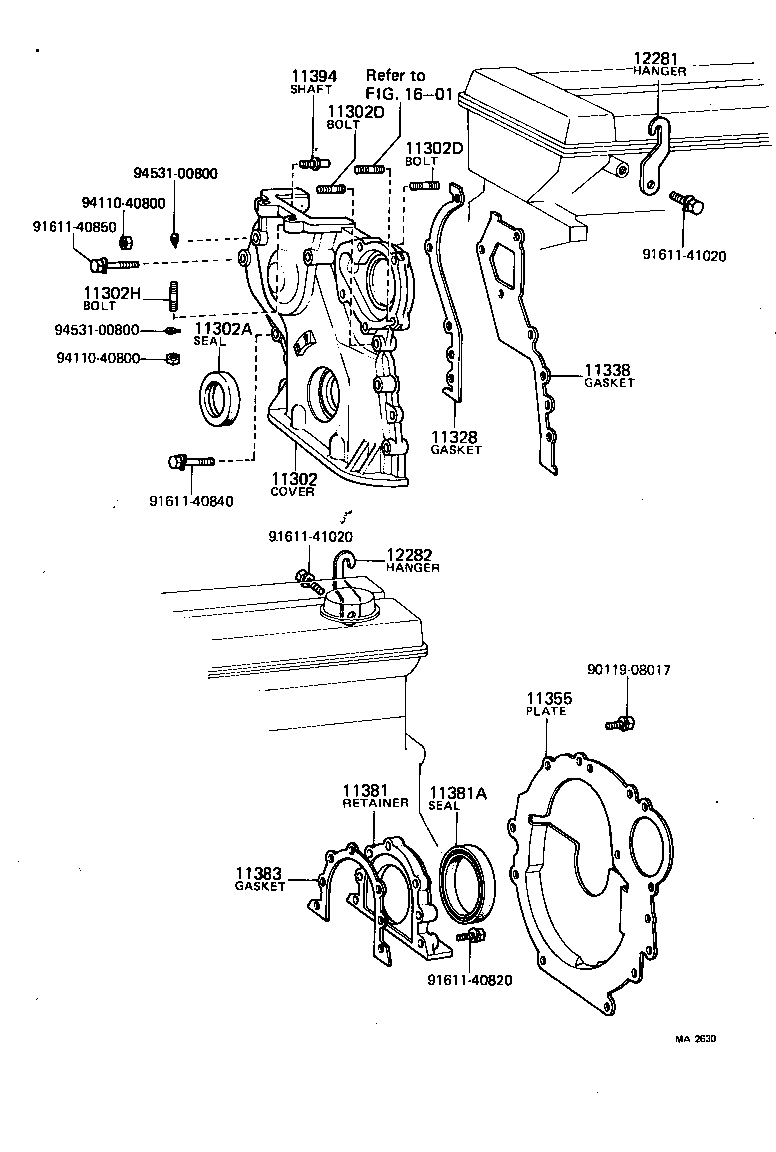

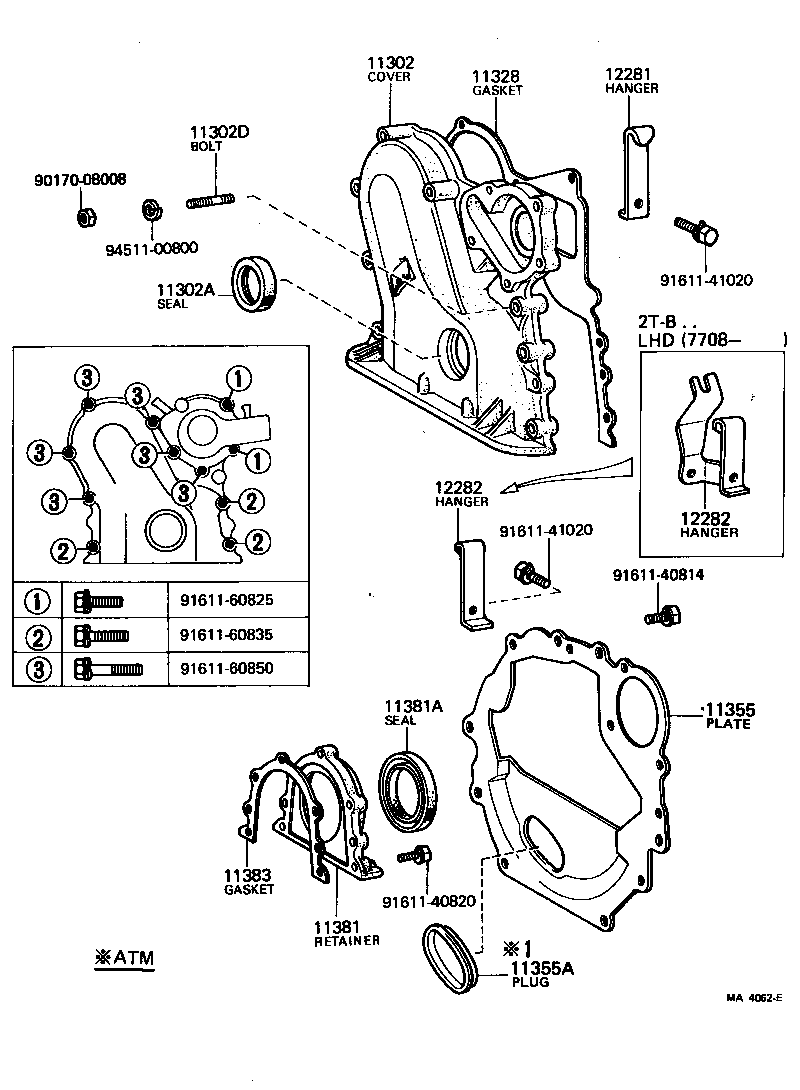

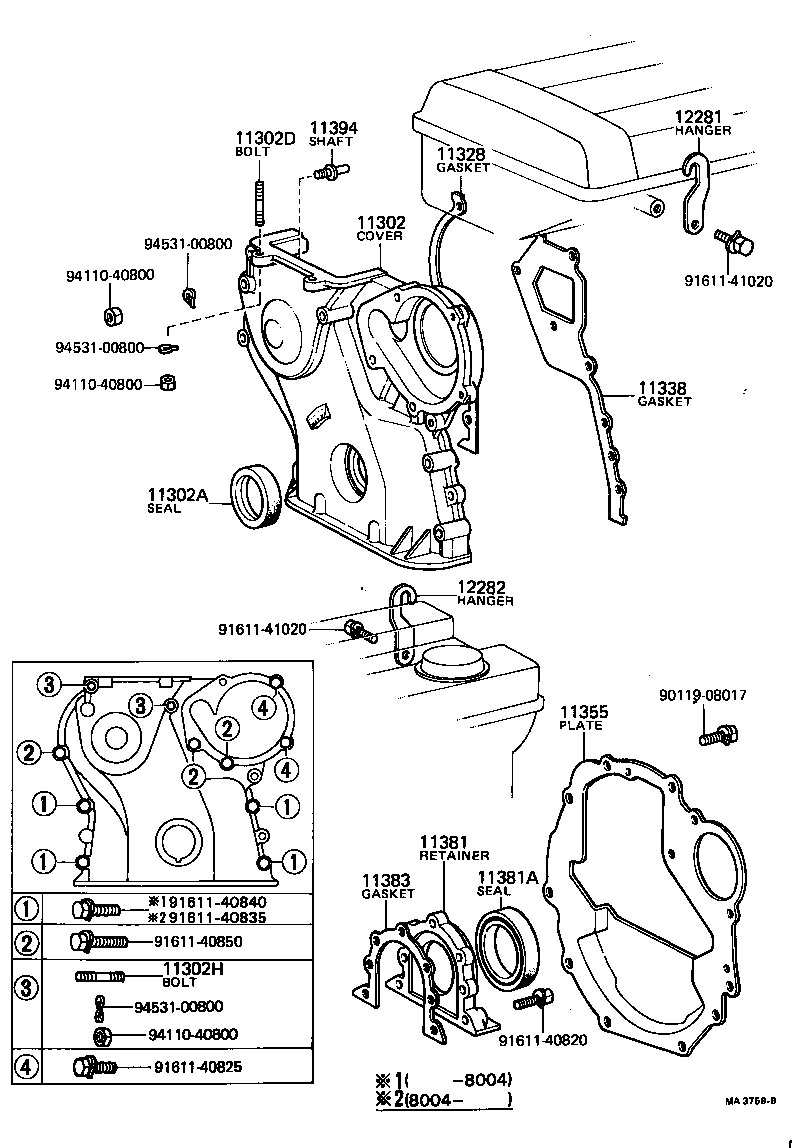

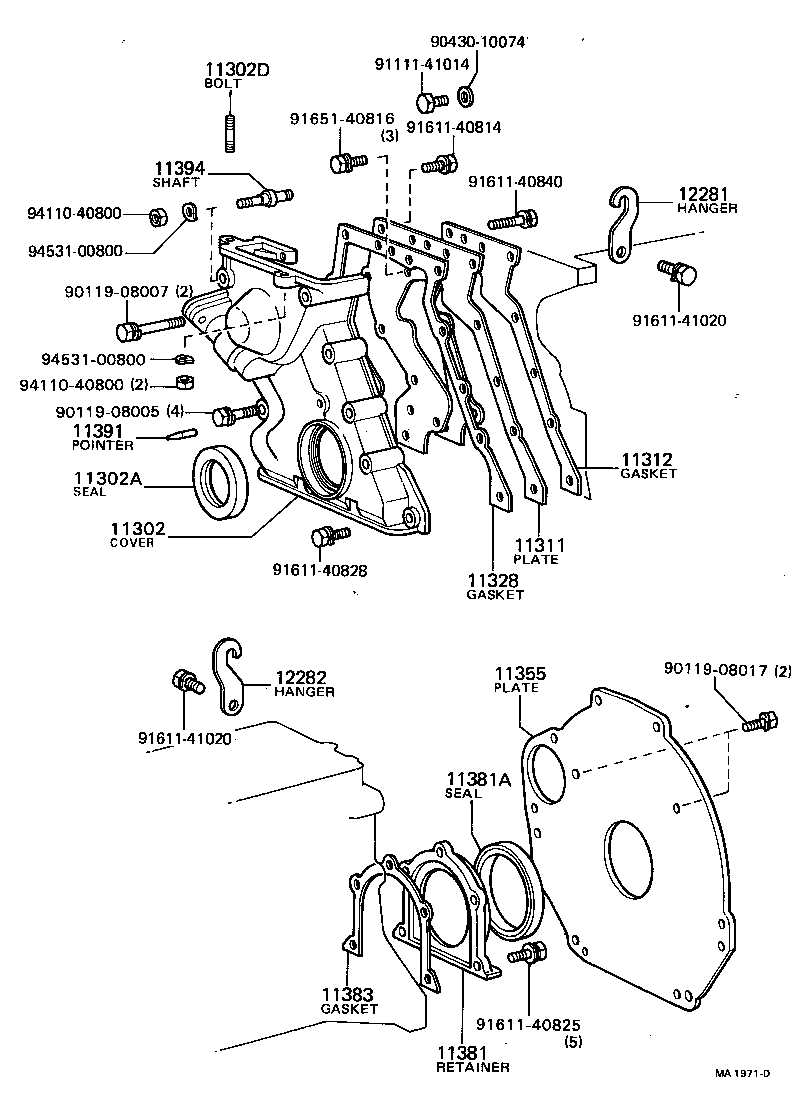

Figure MA3526C MA3526C 1977-08 → — Figure MA1971D MA1971D 1977-08 → — Figure MA4062E MA4062E 1977-08 → — Figure MA2630 MA2630 1977-08 → 1979-08 Figure MA3759B MA3759B 1979-08 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302D Bolt, Stud(FOR TIMING GEAR COVER)
11302H Bolt, Stud(FOR TIMING GEAR COVER)
11311 Plate, Front End
11312 Gasket, Front End Plate
11328 Gasket, Timing Gear OR Chain Cover
11338 Gasket, Timing Chain Cover, NO.2
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11391 Pointer, Timing
11394 Shaft, Chain Tenshioner
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
