Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

20 part groups · 4 illustrations

Illustrations

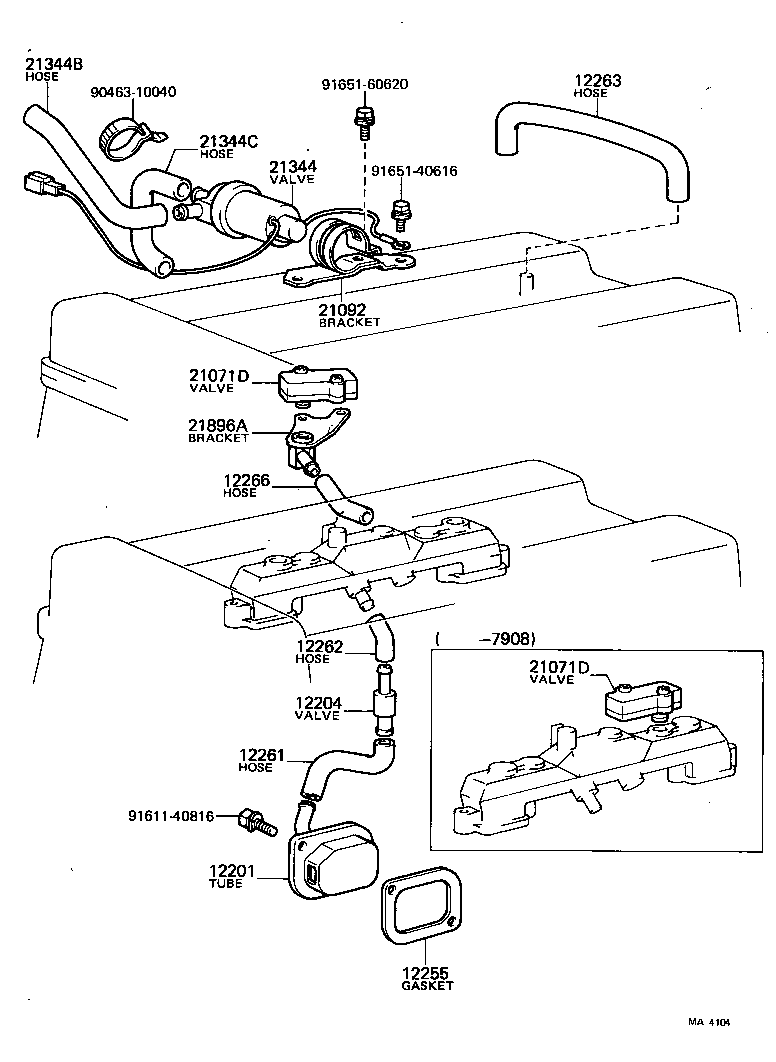

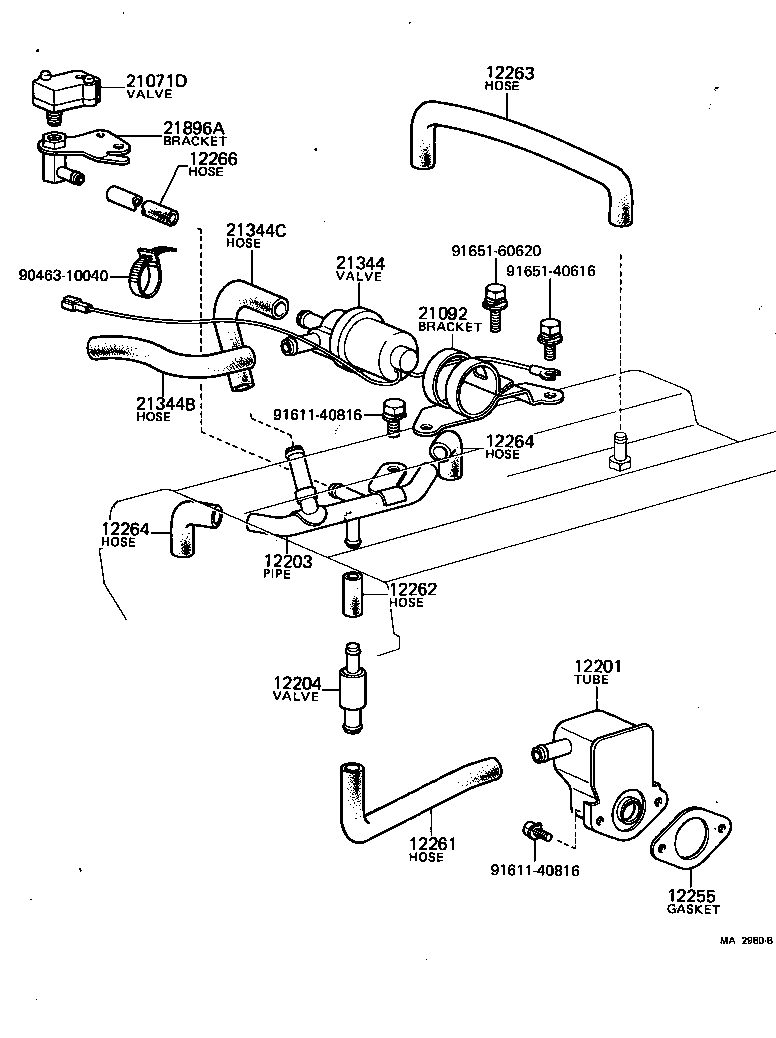

Figure MA3131B MA3131B 1977-08 → — Figure MA4104 MA4104 1977-08 → — Figure MA2979A MA2979A 1977-08 → — Figure MA2980B MA2980B 1977-08 → —

Part groups

PNCDescription
11271 Cover, Cylinder Block Side
11273 Gasket, Cylinder Block Side Cover
12201 Tube Sub-assy, Ventilation
12203 Pipe Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12255 Gasket, Ventilation
12261 Hose, Ventilation
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12264 Hose, Ventilation, NO.4
12266 Hose, Ventilation Pipe TO Thermostatic Valve
21071D Valve Sub-assy, Thermostatic(FOR VENTILATION HOSE)
21092 Bracket Sub-assy, Throttle Solenoid Valve
21344 Valve, Throttle Solenoid
21344B Hose, NO.1(SOLENOID VALVE TO 3 WAY)
21344C Hose, NO.2(SOLENOID VALVE TO VENTILATION PIPE)
21896A Bracket, Thermostatic Valve(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
