Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

14 part groups · 2 illustrations

Illustrations

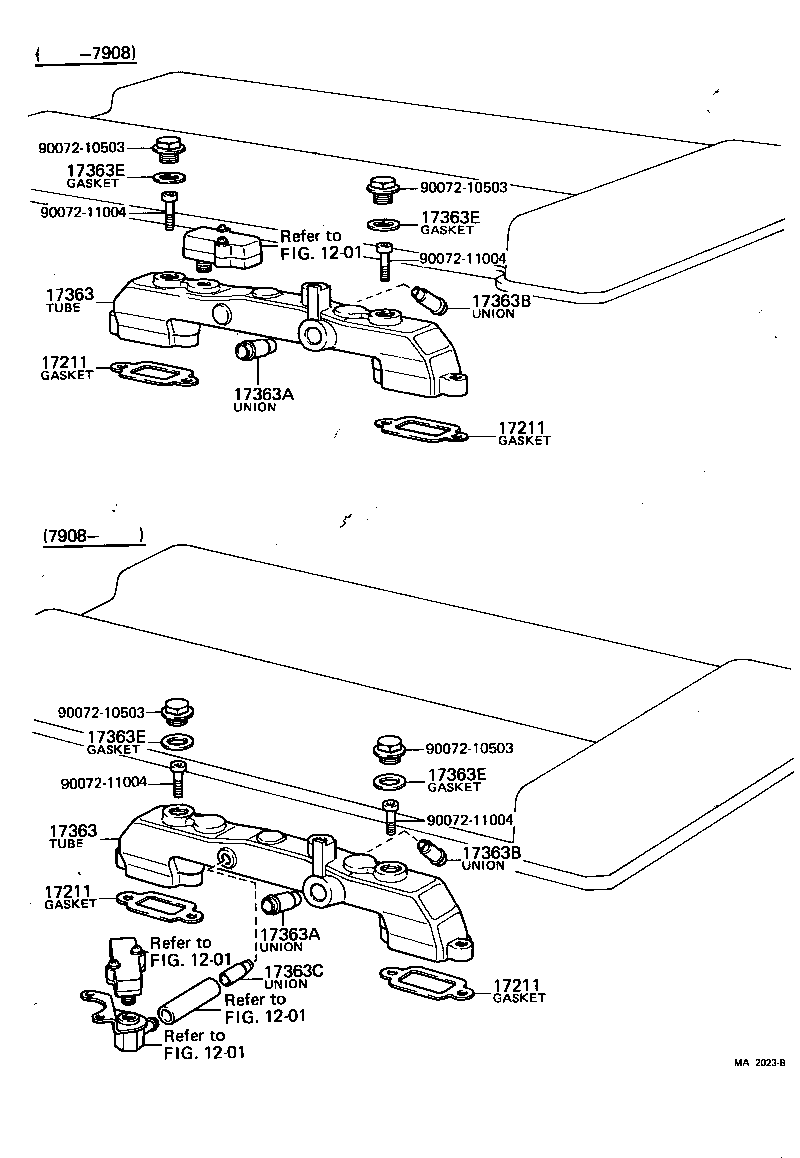

Figure MA4924 MA4924 1977-08 → — Figure MA2023B MA2023B 1977-08 → —

Part groups

PNCDescription
17211 Gasket, Air Balance Tube
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17355 Nozzle, Air Injection
17363 Tube, Air Balance
17363A Union, NO.1(FOR AIR BALANCE TUBE)
17363B Union, NO.2(FOR AIR BALANCE TUBE)
17363C Union, NO.3(FOR AIR BALANCE TUBE)
17363E Gasket(FOR AIR BALANCE TUBE)
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
17670 Valve Assy, Air By-pass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
