Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 16 illustrations

Illustrations

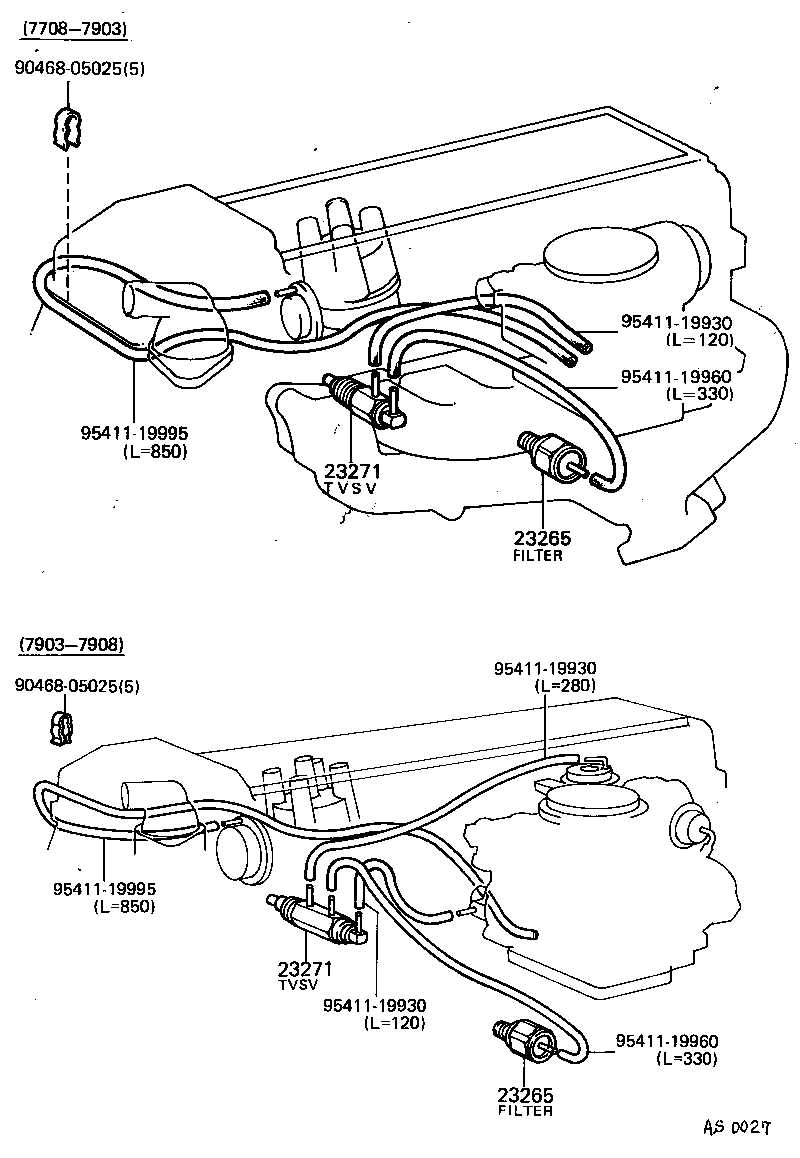

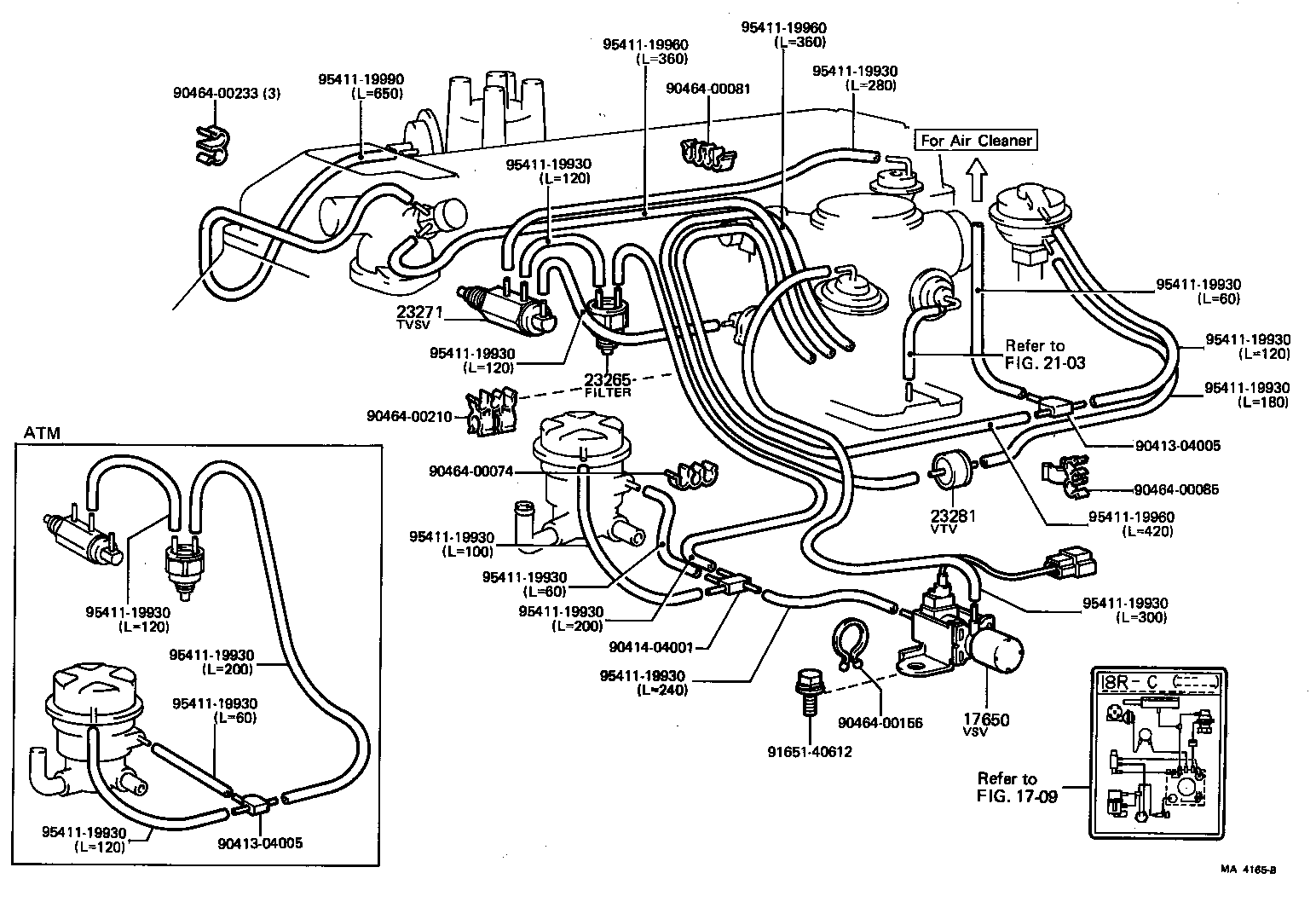

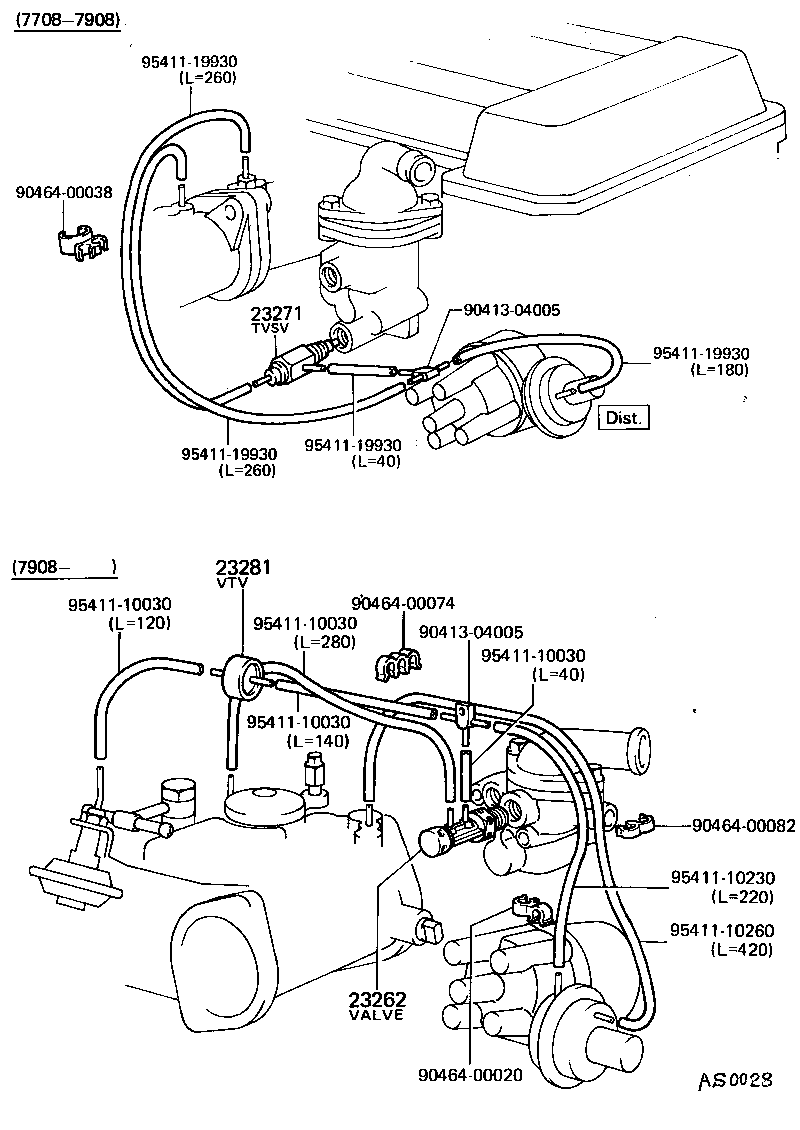

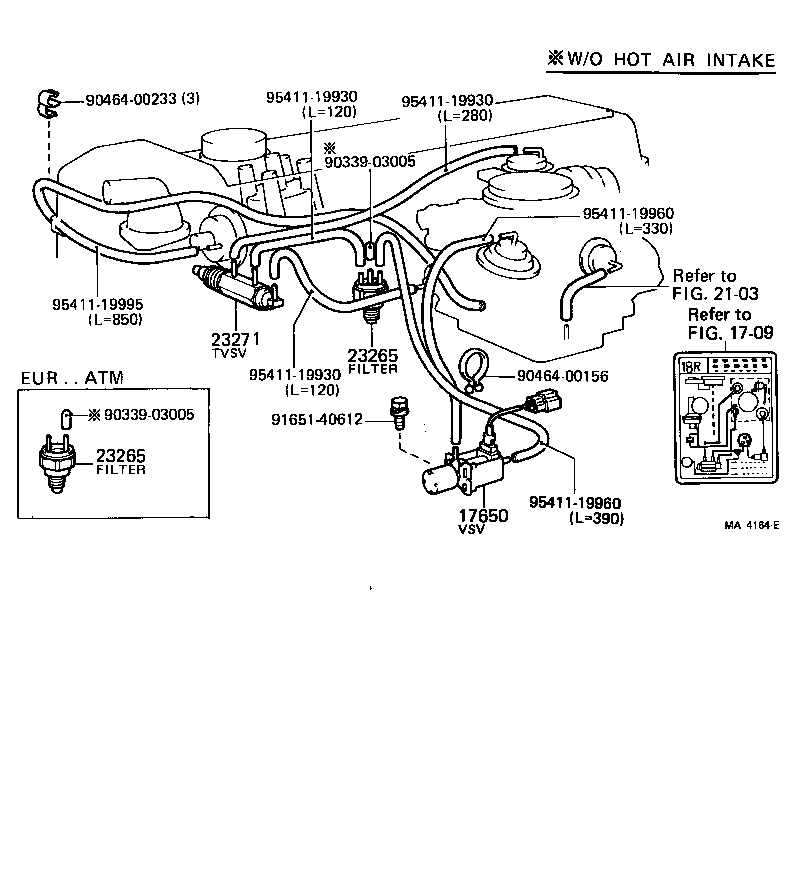

Figure MA9501 MA9501 1977-08 → — Figure MA4340A MA4340A 1977-08 → — Figure AS0027 AS0027 1977-08 → 1979-03 Figure MA3943 MA3943 1979-03 → 1979-08 Figure MA4164E MA4164E 1979-08 → — Figure MA2583C MA2583C 1977-08 → 1979-08 Figure MA2584E MA2584E 1977-08 → 1979-08 Figure MA4165B MA4165B 1979-08 → — Figure AS0028 AS0028 1977-08 → — Figure MA9501 MA9501 1977-08 → — Figure MA3146A MA3146A 1977-10 → 1979-08 Figure MA4025 MA4025 1979-08 → — Figure MA4026B MA4026B 1979-08 → — Figure MA2256I MA2256I 1977-08 → — Figure MA2012D MA2012D 1977-08 → 1979-08 Figure MA4070 MA4070 1979-08 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23288 Jet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
