Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

16 part groups · 5 illustrations

Illustrations

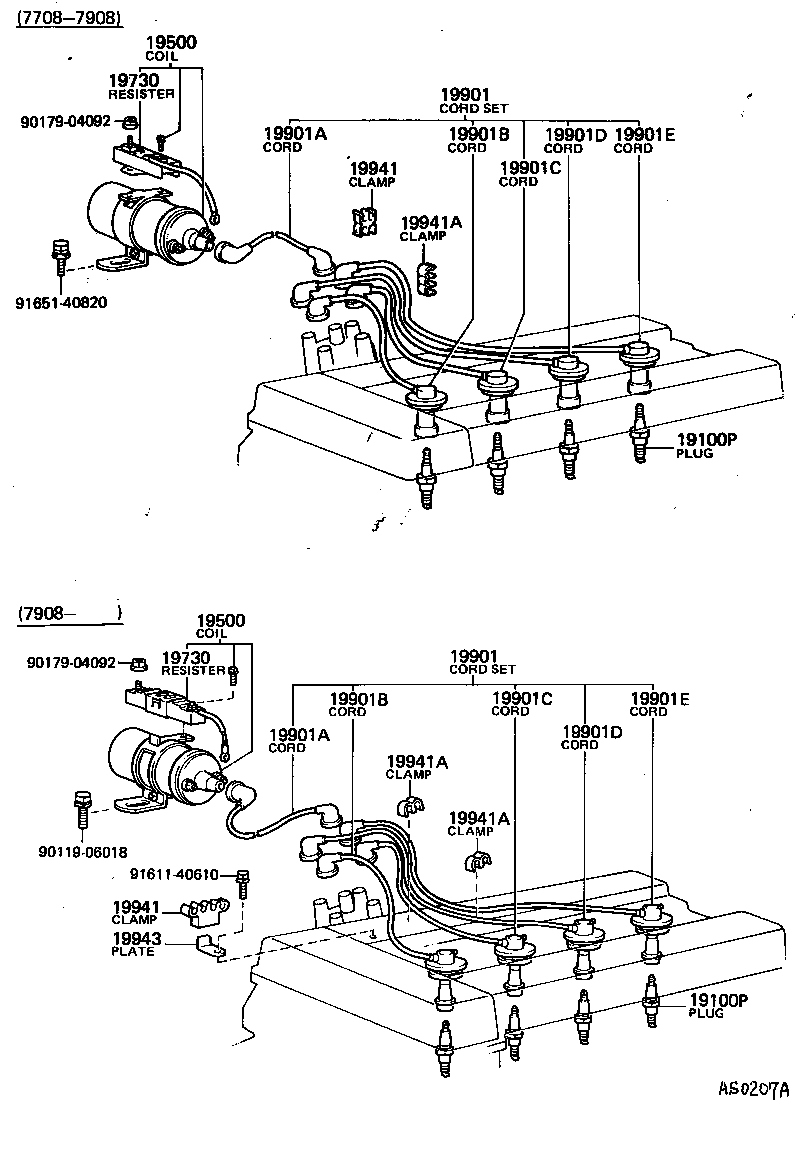

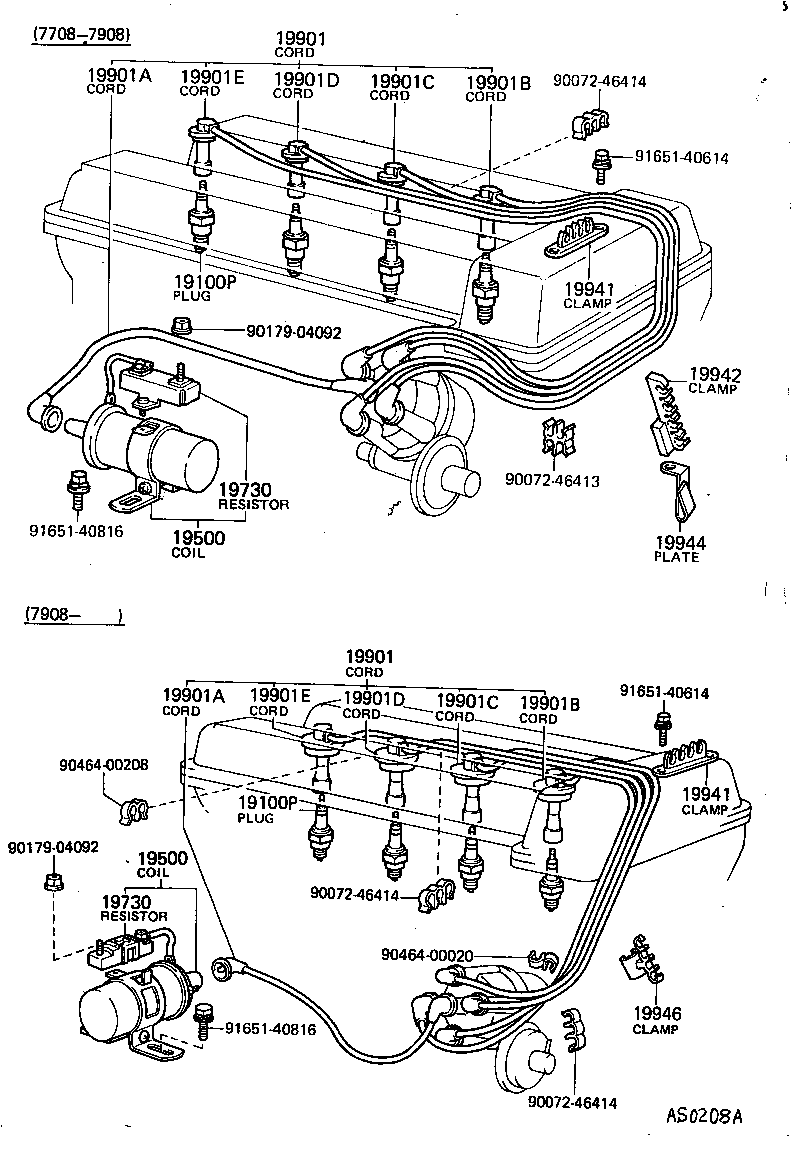

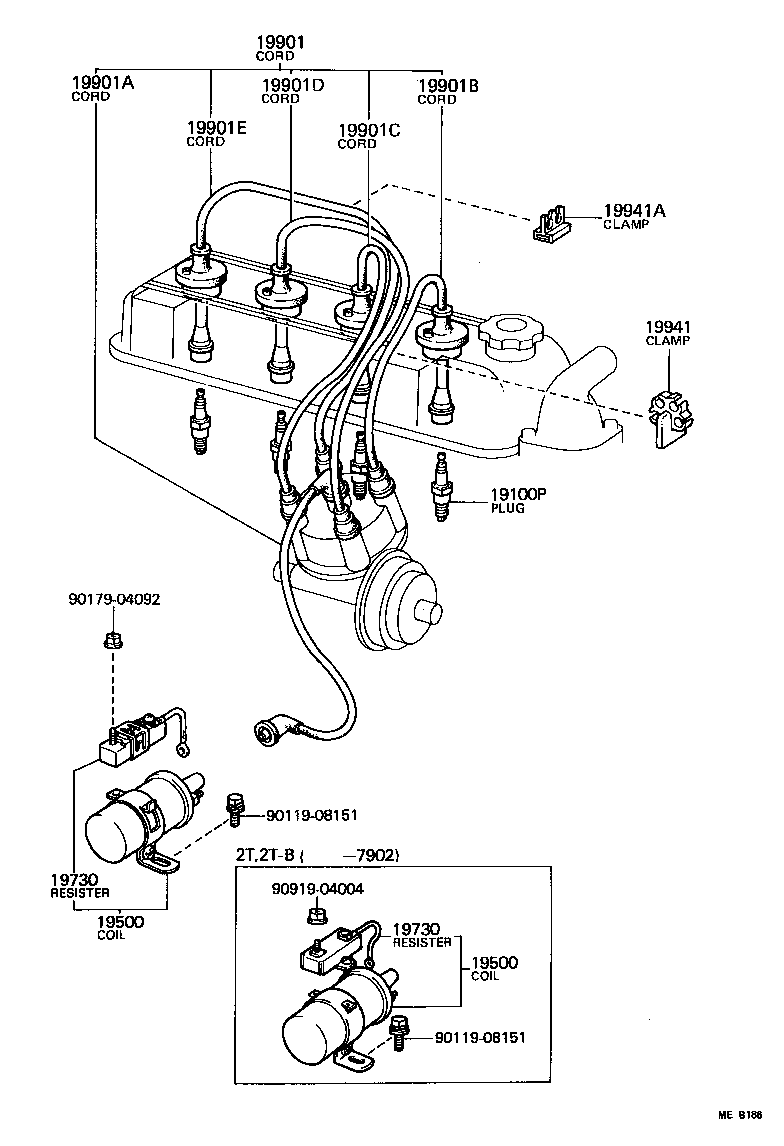

Figure ME6648C ME6648C 1977-08 → — Figure AS0208A AS0208A 1977-08 → — Figure MEB186 MEB186 1977-08 → — Figure AS0207A AS0207A 1977-08 → 1979-08 Figure ME8102A ME8102A 1979-08 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19730 Resistor, Ignition Coil
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901R Ring, Rubber Spark Plug Resistive Cord
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
19942 Clamp, Resistive Cord, NO.2
19943 Plate, Resistive Cord Clamp Support NO.1
19944 Plate, Resistive Cord Clamp Support, NO.2
19946 Clamp, Resistive Cord, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
