Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

11 part groups · 6 illustrations

Illustrations

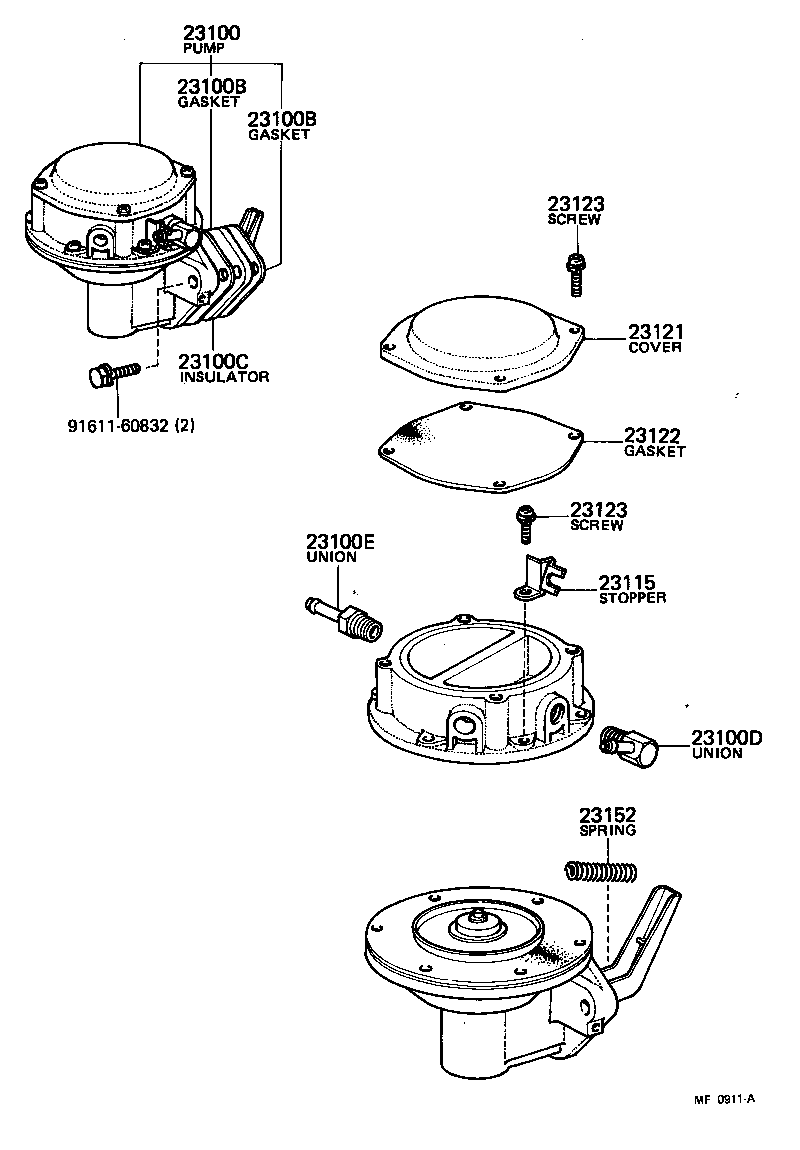

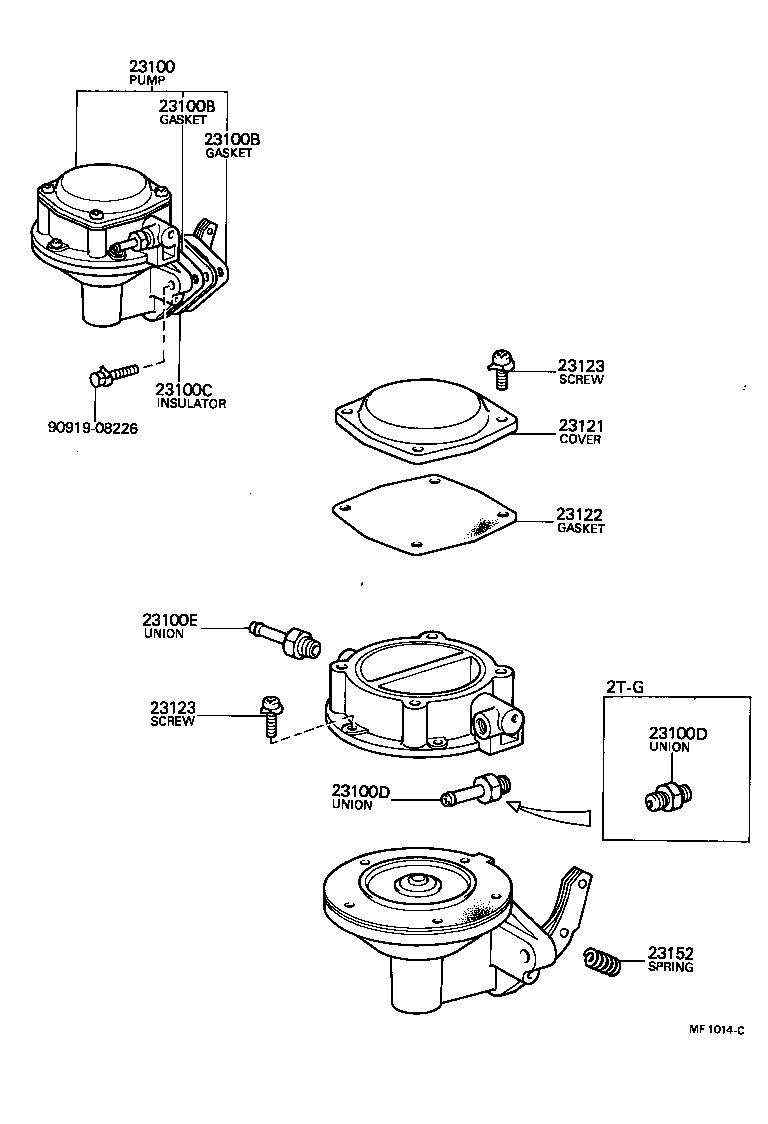

Figure MF0843B MF0843B 1977-08 → 1979-08 Figure MF2340B MF2340B 1979-08 → — Figure MF0911A MF0911A 1977-08 → — Figure MF1014C MF1014C 1977-08 → 1979-08 Figure MF1014C MF1014C 1979-08 → — Figure MF2289 MF2289 1979-08 → —

Part groups

PNCDescription
23100 Pump Assy, Fuel
23100B Gasket, Fuel Pump
23100C Insulator, Fuel Pump
23100D Union, Nipple(FOR FUEL OUTLET)
23100E Union, Nipple(FOR FUEL INLET)
23100G Union, Nipple(FOR FUEL RETURN HOSE)
23115 Stopper, Union Nipple
23121 Cover, Fuel Pump
23122 Gasket, Fuel Pump Cover
23123 Screw, Cover Set, NO.1
23152 Spring, Rocker Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
