Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

12 part groups · 3 illustrations

Illustrations

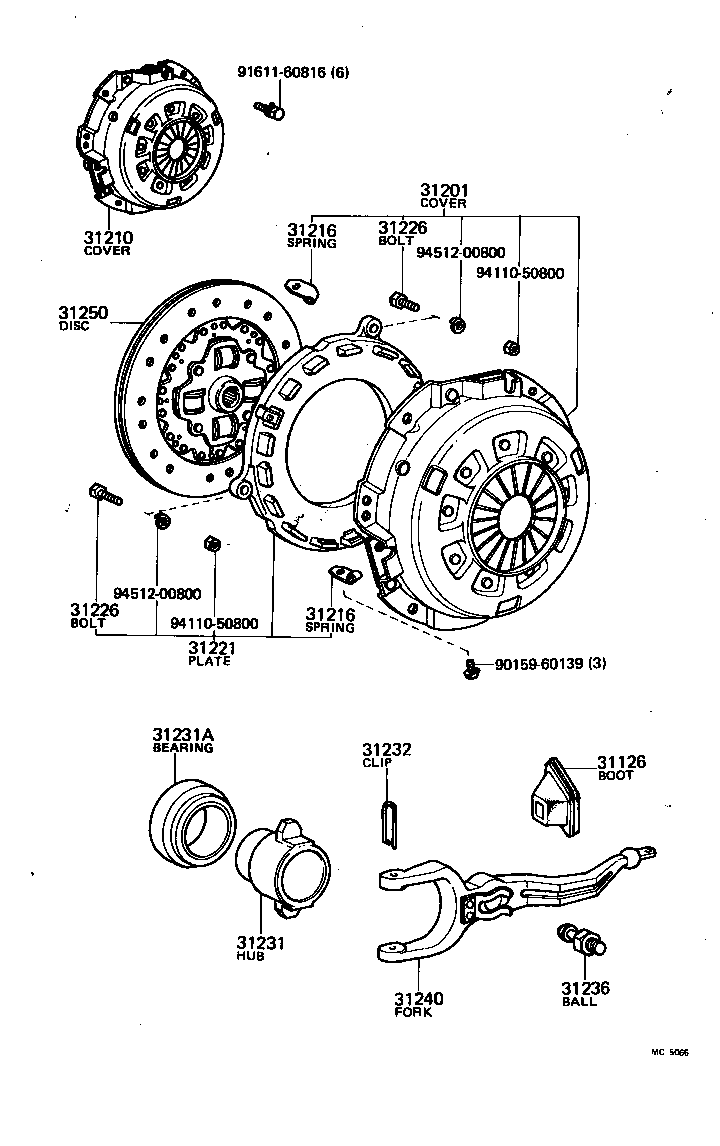

Figure MC5026 MC5026 1977-08 → — Figure MC5026 MC5026 1978-08 → — Figure MC5066 MC5066 1977-08 → 1978-08

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31201 Cover Sub-assy, Clutch
31210 Cover Assy, Clutch
31216 Spring, Clutch Retracting
31221 Plate, Clutch Pressure
31226 Bolt, Clutch Pressure Plate
31231 Hub, Clutch Release Bearing
31231A Bearing, Ball(FOR CLUTCH RELEASE HUB)
31232 Clip OR Spring, Release Bearing Hub
31236 Ball, Release Fork
31240 Fork Assy, Clutch Release
31250 Disc Assy, Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
