Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

21 part groups · 2 illustrations

Illustrations

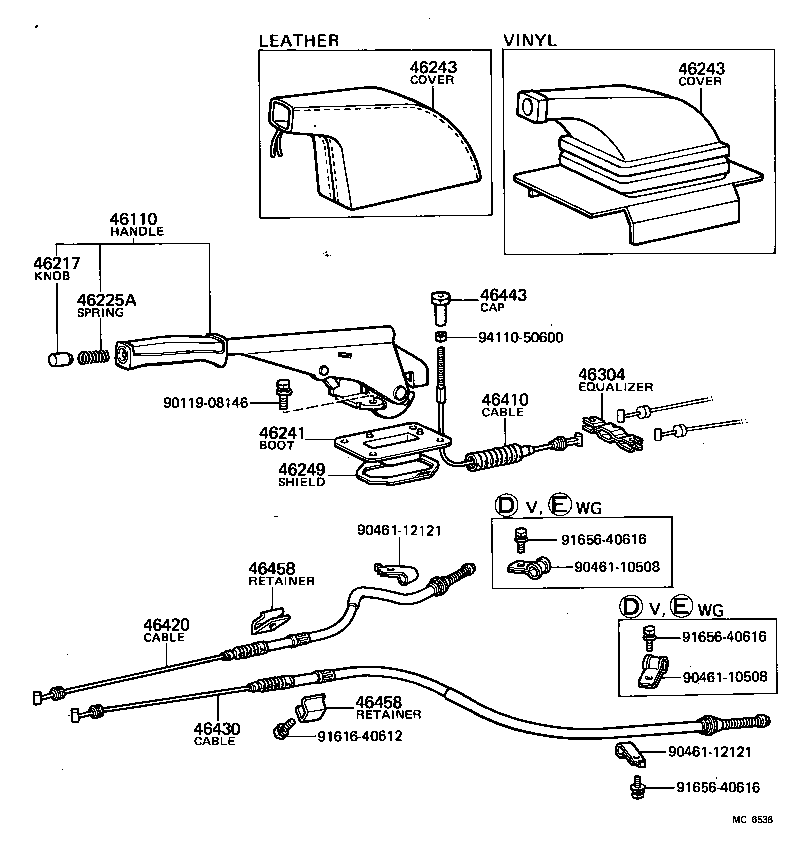

Figure MC5493A MC5493A 1977-08 → 1979-08 Figure MC6536 MC6536 1979-08 → —

Part groups

PNCDescription
46110 Handle Assy, Parking Brake Control
46110C Pin(FOR PARKING BRAKE HANDLE SET)
46110D Spacer(FOR PARKING BRAKE HANDLE)
46217 Knob, Parking Brake Release Rod
46225 Rod, Parking Brake Pawl Release
46225A Spring, Compression(FOR PARKING BRAKE PAWL ROD)
46231 Sector, Parking Brake Lever
46236 Pin, Lever Pivot
46241 Boot, Parking Brake Lever
46243 Cover, Parking Brake Lever
46249 Shield, Parking Brake Hole
46304 Equalizer Sub-assy, Parking Brake
46311 Pawl, Parking Brake
46311B Pin, Parking Brake Pawl Pivot
46361 Rod, Parking Brake Pull
46361C Grommet(FOR PARKING BRAKE PULL ROD)
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46443 Cap, Cable Adjusting
46458 Retainer, Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
