Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

19 part groups · 6 illustrations

Illustrations

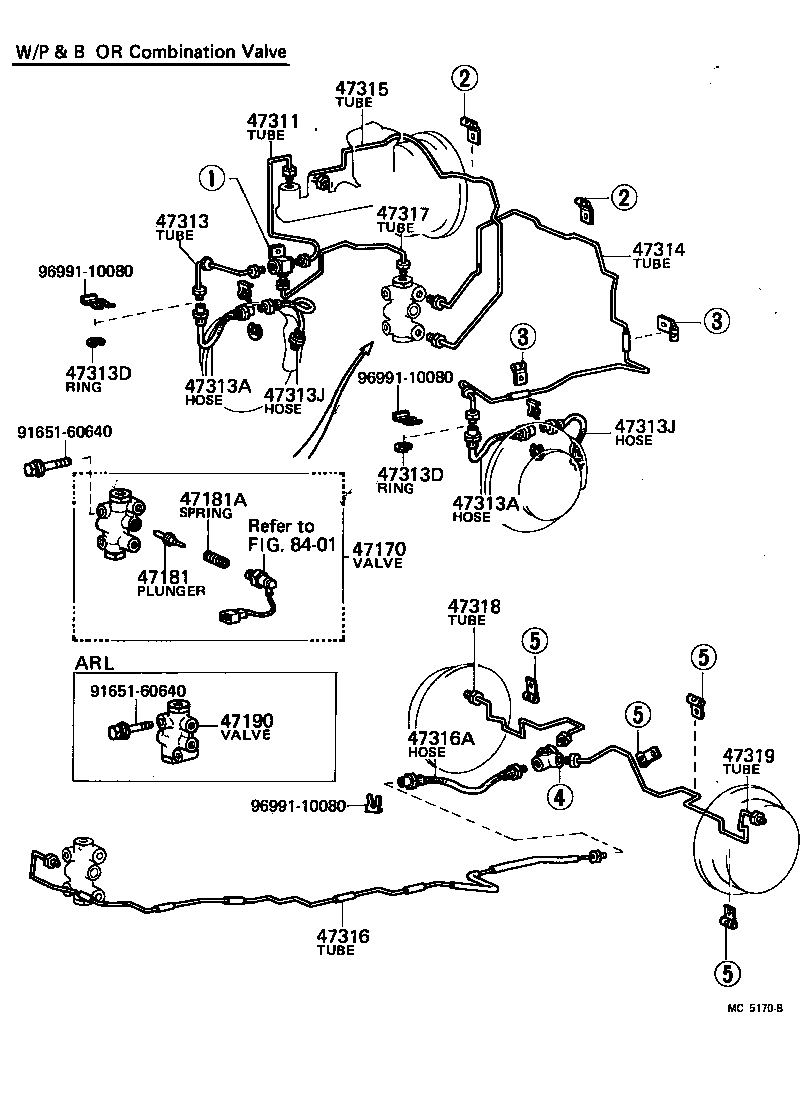

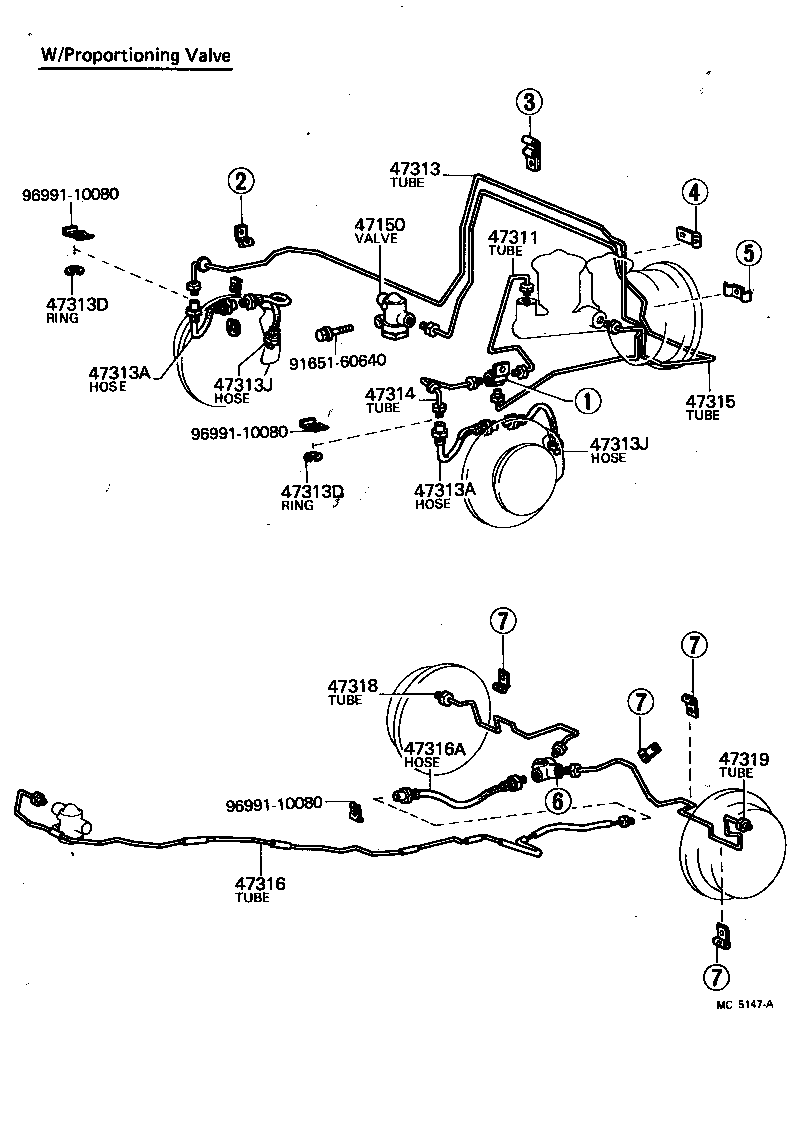

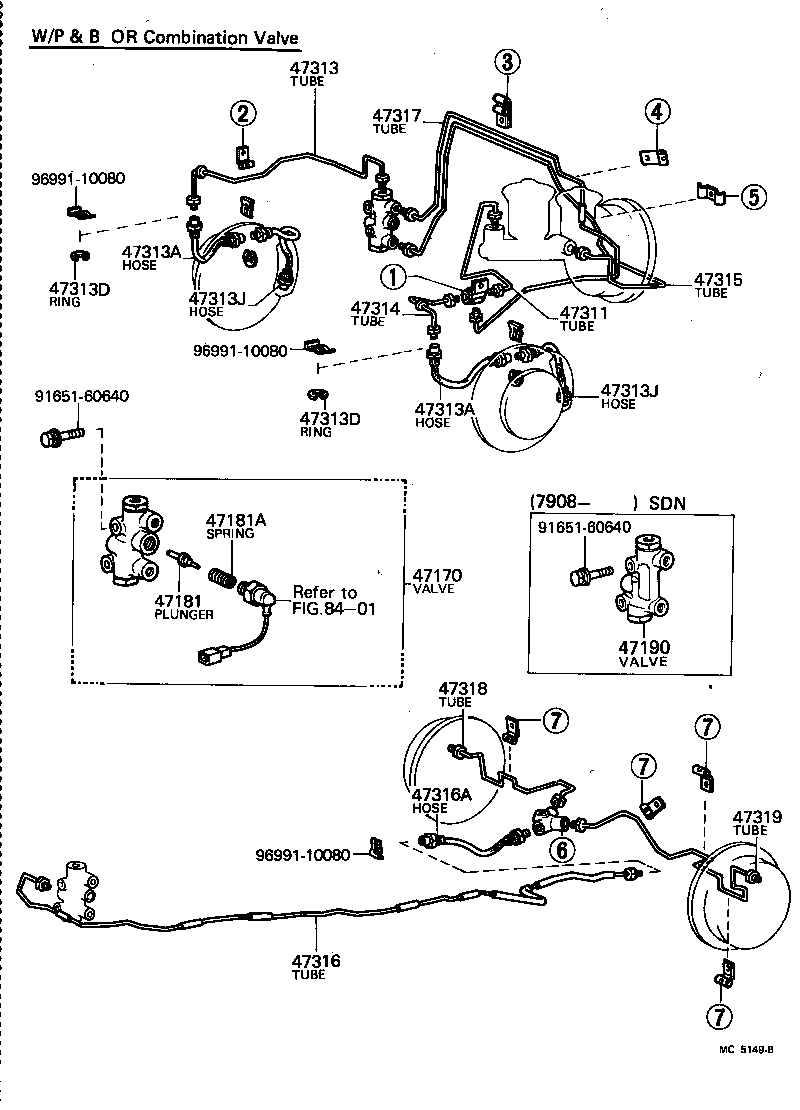

Figure MC5146C MC5146C 1977-08 → — Figure MC5170B MC5170B 1977-08 → — Figure MC5611 MC5611 1977-08 → — Figure MC5147A MC5147A 1977-08 → — Figure MC5149B MC5149B 1977-08 → — Figure MC5172 MC5172 1977-08 → —

Part groups

PNCDescription
47150 Valve Assy, Proportioning
47170 Valve Assy, Brake Combination
47181 Plunger, Differential Switch
47181A Spring, Compression(FOR DIFFERENTIAL VALVE SWITCH)
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313D Ring, E(FOR FRONT FLEXIBLE HOSE SETTING)
47313J Hose, Flexible, NO.2(FOR FRONT)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318A Way(FOR REAR RH BRAKE TUBE)
47319 Tube, Front Brake, NO.9
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
