Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 2 illustrations

Illustrations

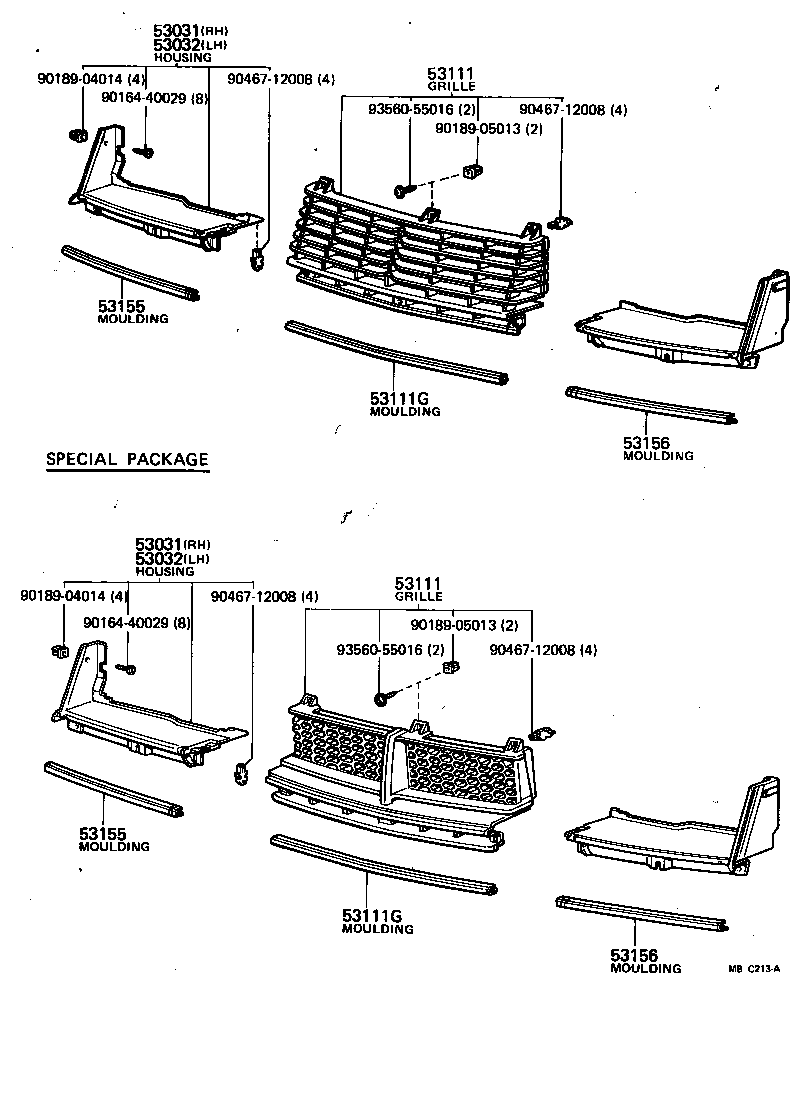

Figure MB7419D MB7419D 1977-08 → 1979-08 Figure MBC213A MBC213A 1979-08 → —

Part groups

PNCDescription
53031 Housing, Headlamp, RH
53032 Housing, Headlamp, LH
53111 Grille, Radiator
53111C Moulding, Radiator Grille, Upper
53111F Moulding, Radiator Grille, Center
53111G Moulding, Radiator Grille, Lower
53155 Moulding, Headlamp Door, RH
53156 Moulding,Headlamp Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
