Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

9 part groups · 4 illustrations

Illustrations

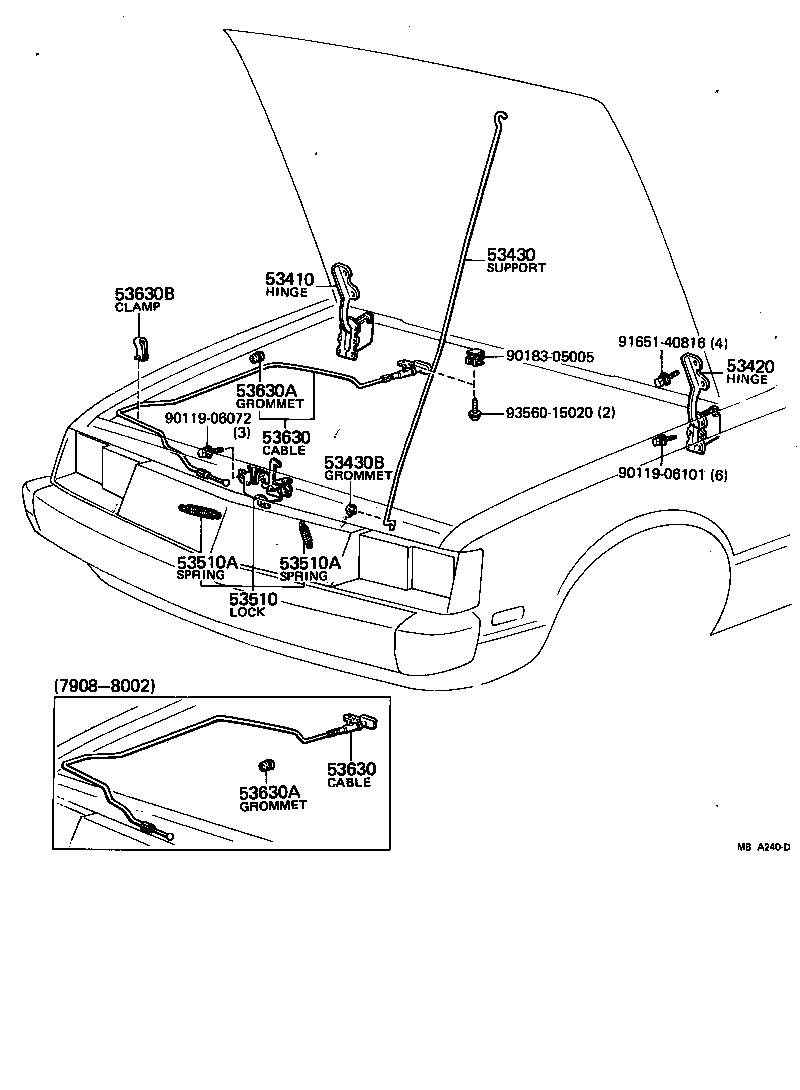

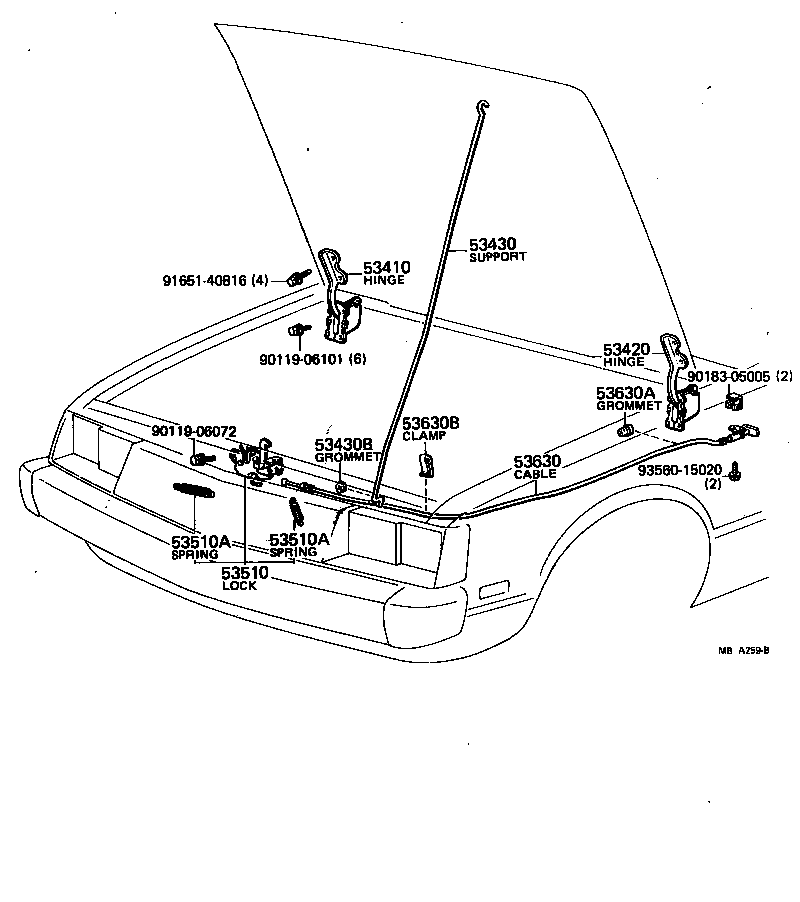

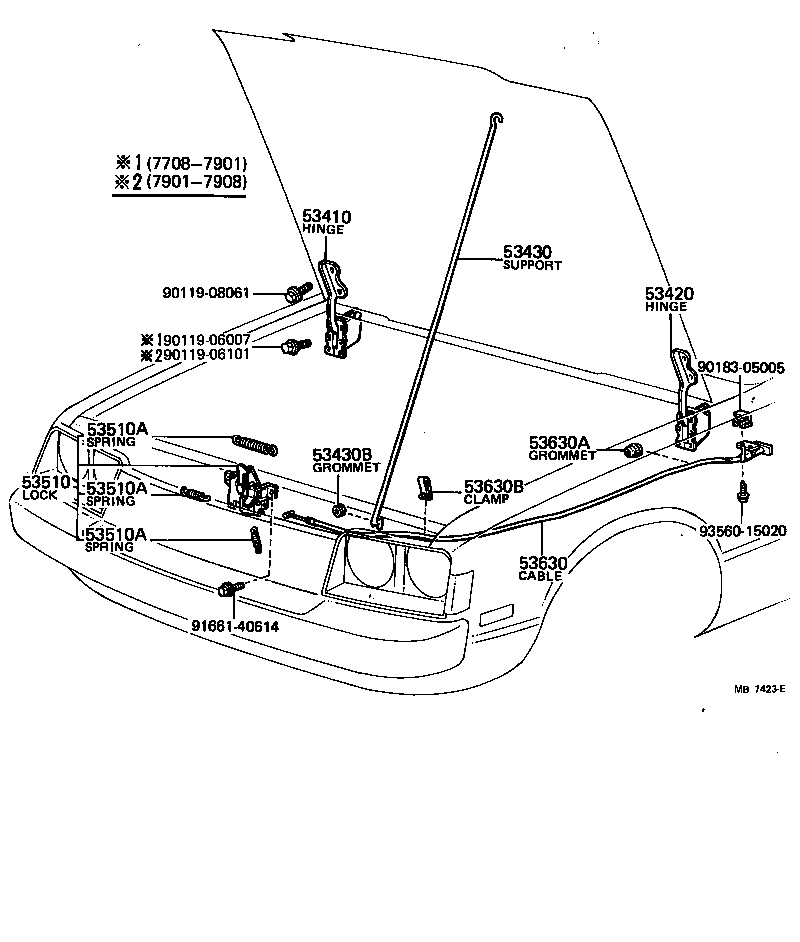

Figure MB7422F MB7422F 1977-08 → 1979-08 Figure MBA240D MBA240D 1979-08 → — Figure MB7423E MB7423E 1977-08 → 1979-08 Figure MBA259B MBA259B 1979-08 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53430 Support Assy, Hood
53430B Grommet(FOR HOOD SUPPORT)
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53630 Cable Assy, Hood Lock Control
53630A Grommet(FOR HOOD LOCK CONTROL CABLE)
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
