Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

19 part groups · 3 illustrations

Illustrations

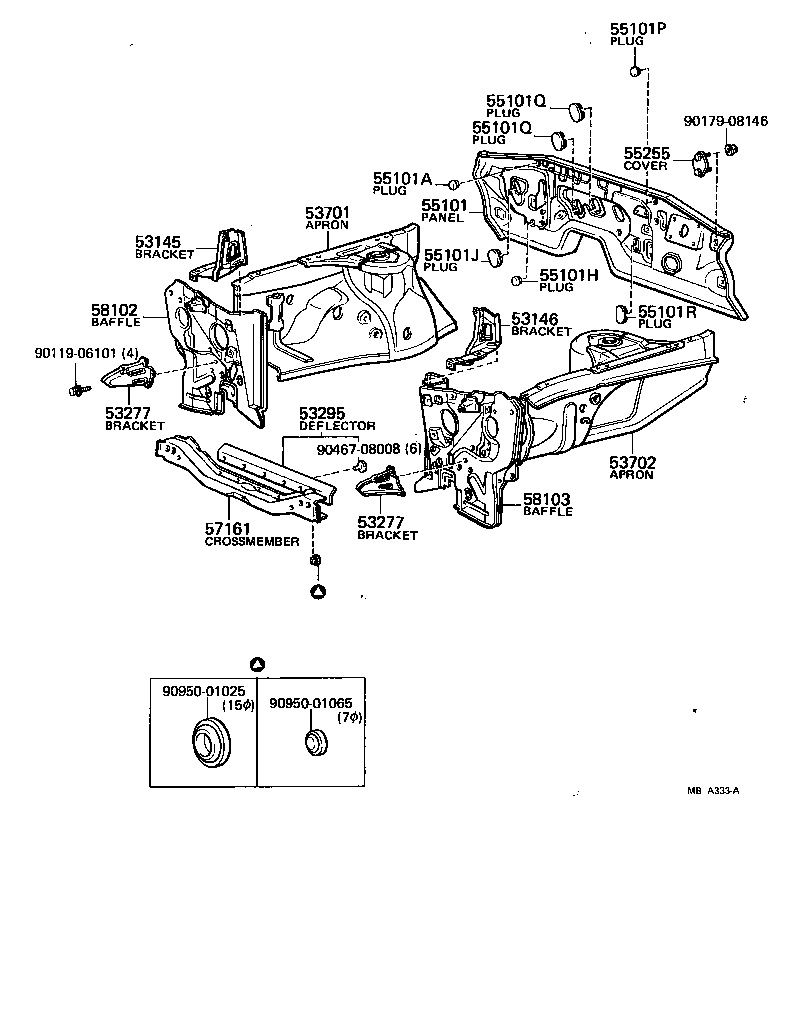

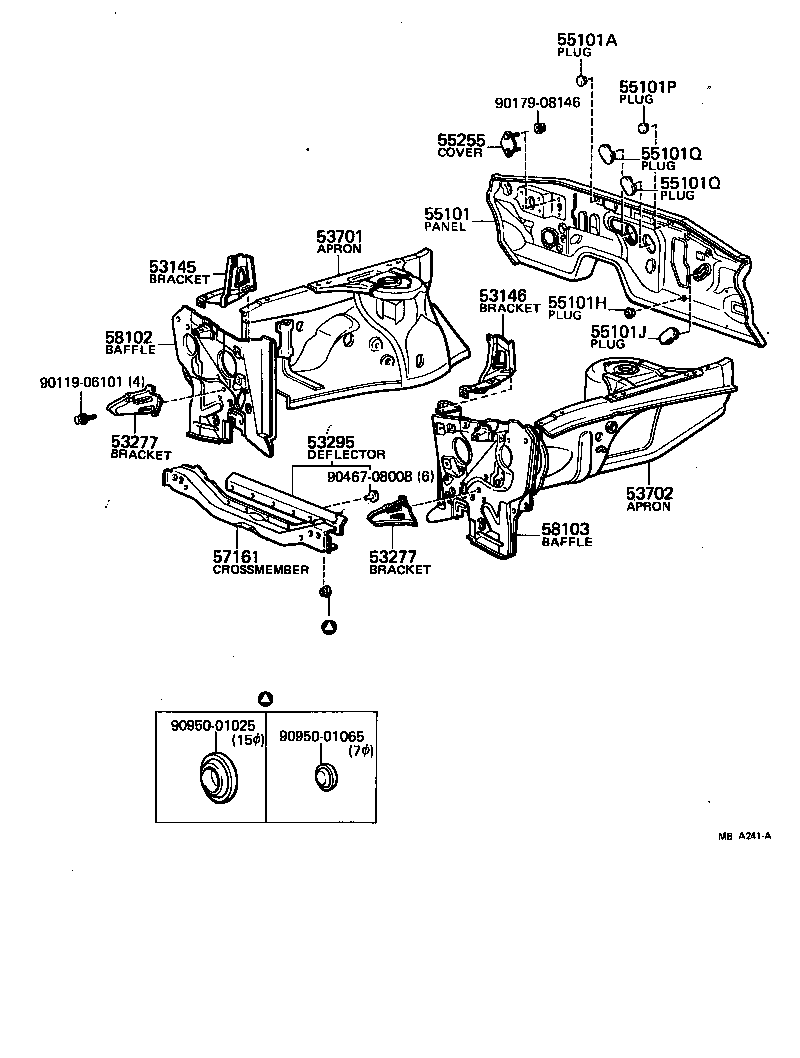

Figure MB7425B MB7425B 1977-08 → 1979-08 Figure MBA241A MBA241A 1979-08 → — Figure MBA333A MBA333A 1979-08 → —

Part groups

PNCDescription
53035 Bracket Sub-assy, Headlamp, Outer RH
53036 Bracket Sub-assy, Headlamp, Outer LH
53145 Bracket,Radiator Grille Mounting, RH
53146 Bracket, Radiator Grille Mounting, LH
53277 Bracket, Headlamp Door Mounting, Out
53295 Deflector, Radiator Lower Air
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
55101 Panel Sub-assy, Dash
55101A Plug, Hole, NO.1(FOR DASH PANEL)
55101H Plug, Hole, NO.2(FOR DASH PANEL)
55101J Plug, Hole, NO.3(FOR DASH PANEL)
55101P Plug, Hole, NO.4(FOR DASH PANEL)
55101Q Plug, Hole, NO.5(FOR DASH PANEL)
55101R Plug, Hole, NO.6(FOR DASH PANEL)
55255 Cover, Clutch Master Cylinder Hole
57161 Crossmember, Front
58102 Baffle Sub-assy, Radiator Side, RH
58103 Baffle Sub-assy,Radiator Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
