Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Ventilator

2 part groups · 2 illustrations

Illustrations

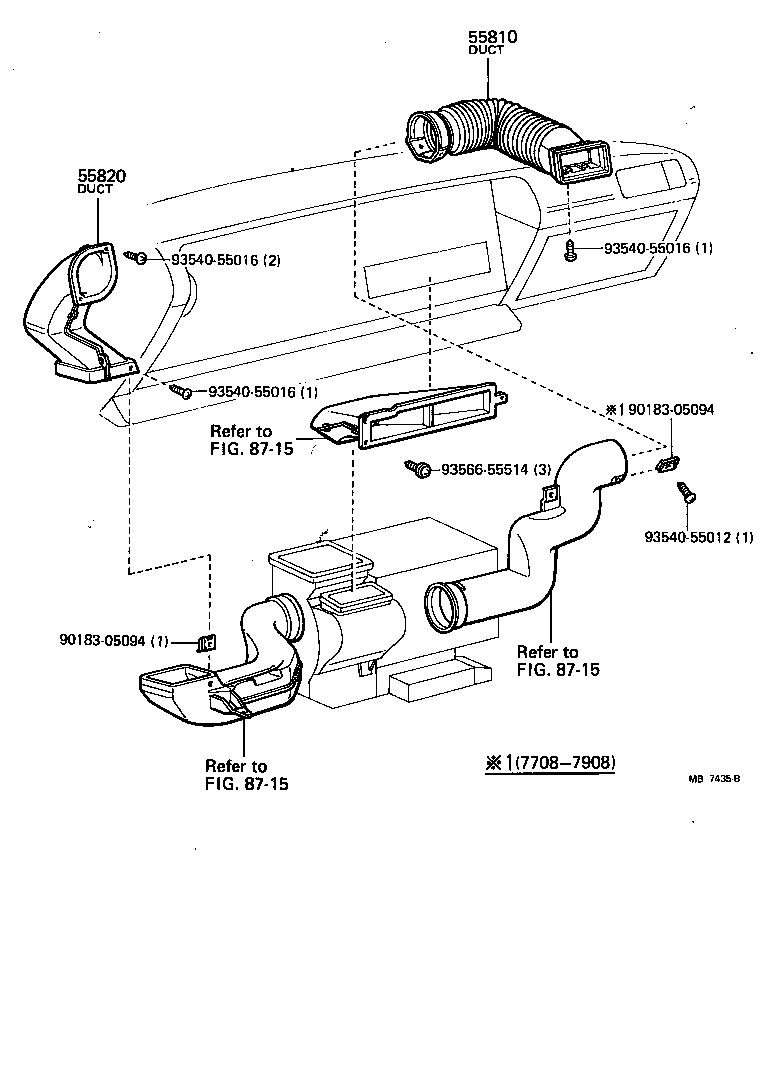

Figure MB7434A MB7434A 1977-08 → — Figure MB7435B MB7435B 1977-08 → —

Part groups

PNCDescription
55810 Duct Assy, Side Ventilator, RH
55820 Duct Assy, Side Ventilator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
