Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01

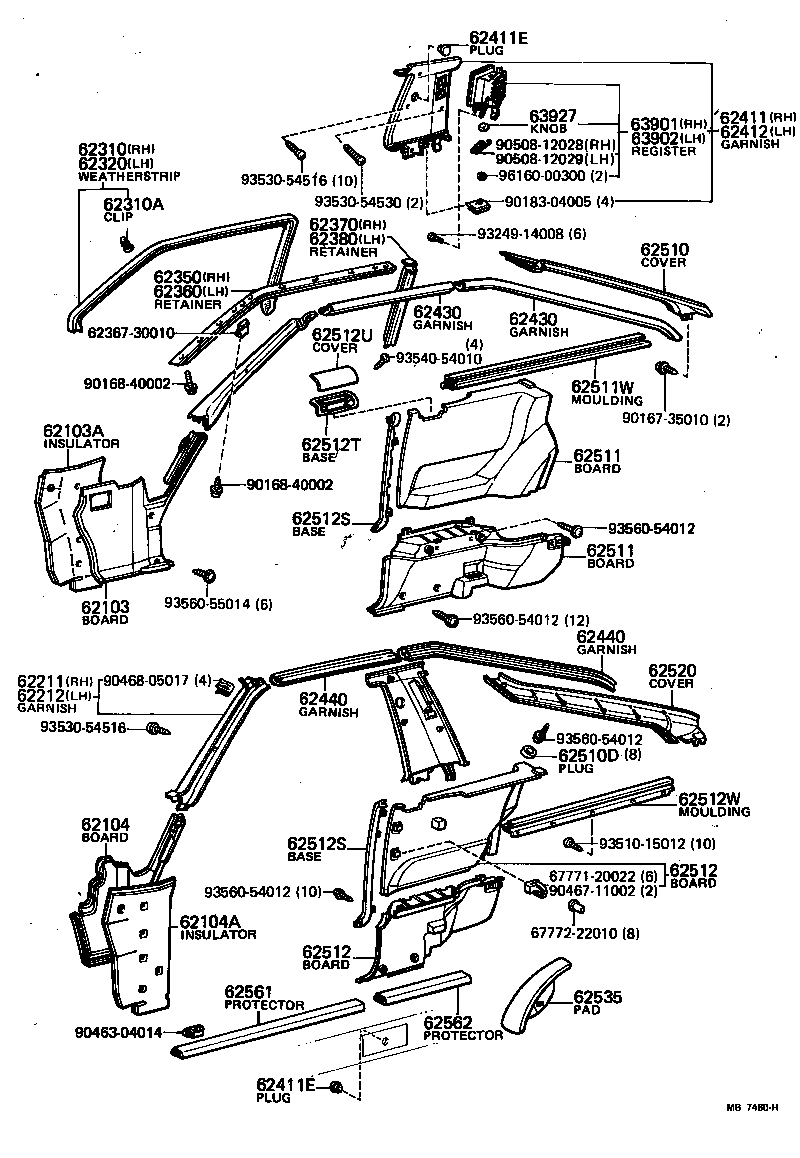

Inside Trim Board & Door Opening Trim Moulding

36 part groups · 2 illustrations

PNC	Description
62103	Board Sub-assy, Cowl Side Trim, RH
62103A	Insulator Sub-assy, Cowl Side, RH
62104	Board Sub-assy, Cowl Side Trim, LH
62104A	Insulator Sub-assy, Cowl Side, LH
62211	Garnish, Front Pillar, RH
62212	Garnish, Front Pillar, LH
62310	Weatherstrip, Roof Side Rail, RH
62310A	Clip, Roof Side Rail Weatherstrip
62320	Weatherstrip, Roof Side Rail, LH
62350	Retainer Assy, Roof Side Rail Weatherstrip Front, RH
62360	Retainer Assy, Roof Side Rail Weatherstrip Front, LH
62370	Retainer Assy, Roof Side Rail Weatherstrip, RH
62380	Retainer Assy, Roof Side Rail Weatherstrip, LH
62411	Garnish, Center Pillar, RH
62411E	Plug, Hole (FOR SEAT BELT)
62412	Garnish, Center Pillar, LH
62430	Garnish Assy, Roof Side Rail, RH
62440	Garnish Assy, Roof Side Rail, LH
62510	Cover Assy, Back Window Side Garnish, RH
62510D	Plug, Hole(FOR BACK WINDOW SIDE GARNISH COVER)
62511	Board, Quarter Inside Trim, RH
62511W	Moulding Sub-assy, Quarter Trim, RH
62512	Board, Quarter Inside Trim, LH
62512S	Base, Quarter Trim, Front
62512T	Base, Quarter Trim Upper Belt Hole Cover
62512U	Cover,Quarter Trim Upper Belt Hole
62512W	Moulding Sub-assy, Quarter Trim, LH
62520	Cover Assy, Back Window Side Garnish, LH
62535	Pad, Quarter Wheel House Trim
62561	Protector, Rocker Panel, Inner Front
62562	Protector, Rocker Panel, Inner Rear
63397	Cover, Rear Window Antenna Connector
63397A	Clip(FOR REAR WINDOW ANTENNA CONNECTOR)
63901	Register Sub-assy, Center Pillar, RH
63902	Register Sub-assy, Center Pillar, LH
63927	Knob, Center Pillar Air Damper Control Lever

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
