Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

24 part groups · 3 illustrations

Illustrations

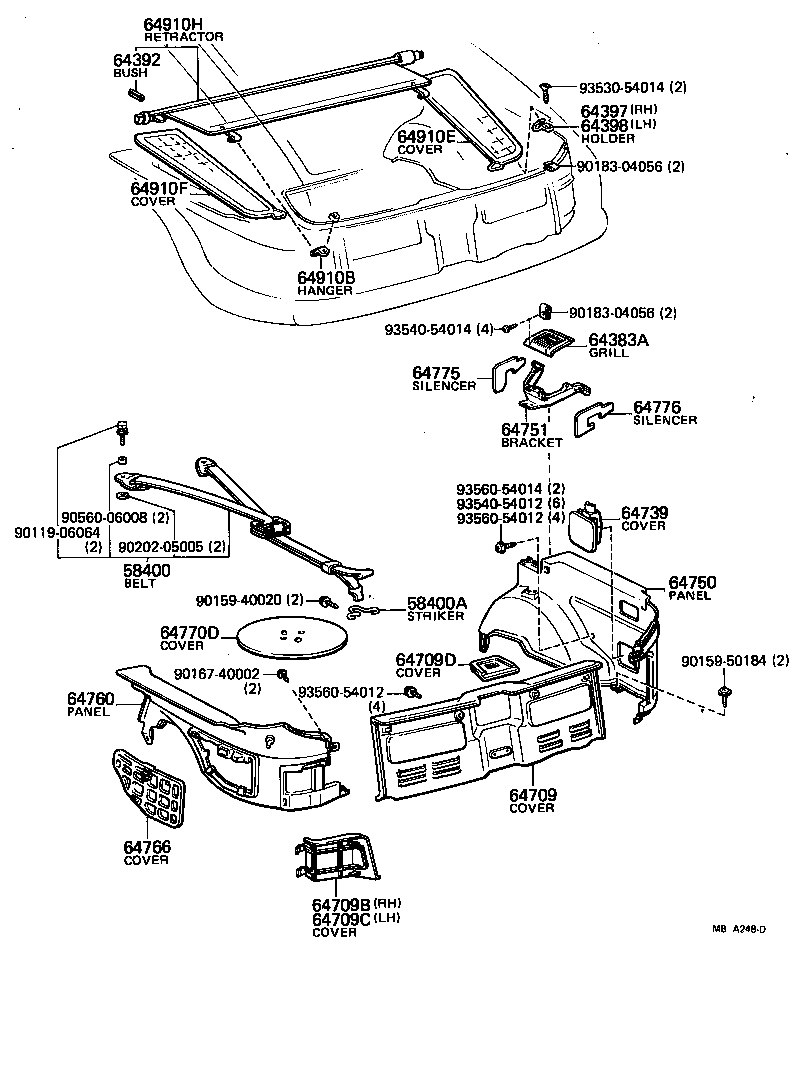

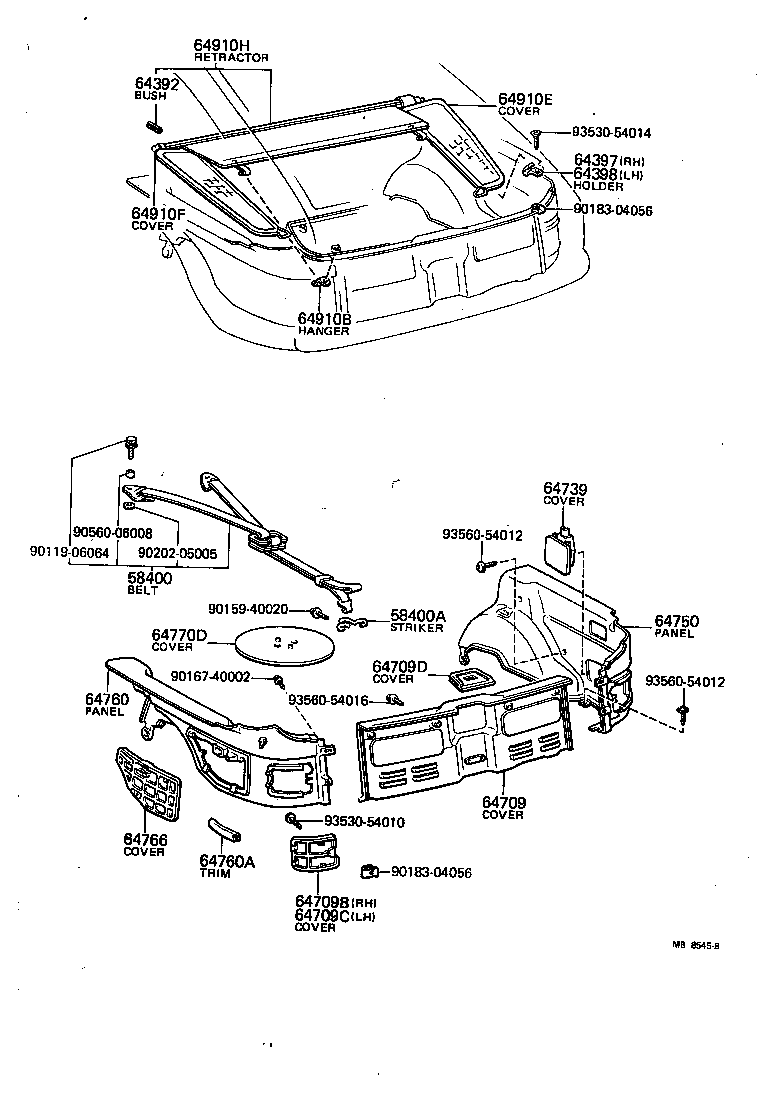

Figure MB7466D MB7466D 1977-08 → 1978-08 Figure MB8545B MB8545B 1978-08 → 1979-08 Figure MBA248D MBA248D 1979-09 → —

Part groups

PNCDescription
58400 Belt Assy, Luggage Hold, NO.1
58400A Striker, Luggage Hold Belt
64383A Grille, Speaker, Rear(FOR DECK TRIM)
64392 Bush, Tonneau Cover Side Hinge
64397 Holder, Tonneau Cover Side, RH
64398 Holder, Tonneau Cover Side, LH
64709 Cover Sub-assy, Lower Back Panel
64709B Cover, Service Hole, NO.1(FOR LOWER BACK PANEL COVER)
64709C Cover, Service Hole, NO.2(FOR LOWER BACK PANEL COVER)
64709D Cover, Back Door Striker
64739 Cover, Deck Trim Side Washer
64750 Panel Assy, Deck Side Trim, RH
64751 Bracket, Deck Trim Side Speaker Set, RH
64760 Panel Assy, Deck Side Trim, LH
64760A Trim, Jack House Opening, NO.1
64766 Cover Sub-assy, Quarter Trim Jack
64770D Cover Assy, Spare Wheel
64775 Silencer, Speaker Set Bracket, NO.1
64776 Silencer, Speaker Set Bracket, NO.2
64910 Cover Assy, Parcel
64910B Hanger, Parcel Cover
64910E Cover Sub-assy, Parcel Side, RH
64910F Cover Sub-assy, Parcel Side, LH
64910H Retractor Sub-assy, Tonneau Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
