Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

26 part groups · 2 illustrations

Illustrations

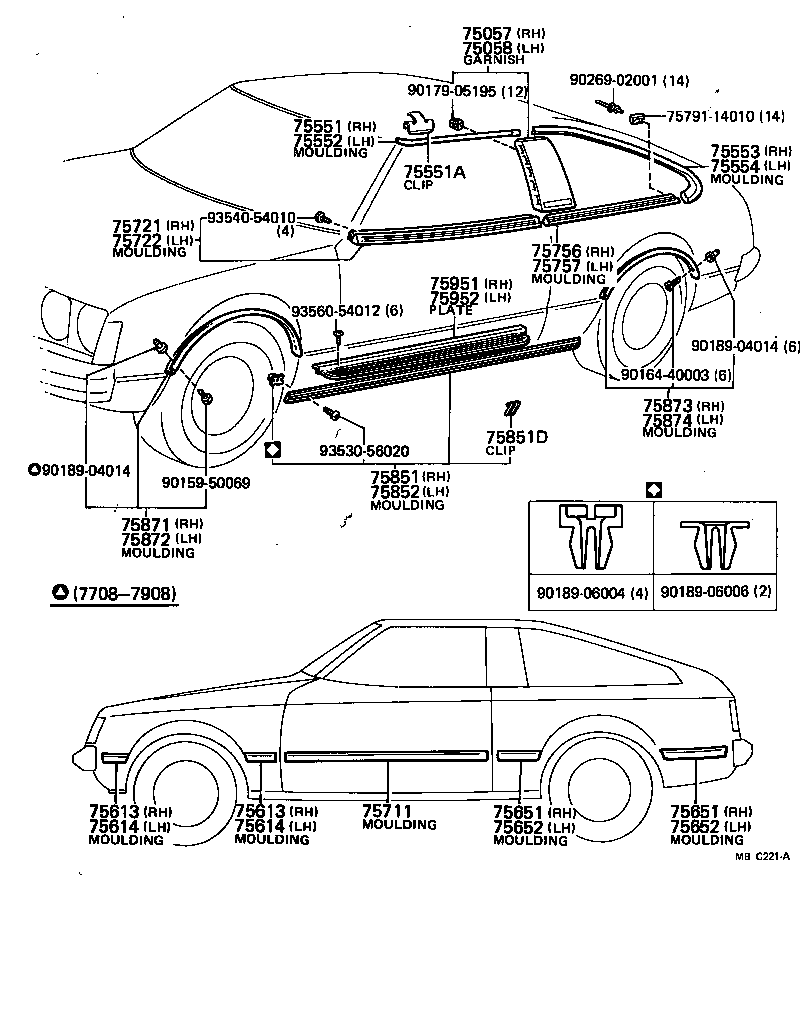

Figure MB7489H MB7489H 1977-08 → — Figure MBC221A MBC221A 1977-08 → —

Part groups

PNCDescription
75057 Garnish Sub-assy, Center Pillar, Outer RH
75058 Garnish Sub-assy, Center Pillar, Outer LH
75551 Moulding, Roof Drip Side Finish, RH
75551A Clip, Roof Drip Moulding, NO.1
75552 Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75613 Moulding, Front Fender, Outside RH
75614 Moulding, Front Fender, Outside LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75711 Moulding, Front Door Outside, NO.1
75721 Moulding, Front Door Belt, RH
75722 Moulding, Front Door Belt, LH
75756 Moulding, Quarter Belt, RH
75757 Moulding, Quarter Belt, LH
75851 Moulding, Rocker Panel, RH
75851D Clip(FOR ROCKER PANEL MOULDING SET)
75852 Moulding, Rocker Panel, LH
75871 Moulding, Front Fender Wheel Opening, RH
75872 Moulding, Front Fender Wheel Opening, LH
75873 Moulding, Quarter Panel Wheel Opening, RH
75874 Moulding, Quarter Panel Wheel Opening, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
76587 Protector, Center Pillar Outer Gernish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
