Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

23 part groups · 2 illustrations

Illustrations

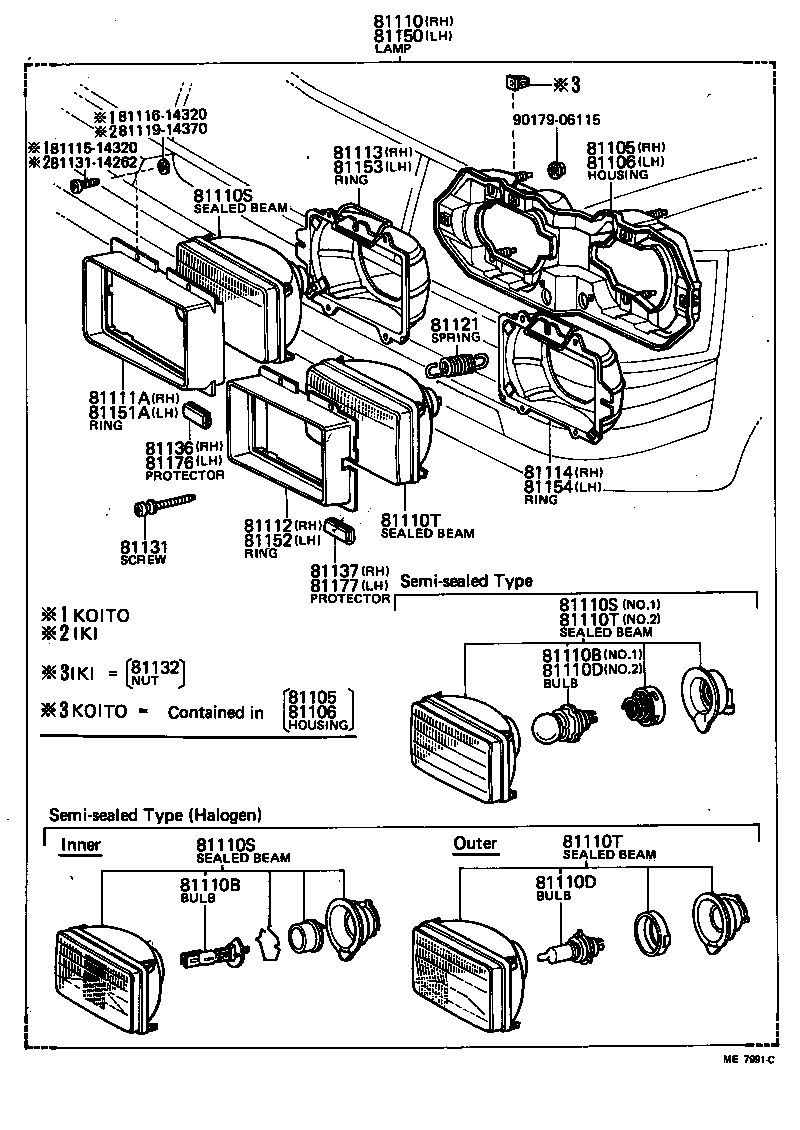

Figure ME6468D ME6468D 1977-08 → 1979-08 Figure ME7991C ME7991C 1979-08 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110S Sealed Beam Unit, NO.1
81110T Sealed Beam Unit, NO.2
81111A Ring, Sealed Beam Retaining, NO.1 RH
81112 Ring, Sealed Beam Retaining, NO.2 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81114 Ring, Sealed Beam Mounting, NO.2 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81132 Nut, Headlamp Self Locking
81136 Protector, Headlamp, NO.1 RH
81137 Protector, Headlamp, NO.2 RH
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81152 Ring, Sealed Beam Retaining, NO.2 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81154 Ring, Sealed Beam Mounting, NO.2 LH
81176 Protector, Headlamp, NO.1 LH
81177 Protector, Headlamp, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
