Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

7 part groups · 2 illustrations

Illustrations

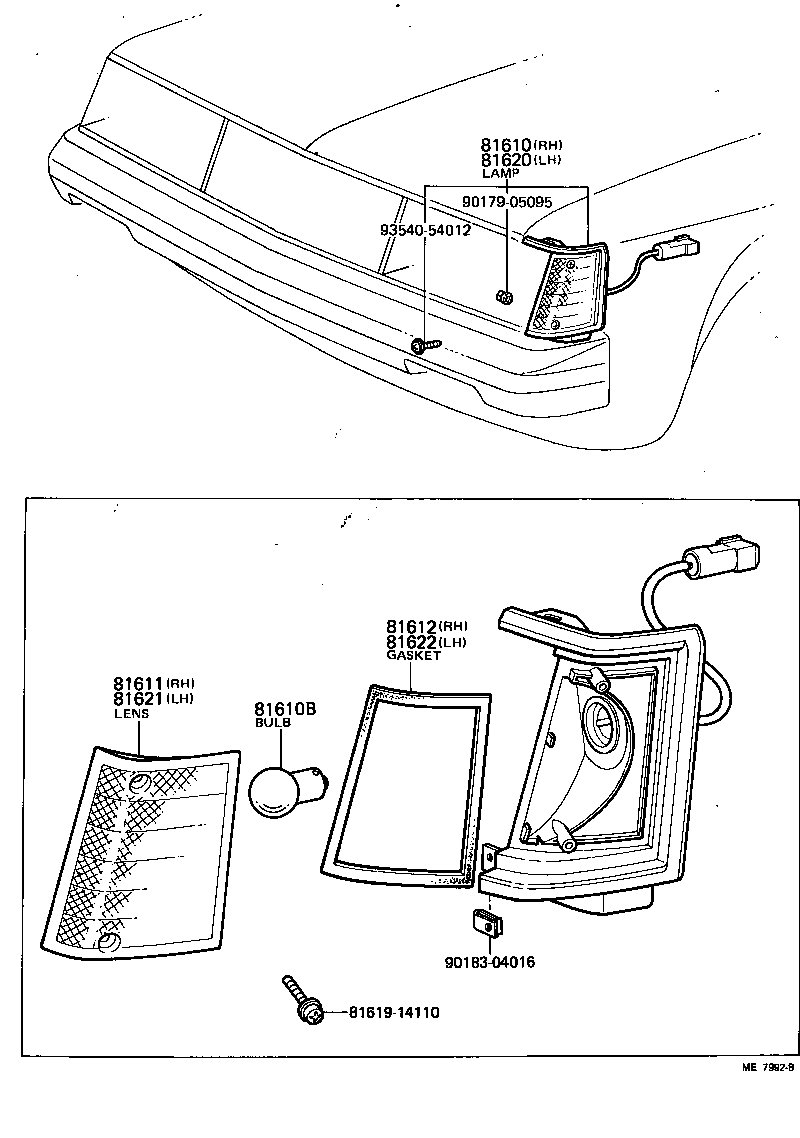

Figure ME6439 ME6439 1977-08 → 1979-08 Figure ME7992B ME7992B 1979-08 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81612 Gasket, Parking And Clearance Lamp Lens, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81622 Gasket, Parking And Clearance Lamp Lens, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
