Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

5 part groups · 3 illustrations

Illustrations

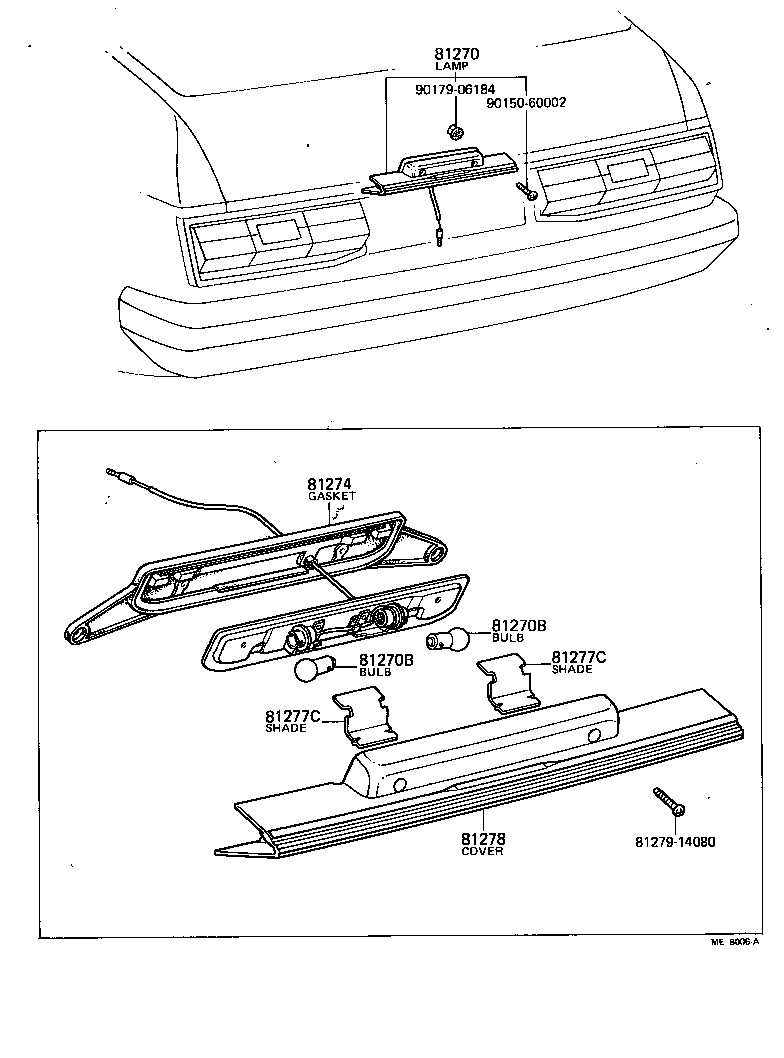

Figure ME6443A ME6443A 1977-08 → 1979-08 Figure ME6443A ME6443A 1977-08 → — Figure ME8006A ME8006A 1979-08 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81274 Gasket, License Plate Lamp Body
81277C Shade, License Plate Lamp, RH
81278 Cover, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
