Toyota Celica
1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe
Discontinued model
Data version 1987-01
Meter

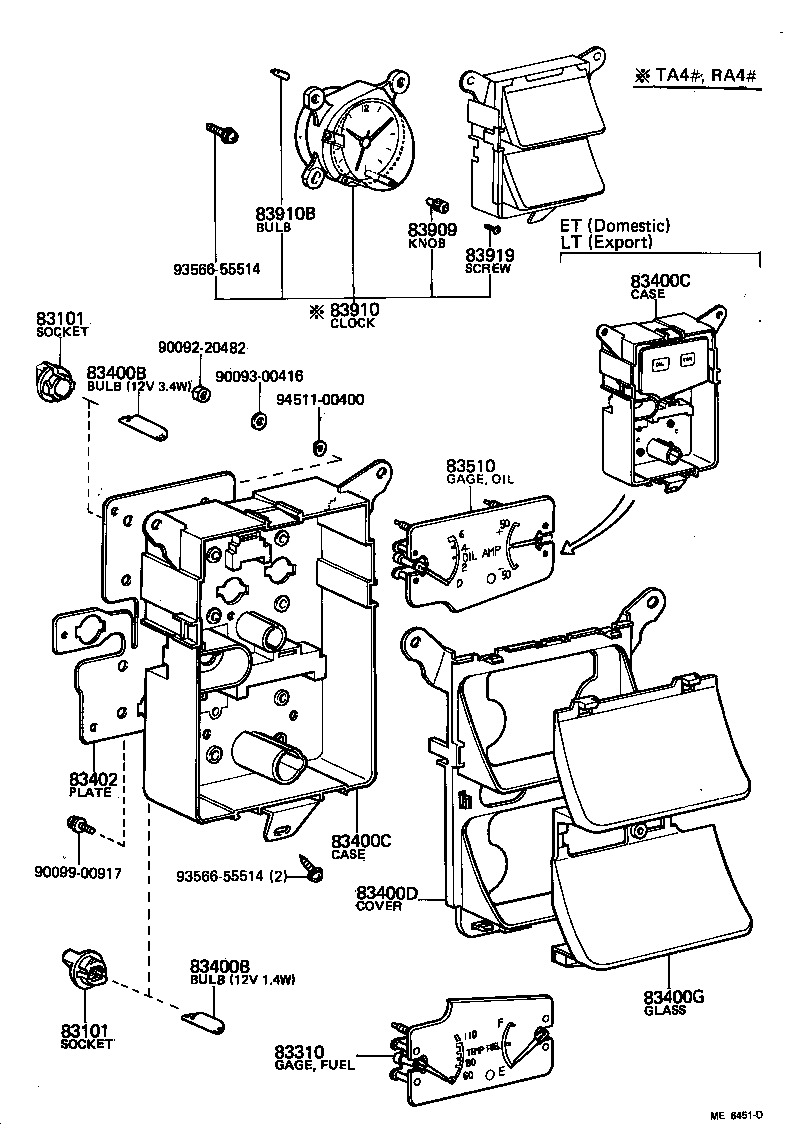

24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83111 | Mechanism, Speedometer |
| 83127 | Counter, Trip |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83135 | Pointer, Speedometer |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83400B | Bulb, Combination Gage |
| 83400C | Case, Combination Gage |
| 83400D | Cover, Combination Gage |
| 83400G | Glass, Combination Gage |
| 83402 | Plate Sub-assy, Combination Gage Circuit |
| 83510 | Gage Assy, Oil Pressure Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83919 | Screw, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
