Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

11 part groups · 2 illustrations

Illustrations

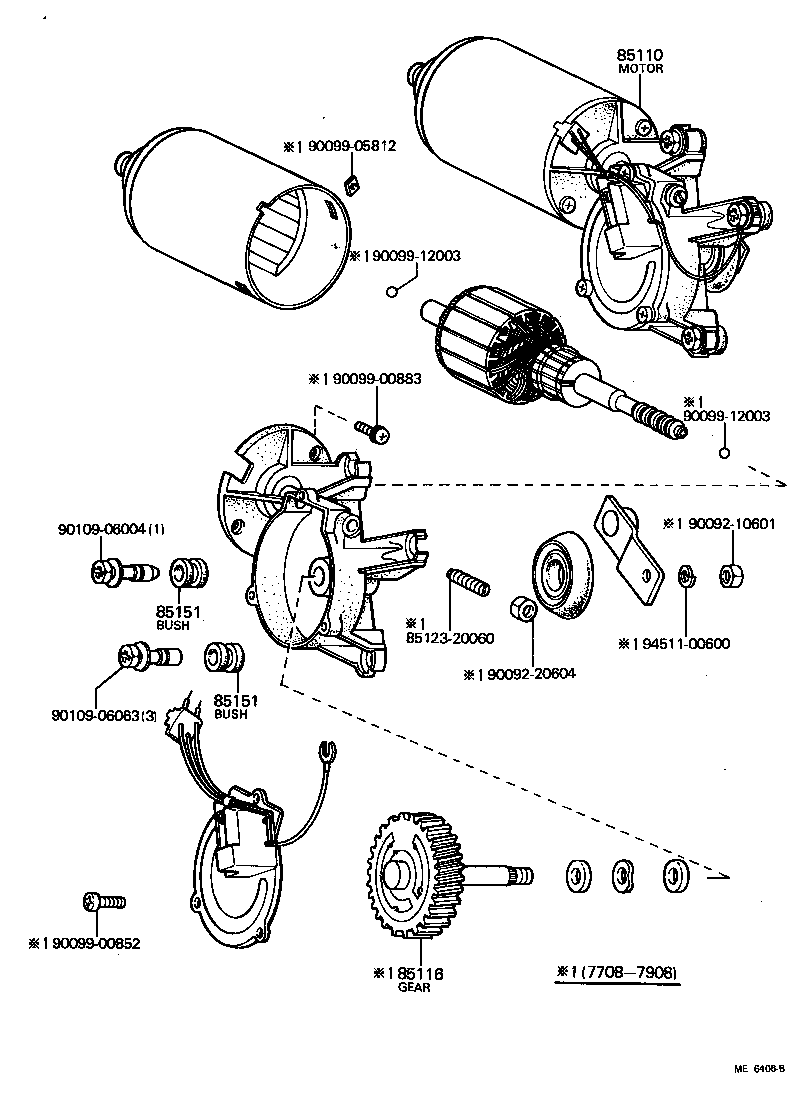

Figure ME6678E ME6678E 1977-08 → — Figure ME6406B ME6406B 1977-08 → —

Part groups

PNCDescription
85031A Valve Sub-assy, Washer
85110 Motor Assy, Windshield Wiper
85116 Gear, Windshield Wiper Motor
85151 Bush, Windshield Wiper Motor Gear Housing Cover
85160 Link Assy, Windshield Wiper
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85225 Wing, Wiper Blade
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
