Toyota Celica

1977-08 → 1981-07 · chassis TA40B,RA40B · catalogue 252220 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

15 part groups · 2 illustrations

Illustrations

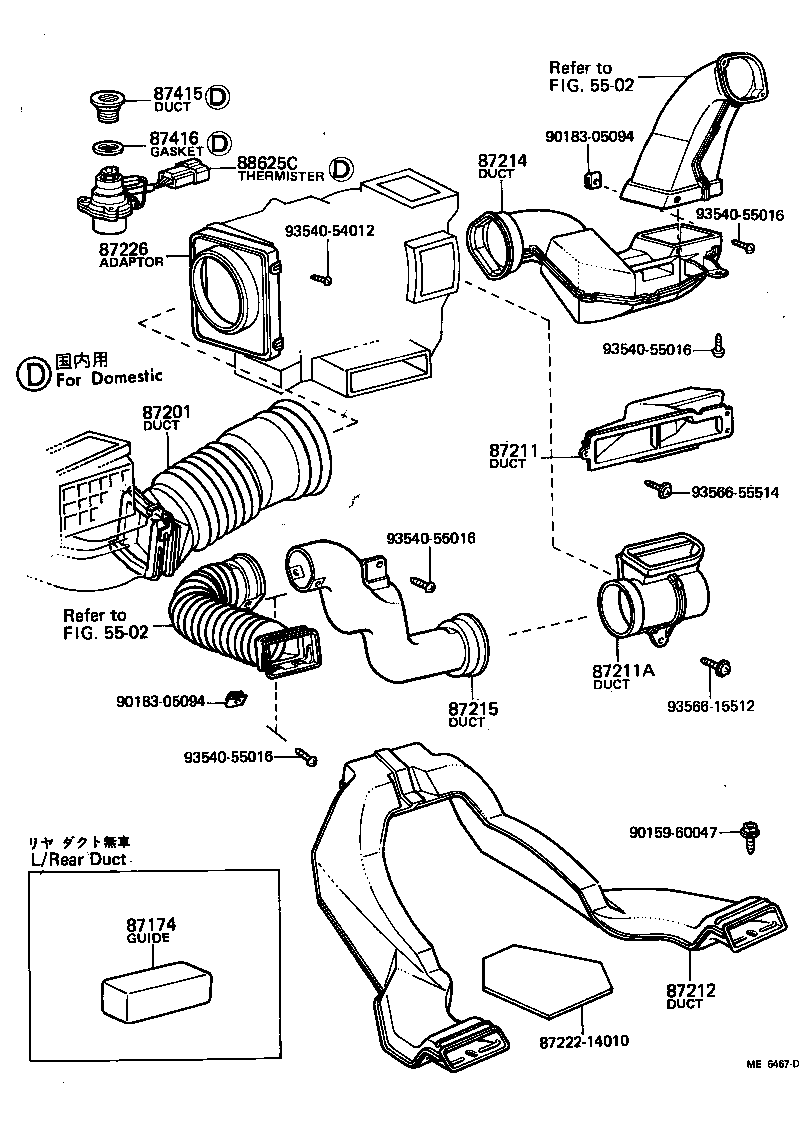

Figure ME6466E ME6466E 1977-08 → — Figure ME6467D ME6467D 1977-08 → —

Part groups

PNCDescription
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55937 Knob, Heater Control Lever
87174 Guide, Air Duct
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87226 Adapter, Air Duct
87284 Resistor Sub-assy, Variable
88605A Harness Sub-assy, Cooler Wiring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
