Heating & Air Conditioning - Cooler Piping

10 part groups · 6 illustrations

Illustrations

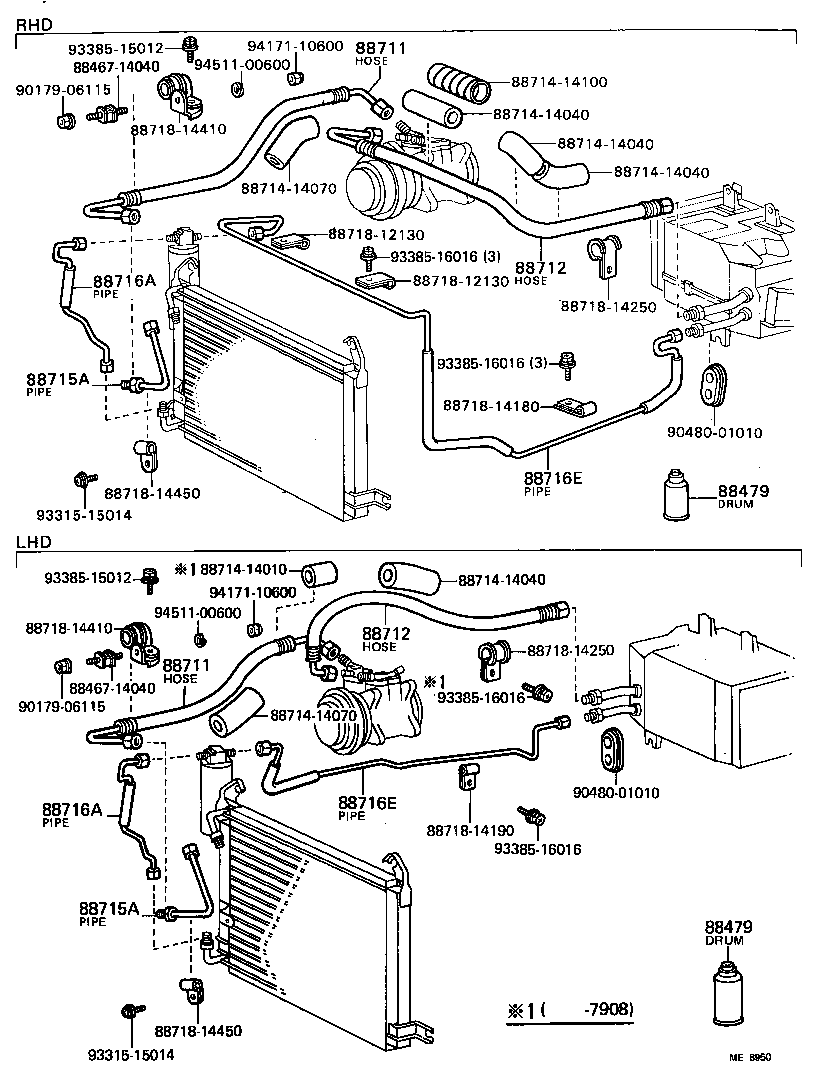

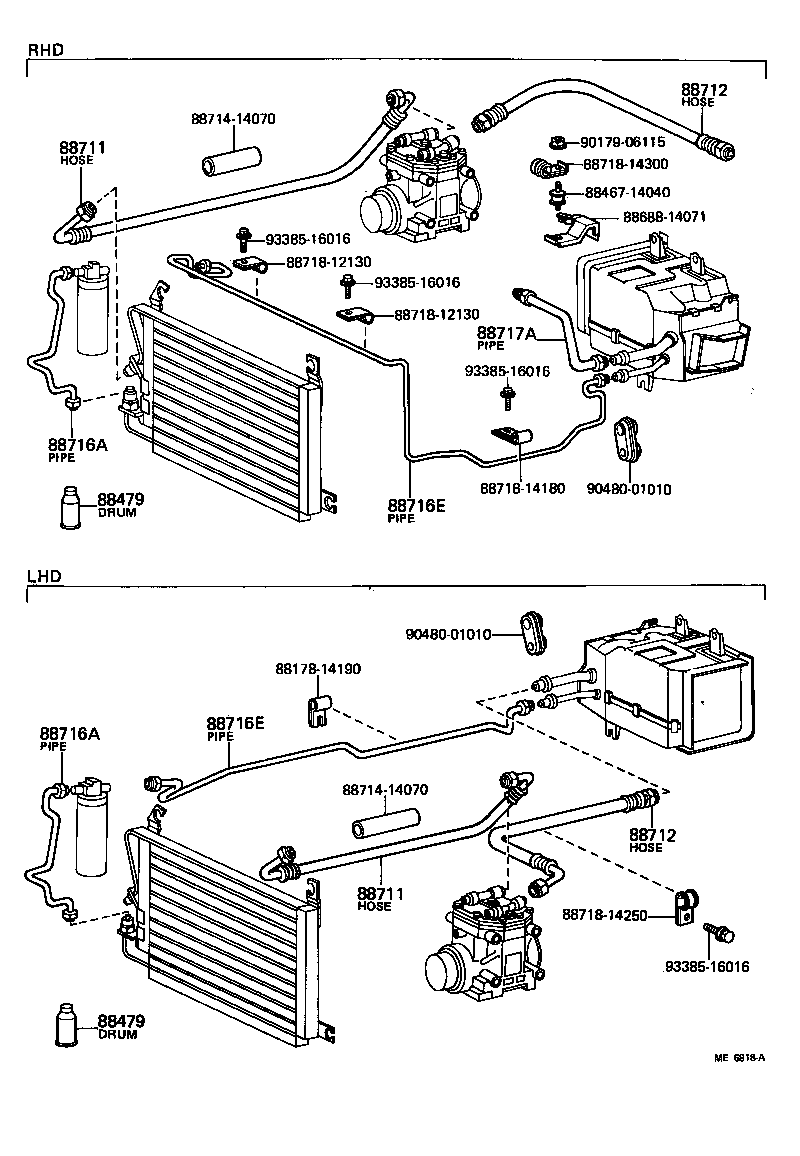

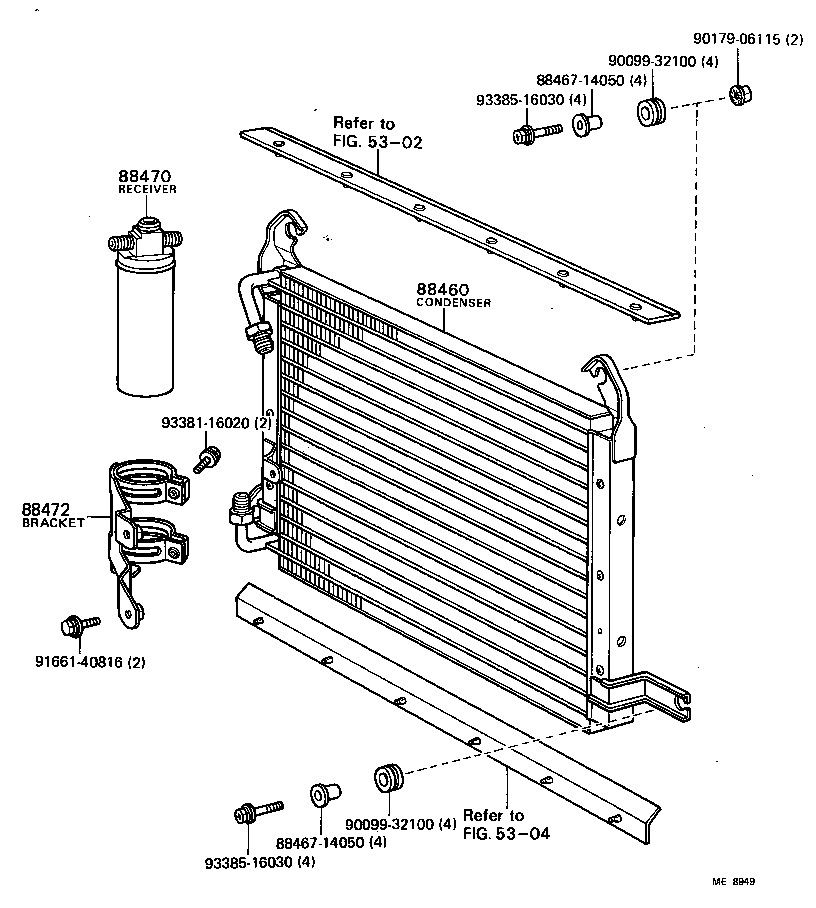

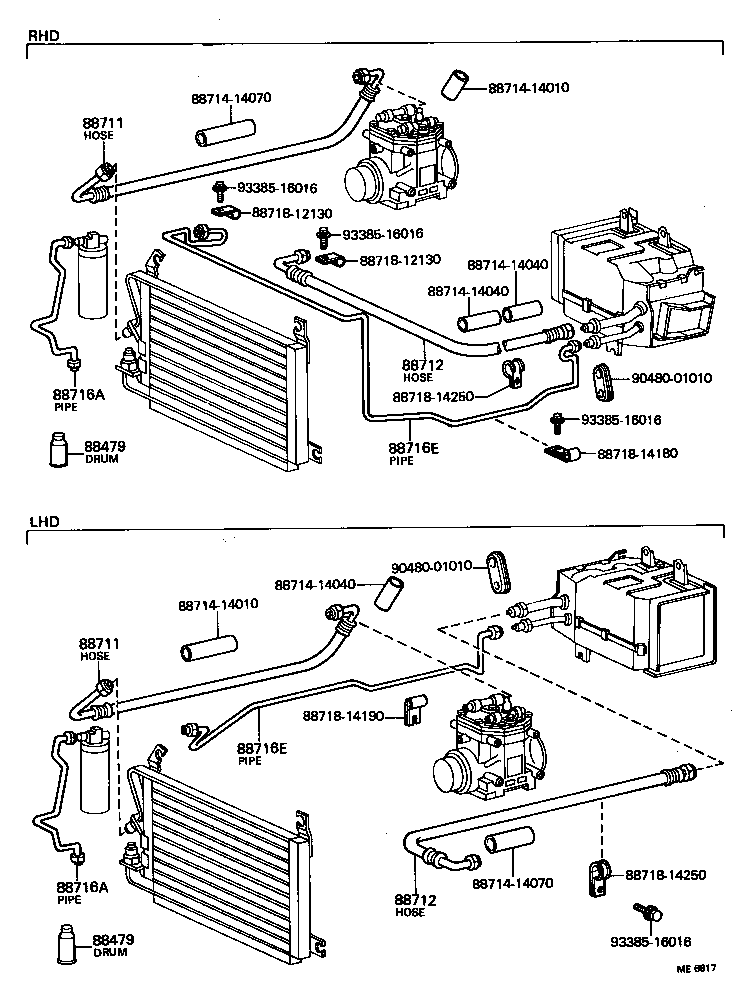

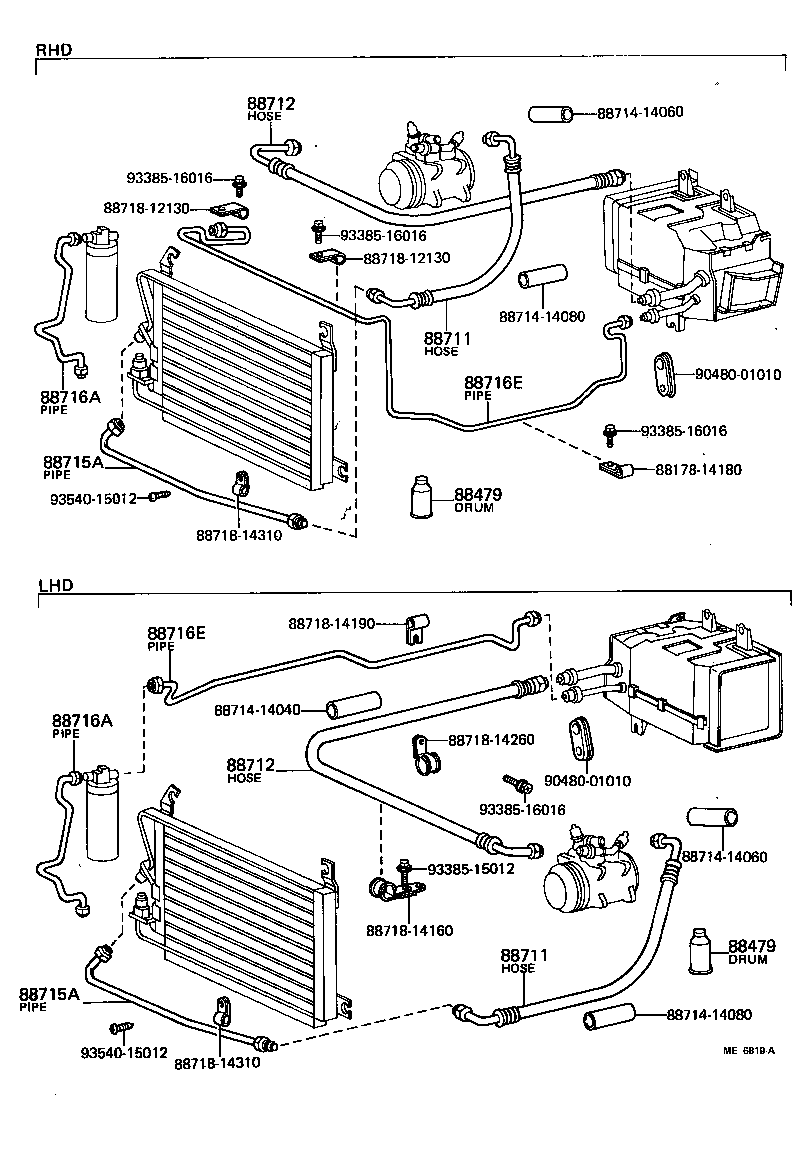

Figure ME6816 ME6816 1977-08 → 1979-08 Figure ME8949 ME8949 1979-08 → — Figure ME6817 ME6817 1977-08 → 1979-08 Figure ME8950 ME8950 1979-08 → — Figure ME6818A ME6818A 1977-08 → — Figure ME6819A ME6819A 1977-08 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
