Toyota Celica
1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe
Discontinued model
Data version 1986-05

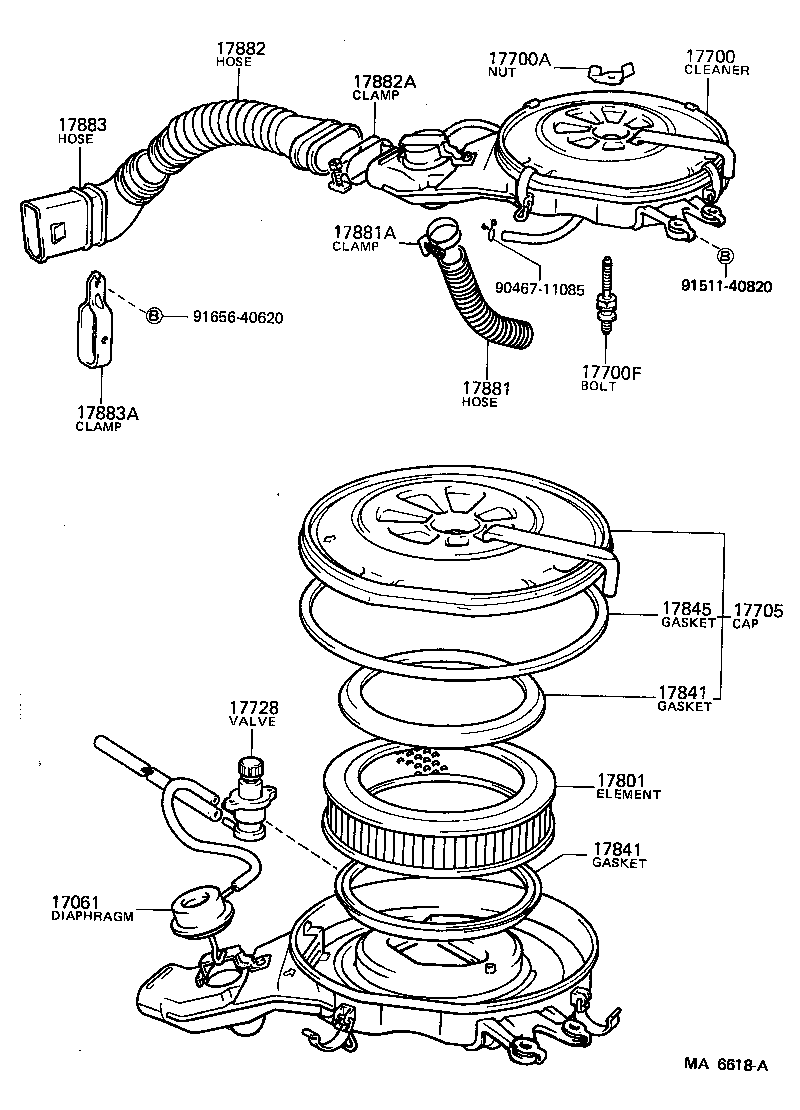

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17061 — Diaphragm Sub-assy | ||||
| 17061-26010 note |
Diaphragm Sub-assy
1982-10 → 1985-07
ended
|
2TB TA60 | — | |
| 17061-26010 note |
Diaphragm Sub-assy
1981-08 → 1982-10
ended
|
2T# TA60 5F | — | |
| 17061-37010 note |
Diaphragm Sub-assy
1981-08 → 1985-07
ended
|
21R# RA60,61 ARL,EUR,GEN | — | |
| 17061-74010 |
Diaphragm Sub-assy
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 17700 — Cleaner Assy, Air | ||||
| 17700-16180 |
Cleaner Assy, Air
1983-08 → 1985-07
ended
|
4AGE AA63 | — | |
| 17700-26270 |
Cleaner Assy, Air
1981-08 → 1985-07
ended
|
2TB TA60 GEN | — | |
| 17700-26280 note |
Cleaner Assy, Air
1981-08 → 1985-07
ended
|
2TB TA60 | — | |
| 17700-26290 |
Cleaner Assy, Air
1981-08 → 1983-08
ended
|
2T TA60 | — | |
| 17700-26300 note |
Cleaner Assy, Air
1981-08 → 1982-10
ended
|
2T TA60 5F | — | |
| 17700-34680 |
Cleaner Assy, Air
1981-08 → 1983-08
ended
|
18RG RA63 | — | |
| 17700-35180 note |
Cleaner Assy, Air
1984-08 → 1985-07
ended
|
21R RA61 EUR,GEN | — | |
| 17700-35250 |
Cleaner Assy, Air
1984-08 → 1985-07
ended
|
22REC RA65 | — | |
| 17700-37090 |
Cleaner Assy, Air
1983-08 → 1984-08
ended
|
21R RA61 GEN,SAA | — | |
| 17700-37090 |
Cleaner Assy, Air
1981-08 → 1983-08
ended
|
21R RA60 | — | |
| 17700-37100 note |
Cleaner Assy, Air
1981-08 → 1984-08
ended
|
21R RA60,61 EUR,GEN | — | |
| 17700-37110 |
Cleaner Assy, Air
1981-08 → 1982-08
ended
|
21RC RA60,61 | — | |
| 17700-37110 |
Cleaner Assy, Air
1982-08 → 1983-08
ended
|
21RC RA60 | — | |
| 17700-37130 |
Cleaner Assy, Air
1982-08 → 1984-08
ended
|
21RC RA61 | — | |
| 17700-37170 |
Cleaner Assy, Air
1984-08 → 1985-03
ended
|
21RC RA61 | — | |
| 17700-37171 |
Cleaner Assy, Air
1985-03 → 1985-07
ended
|
21RC RA61 | — | |
| 17700-37180 |
Cleaner Assy, Air
1984-08 → 1985-07
ended
|
21R RA61 GEN,SAA | — | |
| 17700-43040 |
Cleaner Assy, Air
1981-12 → 1985-12
ended
|
5MGE MA61 | — | |
| 17700-43060 |
Cleaner Assy, Air
1983-08 → 1985-12
ended
|
5ME MA61 | — | |
| 17700-74020 |
Cleaner Assy, Air
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1981-08 → 1985-07
ended
|
21R# RA60,61 | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1981-08 → 1985-07
ended
|
2SC SA63 | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1981-08 → 1985-07
ended
|
2T# TA60 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1981-08 → 1985-07
ended
|
21R# RA60,61 | — | |
| 90116-06024 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1981-08 → 1985-07
ended
|
2TB TA60 | — | |
| 90116-06222 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1981-08 → 1983-08
ended
|
2T TA60 | — | |
| 90116-06222 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1981-08 → 1985-07
ended
|
2TB TA60 | — | |
| 90116-06309 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-16070 |
Cap Sub-assy, Air Cleaner
1983-08 → 1985-07
ended
|
4AGE AA63 | — | |
| 17705-26080 |
Cap Sub-assy, Air Cleaner
1981-08 → 1983-08
ended
|
2T TA60 | — | |
| 17705-26090 |
Cap Sub-assy, Air Cleaner
1981-08 → 1985-07
ended
|
2TB TA60 GEN | — | |
| 17705-26100 note |
Cap Sub-assy, Air Cleaner
1981-08 → 1985-07
ended
|
2TB TA60 | — | |
| 17705-34260 |
Cap Sub-assy, Air Cleaner
1981-08 → 1983-08
ended
|
18RG RA63 | — | |
| 17705-35060 |
Cap Sub-assy, Air Cleaner
1981-08 → 1985-07
ended
|
21R# RA60,61 | — | |
| 17705-35120 |
Cap Sub-assy, Air Cleaner
1984-08 → 1985-07
ended
|
22REC RA65 | — | |
| 17705-43030 |
Cap Sub-assy, Air Cleaner
1981-12 → 1985-12
ended
|
5MGE MA61 | — | |
| 17705-43040 |
Cap Sub-assy, Air Cleaner
1983-08 → 1985-12
ended
|
5ME MA61 | — | |
| 17705-74020 |
Cap Sub-assy, Air Cleaner
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 17728 — Valve, Thermostatic | ||||
| 17728-24010 note |
Valve, Thermostatic
1981-08 → 1985-07
ended
|
21R# RA60,61 ARL,EUR,GEN | — | |
| 17728-26030 note |
Valve, Thermostatic
1981-08 → 1985-07
ended
|
2TB TA60 | — | |
| 17728-26040 note |
Valve, Thermostatic
1981-08 → 1982-10
ended
|
2T TA60 5F | — | |
| 17728-63010 |
Valve, Thermostatic
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-24010 |
Element Sub-assy, Air Cleaner Filter
1981-08 → 1983-08
ended
|
18RG RA63 | — | |
| 17801-24020 |
Element Sub-assy, Air Cleaner Filter
1981-08 → 1985-07
ended
|
2TB TA60 | — | |
| 17801-25010 |
Element Sub-assy, Air Cleaner Filter
1981-08 → 1983-08
ended
|
2T TA60 | — | |
| 17801-31080 note |
Element Sub-assy, Air Cleaner Filter
1981-11 → 1983-08
ended
|
2T TA60 | — | |
| 17801-34060 |
Element Sub-assy, Air Cleaner Filter
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 17801-37010 |
Element Sub-assy, Air Cleaner Filter
1981-08 → 1985-07
ended
|
21R# RA60,61 | — | |
| 17801-41110 |
Element Sub-assy, Air Cleaner Filter
1981-12 → 1985-12
ended
|
5M# MA61 | — | |
| 17801-41110 |
Element Sub-assy, Air Cleaner Filter
1981-12 → 1985-12
ended
|
22REC RA65 | — | |
| 17801-45020 |
Element Sub-assy, Air Cleaner Filter
1983-08 → 1985-07
ended
|
4AGE AA63 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-24011 |
Gasket, Filter Element
1981-08 → 1985-07
ended
|
2TB TA60 | — | |
| 17841-31020 |
Gasket, Filter Element
1981-08 → 1983-08
ended
|
2T TA60 | — | |
| 17841-33011 |
Gasket, Filter Element
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 17841-41050 |
Gasket, Filter Element
1981-08 → 1985-07
ended
|
21R# RA60,61 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-15020 |
Gasket, Air Cleaner Cap
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 17845-25010 |
Gasket, Air Cleaner Cap
1981-08 → 1982-10
ended
|
2T TA60 | — | |
| 17845-26010 |
Gasket, Air Cleaner Cap
1981-08 → 1985-07
ended
|
2TB TA60 | — | |
| 17845-35010 |
Gasket, Air Cleaner Cap
1981-08 → 1982-10
ended
|
21R# RA60,61 | — | |
| 17845-42010 note |
Gasket, Air Cleaner Cap
1982-10 → 1983-08
ended
|
2T TA60 | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1982-10 → 1985-07
ended
|
21R# RA60,61 | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-16030 |
Hose, Air Cleaner, NO.1
1983-08 → 1985-07
ended
|
4AGE AA63 | — | |
| 17881-26020 note |
Hose, Air Cleaner, NO.1
1981-08 → 1982-10
ended
|
2T# TA60 5F | — | |
| 17881-26020 note |
Hose, Air Cleaner, NO.1
1982-10 → 1985-07
ended
|
2TB TA60 | — | |
| 17881-27010 |
Hose, Air Cleaner, NO.1
1981-08 → 1983-08
ended
|
18RG RA63 | — | |
| 17881-35010 |
Hose, Air Cleaner, NO.1
1984-08 → 1985-07
ended
|
22REC RA65 | — | |
| 17881-37030 |
Hose, Air Cleaner, NO.1
1981-08 → 1985-07
ended
|
21R# RA60,61 | — | |
| 17881-43021 |
Hose, Air Cleaner, NO.1
1981-12 → 1985-12
ended
|
5MGE MA61 | — | |
| 17881-43040 |
Hose, Air Cleaner, NO.1
1983-08 → 1985-12
ended
|
5ME MA61 | — | |
| 17881-74040 |
Hose, Air Cleaner, NO.1
1983-11 → 1984-08
ended
|
2SC SA63 | — | |
| 17882-31040 |
Hose, Air Cleaner, NO.1
1983-08 → 1983-11
ended
|
2SC SA63 | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90072-46002 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1981-08 → 1983-08
ended
|
18RG RA63 | — | |
| 96111-10460 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 96111-10710 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1983-08 → 1985-12
ended
|
5ME MA61 | — | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1983-08 → 1985-07
ended
|
4AGE AA63 | — | |
| 96111-10800 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-08 → 1985-07
ended
|
22REC RA65 | — | |
| 96111-10830 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1981-12 → 1985-12
ended
|
5MGE MA61 | — | |
| 17882 — Hose, Air Cleaner, NO.2 | ||||
| 17881-14010 |
Hose, Air Cleaner, NO.2
1981-08 → 1985-07
ended
|
21R# RA60,61 | — | |
| 17881-14020 |
Hose, Air Cleaner, NO.2
1981-08 → 1985-07
ended
|
2T# TA60 | — | |
| 17882-14030 |
Hose, Air Cleaner, NO.2
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 17882-16050 |
Hose, Air Cleaner, NO.2
1983-08 → 1985-07
ended
|
4AGE AA63 | — | |
| 17882-35030 |
Hose, Air Cleaner, NO.2
1984-08 → 1985-07
ended
|
22REC RA65 | — | |
| 17882-43030 |
Hose, Air Cleaner, NO.2
1981-12 → 1985-12
ended
|
5MGE MA61 | — | |
| 17882-43070 |
Hose, Air Cleaner, NO.2
1983-08 → 1985-12
ended
|
5ME MA61 | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01003 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1985-07
ended
|
2T# TA60 | — | |
| 90460-01019 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1985-07
ended
|
2T# TA60 | — | |
| 90460-01024 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 90460-01025 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1985-07
ended
|
21R# RA60,61 | — | |
| 96111-10710 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1983-08 → 1985-12
ended
|
5ME MA61 | — | |
| 96111-10780 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1985-07
ended
|
21R# RA60,61 | — | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1983-08 → 1985-12
ended
|
5ME MA61 | — | |
| 96111-10830 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-12 → 1985-12
ended
|
5MGE MA61 | — | |
| 96111-10900 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-12 → 1985-12
ended
|
5MGE MA61 | — | |
| 17883 — Hose, Air Cleaner, NO.3 | ||||
| 17881-14030 |
Hose, Air Cleaner, NO.3
1983-08 → 1984-08
ended
|
2SC SA63 | — | |
| 17882-14010 |
Hose, Air Cleaner, NO.3
1981-08 → 1985-07
ended
|
2T# TA60 | — | |
| 17883-14010 |
Hose, Air Cleaner, NO.3
1981-08 → 1985-07
ended
|
21R# RA60,61 | — | |
| 17883-43010 |
Hose, Air Cleaner, NO.3
1981-12 → 1985-12
ended
|
5MGE MA61 | — | |
| 17883A — Clamp(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01018 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1981-08 → 1985-07
ended
|
2SC SA63 | — | |
| 90460-01018 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1981-08 → 1985-07
ended
|
2T# TA60 | — | |
| 96111-10900 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1981-12 → 1985-12
ended
|
5MGE MA61 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
