Toyota Celica
1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe
Discontinued model
Data version 1986-05

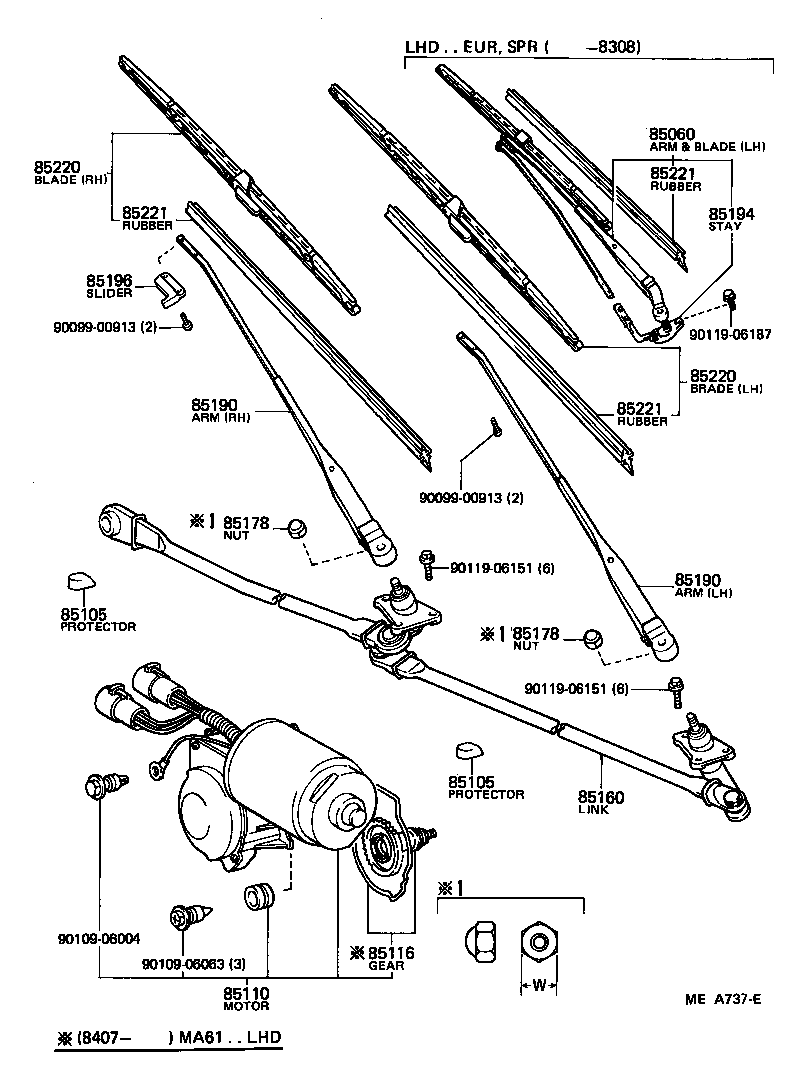

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85060 — Arm And Blade Assy, Windshield Wiper | ||||
| 85060-14380 note |
Arm And Blade Assy, Windshield Wiper
1981-08 → 1983-08
ended
|
RA61,63,TA60 LHD EUR | — | |
| 85060-14410 note |
Arm And Blade Assy, Windshield Wiper
1981-12 → 1983-08
ended
|
MA61 LHD | — | |
| 85105 — Protector, Wiper | ||||
| 85105-14010 note |
Protector, Wiper
1983-09 → 1985-12
ended
|
MA61 LHD | — | |
| 85105-14010 |
Protector, Wiper
1983-09 → 1985-12
ended
|
MA61 RHD | — | |
| 85105-14020 note |
Protector, Wiper
1983-09 → 1985-12
ended
|
MA61 LHD | — | |
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-14170 |
Motor Assy, Windshield Wiper
1981-08 → 1983-08
ended
|
RA61 SDZ | — | |
| 85110-14170 |
Motor Assy, Windshield Wiper
1981-08 → 1983-08
ended
|
RA61 LHD EUG;RA60,63,TA60 LHD | — | |
| 85110-14170 |
Motor Assy, Windshield Wiper
1983-08 → 1985-07
ended
|
AA63,RA61,TA60 LHD | — | |
| 85110-14190 |
Motor Assy, Windshield Wiper
1981-08 → 1985-07
ended
|
AA63,RA6#,SA63 RHD | — | |
| 85110-14200 |
Motor Assy, Windshield Wiper
1981-12 → 1985-12
ended
|
MA61 RHD | — | |
| 85110-14240 |
Motor Assy, Windshield Wiper
1981-12 → 1985-12
ended
|
MA61 LHD | — | |
| 85116 — Gear, Windshield Wiper Motor | ||||
| 85116-14240 |
Gear, Windshield Wiper Motor
1984-07 → 1985-12
ended
|
MA61 LHD | — | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85160-14240 |
Link Assy, Windshield Wiper
1981-08 → 1985-12
ended
|
MA61,RA6# RHD | — | |
| 85160-14250 |
Link Assy, Windshield Wiper
1981-08 → 1985-07
ended
|
AA63,RA61,63,TA60 LHD EUG | — | |
| 85160-14250 |
Link Assy, Windshield Wiper
1981-08 → 1985-07
ended
|
RA61 SDZ | — | |
| 85160-14260 |
Link Assy, Windshield Wiper
1981-12 → 1985-12
ended
|
MA61 LHD | — | |
| 85160-14270 |
Link Assy, Windshield Wiper
1981-08 → 1985-07
ended
|
AA63,RA60,61,63,TA60 LHD (GEN,ME,SAA) | — | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08013 note |
Nut (FOR FRONT WIPER ARM SETTING)
1981-08 → 1982-02
ended
|
MA61,RA6#,TA60 | — | |
| 90176-08029 note |
Nut (FOR FRONT WIPER ARM SETTING)
1981-08 → 1985-06
ended
|
AA63,MA61,RA6#,SA63,TA60 | — | |
| 90176-08033 note |
Nut (FOR FRONT WIPER ARM SETTING)
1985-06 → 1985-12
ended
|
AA63,MA61,RA6#,TA60 | — | |
| 85190 — Arm Assy, Windshield Wiper | ||||
| 85190-14360 note |
Arm Assy, Windshield Wiper
1981-08 → 1982-04
ended
|
MA61,RA6# RHD | — | |
| 85190-14360 note |
Arm Assy, Windshield Wiper
1982-04 → 1982-07
ended
|
MA61,RA61 RHD | — | |
| 85190-14360 note |
Arm Assy, Windshield Wiper
1982-07 → 1982-11
ended
|
MA61 RHD | — | |
| 85190-14370 note |
Arm Assy, Windshield Wiper
1981-08 → 1982-12
ended
|
RA60,63,TA60 LHD (GEN,ME) | — | |
| 85190-14371 note |
Arm Assy, Windshield Wiper
1982-12 → 1985-07
ended
|
AA63,RA60,61,63,TA60 LHD (GEN,ME) | — | |
| 85190-14381 note |
Arm Assy, Windshield Wiper
1983-08 → 1985-07
ended
|
AA63,RA61,TA60 LHD EUR | — | |
| 85190-14411 note |
Arm Assy, Windshield Wiper
1983-08 → 1985-12
ended
|
MA61 LHD | — | |
| 85190-14470 note |
Arm Assy, Windshield Wiper
1982-07 → 1982-11
ended
|
RA61 RHD | — | |
| 85190-14490 note |
Arm Assy, Windshield Wiper
1982-10 → 1983-08
ended
|
RA60,63 RHD | — | |
| 85190-14550 note |
Arm Assy, Windshield Wiper
1982-11 → 1985-07
ended
|
RA61 RHD EUG | — | |
| 85190-14560 note |
Arm Assy, Windshield Wiper
1982-11 → 1983-08
ended
|
MA61 RHD | — | |
| 85190-14560 note |
Arm Assy, Windshield Wiper
1983-08 → 1985-12
ended
|
MA61 RHD EUG | — | |
| 85190-20341 note |
Arm Assy, Windshield Wiper
1982-04 → 1982-10
ended
|
RA60,63 RHD | — | |
| 85190-20341 note |
Arm Assy, Windshield Wiper
1983-08 → 1985-07
ended
|
AA63,RA6#,SA63 RHD (ARL,GEN) | — | |
| 85190-20361 note |
Arm Assy, Windshield Wiper
1983-08 → 1985-12
ended
|
MA61 RHD (ARL,GEN,SA) | — | |
| 85210-14090 note |
Arm Assy, Windshield Wiper
1981-12 → 1982-11
ended
|
MA61 RHD | — | |
| 85210-14100 note |
Arm Assy, Windshield Wiper
1981-08 → 1983-08
ended
|
RA61 SDZ | — | |
| 85210-14100 note |
Arm Assy, Windshield Wiper
1981-08 → 1983-08
ended
|
RA61,63,TA60 LHD EUG | — | |
| 85210-14110 note |
Arm Assy, Windshield Wiper
1981-08 → 1982-12
ended
|
RA60,63,TA60 LHD (GEN,ME) | — | |
| 85210-14111 note |
Arm Assy, Windshield Wiper
1982-12 → 1985-07
ended
|
AA63,RA60,61,63,TA60 LHD (GEN,ME) | — | |
| 85210-14121 note |
Arm Assy, Windshield Wiper
1983-08 → 1985-07
ended
|
AA63,RA61,TA60 LHD EUR | — | |
| 85210-14130 note |
Arm Assy, Windshield Wiper
1982-04 → 1982-11
ended
|
RA61 RHD | — | |
| 85210-14130 note |
Arm Assy, Windshield Wiper
1981-08 → 1982-04
ended
|
RA6# RHD | — | |
| 85210-14140 note |
Arm Assy, Windshield Wiper
1981-08 → 1983-08
ended
|
MA61 LHD | — | |
| 85210-14161 note |
Arm Assy, Windshield Wiper
1983-08 → 1985-12
ended
|
MA61 LHD | — | |
| 85210-20081 note |
Arm Assy, Windshield Wiper
1982-11 → 1985-12
ended
|
MA61 RHD | — | |
| 85210-20091 note |
Arm Assy, Windshield Wiper
1982-11 → 1985-07
ended
|
RA61 RHD EUG | — | |
| 85210-20091 note |
Arm Assy, Windshield Wiper
1982-04 → 1985-07
ended
|
AA63,RA6#,SA63 RHD (ARL,GEN) | — | |
| 85194 — Stay, Windshield Wiper Arm | ||||
| 85194-14380 |
Stay, Windshield Wiper Arm
1981-08 → 1985-07
ended
|
RA61,63,TA60 LHD EUR | — | |
| 85194-14380 |
Stay, Windshield Wiper Arm
1981-12 → 1985-12
ended
|
MA61 LHD | — | |
| 85196 — Slider, Wiper Arm | ||||
| 85192-14161 note |
Slider, Wiper Arm
1983-08 → 1985-12
ended
|
MA61 LHD | — | |
| 85196-14030 note |
Slider, Wiper Arm
1981-12 → 1983-08
ended
|
MA61 LHD | — | |
| 85196-14041 note |
Slider, Wiper Arm
1981-12 → 1982-11
ended
|
MA61 RHD | — | |
| 85196-20271 note |
Slider, Wiper Arm
1982-11 → 1985-12
ended
|
MA61 RHD | — | |
| 85220 — Blade Assy, Windshield Wiper | ||||
| 85220-14310 note |
Blade Assy, Windshield Wiper
1981-08 → 1982-04
ended
|
MA61,RA6# RHD | — | |
| 85220-14310 note |
Blade Assy, Windshield Wiper
1982-04 → 1982-11
ended
|
MA61,RA61 RHD | — | |
| 85220-14320 note |
Blade Assy, Windshield Wiper
1981-08 → 1982-12
ended
|
RA60,63,TA60 LHD (GEN,ME) | — | |
| 85220-14350 note |
Blade Assy, Windshield Wiper
1981-08 → 1983-08
ended
|
RA61 SDZ | — | |
| 85220-14350 note |
Blade Assy, Windshield Wiper
1981-08 → 1983-08
ended
|
RA61,63,TA60 LHD EUG | — | |
| 85220-14350 note |
Blade Assy, Windshield Wiper
1981-08 → 1983-08
ended
|
MA61 LHD | — | |
| 85220-14360 note |
Blade Assy, Windshield Wiper
1982-04 → 1982-11
ended
|
MA61,RA61 RHD | — | |
| 85220-14360 note |
Blade Assy, Windshield Wiper
1981-08 → 1982-04
ended
|
MA61,RA6# RHD | — | |
| 85220-14370 note |
Blade Assy, Windshield Wiper
1981-08 → 1982-12
ended
|
RA60,63,TA60 LHD (GEN,ME) | — | |
| 85220-14390 note |
Blade Assy, Windshield Wiper
1983-08 → 1985-07
ended
|
AA63,RA61,TA60 LHD EUR | — | |
| 85220-14390 note |
Blade Assy, Windshield Wiper
1983-08 → 1985-12
ended
|
MA61 LHD | — | |
| 85220-16100 note |
Blade Assy, Windshield Wiper
1982-11 → 1983-08
ended
|
MA61,RA6# RHD | — | |
| 85220-16110 note |
Blade Assy, Windshield Wiper
1982-11 → 1983-08
ended
|
MA61,RA6# RHD | — | |
| 85220-16140 note |
Blade Assy, Windshield Wiper
1982-12 → 1985-07
ended
|
AA63,RA60,61,63,TA60 LHD (GEN,ME,SAA) | — | |
| 85220-16150 note |
Blade Assy, Windshield Wiper
1982-12 → 1985-07
ended
|
AA63,RA60,61,63,TA60 LHD (GEN,ME,SAA) | — | |
| 85220-16180 note |
Blade Assy, Windshield Wiper
1983-08 → 1985-12
ended
|
MA61,RA61 RHD EUG | — | |
| 85220-16350 note |
Blade Assy, Windshield Wiper
1983-08 → 1985-12
ended
|
AA63,MA61,RA6#,SA63 RHD (ARL,GEN,SA) | — | |
| 85220-16360 note |
Blade Assy, Windshield Wiper
1983-08 → 1985-12
ended
|
MA61 LHD | — | |
| 85220-16370 note |
Blade Assy, Windshield Wiper
1983-08 → 1985-07
ended
|
AA63,RA61,TA60 LHD EUR | — | |
| 85220-16380 note |
Blade Assy, Windshield Wiper
1983-08 → 1985-12
ended
|
AA63,MA61,RA6#,SA63 RHD | — | |
| 85220-20260 note |
Blade Assy, Windshield Wiper
1982-04 → 1982-11
ended
|
RA60,63 RHD | — | |
| 85220-30220 note |
Blade Assy, Windshield Wiper
1982-04 → 1982-11
ended
|
RA60,63 RHD | — | |
| 85221 — Blade, Windshield Wiper | ||||
| 85221-12120 note |
Blade, Windshield Wiper
1981-08 → 1983-08
ended
|
RA61 ST SDZ | — | |
| 85221-12120 note |
Blade, Windshield Wiper
1981-08 → 1983-08
ended
|
RA61 LHD EUG;MA61,RA63,TA60 LHD +1 | — | |
| 85221-12120 note |
Blade, Windshield Wiper
1981-08 → 1983-08
ended
|
RA60,63,TA60 LHD (GEN,ME) | — | |
| 85221-12120 note |
Blade, Windshield Wiper
1982-08 → 1983-08
ended
|
RA61 XT SDZ | — | |
| 85221-14200 note |
Blade, Windshield Wiper
1981-08 → 1983-08
ended
|
RA61 ST SDZ | — | |
| 85221-14200 note |
Blade, Windshield Wiper
1981-08 → 1983-08
ended
|
RA61 LHD EUG;MA61,RA63,TA60 LHD +1 | — | |
| 85221-14200 note |
Blade, Windshield Wiper
1983-08 → 1985-12
ended
|
MA61 LHD;AA63,RA61,TA60 LHD EUR | — | |
| 85221-30080 note |
Blade, Windshield Wiper
1981-08 → 1983-08
ended
|
MA61,RA6# RHD | — | |
| 85221-30100 note |
Blade, Windshield Wiper
1983-08 → 1985-07
ended
|
AA63,RA61,TA60 LHD (GEN,SAA) | — | |
| 85221-30100 note |
Blade, Windshield Wiper
1983-08 → 1985-12
ended
|
AA63,MA61,RA61,TA60 LHD | — | |
| 85221-30100 note |
Blade, Windshield Wiper
1983-08 → 1985-12
ended
|
MA61,RA61 RHD EUG | — | |
| 85221-30120 note |
Blade, Windshield Wiper
1983-08 → 1985-12
ended
|
MA61,RA61 RHD EUG | — | |
| 85221-30120 note |
Blade, Windshield Wiper
1983-08 → 1985-12
ended
|
AA63,MA61,RA6#,SA63 RHD (ARL,GEN,SA) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
