Toyota Celica
1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe
Discontinued model
Data version 1986-05

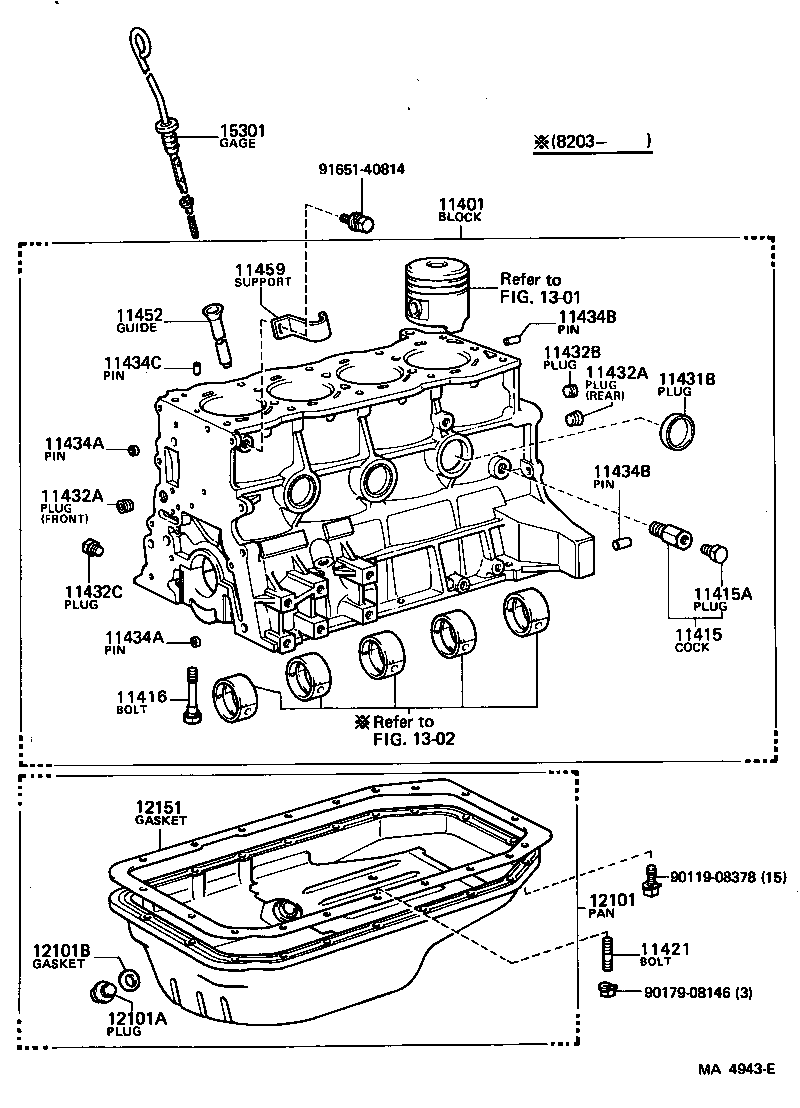

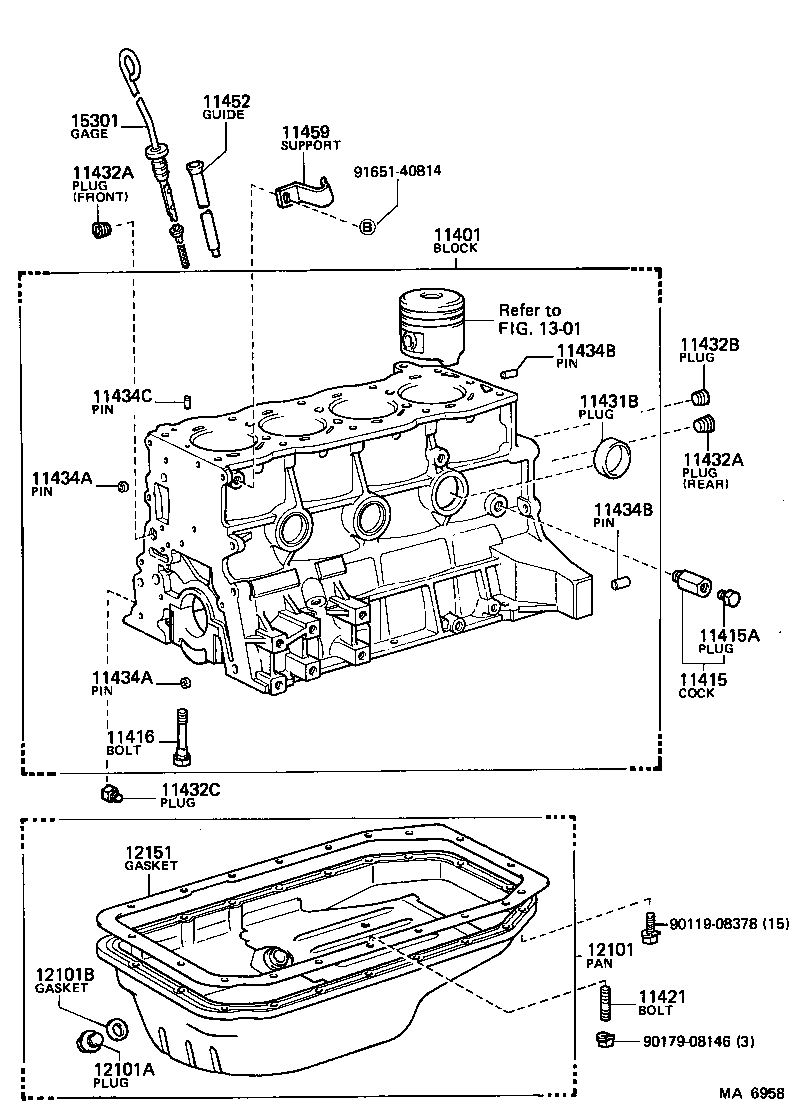

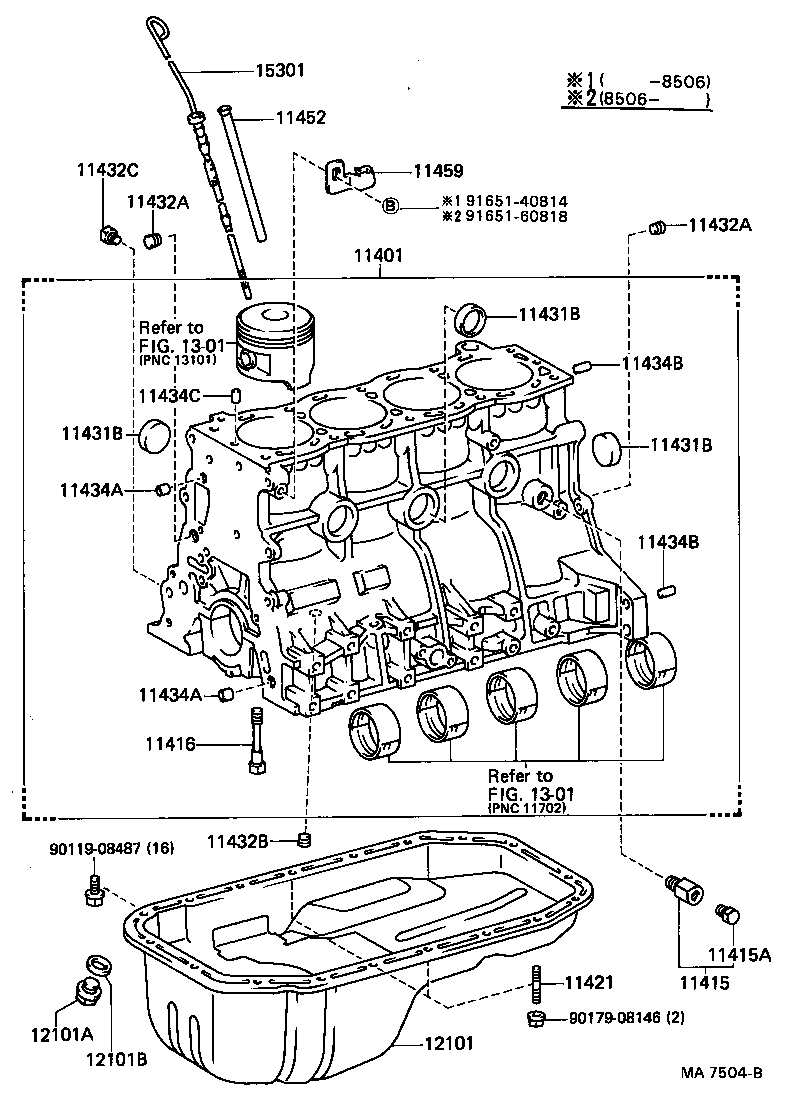

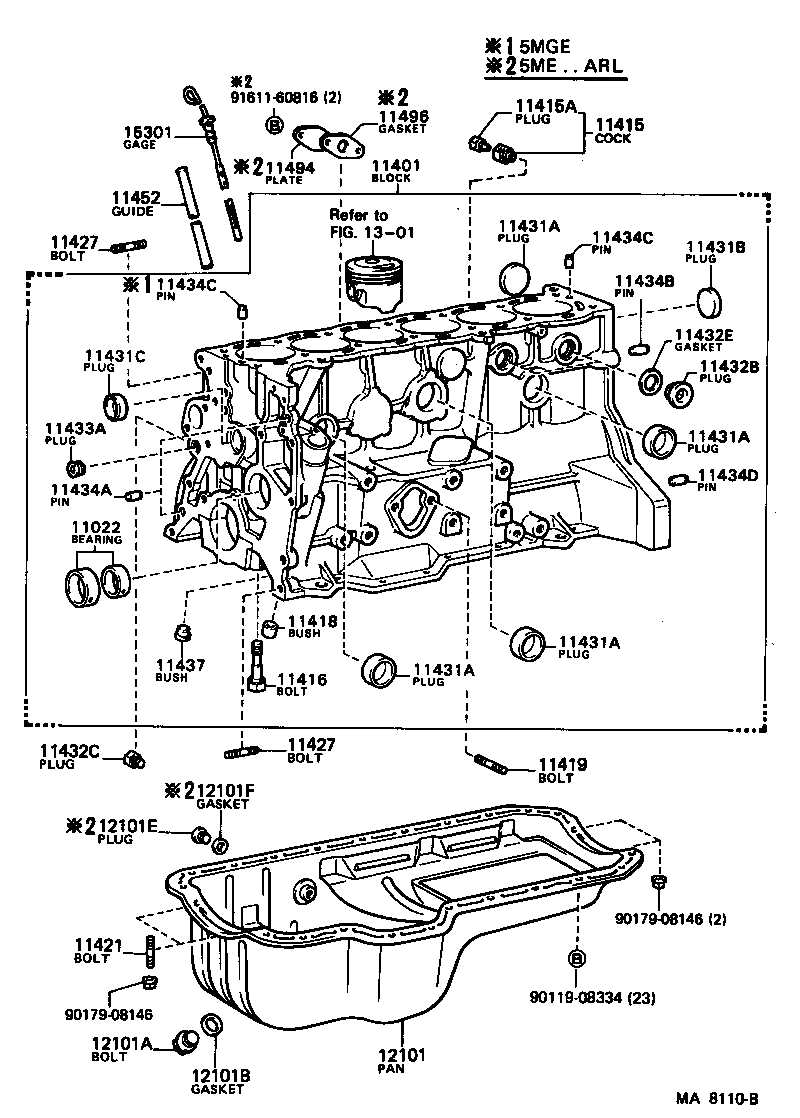

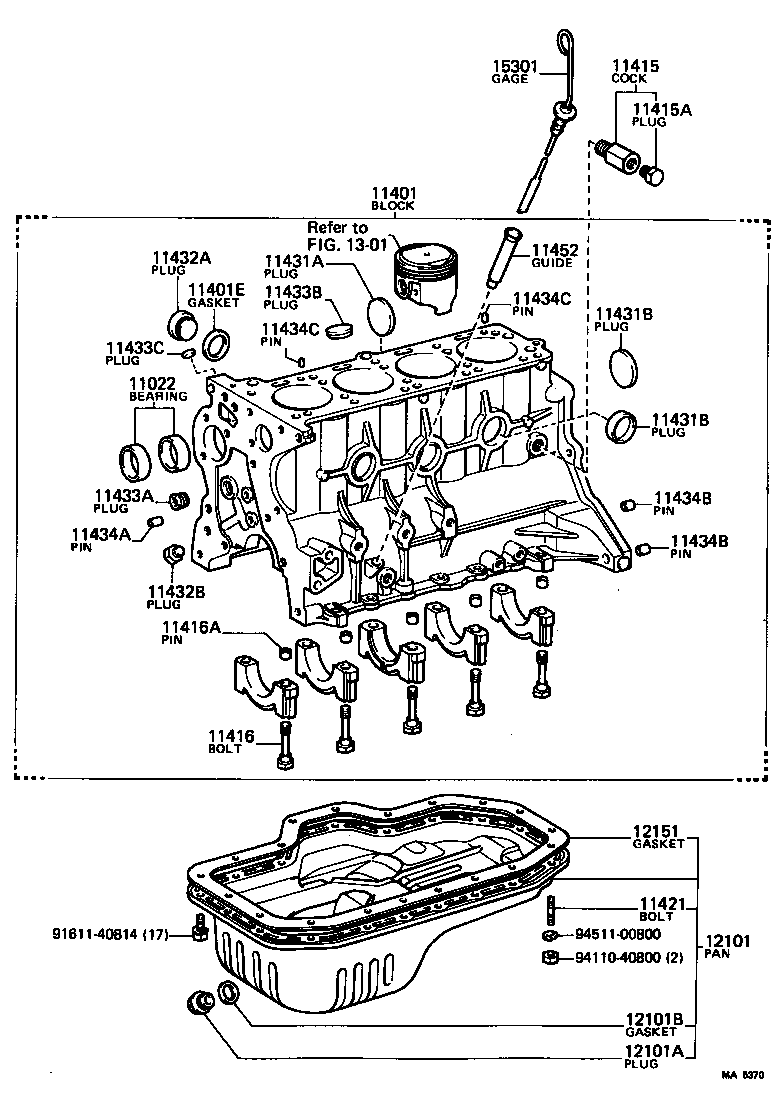

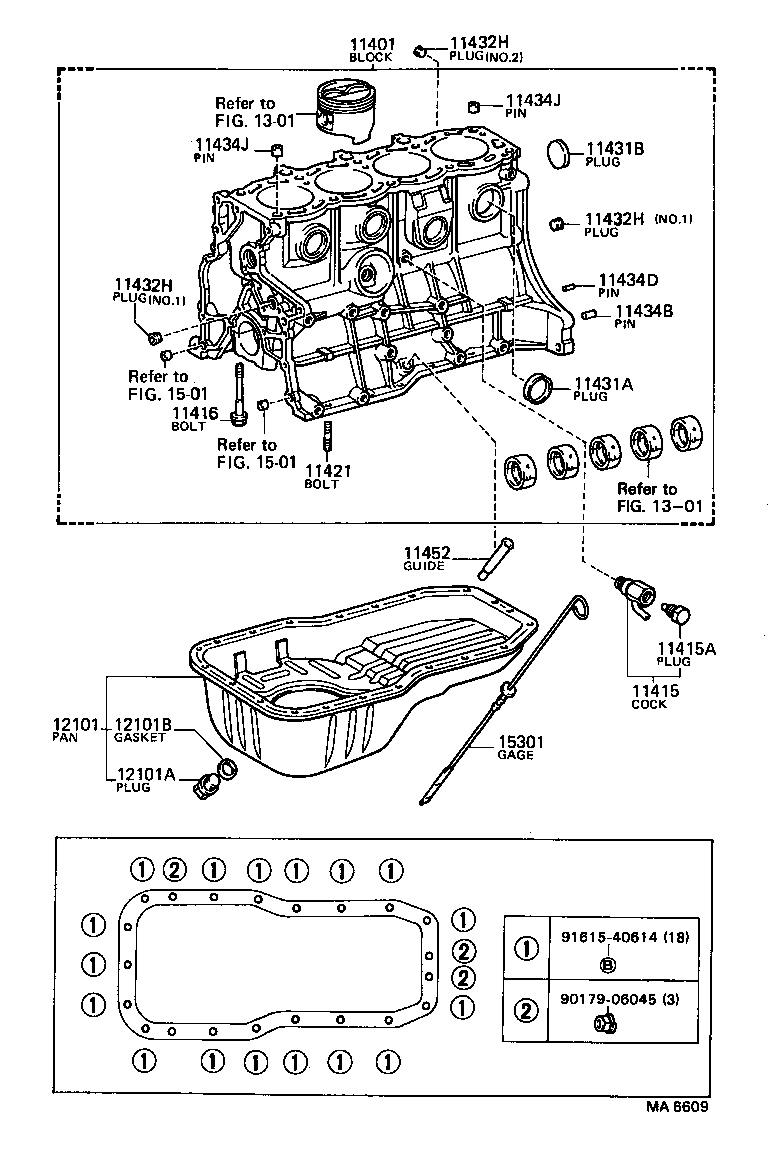

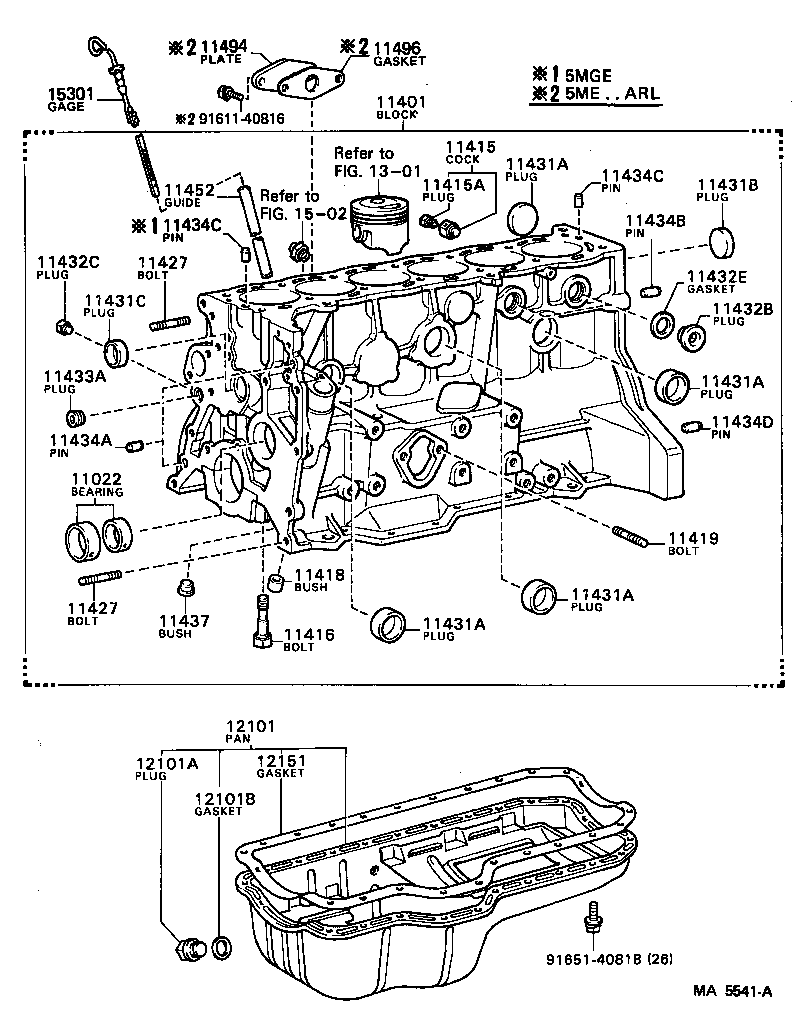

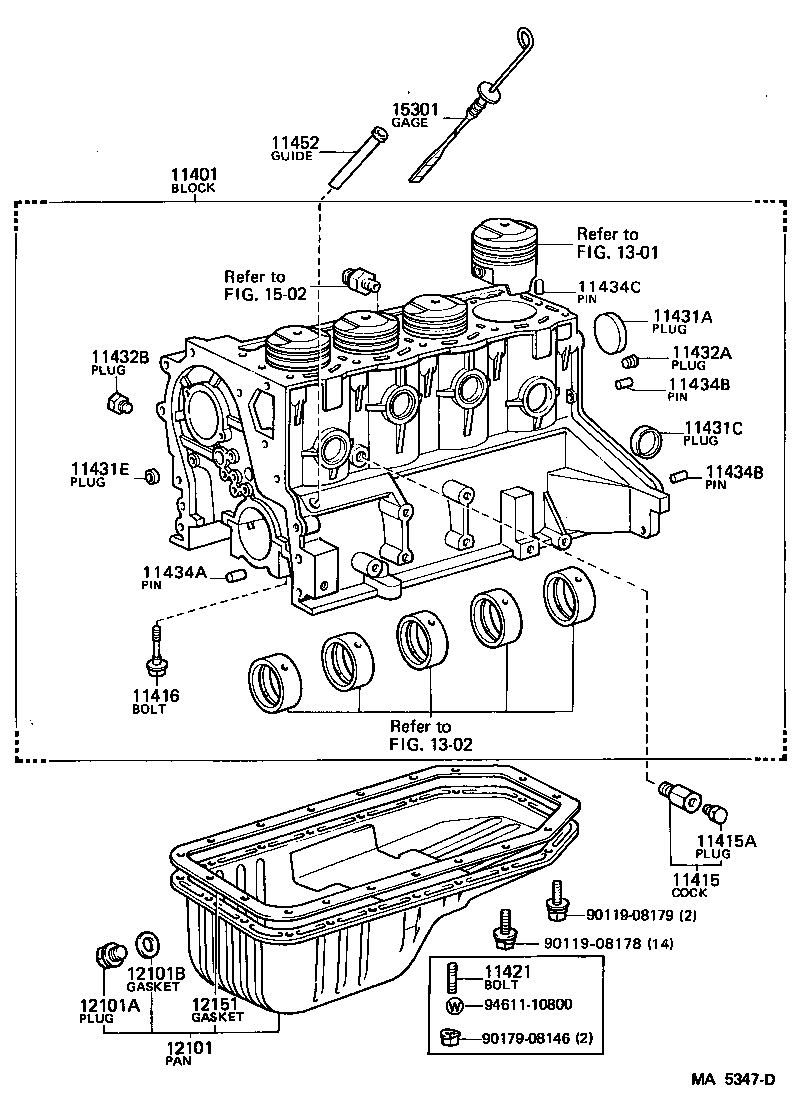

Cylinder Block
42 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 11022 | Bearing Set, Pump Drive Shaft |
| 11401 | Block Sub-assy, Cylinder |
| 11401E | Gasket(FOR CYLINDER BLOCK PLUG) |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11416A | Pin, Ring(FOR CRANKSHAFT BEARING CAP SET) |
| 11418 | Bush, Solid(FOR DISTRIBUTOR) |
| 11419 | Bolt, Stud(FOR FUEL PUMP) |
| 11421 | Bolt, Stud(FOR OIL PAN) |
| 11427 | Bolt, Stud(FOR TIMING CHAIN COVER SET) |
| 11429 | Bolt, Stud(FOR ALTERNATOR BRACKET) |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11431C | Plug, Tight, NO.3(FOR CYLINDER BLOCK) |
| 11431E | Plug, Tight, NO.5(FOR CYLINDER BLOCK) |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11432B | Plug, W/Head Taper Screw, NO.2 |
| 11432C | Plug, W/Head Taper Screw, NO.3 |
| 11432E | Gasket, W/Head Taper Screw Plug |
| 11432H | Plug, W/Head Taper Screw, NO.5 |
| 11433A | Plug, Straight, NO.1 |
| 11433B | Plug, Straight, NO.2 |
| 11433C | Plug, Straight, NO.3 |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11437 | Bush, Oil Pump Shaft Guide |
| 11452 | Guide, Oil Level Gage |
| 11459 | Support, Oil Level Gage Guide |
| 11494 | Plate, Oil Hole Cover |
| 11496 | Gasket, Oil Hole Cover Plate |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12101E | Plug, Oil Pan(FOR OIL COOLER) |
| 12101F | Gasket(FOR OIL COOLER) |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 12151 | Gasket, Oil Pan |
| 15301 | Gage Sub-assy, Oil Level |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
