Timing Gear Cover & Rear End Plate

37 part groups · 9 illustrations

Illustrations

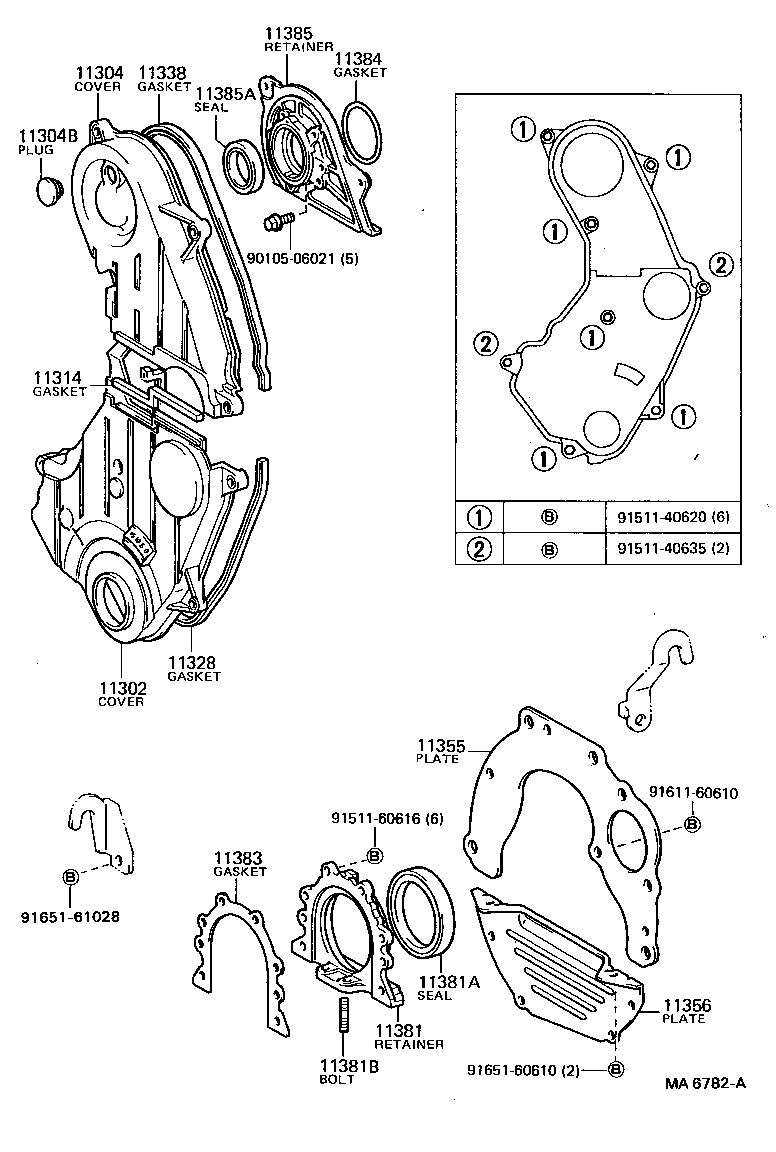

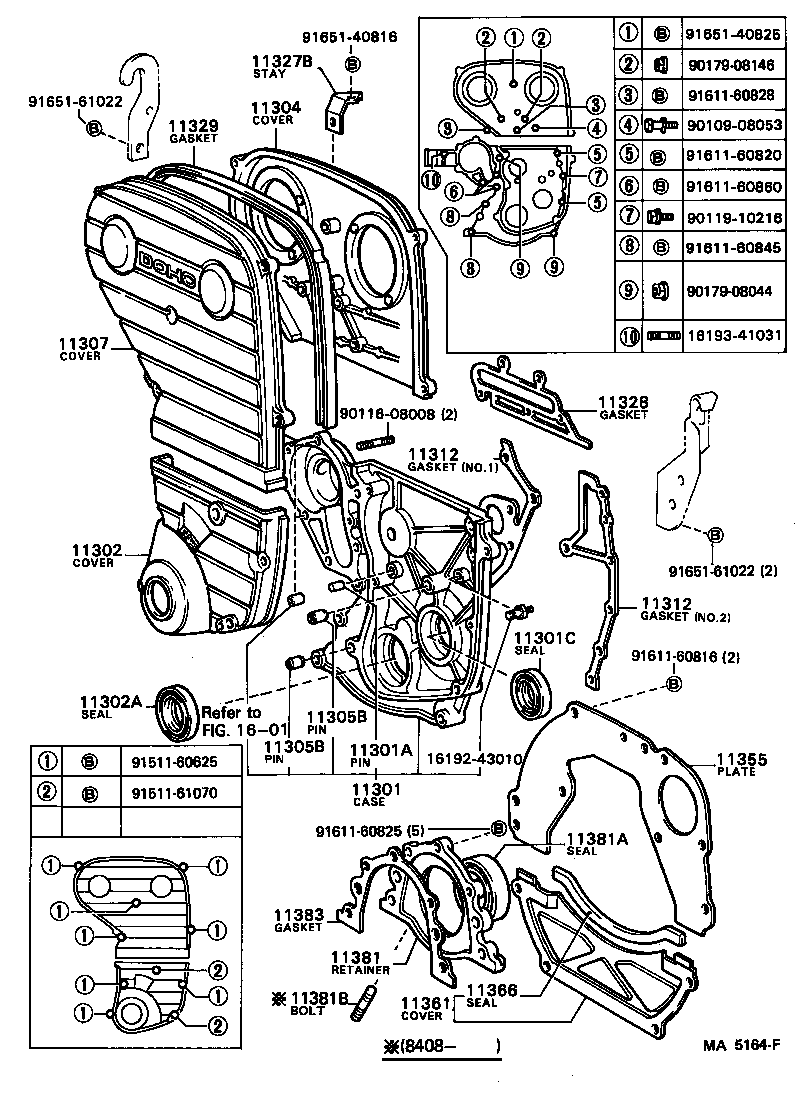

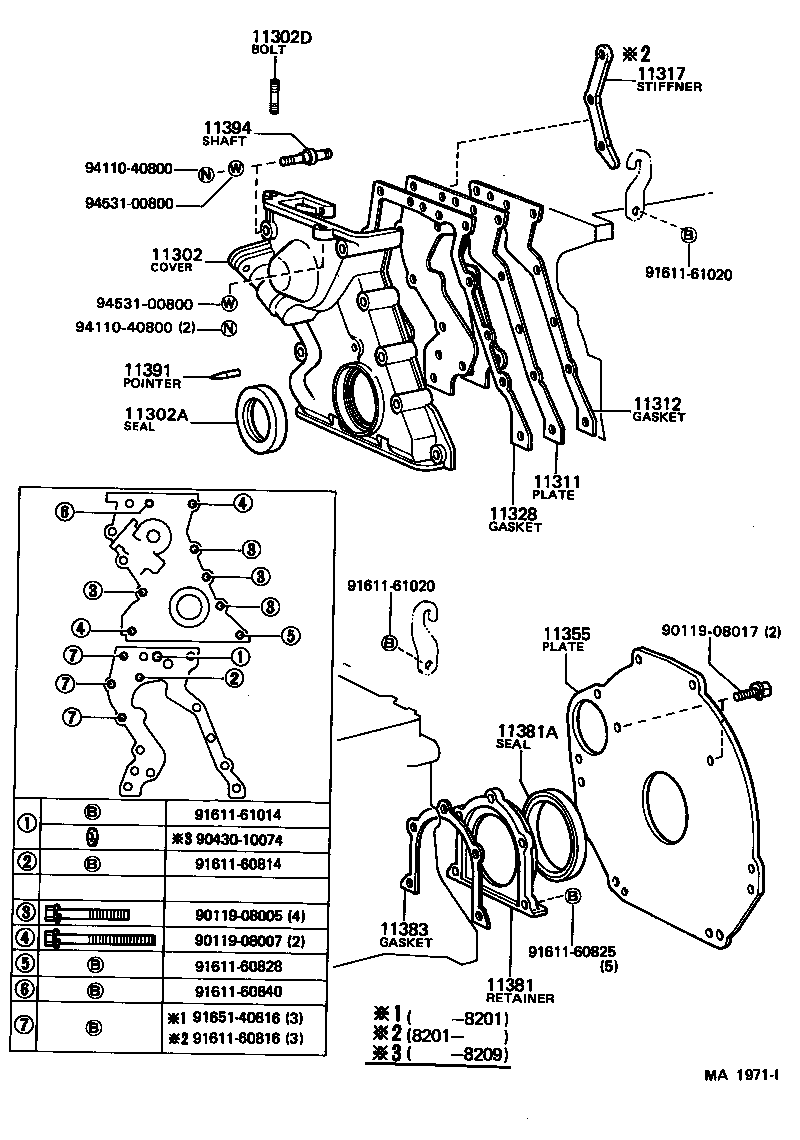

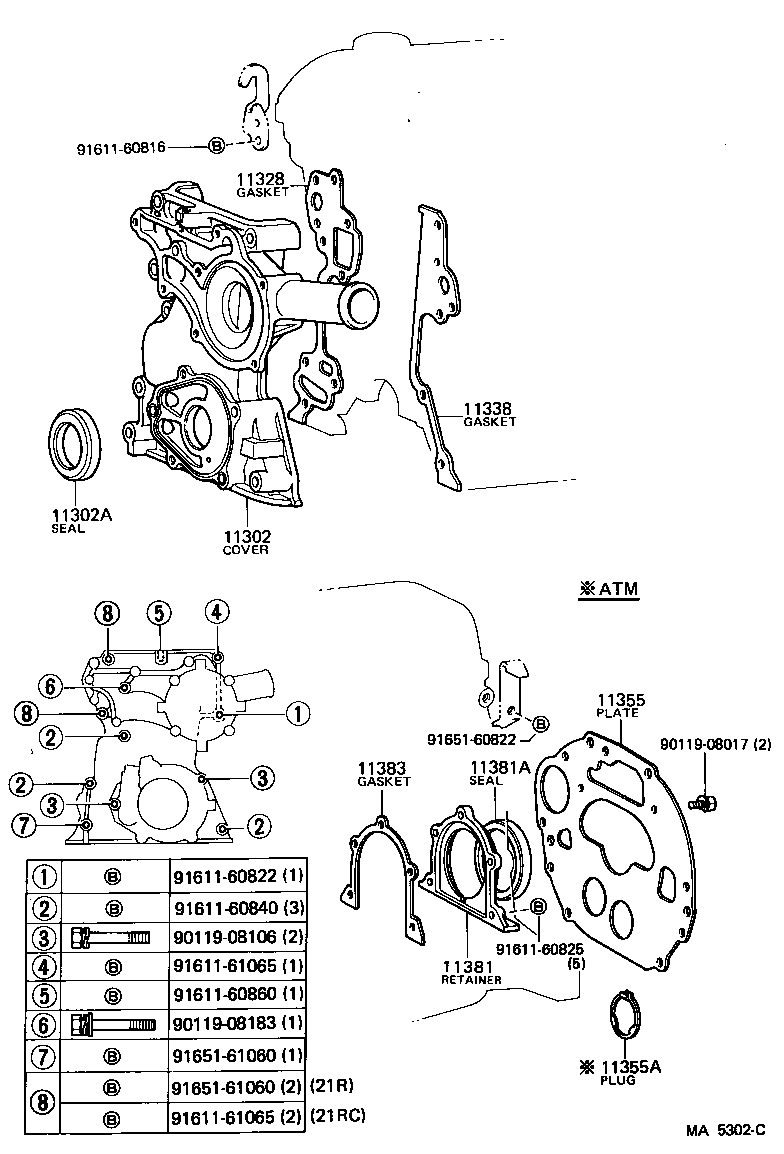

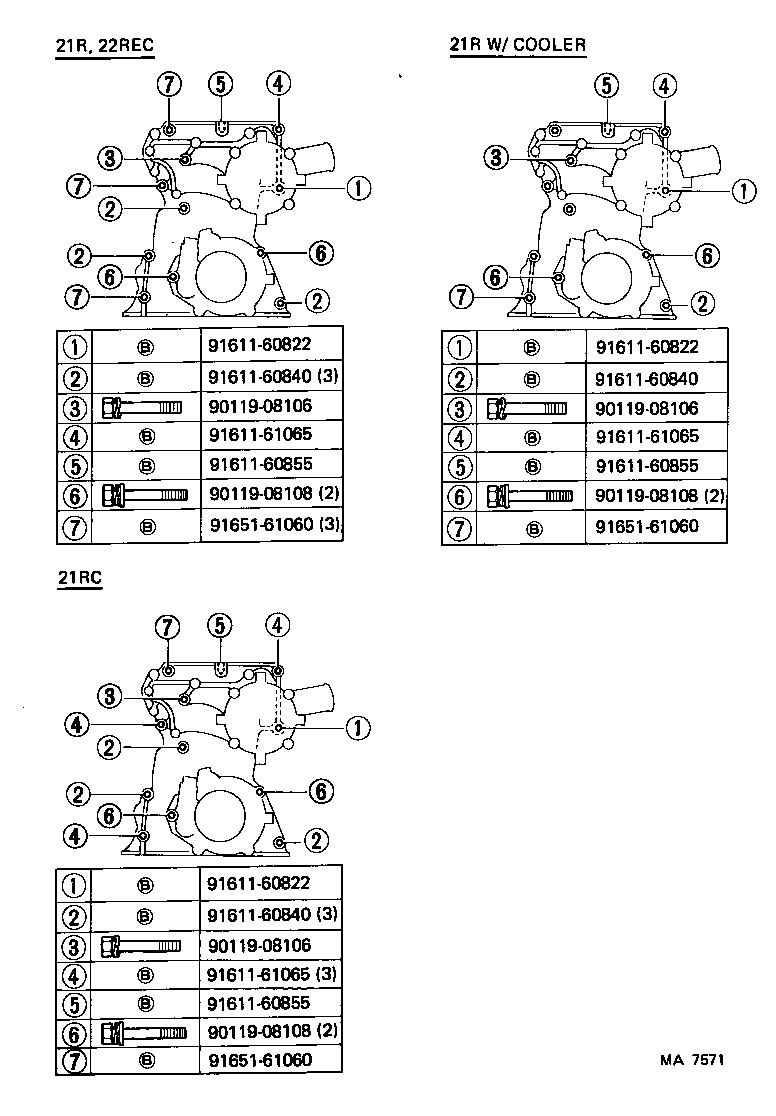

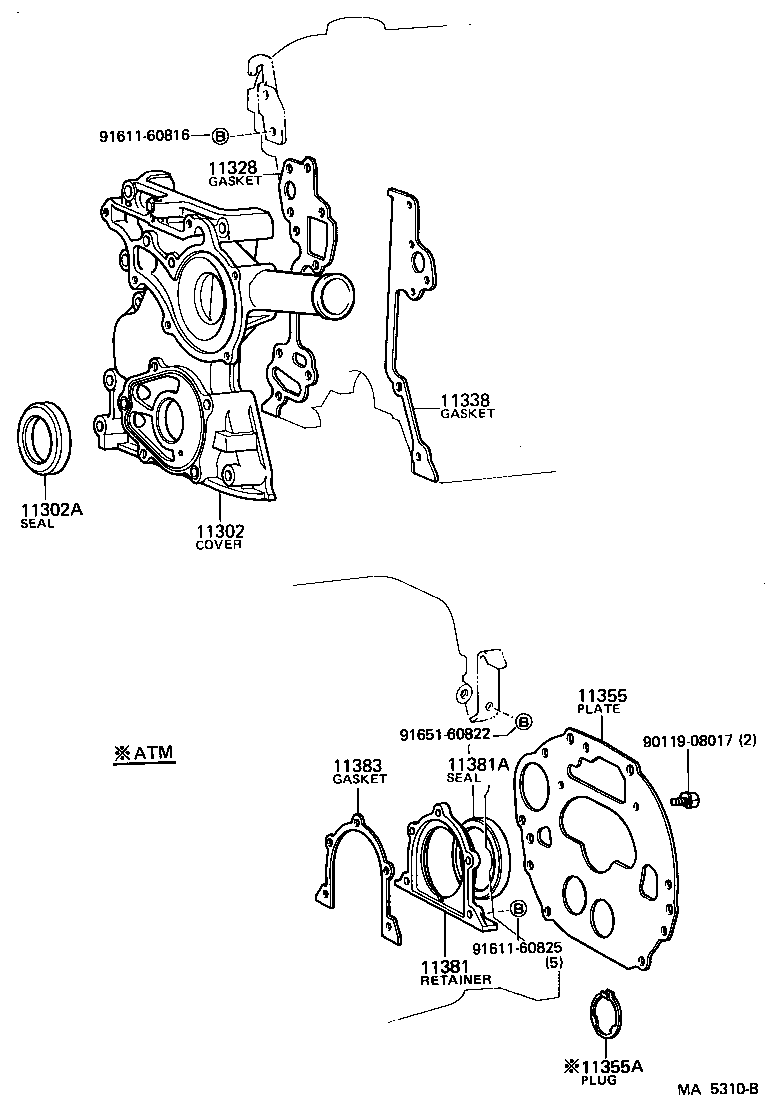

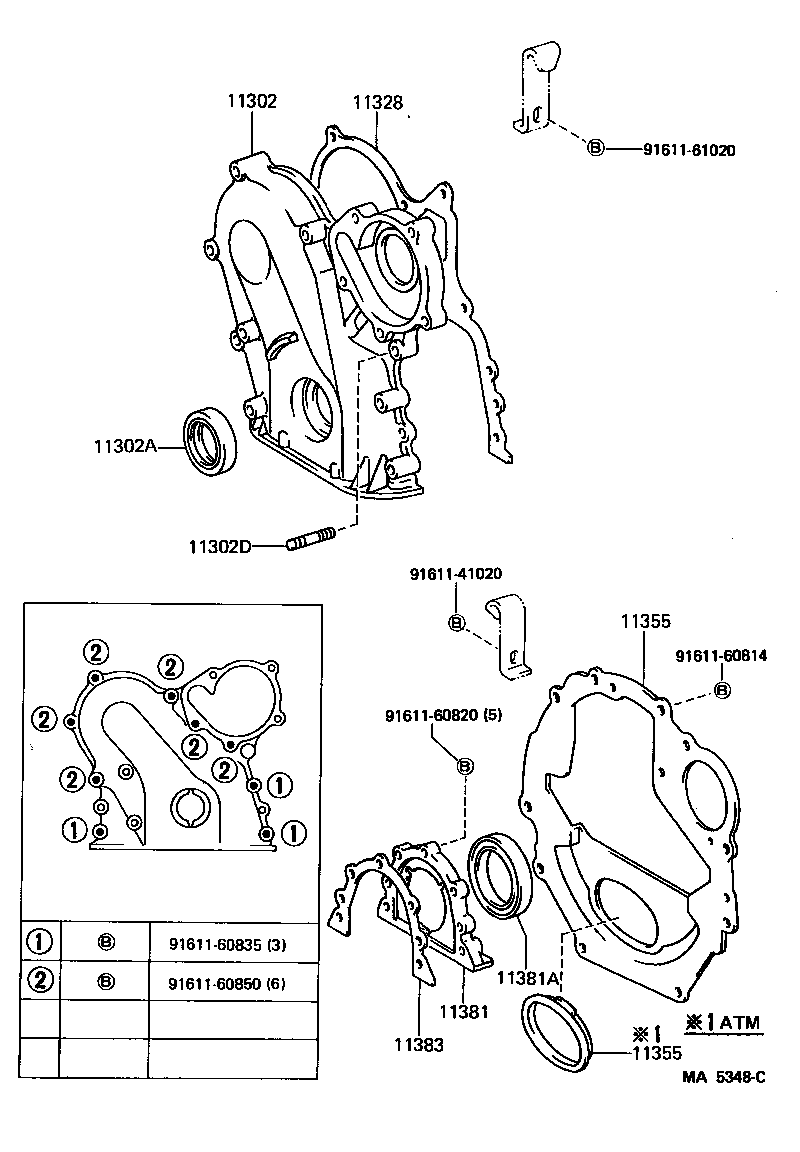

Figure MA6649A MA6649A 1983-08 → 1985-07 Figure MA7167C MA7167C 1983-08 → — Figure MA5164F MA5164F 1981-12 → — Figure MA5302C MA5302C 1981-08 → 1984-08 Figure MA5310B MA5310B 1984-08 → 1985-07 Figure MA7571 MA7571 1984-08 → 1985-07 Figure MA1971I MA1971I 1981-08 → 1983-08 Figure MA6782A MA6782A 1983-08 → 1984-08 Figure MA5348C MA5348C 1981-08 → 1985-07

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302D Bolt, Stud(FOR TIMING GEAR COVER)
11304 Cover, Timing Chain OR Belt, NO.2
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11309 Cover Sub-assy, Timing Belt, NO.4
11311 Plate, Front End
11312 Gasket, Front End Plate
11314 Gasket, Timing Chain NO.2 Cover
11317 Stiffner, Front End Plate
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322E Gasket, Timing Belt Cover, NO.2
11322H Gasket, Timing Belt Cover, NO.3
11327B Stay, Timing Belt Cover
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11338 Gasket, Timing Chain Cover, NO.2
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11356 Plate, Rear End, NO.2
11361 Cover, Flywheel Housing Under
11366 Seal, Flywheel Housing Under Cover Dust
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381B Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11385 Retainer, Camshaft Oil Seal
11385A Seal, Oil(FOR CAMSHAFT)
11391 Pointer, Timing
11394 Shaft, Chain Tenshioner
