Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

19 part groups · 10 illustrations

Illustrations

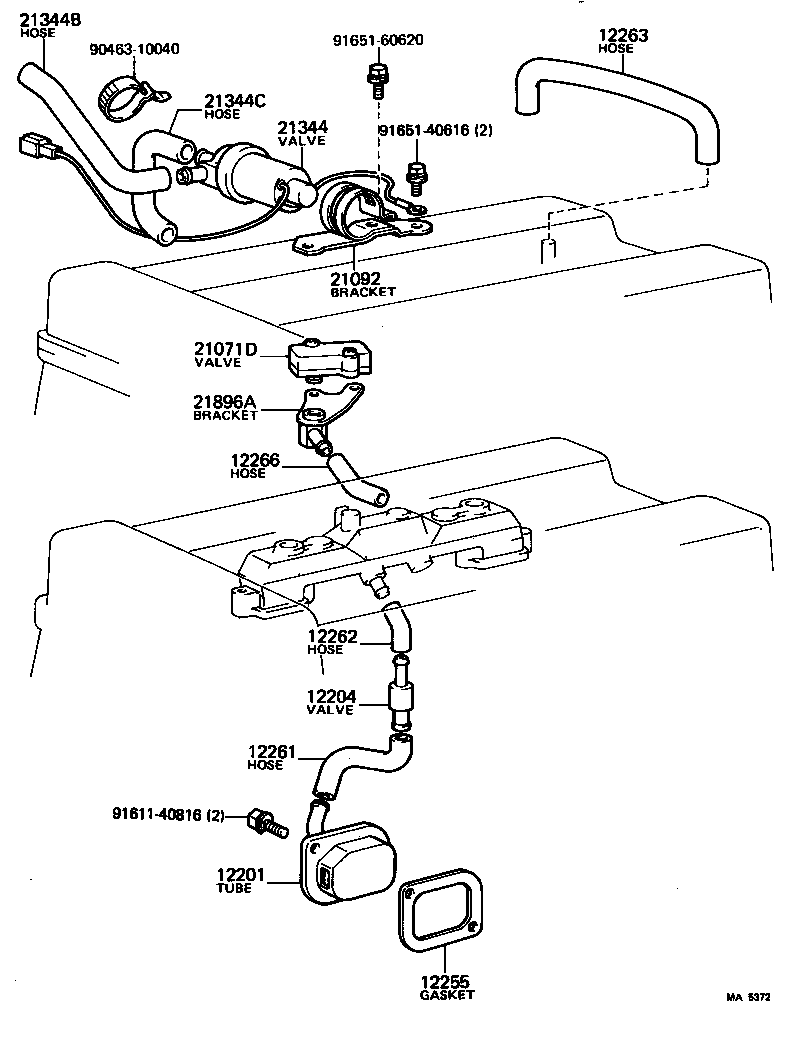

Figure MA6651 MA6651 1981-08 → 1985-07 Figure MA5952 MA5952 1981-12 → — Figure MA6866 MA6866 1981-12 → — Figure MA5166 MA5166 1981-12 → — Figure MA2979A MA2979A 1981-08 → 1985-07 Figure MA5260 MA5260 1984-08 → 1985-07 Figure MA5028 MA5028 1981-08 → 1983-08 Figure MA5372 MA5372 1981-08 → 1983-08 Figure MA2979A MA2979A 1981-08 → 1985-07 Figure MA6651 MA6651 1981-08 → 1985-07

Part groups

PNCDescription
12201 Tube Sub-assy, Ventilation
12203 Pipe Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12225 Flange, Ventilation
12255 Gasket, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12266 Hose, Ventilation Pipe TO Thermostatic Valve
21071D Valve Sub-assy, Thermostatic(FOR VENTILATION HOSE)
21092 Bracket Sub-assy, Throttle Solenoid Valve
21344 Valve, Throttle Solenoid
21344B Hose, NO.1(SOLENOID VALVE TO 3 WAY)
21344C Hose, NO.2(SOLENOID VALVE TO VENTILATION PIPE)
21896A Bracket, Thermostatic Valve(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
