Timing Belt

11 part groups · 3 illustrations

Illustrations

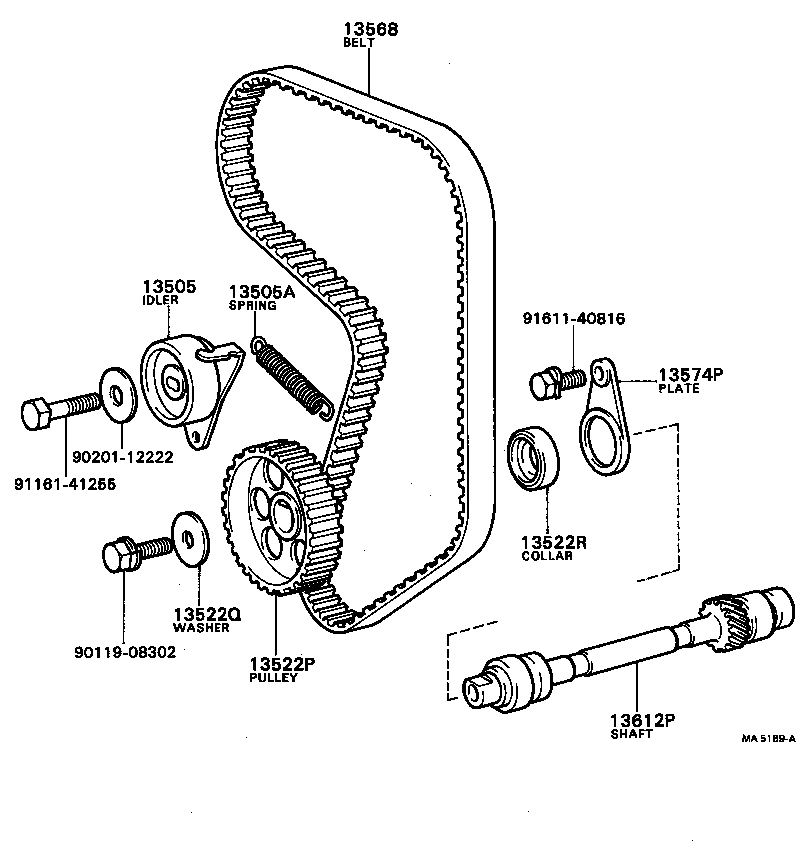

Figure MA6654 MA6654 1983-08 → 1985-07 Figure MA5169A MA5169A 1981-12 → — Figure MA5263A MA5263A 1983-08 → 1984-08

Part groups

PNCDescription
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13505C Pin(FOR IDLER SPRING TENSION)
13522P Pulley, Pump Drive Shaft
13522Q Washer, Plate(FOR PUMP DRIVE SHAFT PULLEY)
13522R Collar(FOR PUMP DRIVE SHAFT PULLEY)
13558 Bracket, Spring(FOR IDLER)
13568 Belt, Timing
13574P Plate, Pump Drive Shaft Thrust
13612P Shaft, Pump Drive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
