Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

46 part groups · 16 illustrations

Illustrations

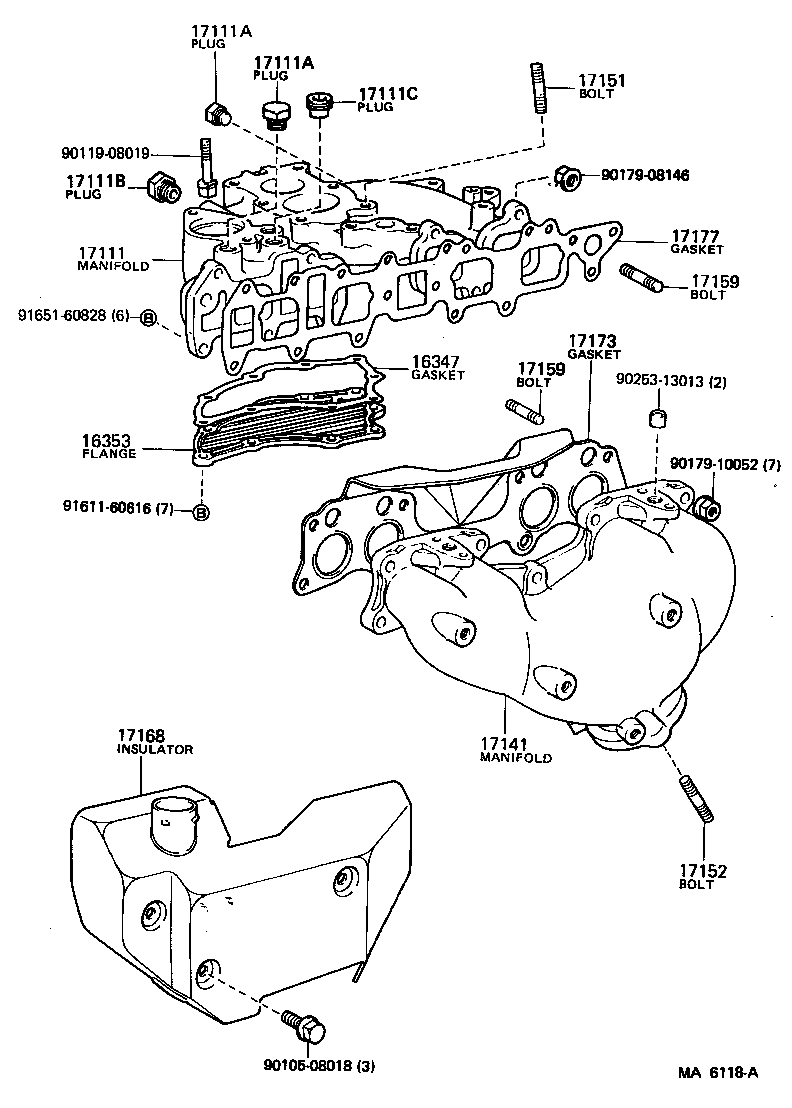

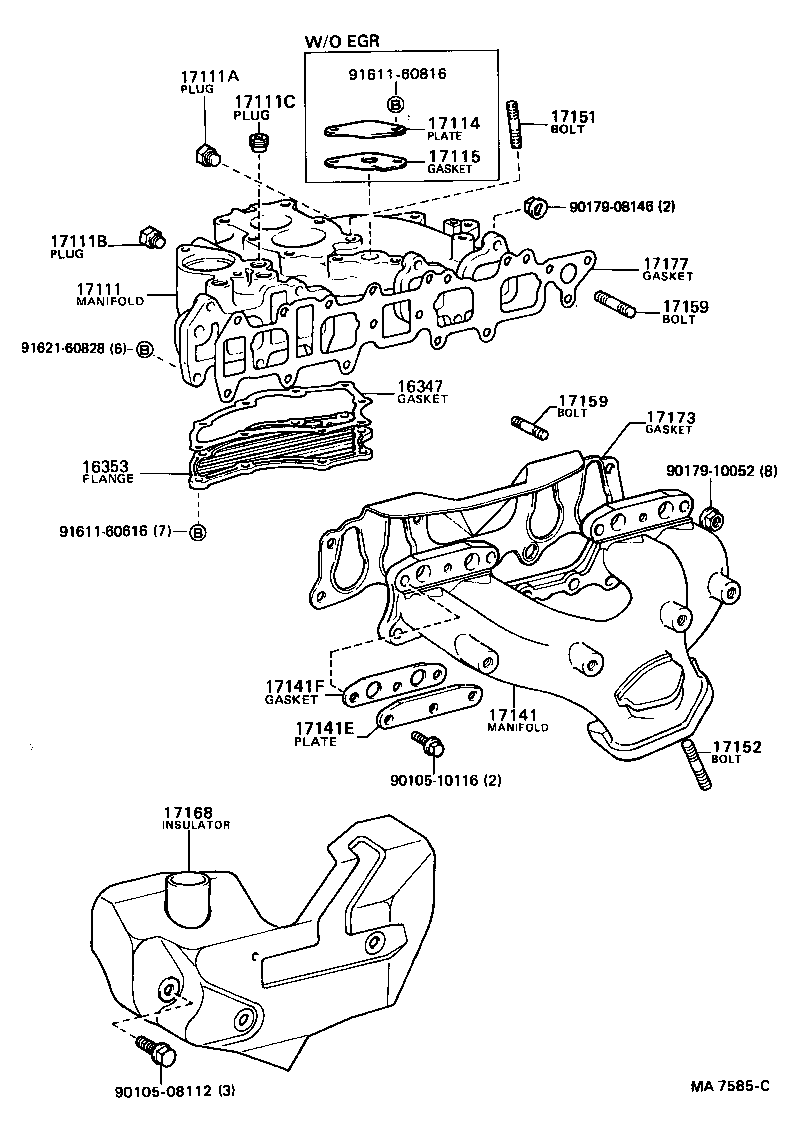

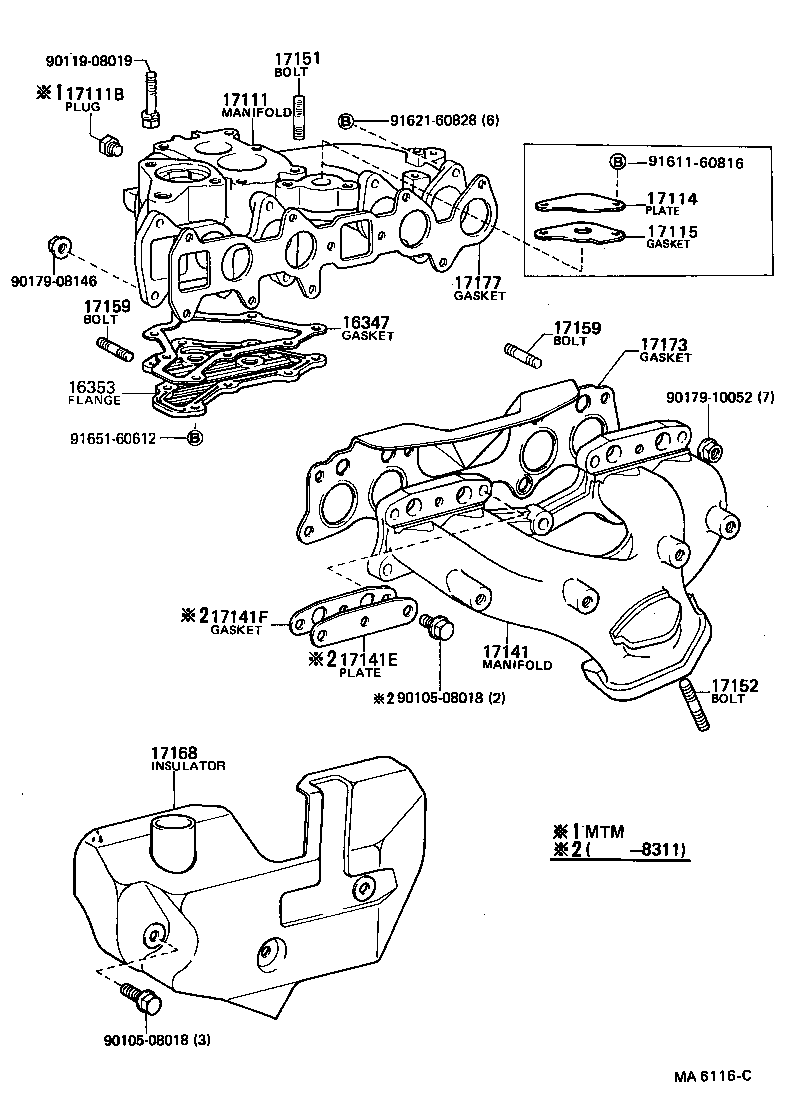

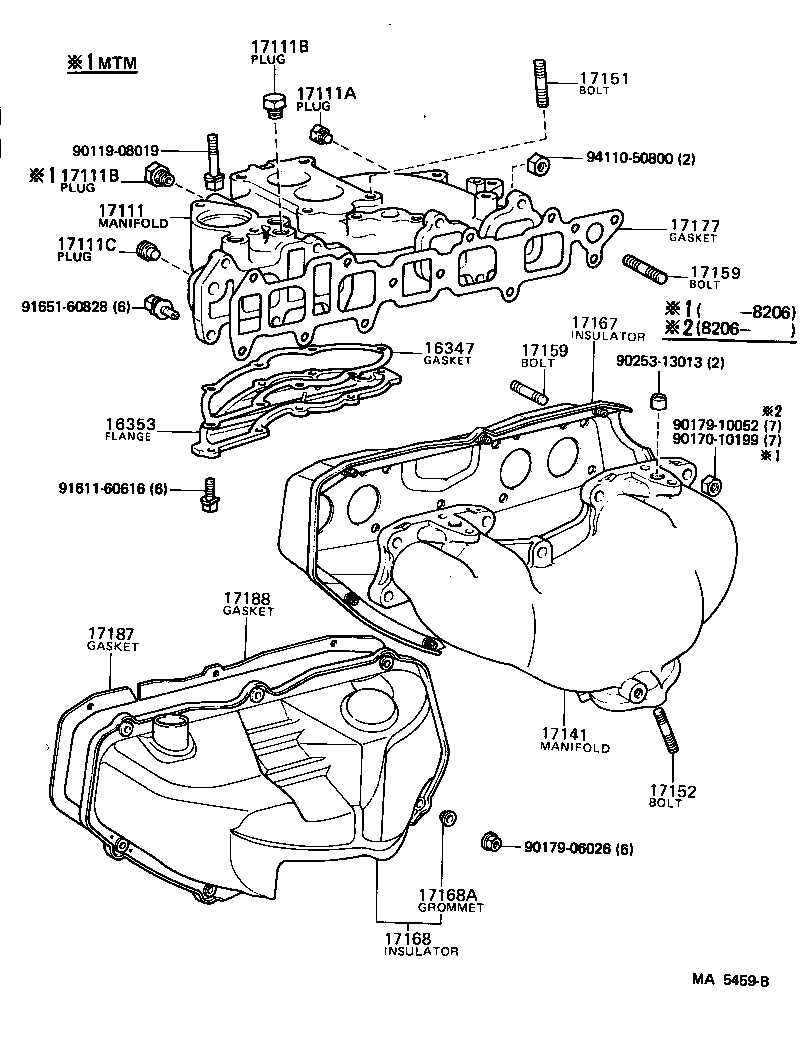

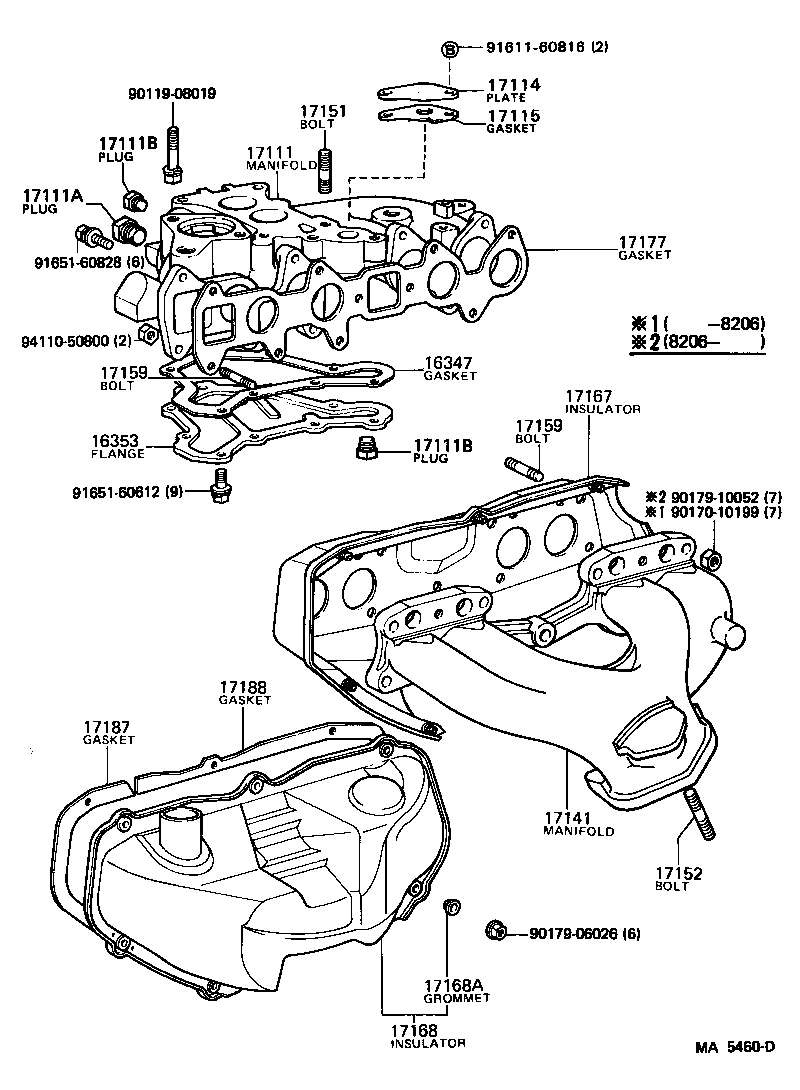

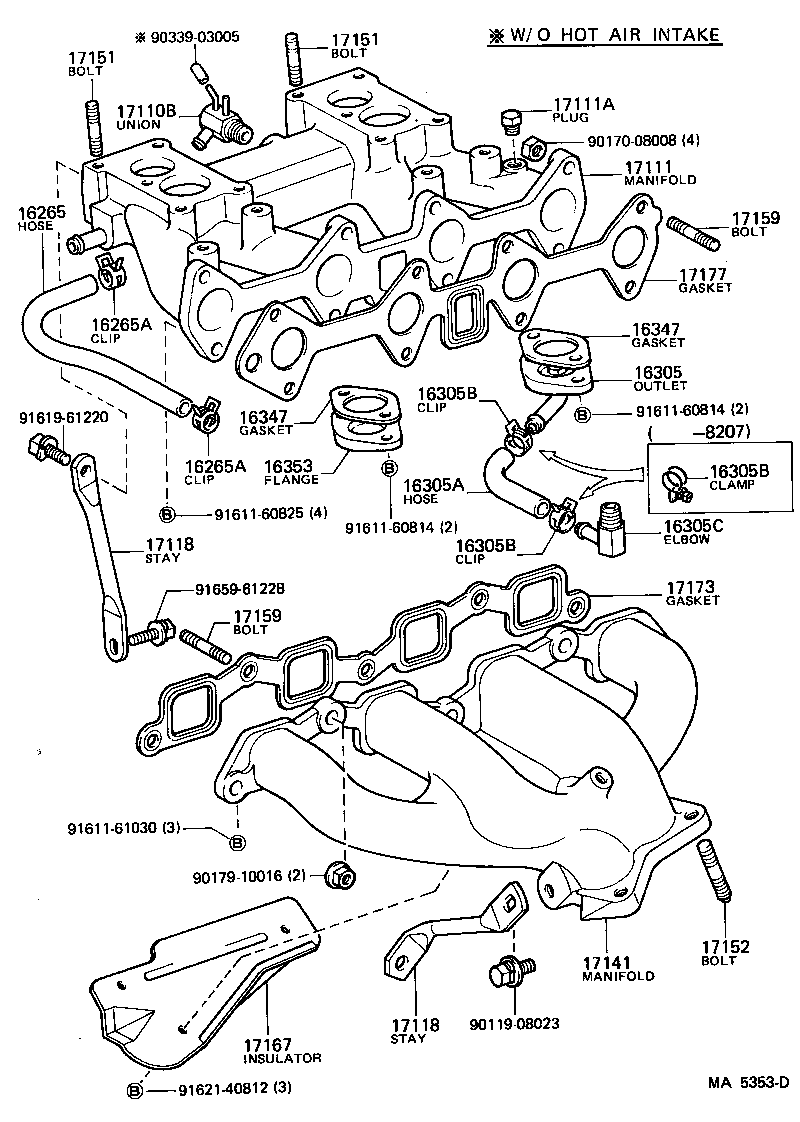

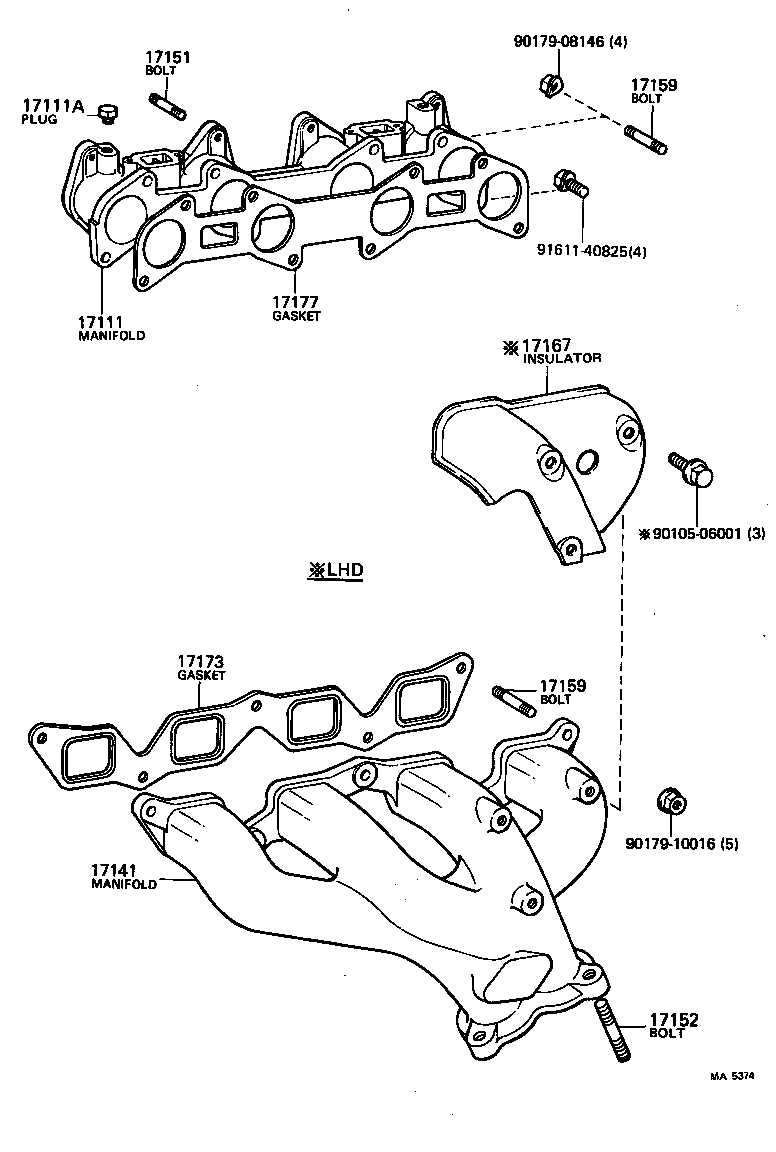

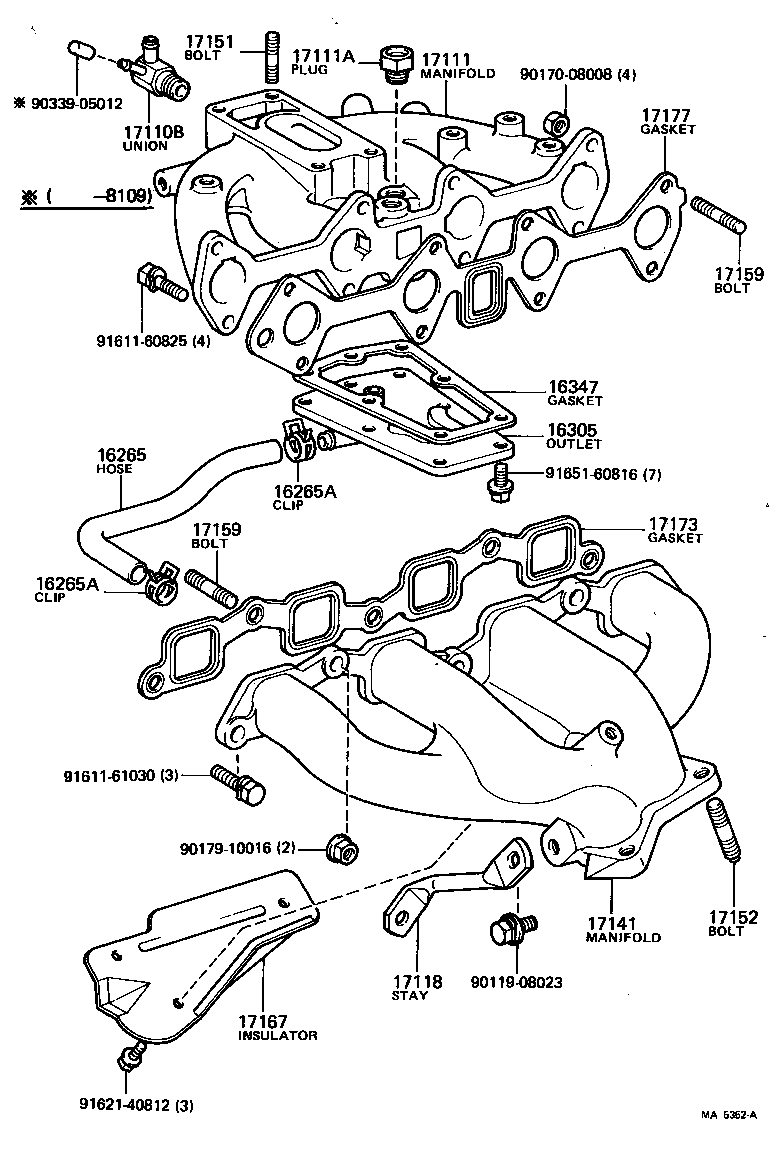

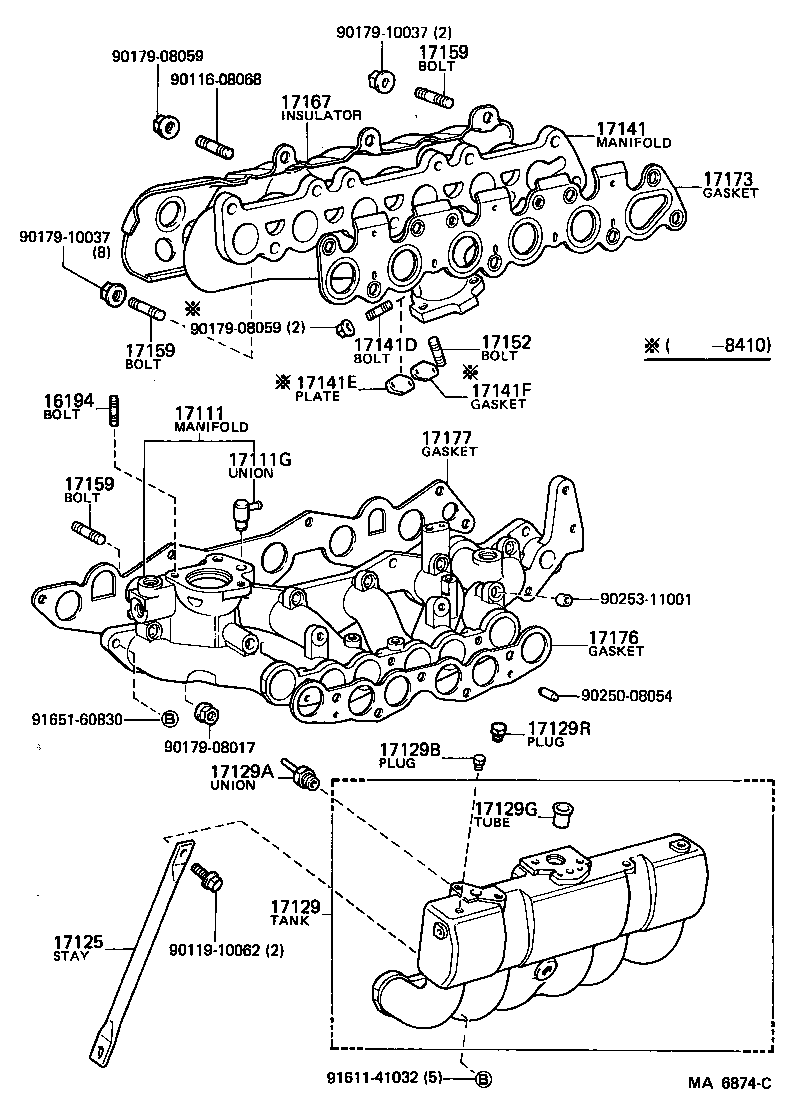

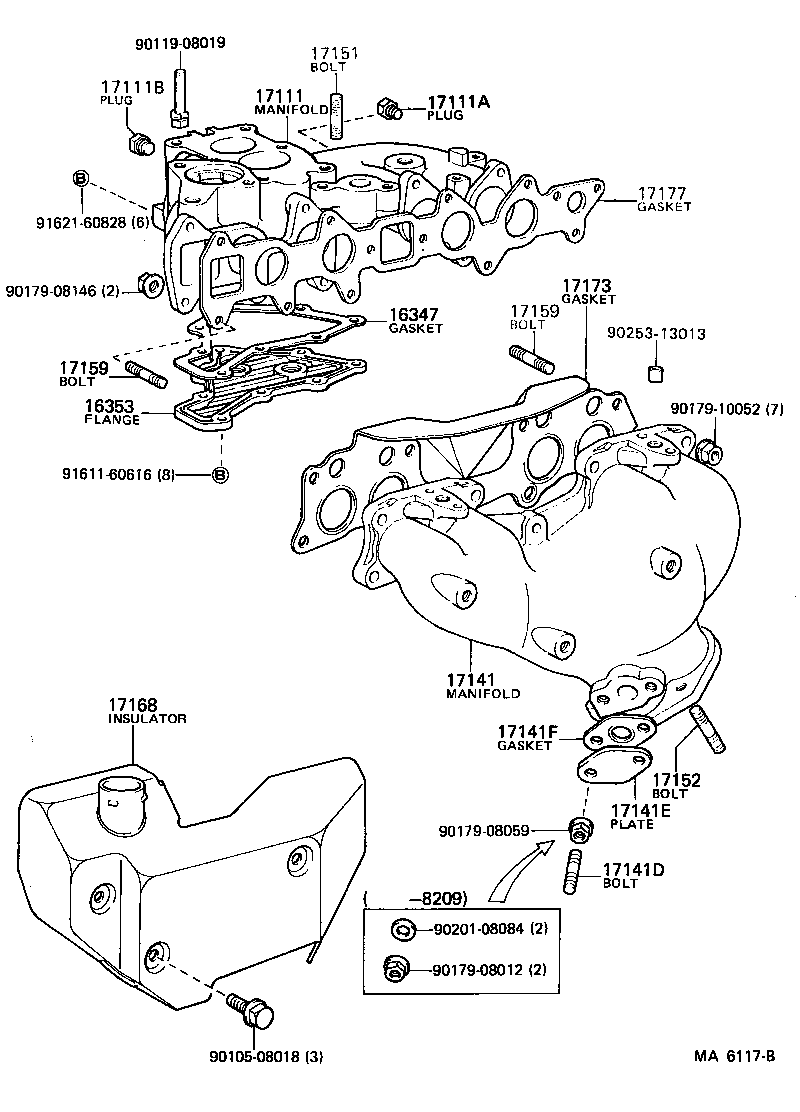

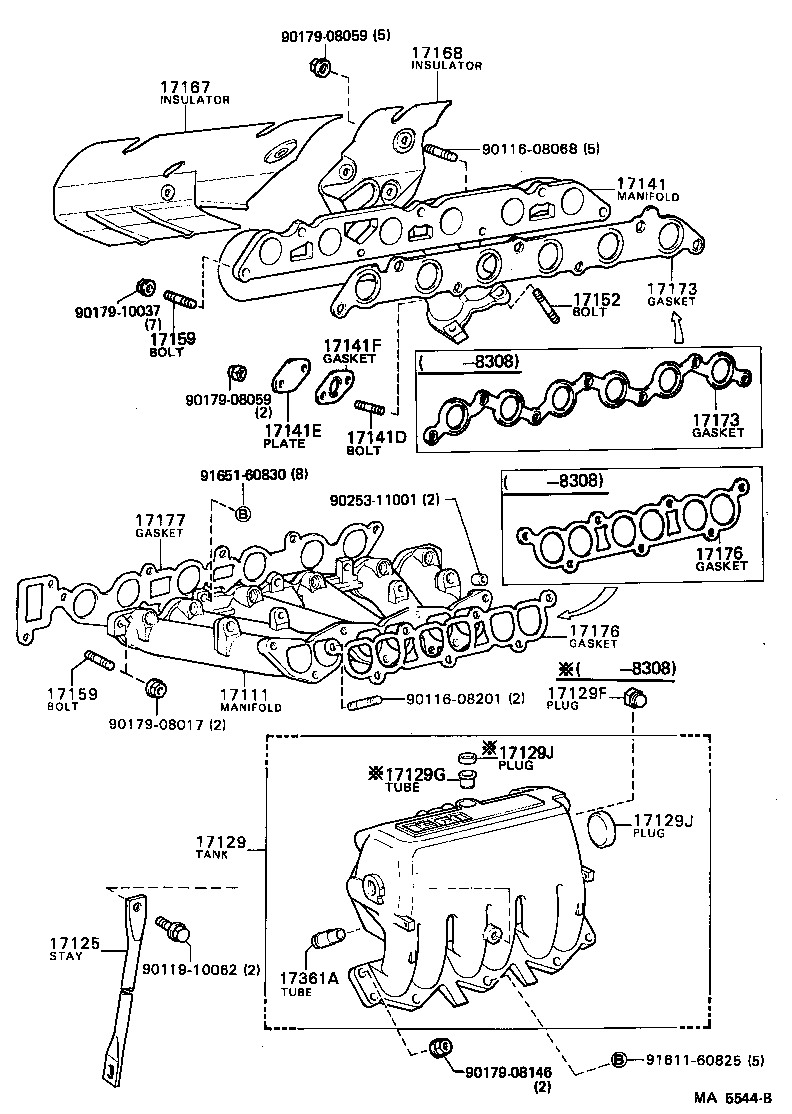

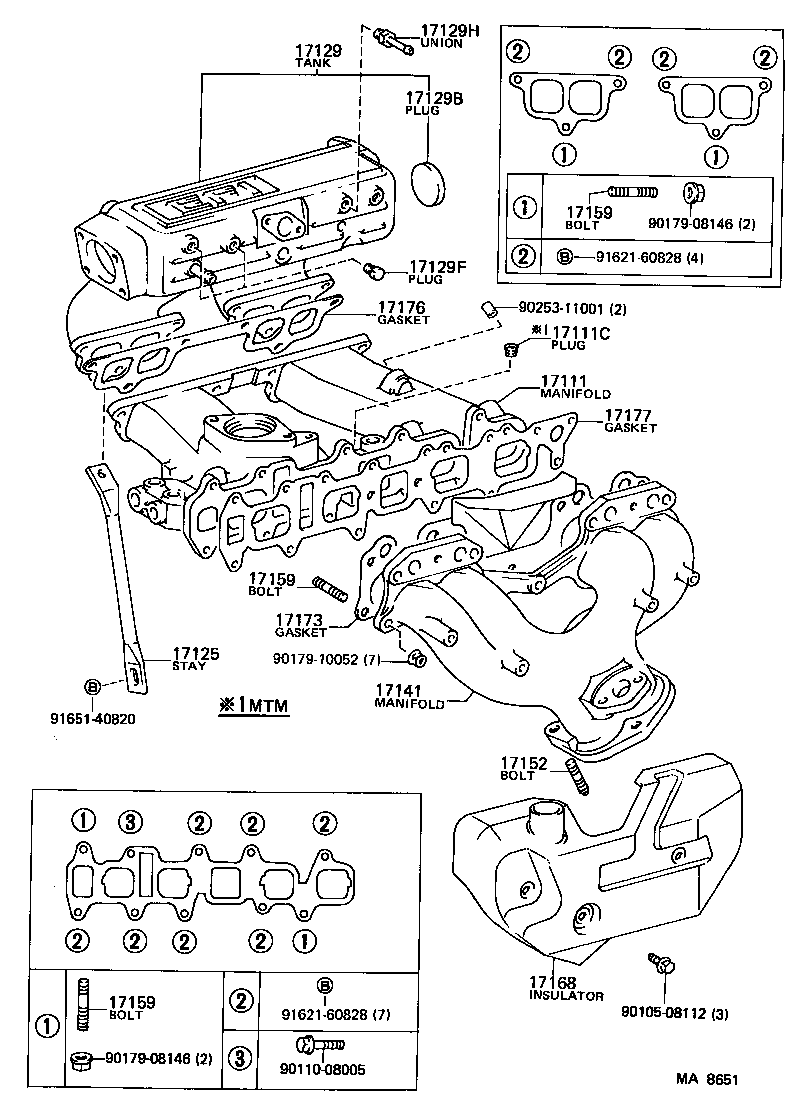

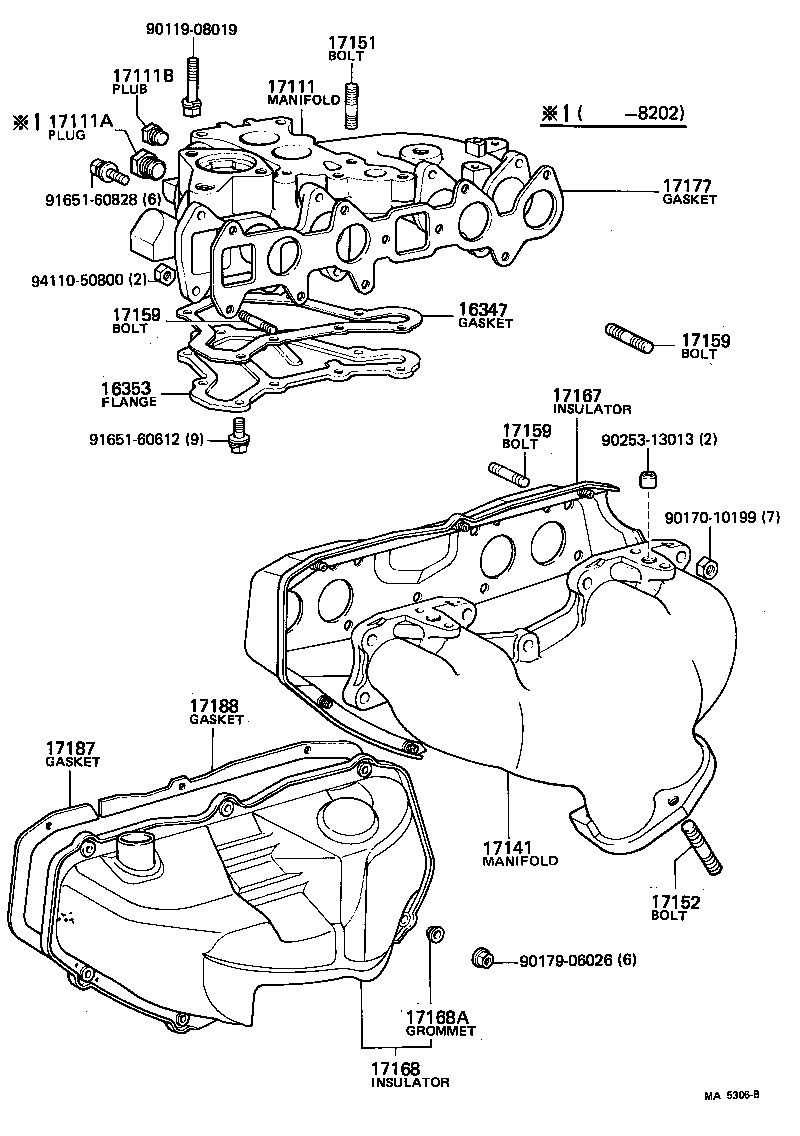

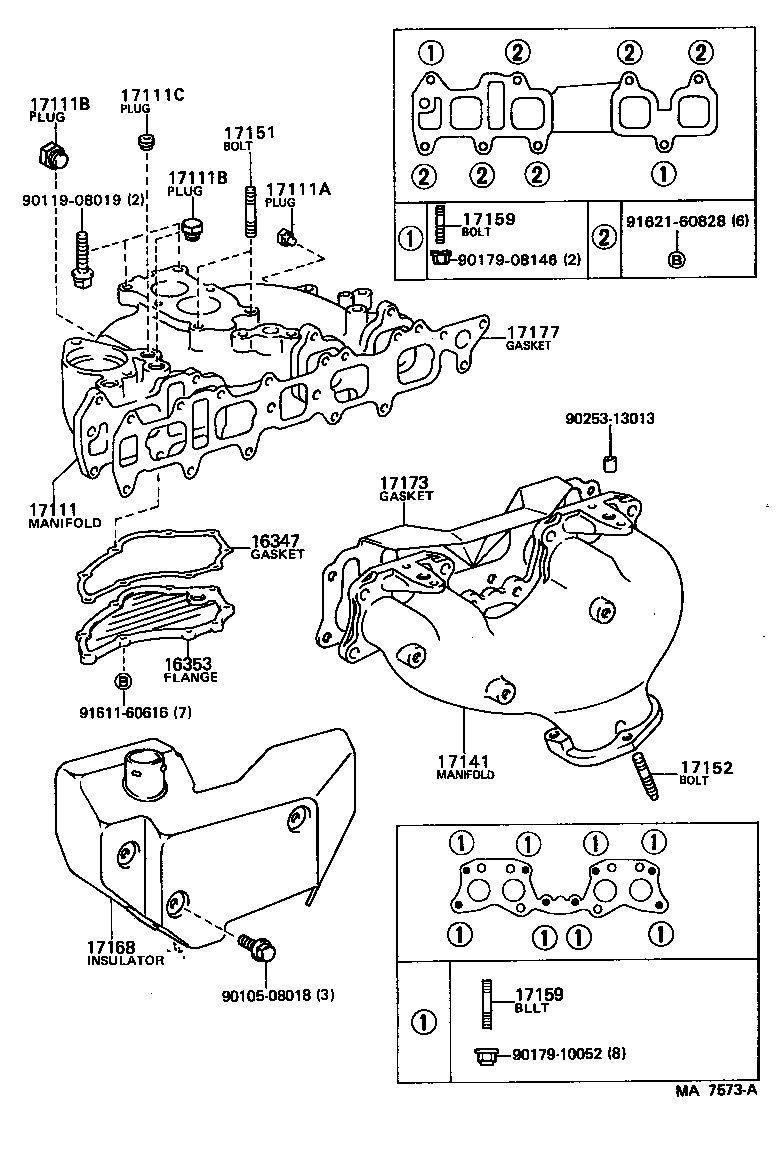

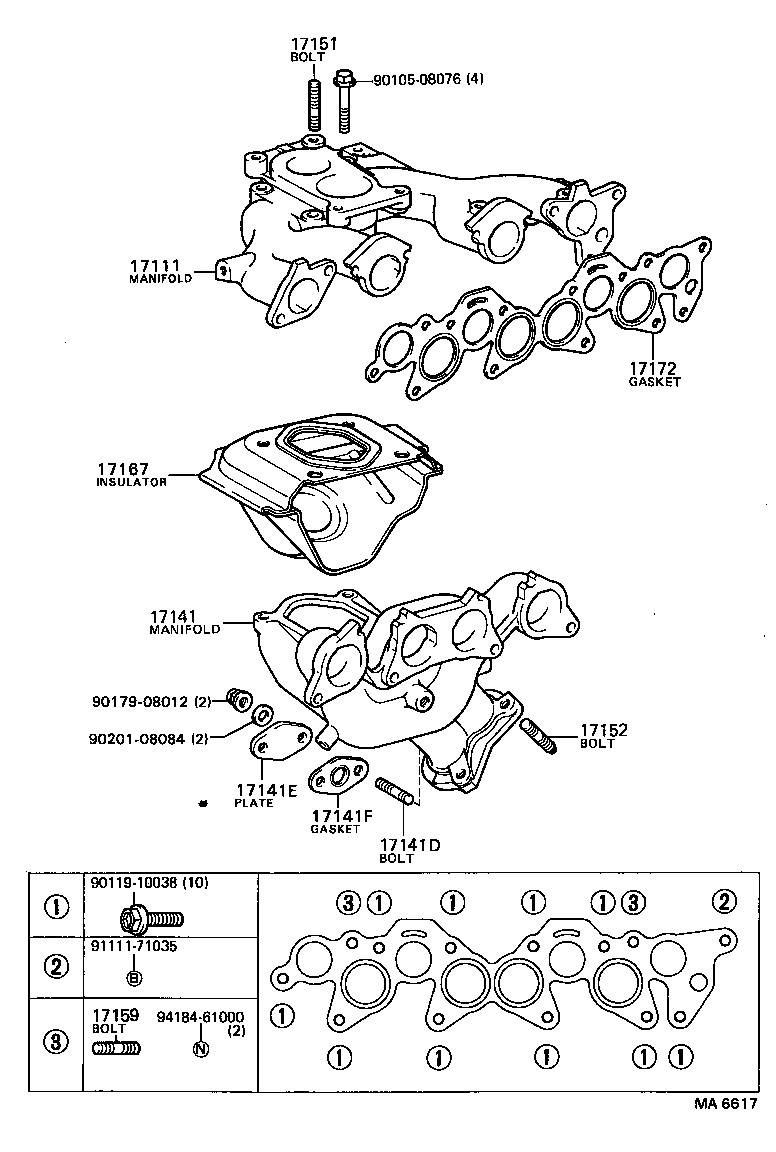

Figure MA6884F MA6884F 1983-08 → 1985-07 Figure MA6874C MA6874C 1983-08 → — Figure MA5544B MA5544B 1981-12 → — Figure MA5460D MA5460D 1981-08 → 1982-08 Figure MA6116C MA6116C 1982-08 → 1984-08 Figure MA7585C MA7585C 1984-08 → 1985-07 Figure MA5306B MA5306B 1981-08 → 1982-08 Figure MA6117B MA6117B 1982-08 → 1984-08 Figure MA7573A MA7573A 1984-08 → 1985-07 Figure MA5459B MA5459B 1981-08 → 1982-08 Figure MA6118A MA6118A 1982-08 → 1983-08 Figure MA8651 MA8651 1984-08 → 1985-07 Figure MA5374 MA5374 1981-08 → 1983-08 Figure MA6617 MA6617 1983-08 → 1984-08 Figure MA5352A MA5352A 1981-08 → 1983-08 Figure MA5353D MA5353D 1981-08 → 1985-07

Part groups

PNCDescription
16194 Bolt, Stud(FOR WATER OUTLET SETTING)
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
16305 Outlet Sub-assy, Water By-pass
16305A Hose, Water By-pass Outlet
16305B Clamp, Water By-pass Outlet Hose
16305C Elbow, Water By-pass Outlet Hose
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111G Union(FOR INTAKE MANIFOLD WATER)
17114 Plate, Intake Manifold Hole Cover
17115 Gasket, Intake Manifold Hole Cover
17118 Stay, Manifold
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129B Plug
17129F Plug, Intake Manifold Suction Hole
17129G Tube, Egr Inlet
17129H Union, NO.4
17129J Plug, Tight(FOR INTAKE AIR SURGE TANK)
17129R Plug, W/Head Taper Screw(FOR INTAKE AIR SURGE TANK)
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17168A Grommet(FOR EXHAUST MANIFOLD HEAT INSULATOR)
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17187 Gasket, Heat Insulator, NO.1
17188 Gasket, Heat Insulator, NO.2
17300 Valve Assy, Intake Air Control
17361A Tube, Air(FOR EFI)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
