Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Pump

6 part groups · 3 illustrations

Illustrations

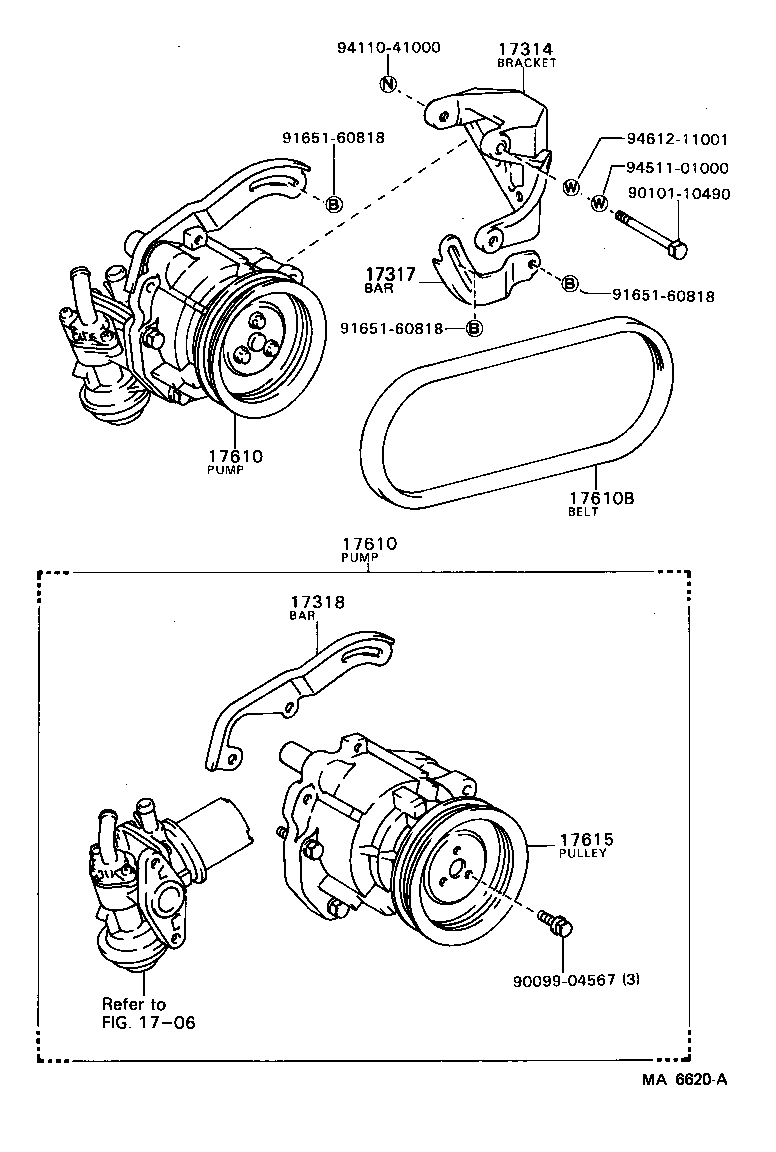

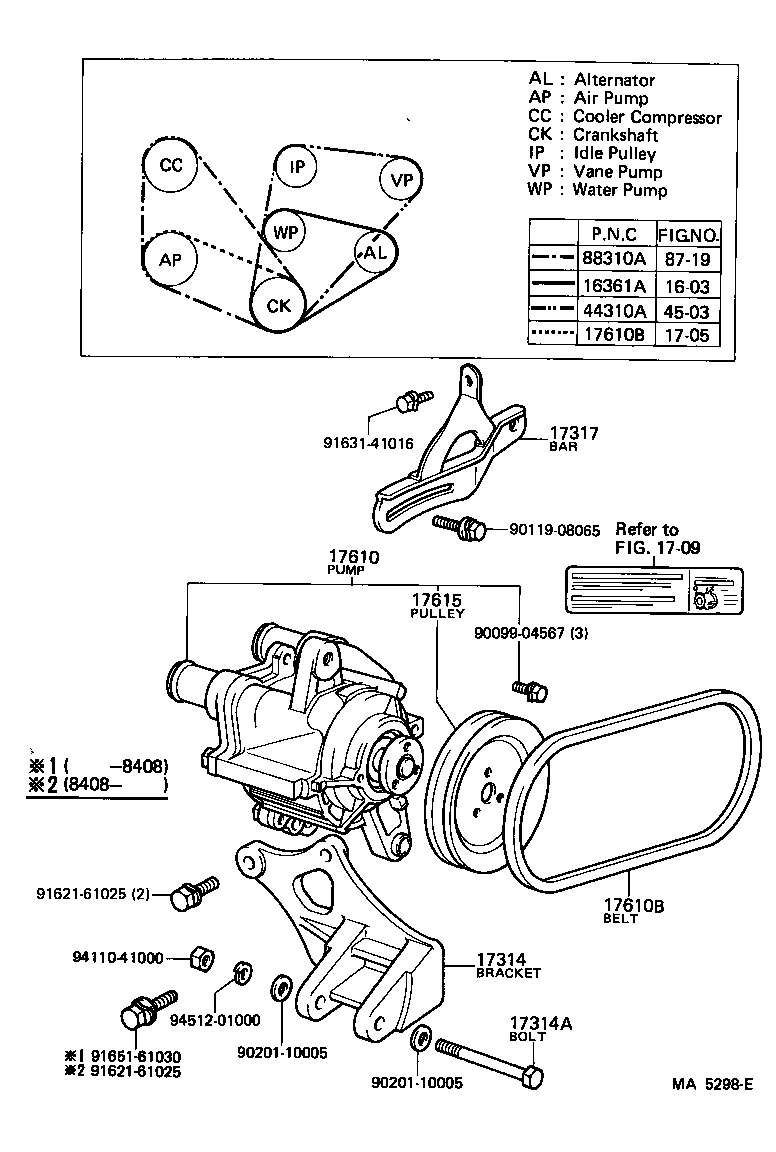

Figure MA6854A MA6854A 1983-08 → — Figure MA5298E MA5298E 1981-08 → 1985-07 Figure MA6620A MA6620A 1983-08 → 1984-08

Part groups

PNCDescription
17314 Bracket, Air Pump
17314A Bolt, Hexagon(FOR AIR PUMP BRACKET SETTING)
17317 Bar, Air Pump Adjusting, NO.1
17318 Bar, Air Pump Adjusting, NO.2
17610 Pump Assy, Air
17615 Pulley(FOR AIR PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
