Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

34 part groups · 26 illustrations

Illustrations

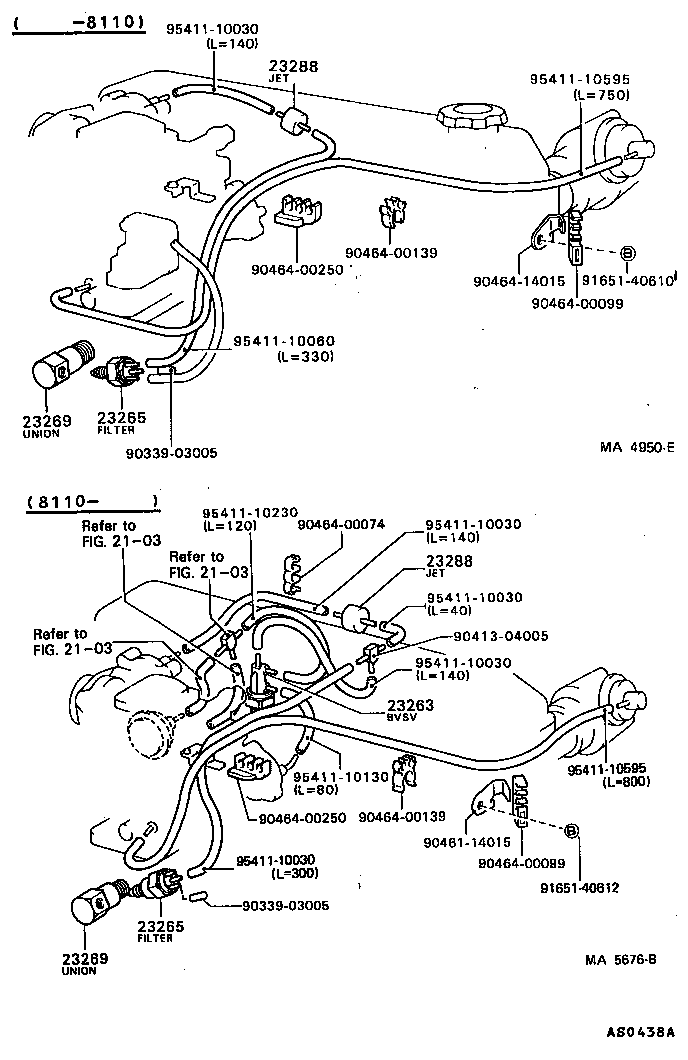

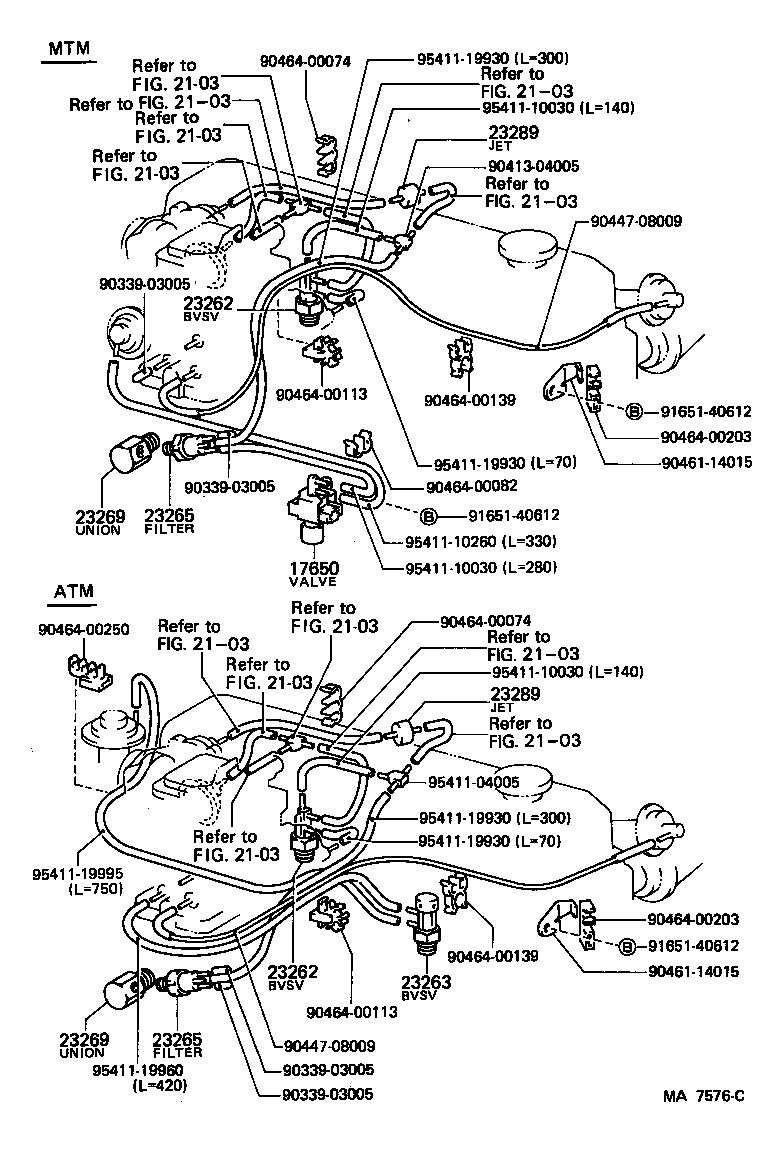

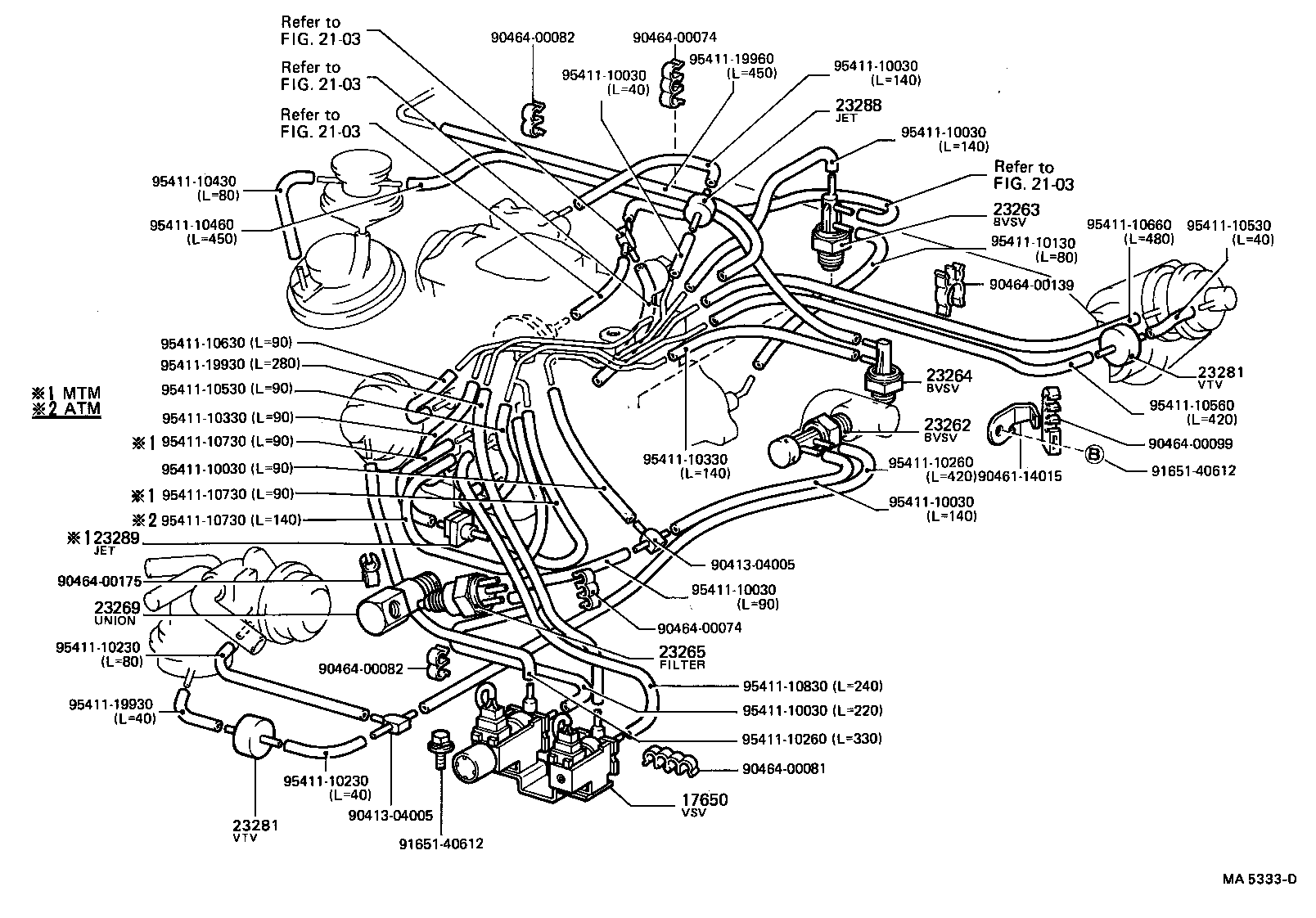

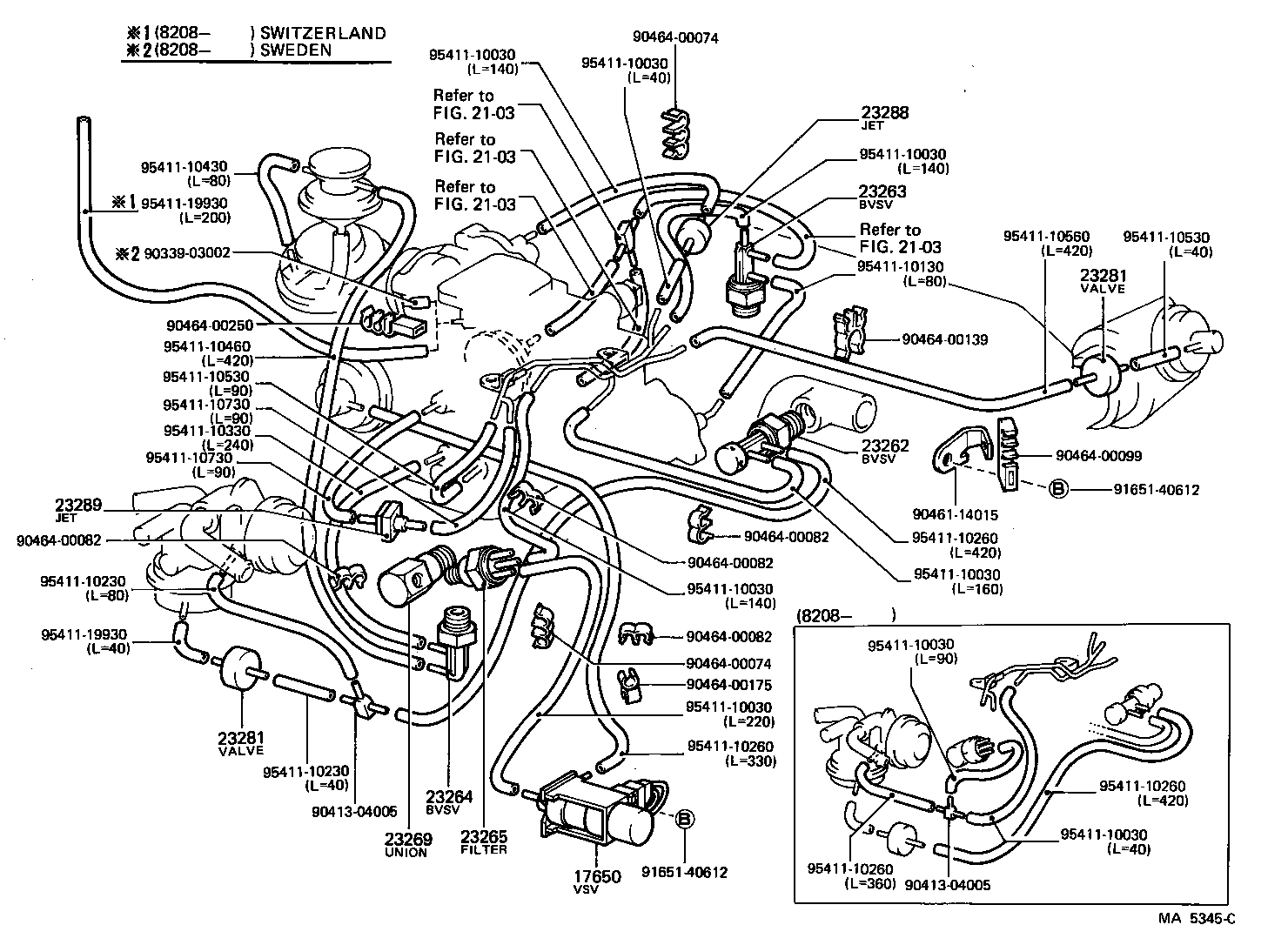

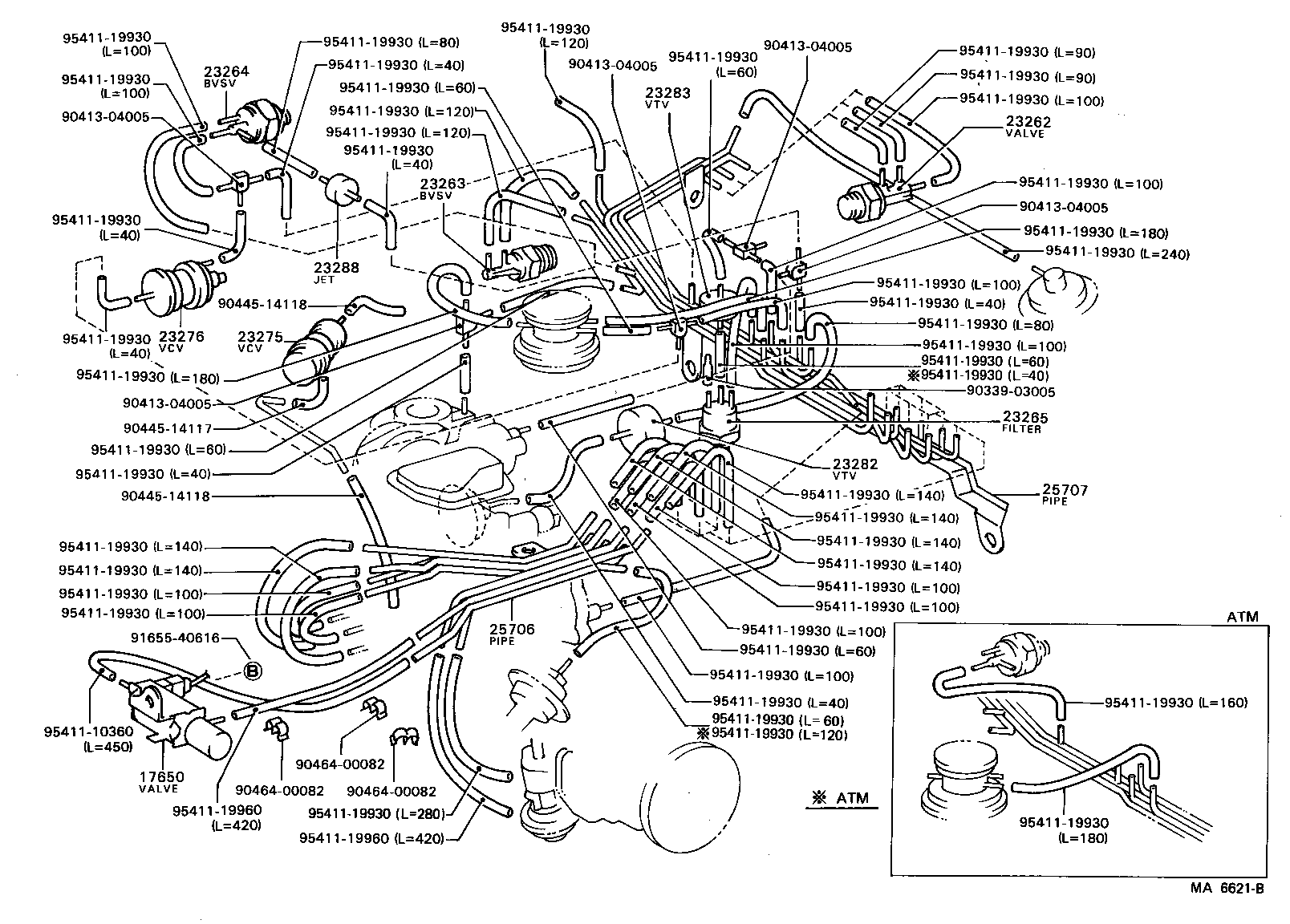

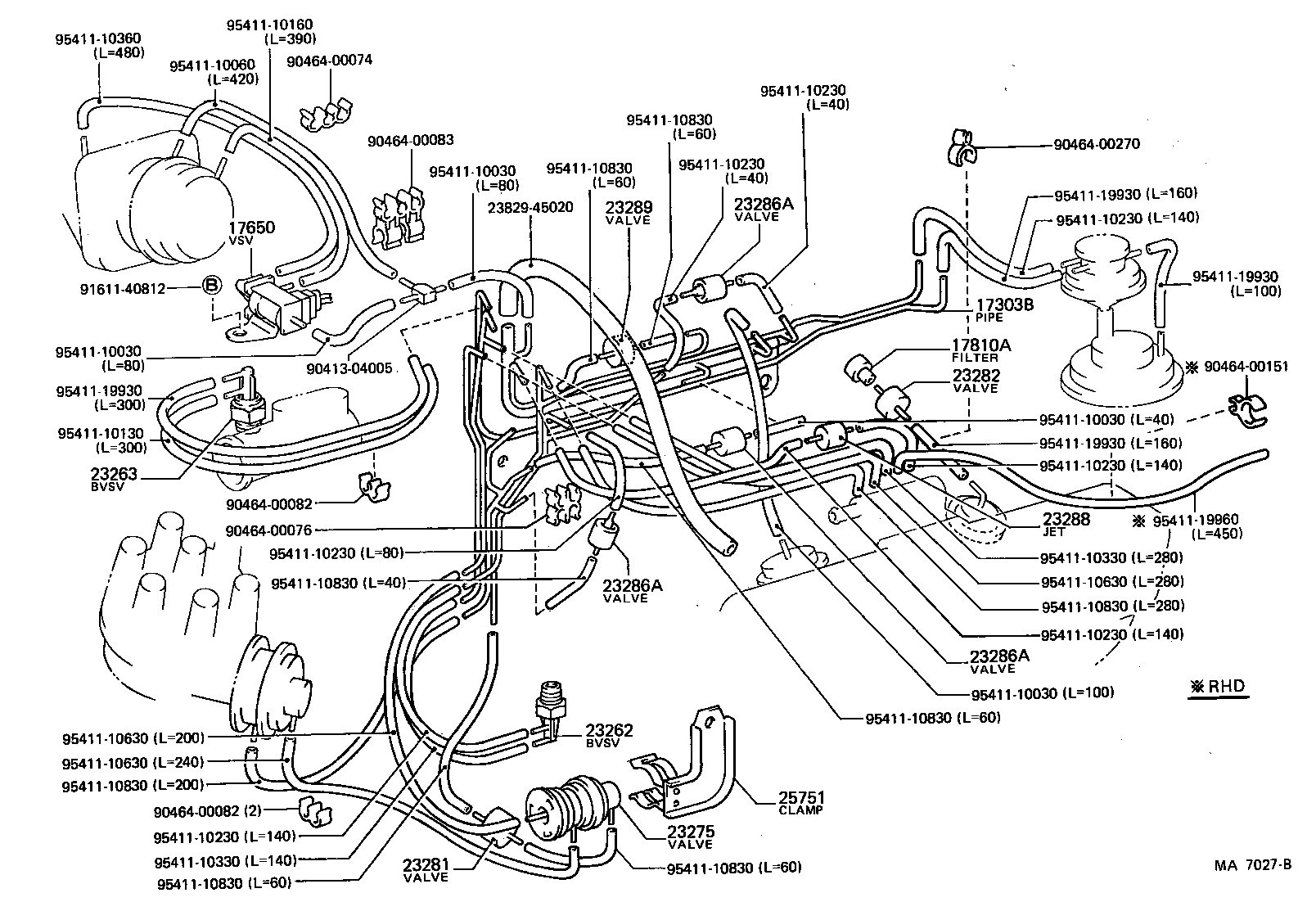

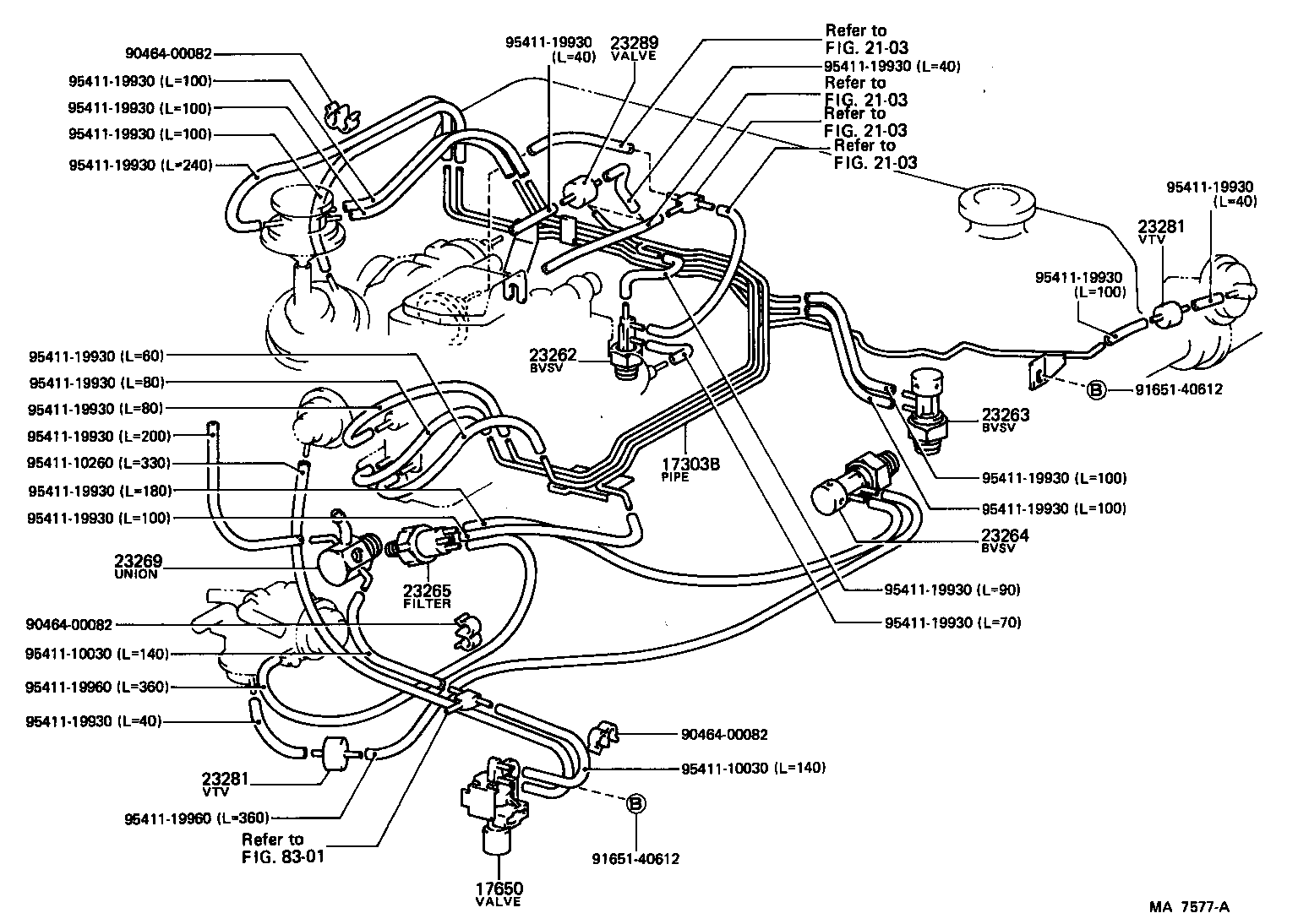

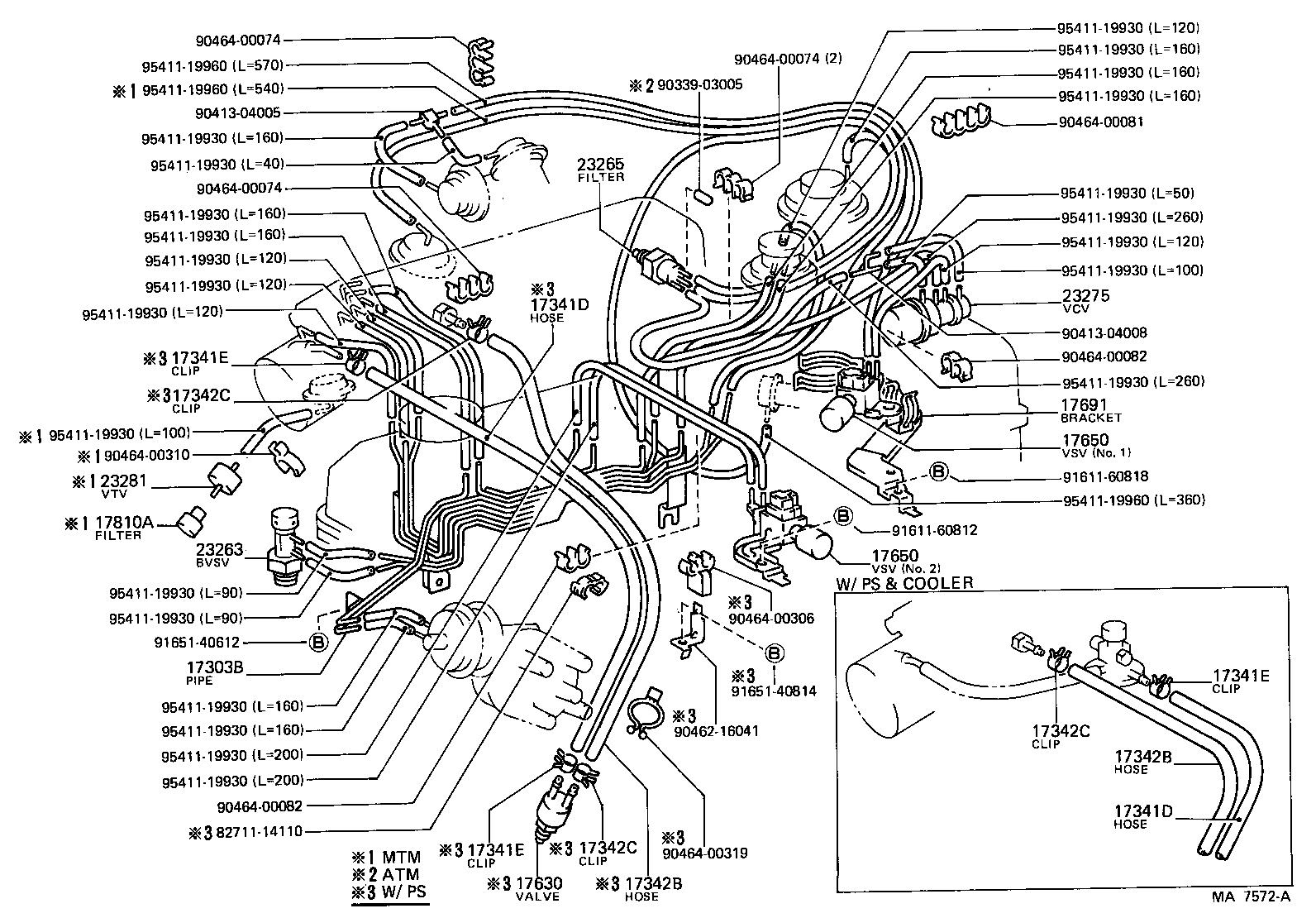

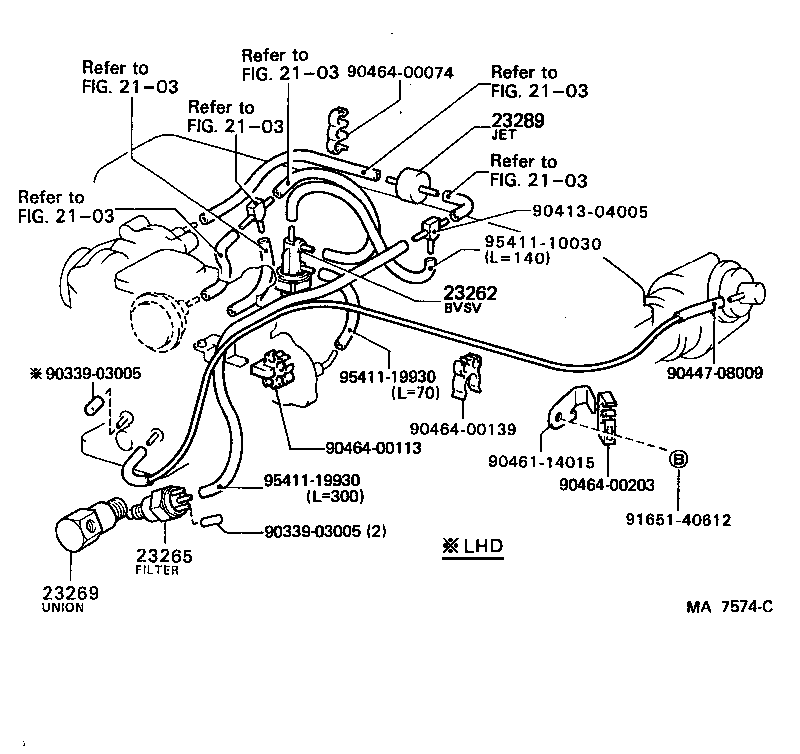

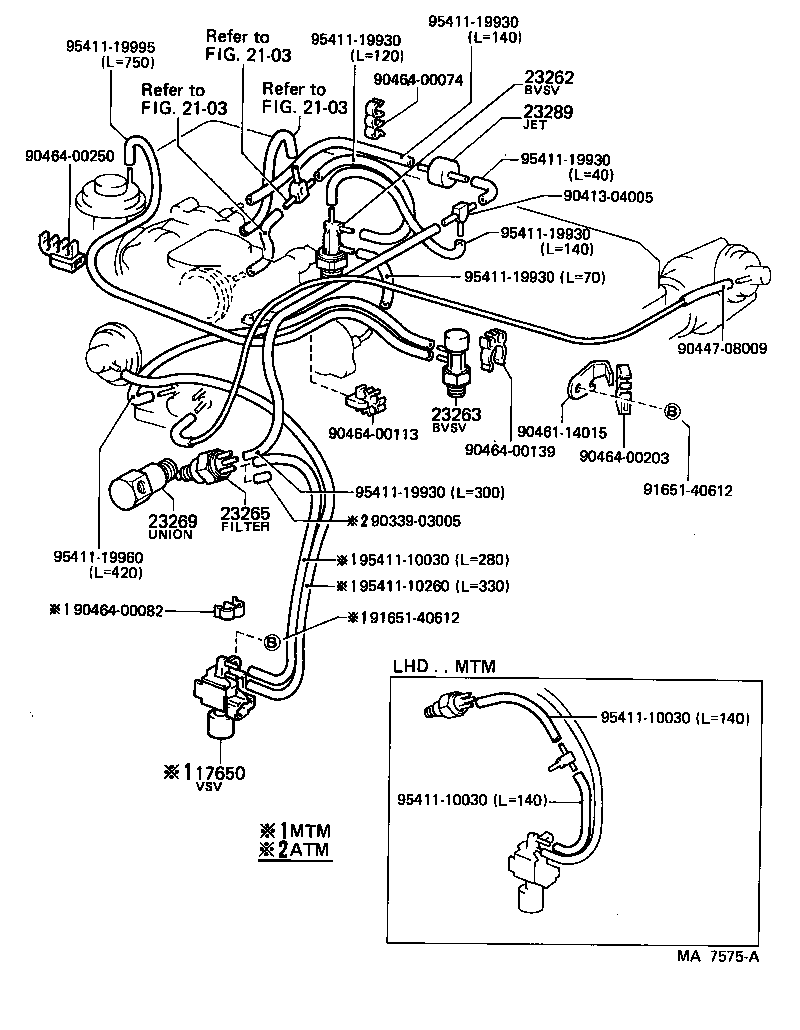

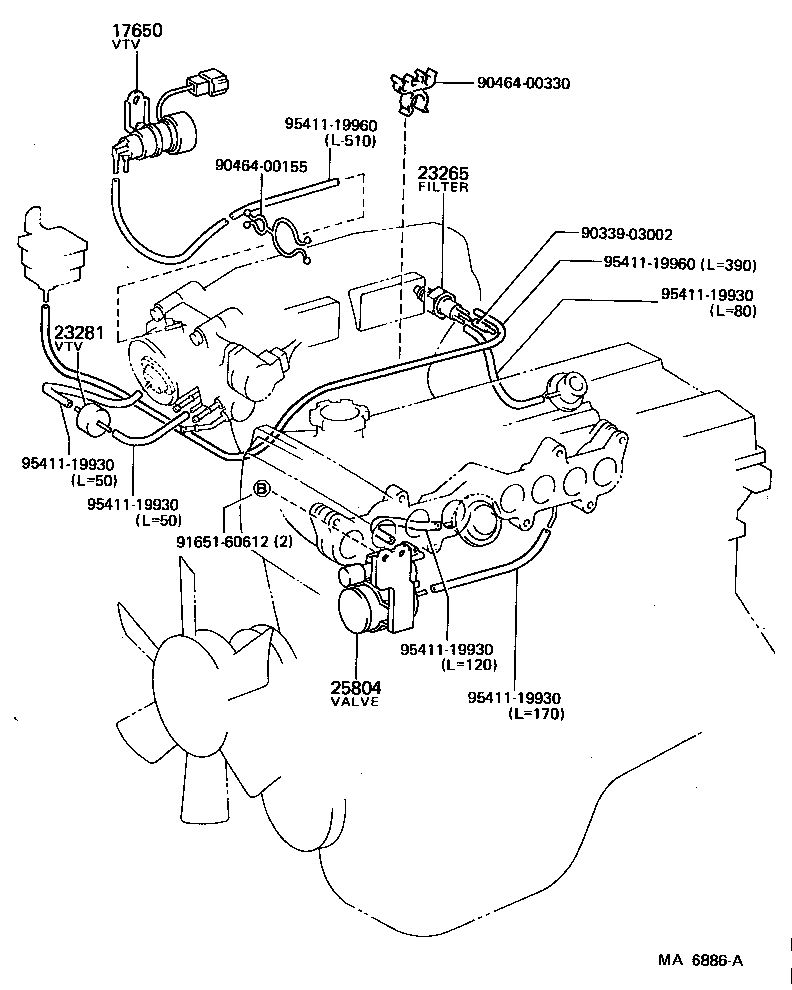

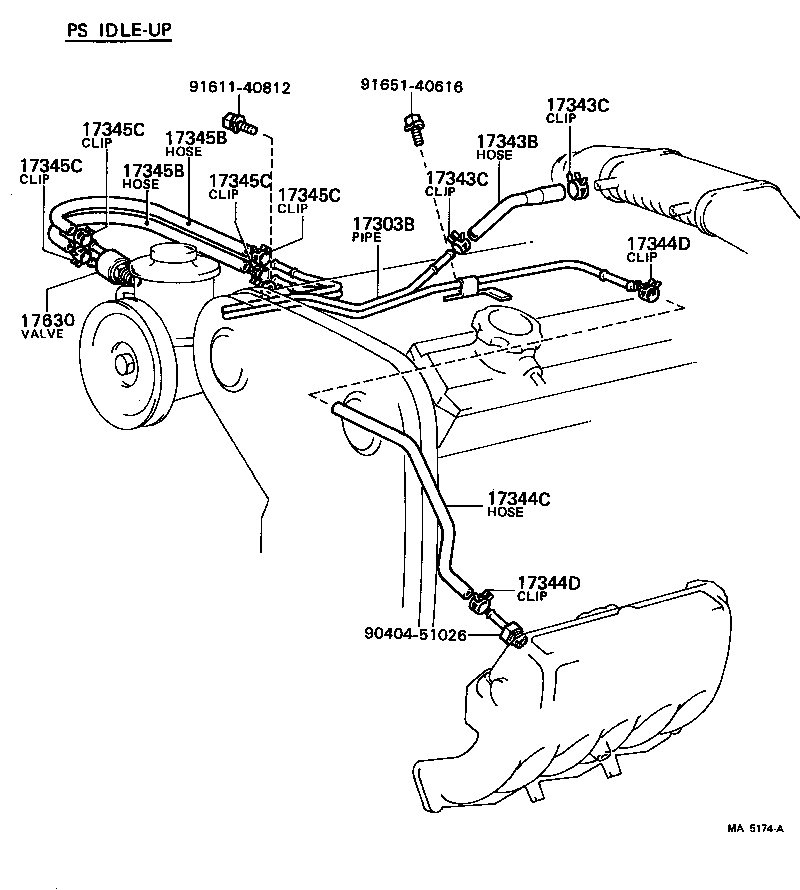

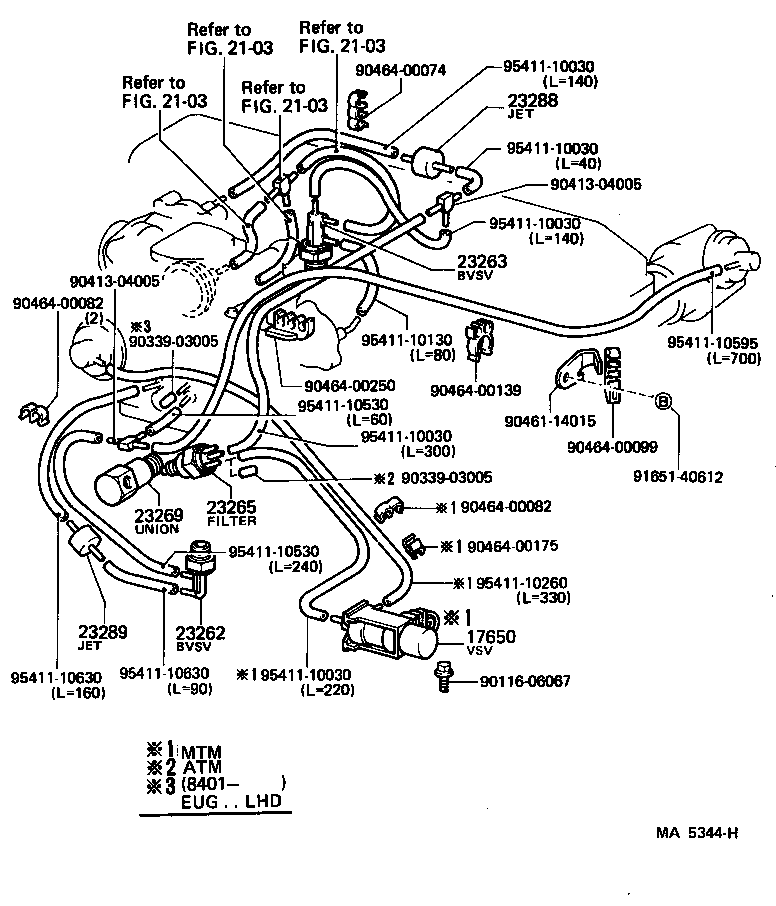

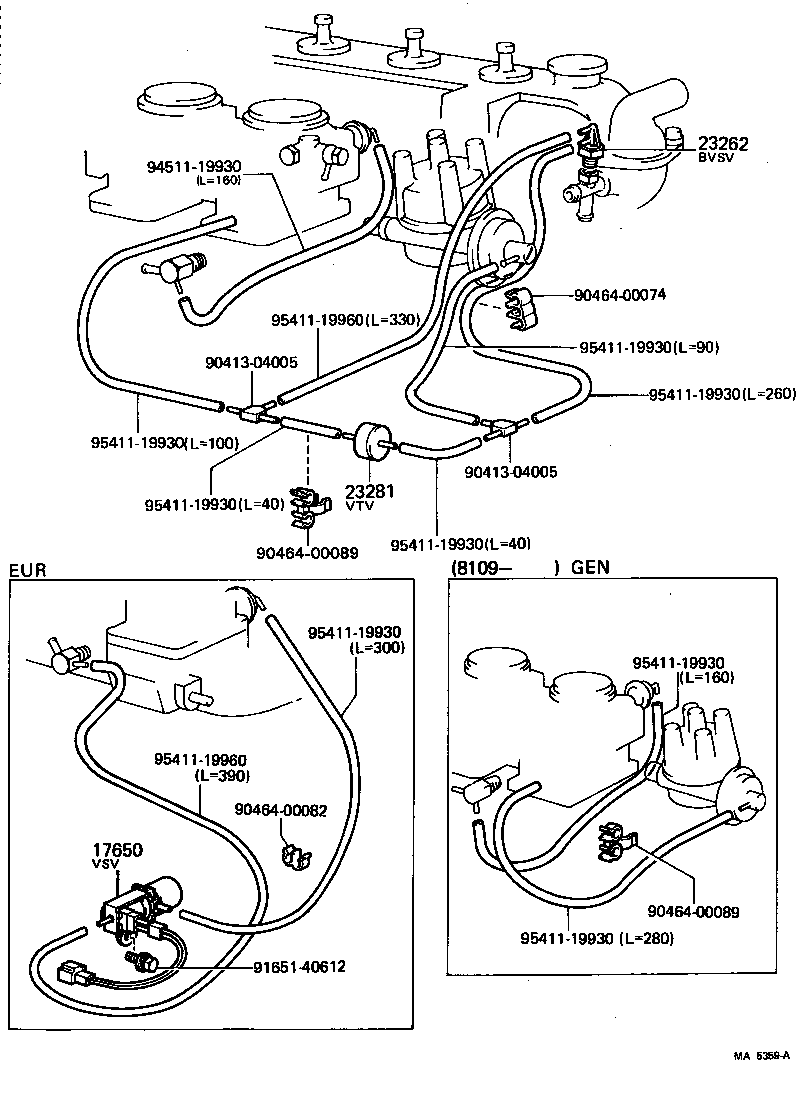

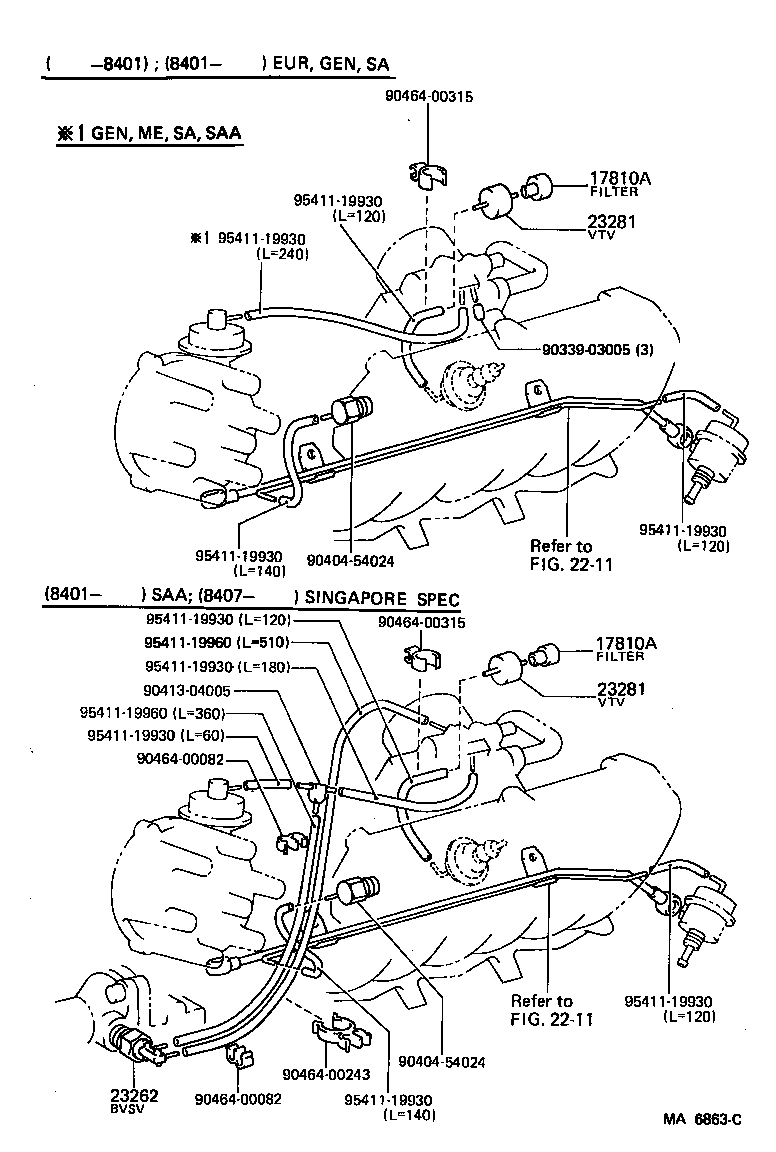

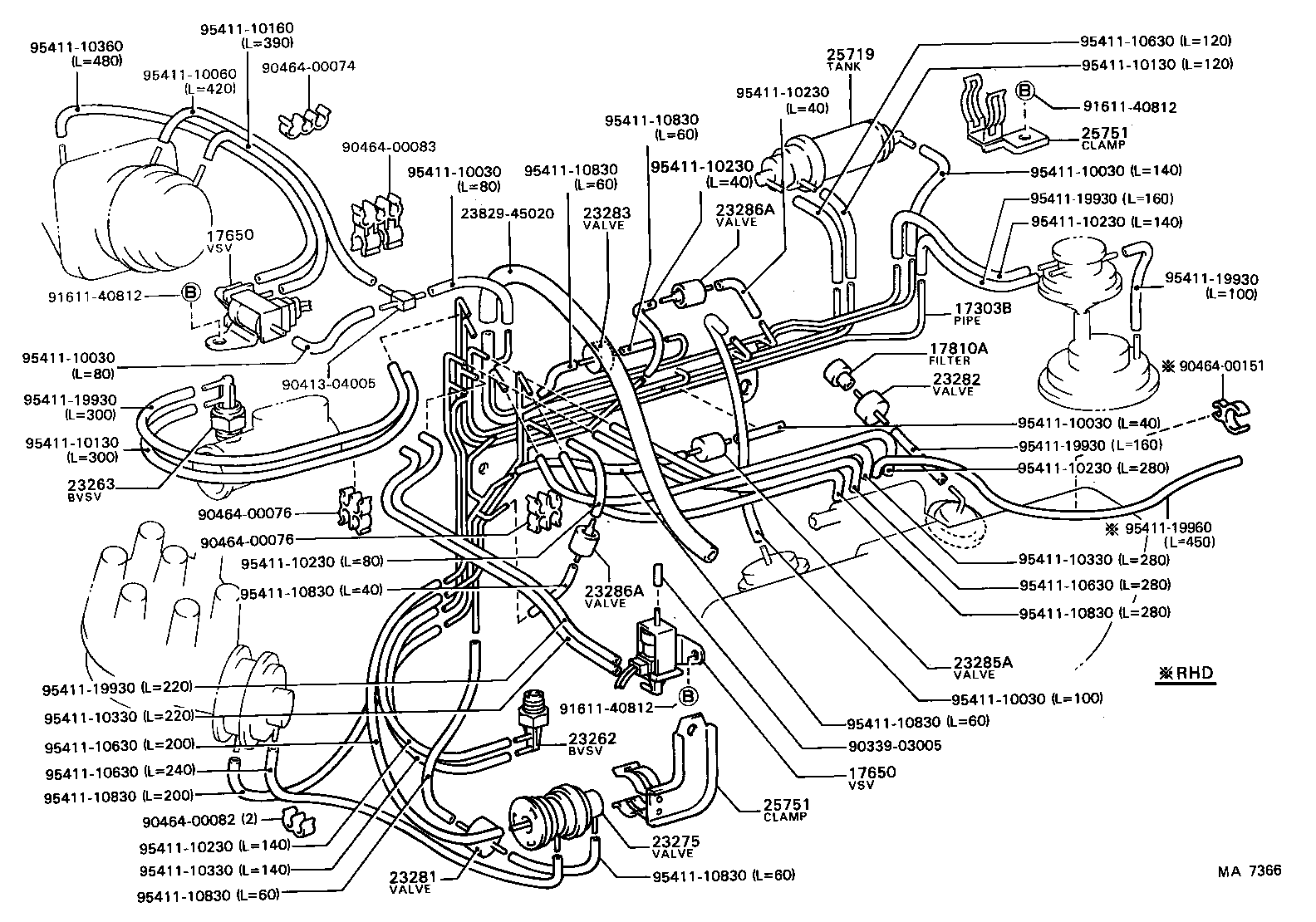

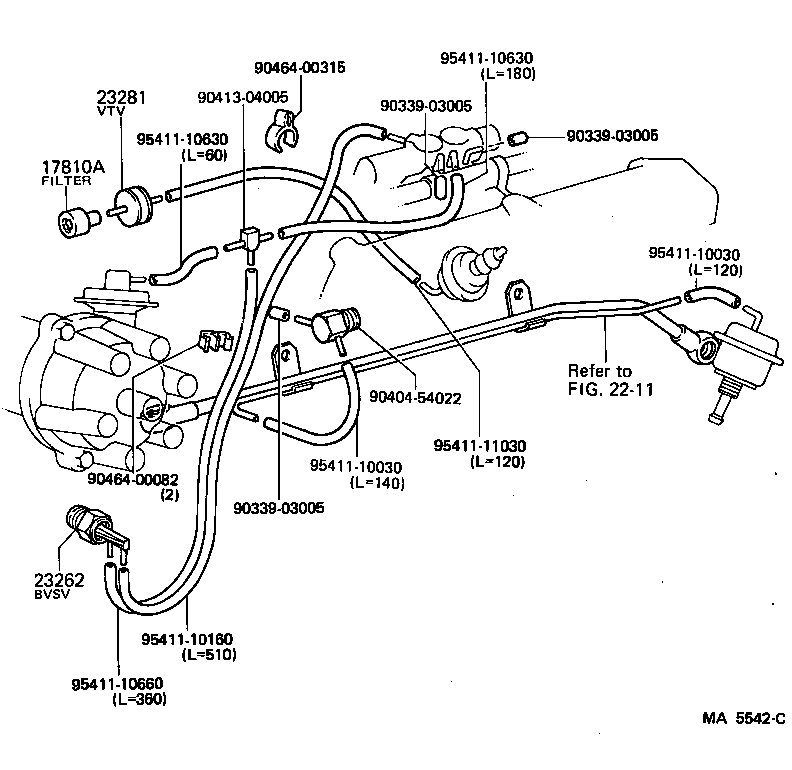

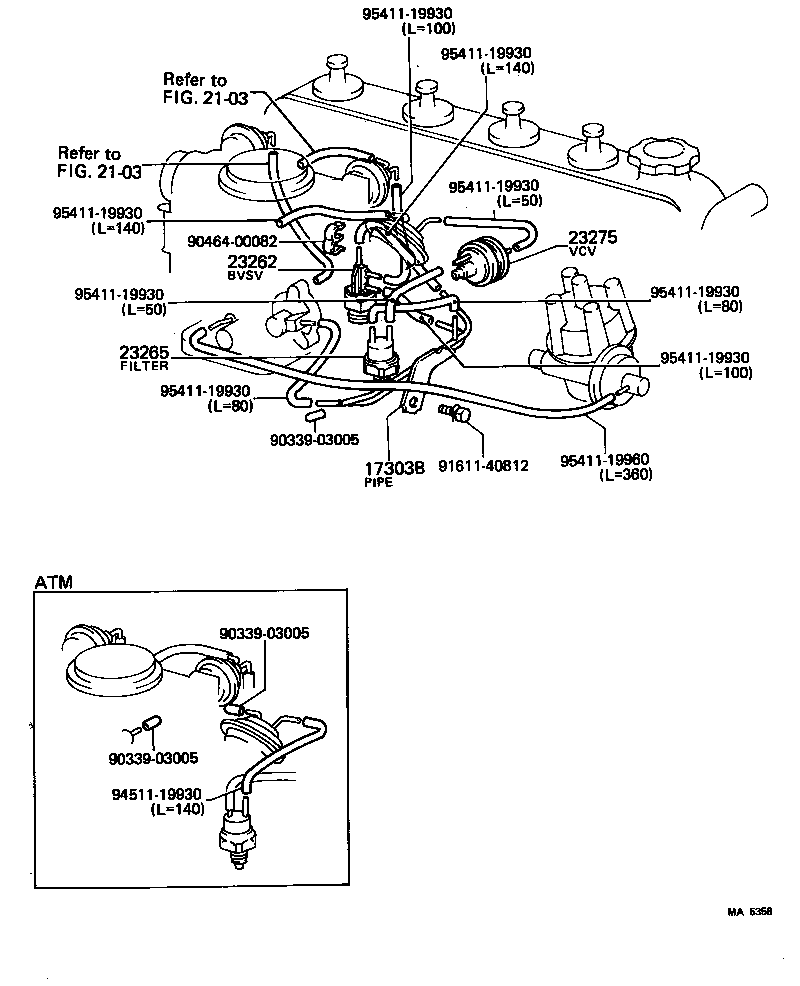

Figure MA9501 MA9501 1981-08 → — Figure MA6886A MA6886A 1983-08 → 1985-07 Figure MA9501 MA9501 1981-08 → — Figure MA7027B MA7027B 1983-08 → — Figure MA7366 MA7366 1983-08 → — Figure MA5542C MA5542C 1981-12 → 1983-08 Figure MA6863C MA6863C 1983-08 → — Figure MA5174A MA5174A 1981-12 → — Figure MA9501 MA9501 1981-08 → — Figure AS0438A AS0438A 1981-08 → 1984-08 Figure MA7574C MA7574C 1984-08 → 1985-07 Figure MA5344H MA5344H 1981-08 → 1982-02 Figure MA5344H MA5344H 1981-08 → 1984-08 Figure MA7575A MA7575A 1984-08 → 1985-07 Figure MA7336B MA7336B 1984-01 → 1984-08 Figure MA7576C MA7576C 1984-08 → 1985-07 Figure MA5345C MA5345C 1981-08 → 1984-08 Figure MA7577A MA7577A 1984-08 → 1985-07 Figure MA5333D MA5333D 1981-08 → 1983-08 Figure MA7572A MA7572A 1984-08 → 1985-07 Figure MA5376 MA5376 1981-08 → 1983-08 Figure MA9501 MA9501 1981-08 → — Figure MA6621B MA6621B 1983-08 → 1984-08 Figure MA9501 MA9501 1981-08 → — Figure MA5358 MA5358 1981-08 → 1983-08 Figure MA5359A MA5359A 1981-08 → 1985-07

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17691 Bracket, Vacuum Control Valve, NO.1
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23264 Valve, Bimetal Vacuum Switching, NO.3
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25719 Tank, Vacuum Surge
25751 Clamp, Vacuum Control Valve, NO.1
25804 Valve Set, Vacuum Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
