Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

22 part groups · 8 illustrations

Illustrations

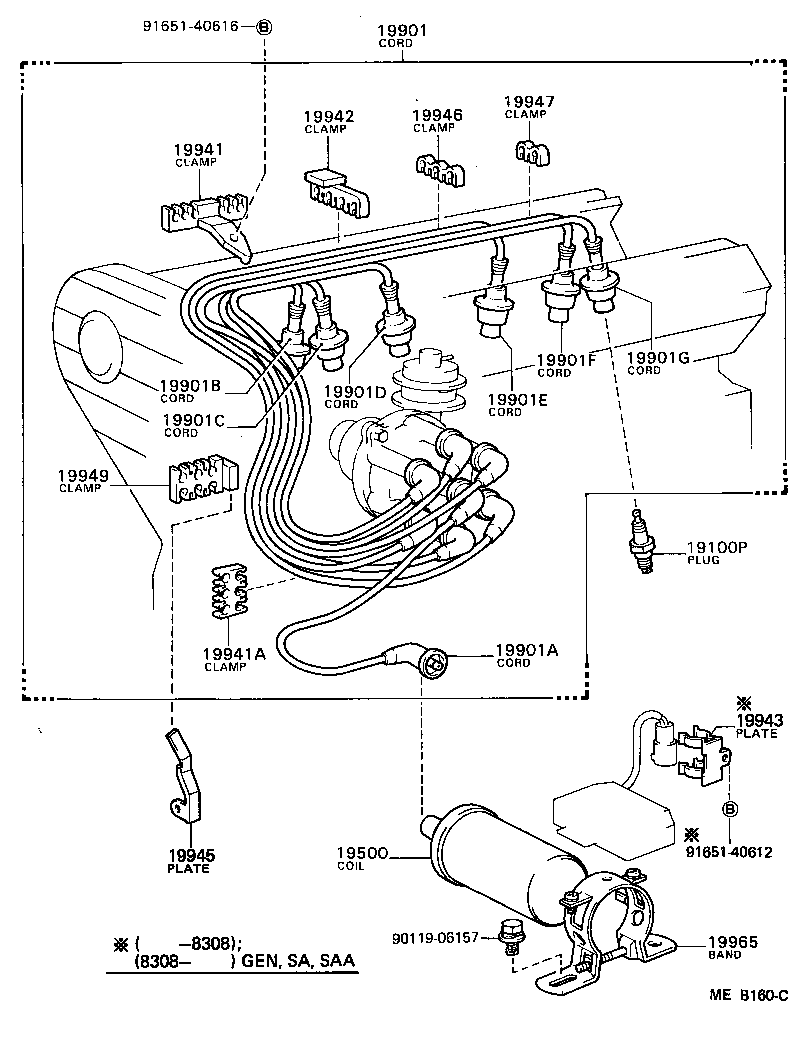

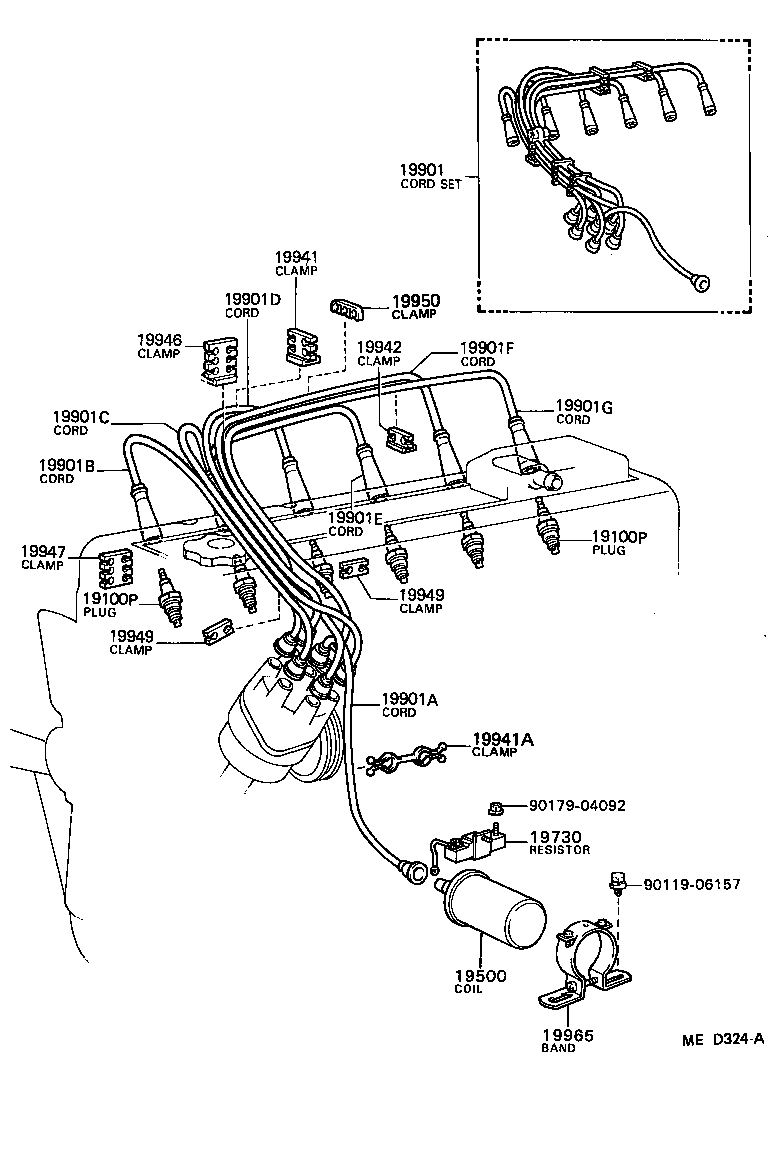

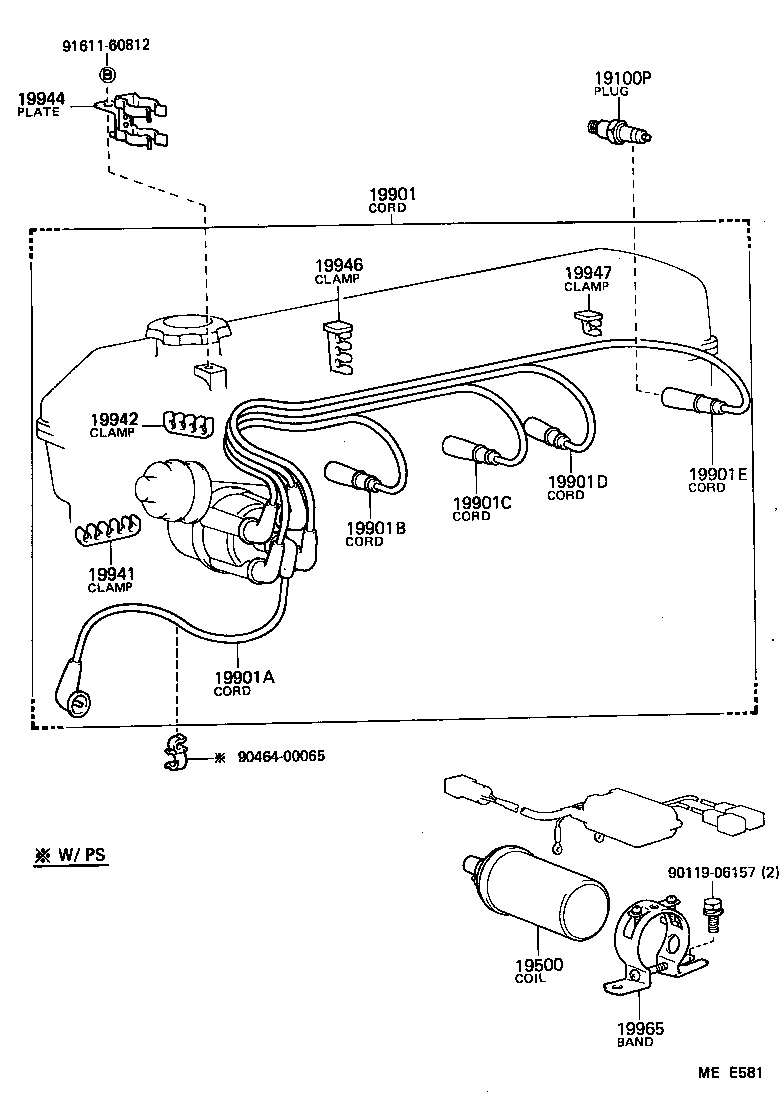

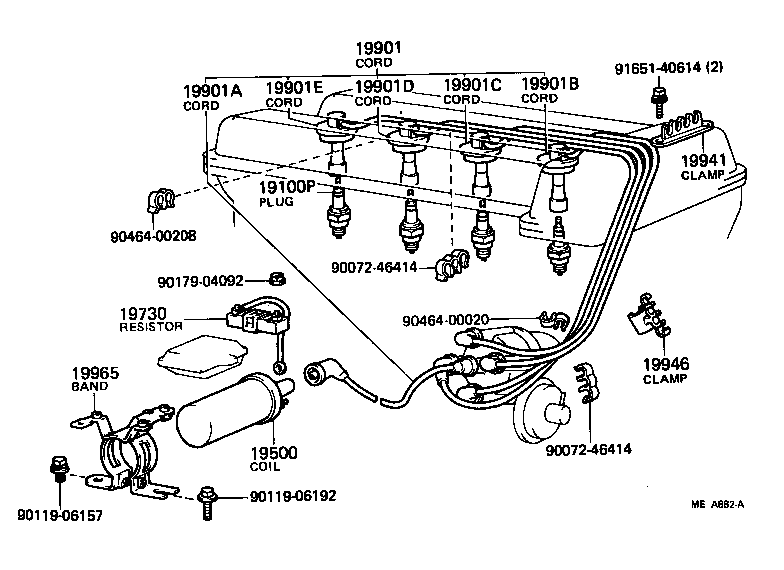

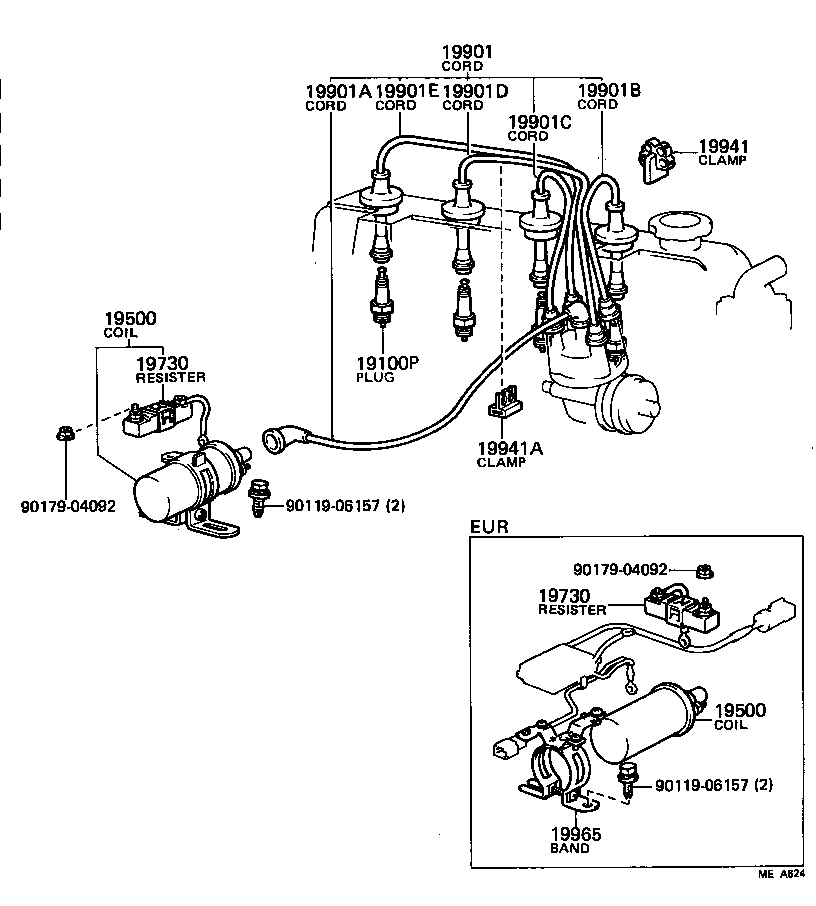

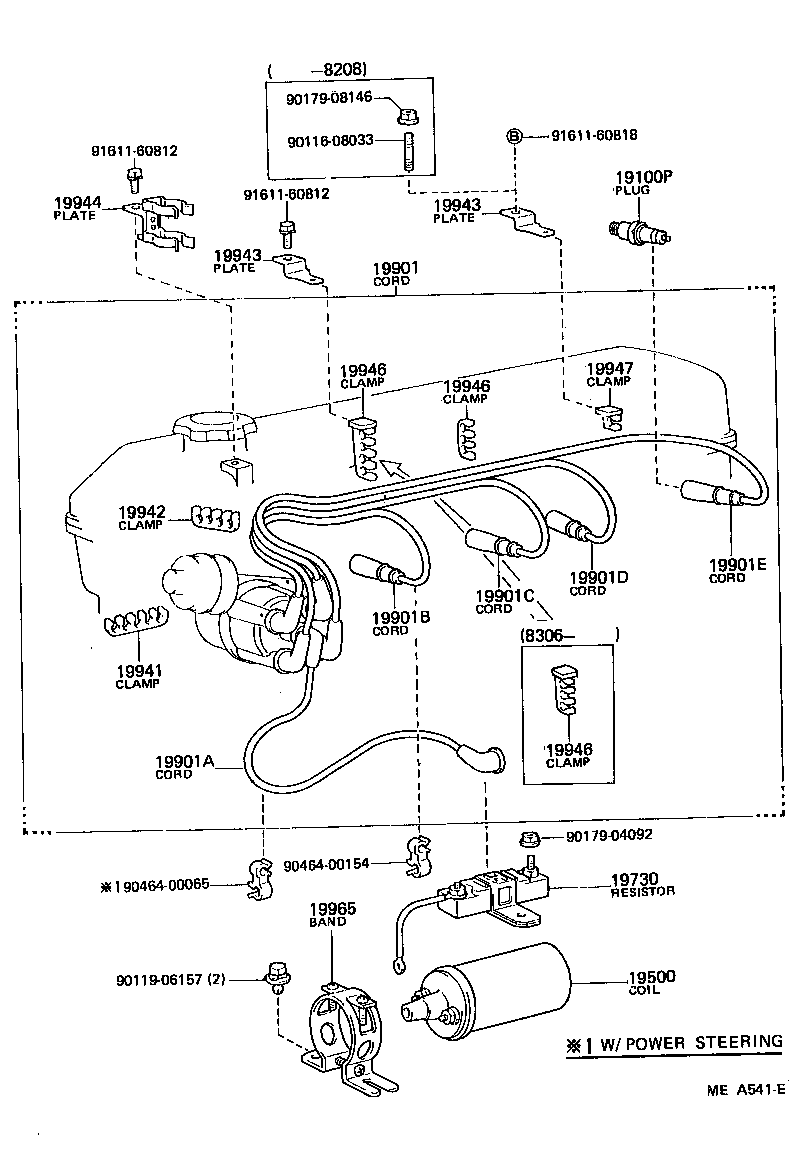

Figure MED327 MED327 1983-08 → 1985-07 Figure MED324A MED324A 1983-08 → — Figure MEB160C MEB160C 1981-12 → — Figure MEA541E MEA541E 1981-08 → 1985-07 Figure MEE581 MEE581 1984-08 → 1985-07 Figure MEA882A MEA882A 1981-08 → 1983-08 Figure MEA522 MEA522 1983-08 → 1984-08 Figure MEA624 MEA624 1981-08 → 1985-07

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19730 Resistor, Ignition Coil
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901F Cord, Spark Plug Resistive, NO.5
19901G Cord, Spark Plug Resistive, NO.6
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
19942 Clamp, Resistive Cord, NO.2
19943 Plate, Resistive Cord Clamp Support NO.1
19944 Plate, Resistive Cord Clamp Support, NO.2
19945 Plate, Resistive Cord Clamp Support, NO.3
19946 Clamp, Resistive Cord, NO.3
19947 Clamp, Resistive Cord, NO.4
19949 Clamp, Resistive Cord, NO.5
19950 Clamp, Resistive Cord, NO.6
19965 Band, Ignition Coil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
