Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

20 part groups · 7 illustrations

Illustrations

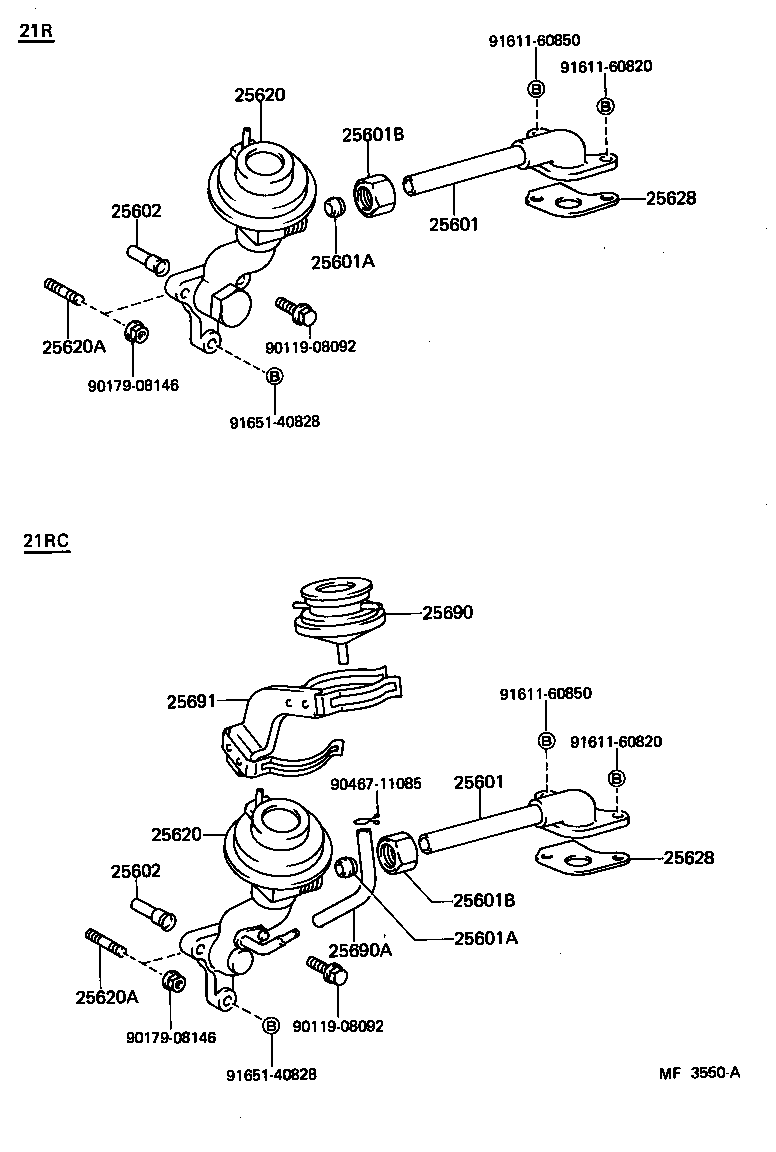

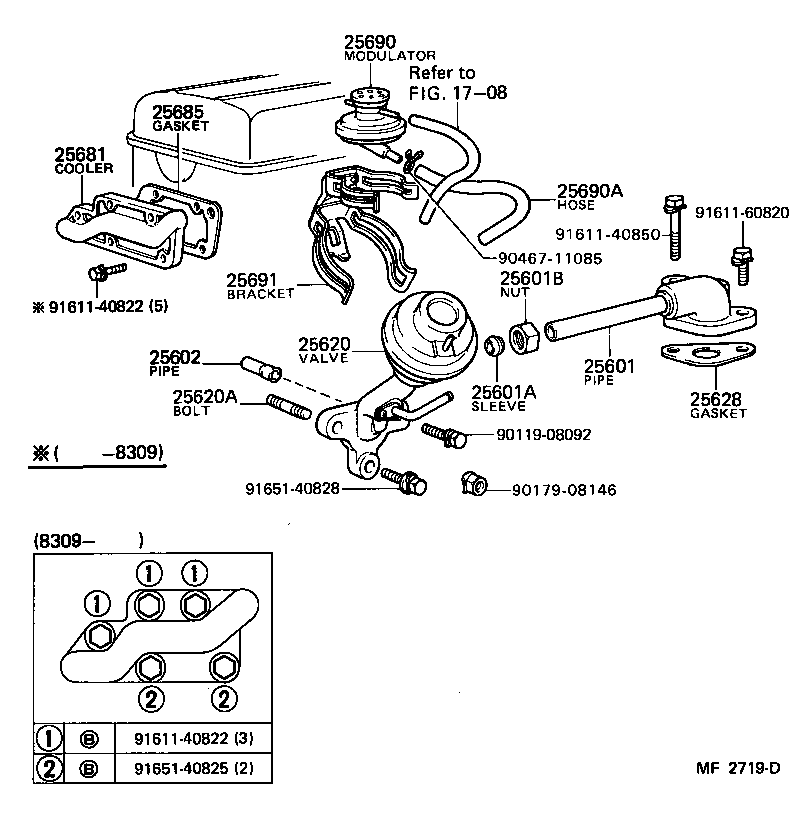

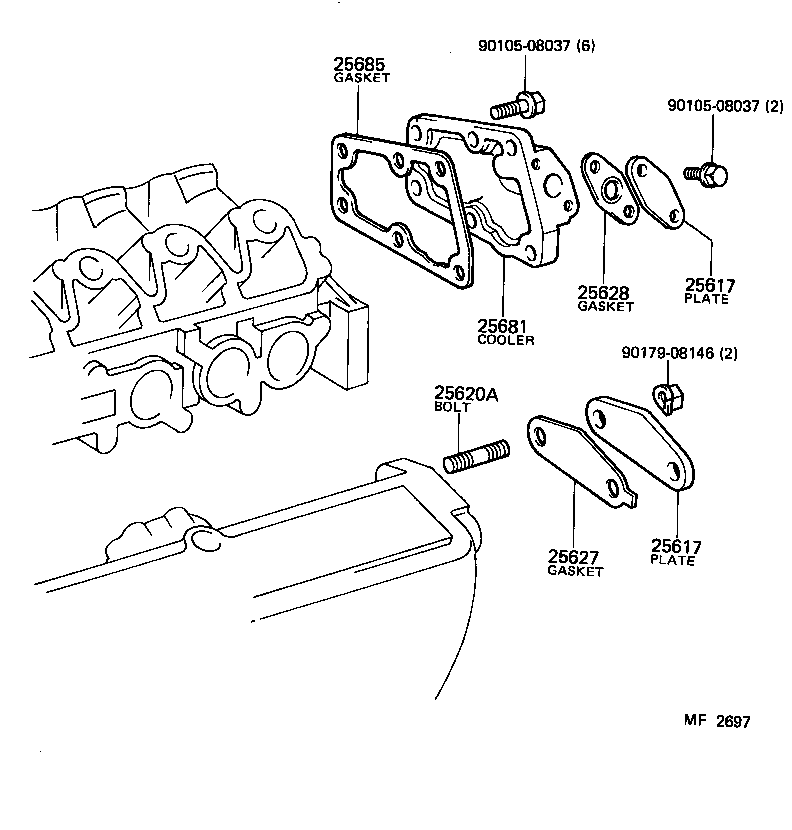

Figure MF2606A MF2606A 1983-08 → — Figure MF2697 MF2697 1981-12 → 1983-08 Figure MF3153 MF3153 1983-08 → — Figure MF2719D MF2719D 1981-08 → 1984-08 Figure MF3550A MF3550A 1984-08 → 1985-07 Figure MF3365A MF3365A 1984-08 → 1985-07 Figure MF3075 MF3075 1983-08 → 1984-08

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25601A Sleeve, Ball, Egr Pipe, NO.1
25601B Nut, Union, Egr Pipe, NO.1
25601F Union(FOR EGR PIPE, NO.1)
25601H Bolt, Union(FOR EGR PIPE,NO.1)
25601J Gasket(FOR EGR PIPE, NO.1)
25602 Pipe Sub-assy, Egr, NO.2
25617 Plate, Egr Hole Cover
25618A Bolt, Stud(FOR EGR INLET)
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25681 Cooler, Egr, NO.1
25682 Cooler, Egr, NO.2
25685 Gasket, Egr Cooler, NO.1
25686 Gasket, Egr Cooler, NO.2
25690 Modulator Assy, Egr Vacuum
25690A Hose(FOR EGR VACUUM MODULATOR)
25691 Bracket, Egr Vacuum Modulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
