Brake Band & Multiple Disc Clutch (ATM)

32 part groups · 3 illustrations

Illustrations

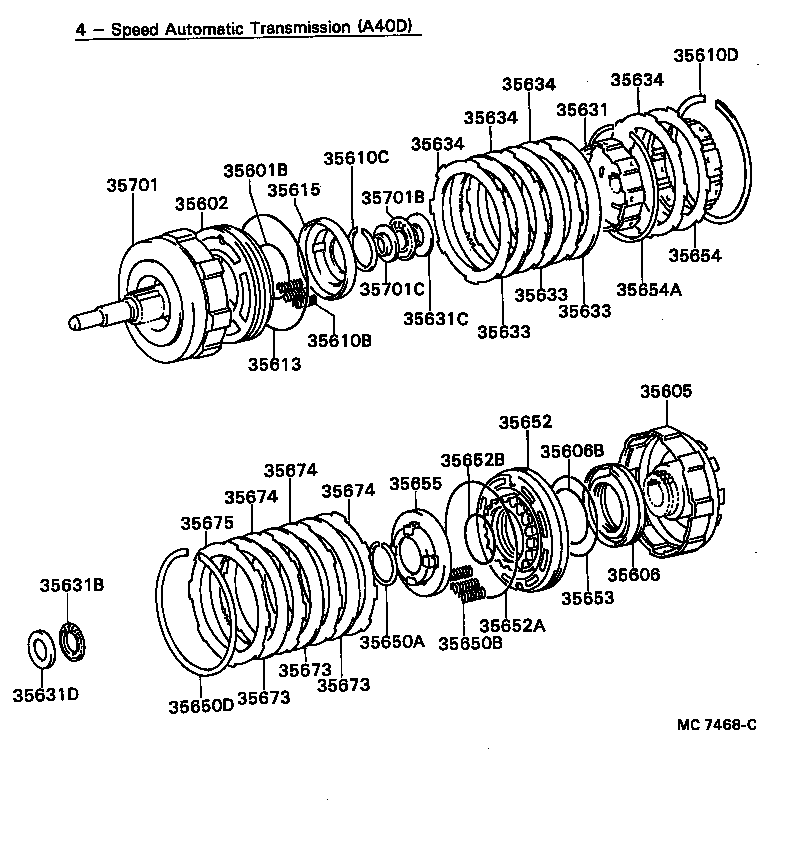

Figure MC7722A MC7722A 1981-08 → 1983-08 Figure MC7468C MC7468C 1981-08 → 1985-07 Figure MC6414D MC6414D 1983-08 → —

Part groups

PNCDescription
35601B Ring, O (FOR FRONT CLUTCH DRUM)
35602 Piston Sub-assy, Front Clutch
35605 Drum Sub-assy, Rear Clutch W/2ND Sun Gear
35606 Piston Sub-assy, Rear Clutch
35606B Ring (FOR REAR CLUTCH PISTON INNER)
35610B Spring, Compression (FOR FRONT CLUTCH PISTON RETURN)
35610C Ring, Shaft Snap (FOR FRONT CLUTCH PISTON RETURN SPRING)
35610D Ring, Hole Snap (FOR FRONT MULTIPLE DISC CLUTCH)
35613 Ring, Clutch Piston Oil Seal, Outer
35615 Seat, Clutch Piston Return Spring
35631 Hub, Clutch(FOR MULTIPLE DISC CLUTCH)
35631B Bearing, Thrust(FOR FRONT CLUTCH HUB)
35631C Race, Thrust Bearing(FOR FRONT CLUTCH HUB FRONT)
35631D Race, Thrust Bearing(FOR FRONT CLUTCH HUB REAR)
35633 Disc, Clutch (FOR FRONT CLUTCH)
35634 Plate, Front Clutch
35650A Ring, Shaft Snap (FOR REAR CLUTCH PISTON RETURN SPRING)
35650B Spring, Compression (FOR REAR CLUTCH PISTON RETURN)
35650D Ring, Hole Snap (FOR REAR MULTIPLE DISC CLUTCH)
35652 Piston, Rear Clutch, NO.2
35652A Ring (FOR REAR CLUTCH OUTER)
35652B Ring (FOR REAR CLUTCH PISTON INNER)
35653 Ring, Rear Clutch Oil Seal, Outer
35654 Hub, Rear Clutch
35654A Ring, Hole Snap (FOR REAR CLUTCH HUB)
35655 Seat, Rear Clutch Piston Return Spring
35673 Disc, Rear Clutch
35674 Plate, Rear Clutch
35675 Flange, Rear Clutch
35701 Shaft Sub-assy, Input
35701B Bearing, Thrust Needle Roller (FOR INPUT SHAFT REAR)
35701C Race, Thrust Bearing (FOR INPUT SHAFT REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
