Oil Cooler & Tube (ATM)

22 part groups · 6 illustrations

Illustrations

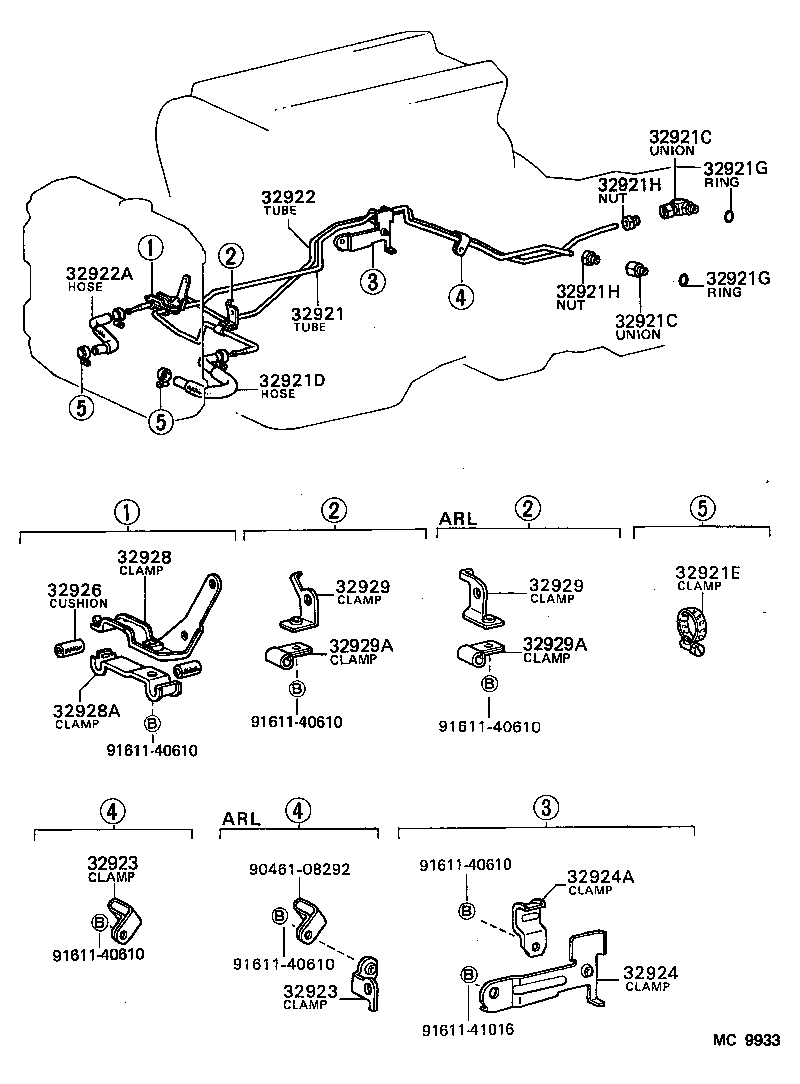

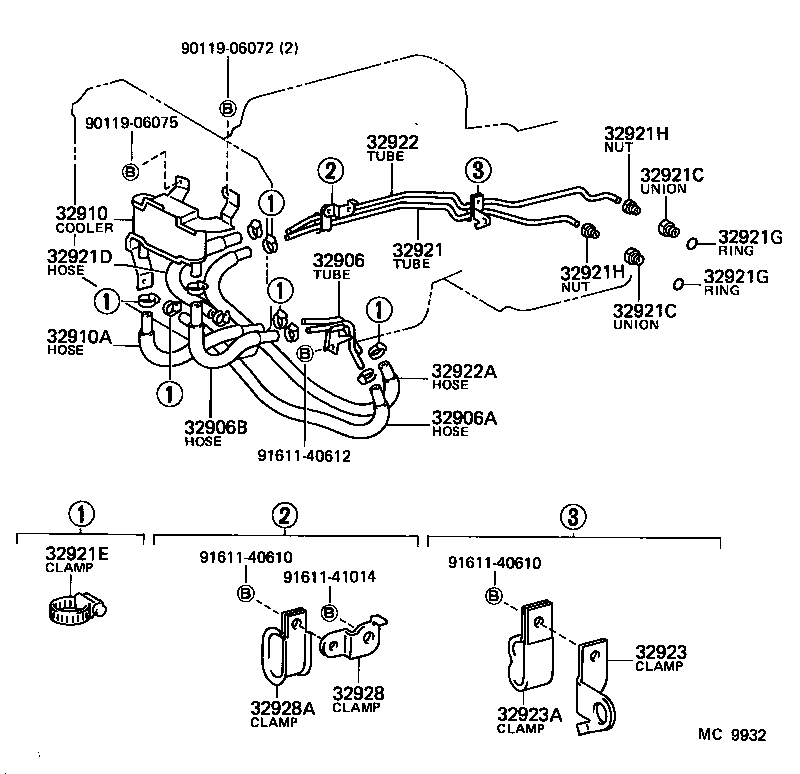

Figure MC7734 MC7734 1981-08 → 1983-08 Figure MC7736A MC7736A 1983-08 → 1984-08 Figure MC7737A MC7737A 1981-08 → 1983-08 Figure MC7737A MC7737A 1983-08 → 1985-07 Figure MC9932 MC9932 1983-08 → 1985-07 Figure MC9933 MC9933 1983-08 → —

Part groups

PNCDescription
32906 Tube Sub-assy, Oil Cooler
32906A Hose, Oil Cooler Tube(FOR INLET)
32906B Hose, Oil Cooler Tube(FOR OUTLET)
32910 Cooler Assy, Oil
32910A Hose, Oil Cooler Water Outlet
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921E Clamp, Hose(FOR OIL COOLER)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921H Nut, Flare(FOR OIL COOLER TUBE)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32924 Clamp, Oil Cooler Tube, NO.2
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32926 Cushion, Oil Cooler Tube(ATM)
32928 Clamp, Flexible Hose, NO.1
32928A Clamp(FOR FLEXIBLE HOSE CLAMP)
32929 Clamp, Flexible Hose, NO.2
32929A Clamp(FOR FLEXIBLE HOSE CLAMP)
