Toyota Celica
1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe
Discontinued model
Data version 1986-05

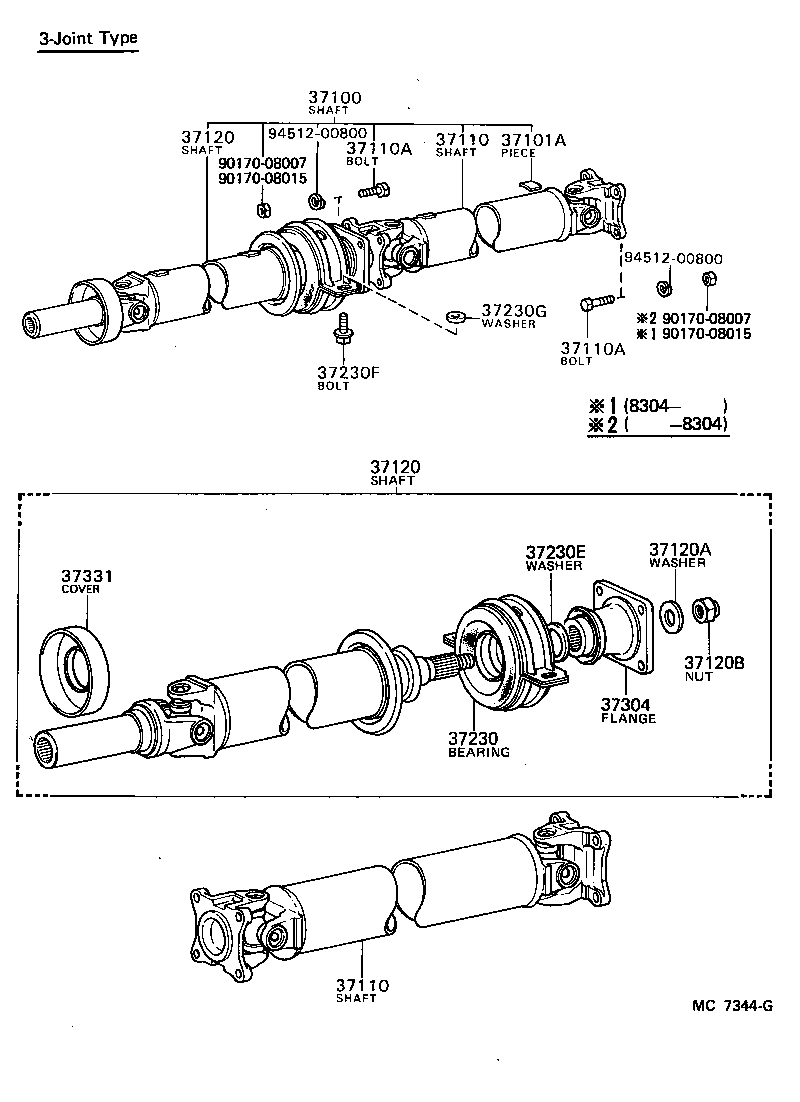

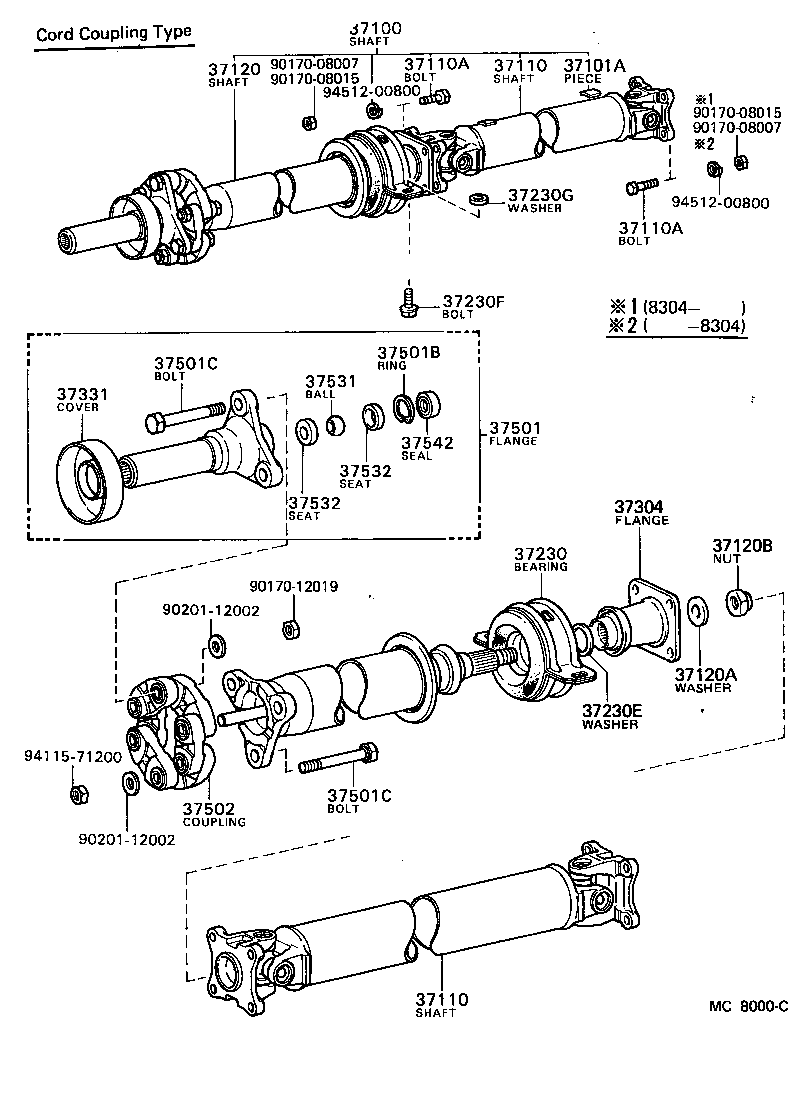

Propeller Shaft & Universal Joint
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 37100 | Shaft Assy, Propeller W/Center Bearing |
| 37101A | Piece, Balance, NO.1 (FOR PROPELLER SHAFT) |
| 37110 | Shaft Assy, Propeller |
| 37110A | Bolt (FOR PROPELLER SHAFT) |
| 37120 | Shaft Assy, Propeller Intermediate |
| 37120A | Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET) |
| 37120B | Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING) |
| 37230 | Bearing Assy, Center Support, NO.1 |
| 37230E | Washer, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37230F | Bolt, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37230G | Washer, NO.2 (FOR CENTER SUPPORT BEARING) |
| 37302 | Yoke Sub-assy, Universal Joint Sleeve |
| 37304 | Flange Sub-assy, Universal Joint |
| 37315 | Yoke, Universal Joint Flange |
| 37331 | Cover, Sliding Shaft Dust |
| 37401 | Spider Kit, Universal Joint |
| 37401A | Ring, Hole Snap (FOR SPIDER BEARING) |
| 37402 | Bearing Sub-assy, Universal Joint Spider |
| 37501 | Flange Sub-assy, Flexible Coupling Sleeve |
| 37501B | Ring, Hole Snap (FOR FLEXIBLE COUPLING SLEEVE FLANGE) |
| 37501C | Bolt (FOR FLEXIBLE COUPLING SLEEVE FLANGE) |
| 37502 | Coupling Sub-assy, Flexible |
| 37531 | Ball, Flexible Coupling Centering |
| 37532 | Seat, Flexible Coupling |
| 37542 | Seal, Centering (FOR FLEXIBLE COUPLING SLEEVE FLANGE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
