Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

128 part groups · 11 illustrations

Illustrations

MC7996H 1981-08 → 1985-07

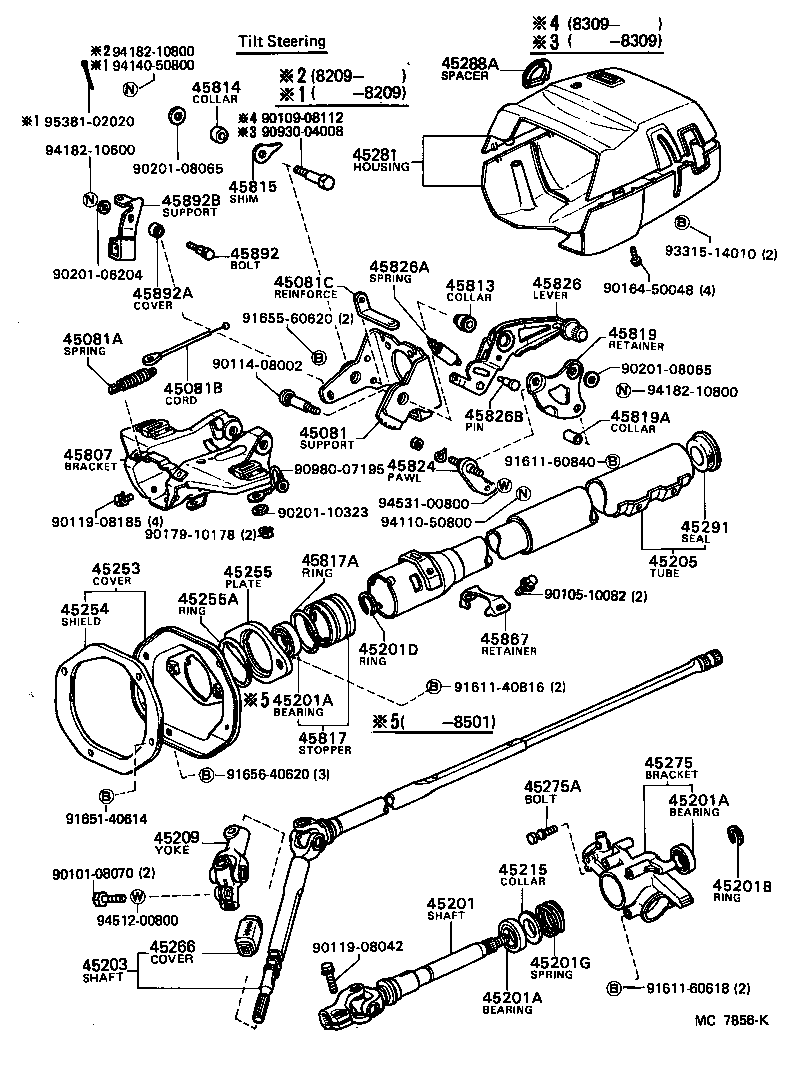

MC7856K 1981-08 → 1985-07

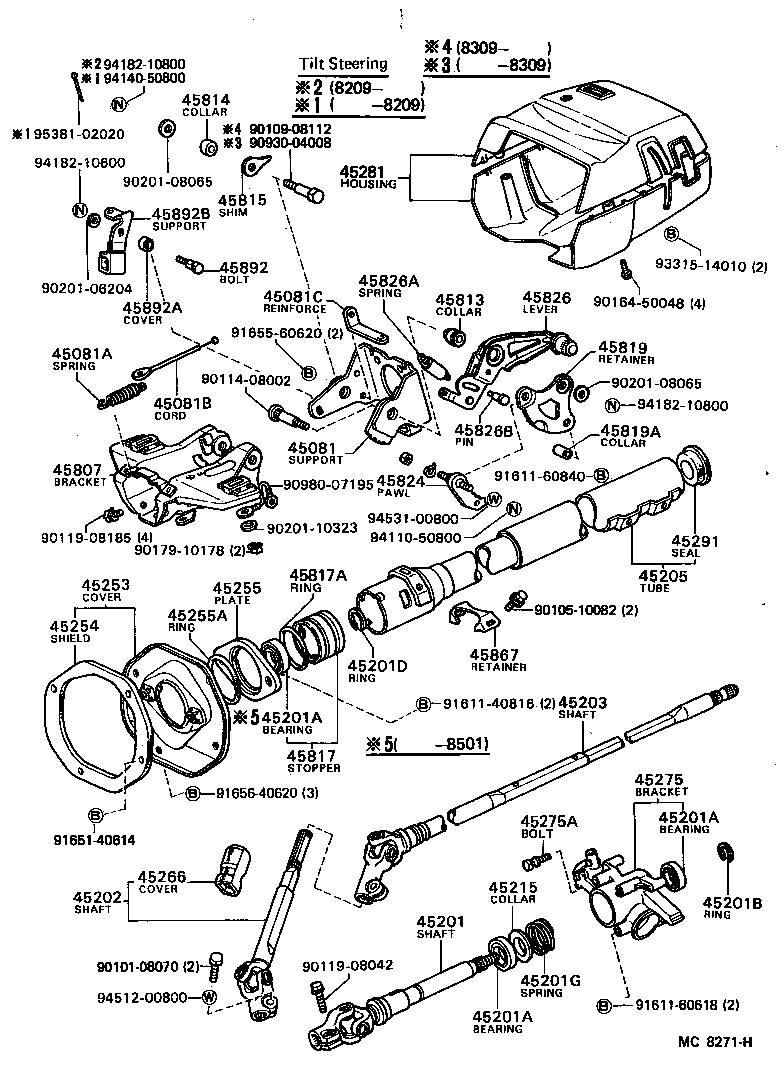

MC8271H 1981-12 → —

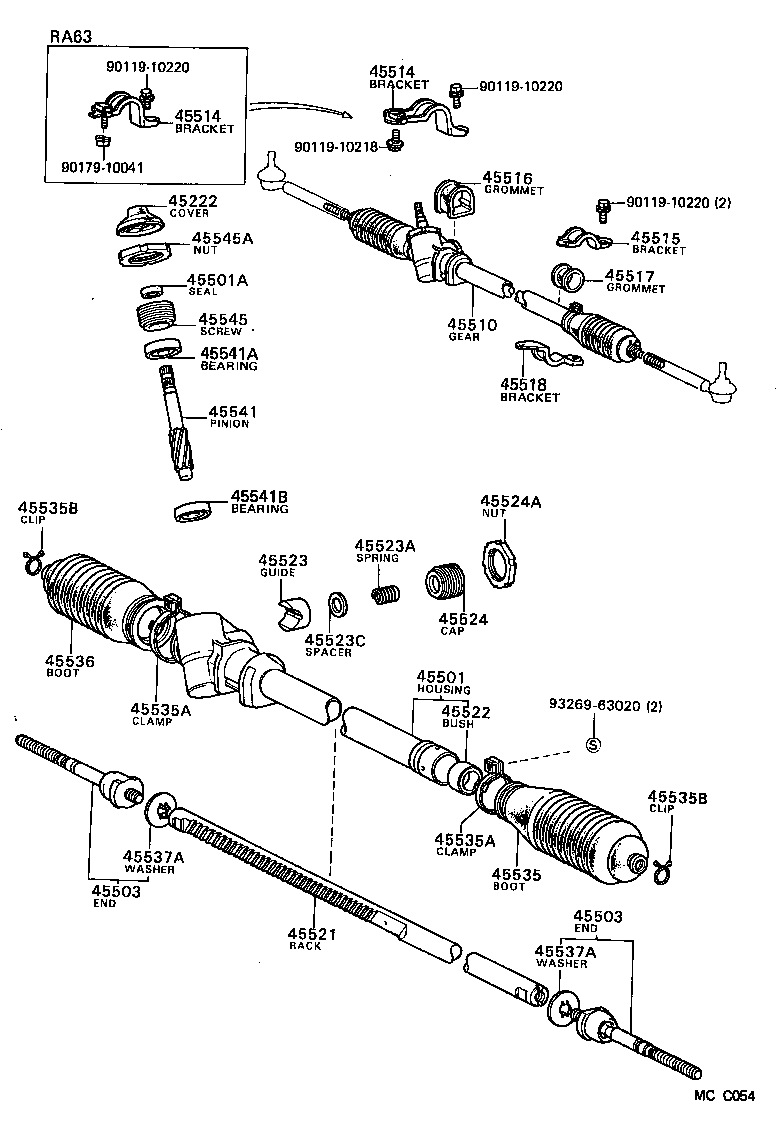

MCC054 1981-08 → 1985-07

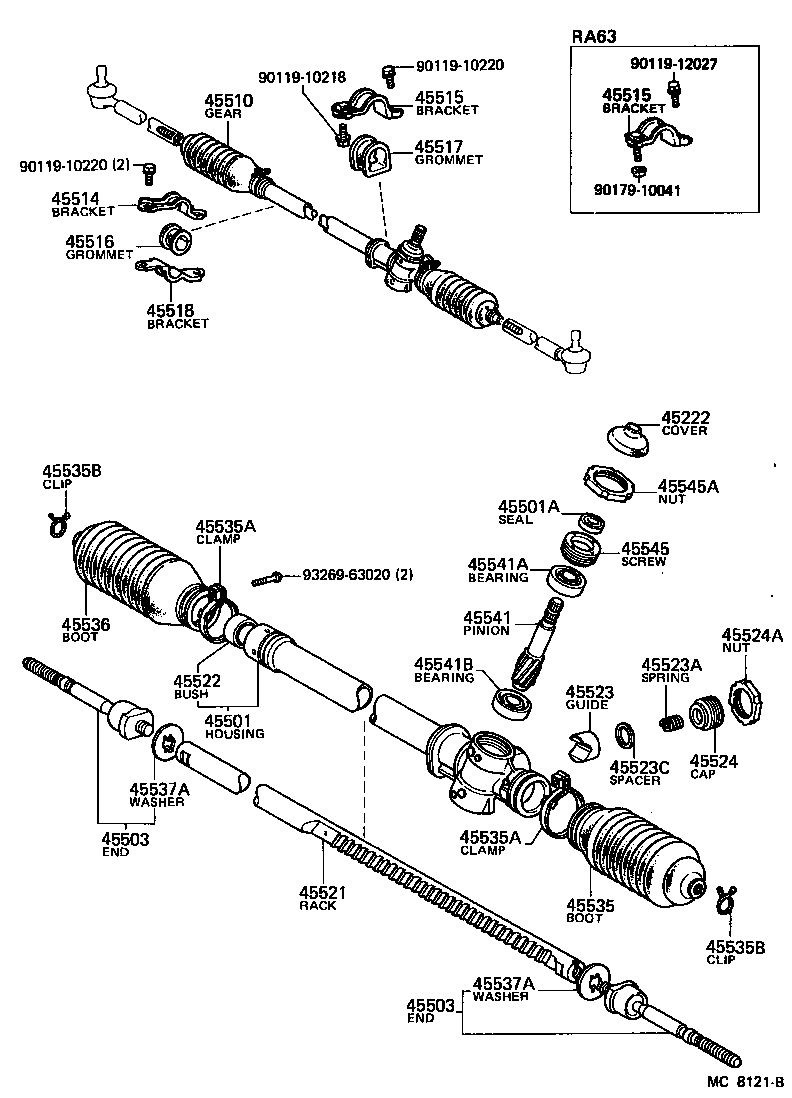

MC8121B 1981-08 → 1985-07

MC8835B 1983-08 → 1984-08

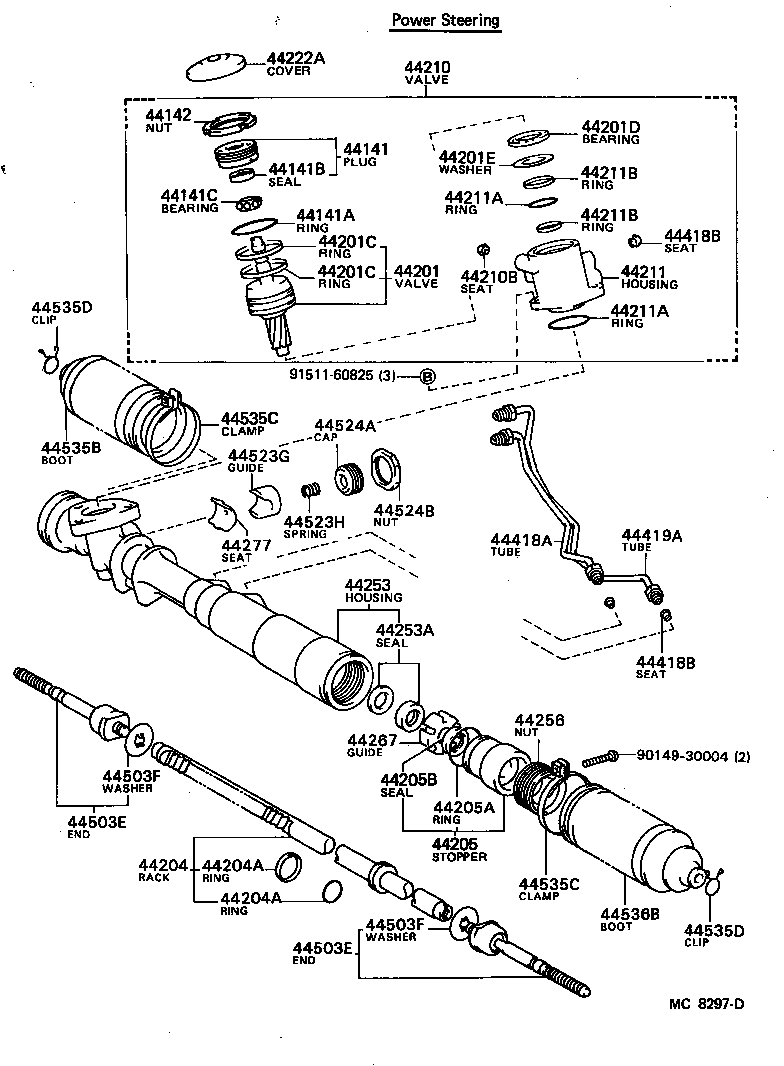

MC8297D 1983-08 → 1984-08

Part groups

PNC	Description
44141	Plug, Adjuster
44141A	Ring, O(FOR ADJUSTER PLUG)
44141B	Seal, Oil(FOR ADJUSTER PLUG)
44141C	Bearing(FOR ADJUSTER PLUG)
44142	Nut, Lock
44147	Seat, Spool Valve Spring
44201	Valve Sub-assy, Power Steering Control
44201C	Ring(FOR POWER STEERING CONTROL VALVE)
44201D	Bearing, Thrust Needle Roller(FOR CONTROL VALVE)
44201E	Washer, Plate(FOR POWER STEERING CONTROL VALVE)
44204	Rack Sub-assy, Power Steering
44204A	Ring(FOR RACK STEERING PISTON)
44205	Stopper Sub-assy, Cylinder End
44205A	Ring, O(FOR CYLINDER END STOPPER)
44205B	Seal, Oil(FOR CYLINDER END STOPPER)
44207	Cap Sub-assy, Valve
44207A	Ring, O(FOR VALVE CAP SUB-ASSY)
44207B	Ring, Snap(FOR VALVE CAP SUB-ASSY)
44207C	Seal, Oil(FOR VALVE CAP SUB-ASSY)
44207D	Bearing(FOR VALVE CAP SUB-ASSY)
44207E	Ring, Snap(FOR VALVE CAP SUB-ASSY)
44207F	Spring, Conical(FOR VALVE CAP SUB-ASSY)
44209	Housing Sub-assy, Power Steering Cylinder
44209A	Seal(FOR POWER STEERING CYLINDER HOUSING)
44209B	Spacer(FOR POWER STEERING CYLINDER HOUSING)
44210	Valve Assy, Power Steering Control
44210B	Seat, Union(FOR POWER STEERING CONTROL VALVE)
44210C	Ring, O(FOR POWER STEERING CONTROL VALVE)
44210K	Gasket Kit, Power Steering Control Valve Overhaul
44211	Housing, Control Valve
44211A	Ring, O(FOR CONTROL VALVE HOUSING)
44211B	Ring(FOR CONTROL VALVE HOUSING)
44222A	Cover, Dust(FOR POWER STEERING GEAR)
44250	Gear Assy, Power Steering(FOR RACK & PINION)
44250K	Gasket Kit, Power Steering Gear(FOR RACK & PINION)
44252B	Bearing(FOR POWER STEERING PINION)
44252C	Cap(FOR POWER STEERING PINION)
44252D	Nut(FOR POWER STEERING PINION CAP)
44253	Housing, Power Steering Rack
44253A	Seal, Oil(FOR POWER STEERING RACK HOUSING)
44253B	Ring, O(FOR POWER STEERING RACK HOUSING)
44256	Nut, Cylinder End Stopper
44267	Guide, Rack End
44267A	Washer(FOR RACK END GUIDE)
44277	Seat, Rack Guide
44418A	Tube, Steering Right Turn Pressure
44418B	Seat, Union(FOR STEERING TURN PRESSURE TUBE)
44419A	Tube, Steering Left Turn Pressure
44419B	Bolt, Union(FOR STEERING TURN PRESSURE TUBE)
44419C	Gasket(FOR STEERING TURN PRESSURE TUBE)
44503E	End Sub-assy, Steering Rack(FOR POWER STEERING)
44503F	Washer, Claw(FOR POWER STEERING RACK END)
44523G	Guide, Rack(FOR POWER STEERING)
44523H	Spring(FOR POWER STEERING RACK GUIDE)
44524A	Cap, Rack Guide Spring(FOR POWER STEERING)
44524B	Nut(FOR POWER STEERING RACK GUIDE CAP)
44535B	Boot, Steering Rack NO.1(FOR POWER STEERING)
44535C	Clamp(FOR POWER STEERING RACK BOOT)
44535D	Clip(FOR POWER STEERING RACK BOOT)
44536B	Boot, Steering Rack NO.2(FOR POWER STEERING)
45081	Support Sub-assy, Tilt Steering
45081A	Spring, Tension(FOR TILT STEERING)
45081B	Cord(FOR TILT STEERING)
45081C	Reinforce, Tilt Steering Support
45201	Shaft Sub-assy, Steering Main
45201A	Bearing(FOR STEERING MAIN SHAFT)
45201B	Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D	Ring(FOR STEERING MAIN SHAFT)
45201G	Spring, Compression(FOR STEERING MAIN SHAFT)
45202	Shaft Sub-assy, Steering Intermediate
45203	Shaft Sub-assy, Steering Intermediate, NO.2
45205	Tube Sub-assy, Steering Column
45209	Yoke Sub-assy, Steering Sliding
45215	Collar, Main Shaft Bearing Thrust
45222	Cover, Steering Gear Dust
45253	Cover, Steering Column Hole
45254	Shield, Steering Column Hole
45255	Plate, Steering Column Hole Cover
45255A	Grommet OR Ring, O(FOR STEERING COLUMN CLAMP)
45266	Cover, Steering Intermediate Shaft Dust
45269	Retainer, Main Shaft Bearing
45275	Bracket, Steering Column, Upper
45275A	Bolt, Hexagon(FOR STEERING COLUMN BRACKET)
45281	Housing, Steering Column
45288A	Spacer, Column Cover
45291	Seal, Main Shaft Upper Dust
45501	Housing Sub-assy, Steering Rack
45501A	Seal, Type T Oil(FOR STEERING RACK HOUSING)
45503	End Sub-assy, Steering Rack
45510	Gear Assy, Steering
45514	Bracket, Steering Rack Housing, NO.1
45515	Bracket, Steering Rack Housing, NO.2
45516	Grommet, Steering Rack Housing, NO.1
45517	Grommet, Steering Rack Housing, NO.2
45518	Bracket, Steering Rack Housing, NO.3
45521	Rack, Steering
45522	Bush, Steering Rack
45523	Guide, Rack(FOR STEERING GEAR)
45523A	Spring(FOR STEERING GEAR RACK GUIDE)
45523C	Spacer(FOR RACK GUIDE)
45524	Cap, Steering Rack Guide Spring
45524A	Nut(FOR STEERING RACK GUIDE SPRING CAP)
45535	Boot, Steering Rack, NO.1
45535A	Clamp(FOR STEERING RACK BOOT)
45535B	Clip(FOR STEERING RACK BOOT)
45536	Boot, Steering Rack, NO.2
45537A	Washer, Claw(FOR STEERING RACK END LOCK)
45541	Pinion, Steering
45541A	Bearing, Radial Ball(FOR STEERING PINION UPPER)
45541B	Bearing, Radial Ball(FOR STEERING PINION LOWER)
45545	Screw, Pinion Bearing Adjusting
45545A	Nut(FOR PINION BEARING ADJUSTING SCREW)
45807	Bracket Sub-assy, Steering Column Upper Support
45813	Collar, Tilt Steering Support, NO.1
45814	Collar, Tilt Steering Support, NO.2
45815	Shim, Tilt Steering Support
45817	Stopper, Steering Shaft Thrust
45817A	Ring, O(FOR STEERING SHAFT THRUST STOPPER)
45819	Retainer, Tilt Lever
45819A	Collar(FOR TILT LEVER RETAINER)
45824	Pawl, Tilt Steering
45826	Lever, Steering Tilt
45826A	Spring, Tension(FOR STEERING TILT LEVER)
45826B	Pin(FOR STEERING TILT LEVER)
45867	Retainer, Steering Main Shaft Stopper
45892	Bolt, Tilt Steering Support Stopper
45892A	Cover, Tilt Steering Support Stopper
45892B	Support, Tilt Steering Column Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
