Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

21 part groups · 7 illustrations

Illustrations

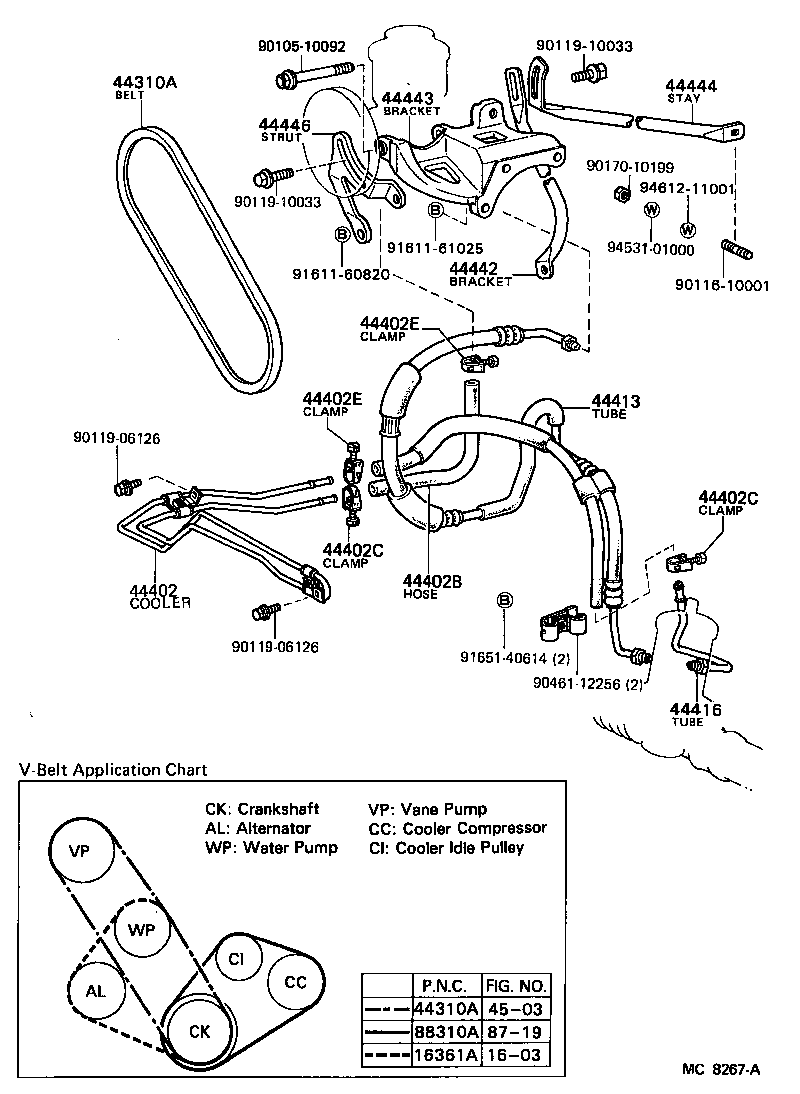

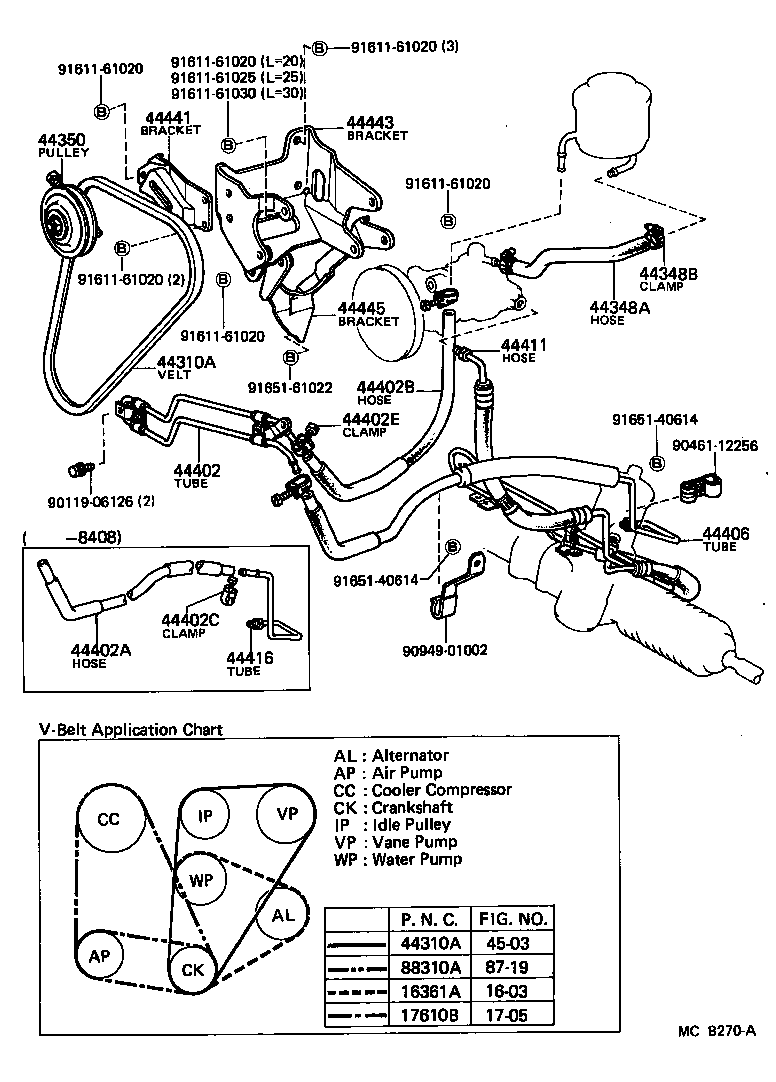

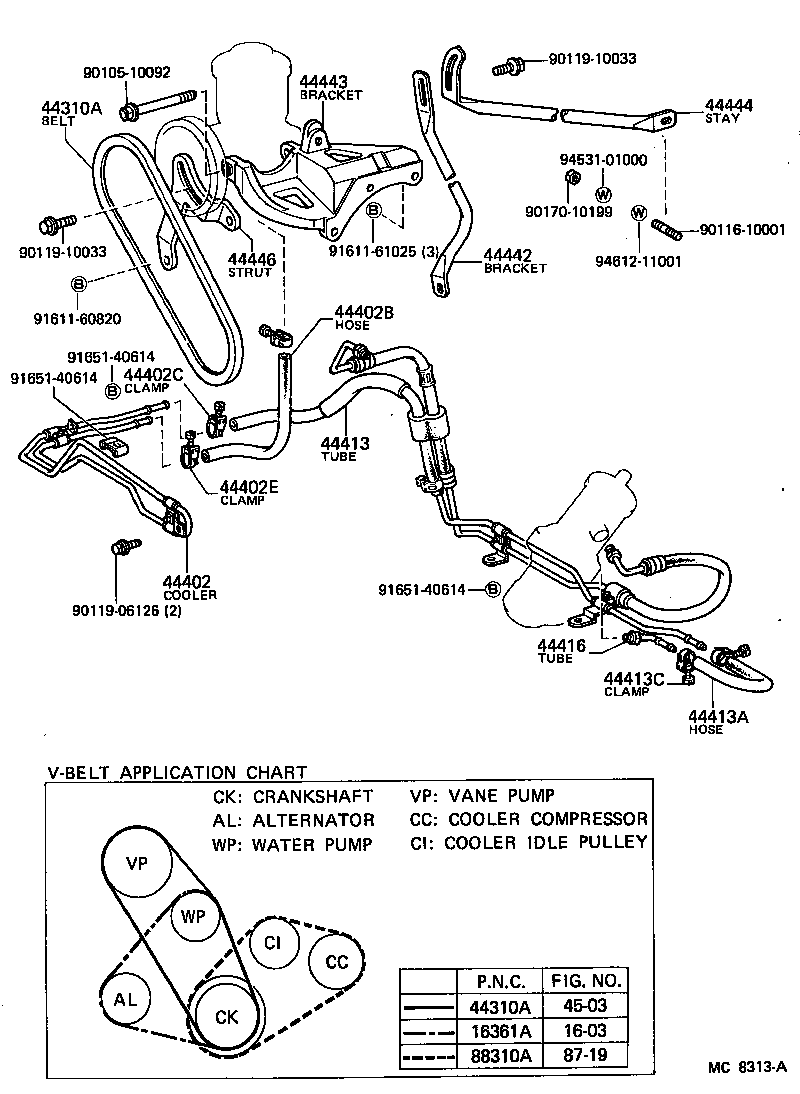

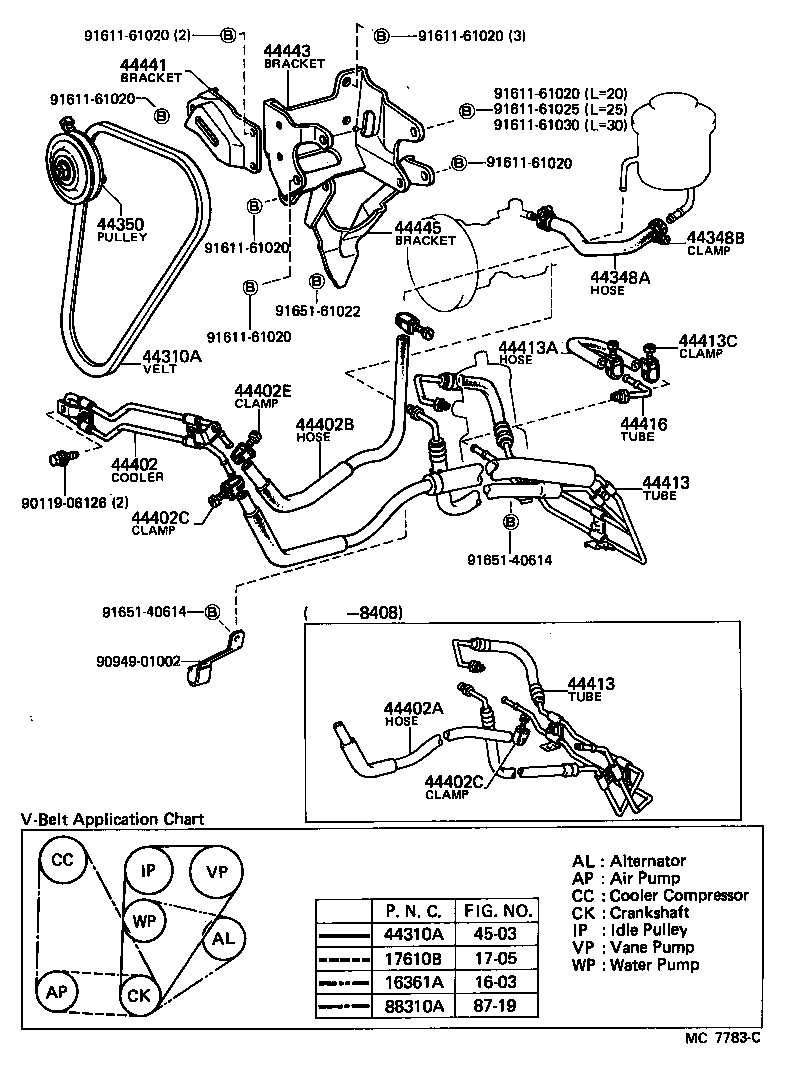

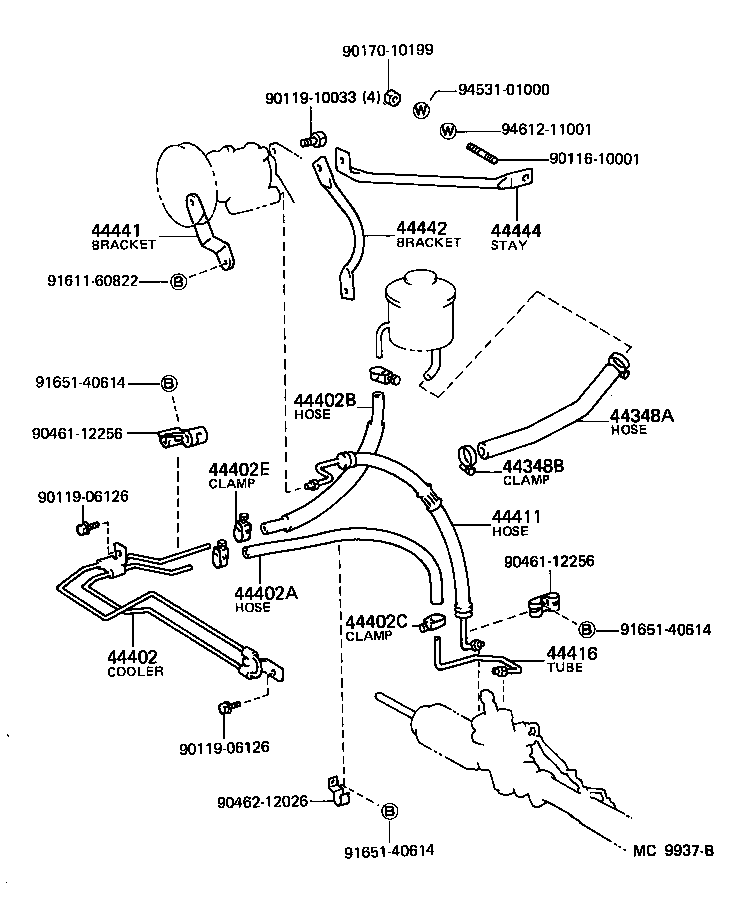

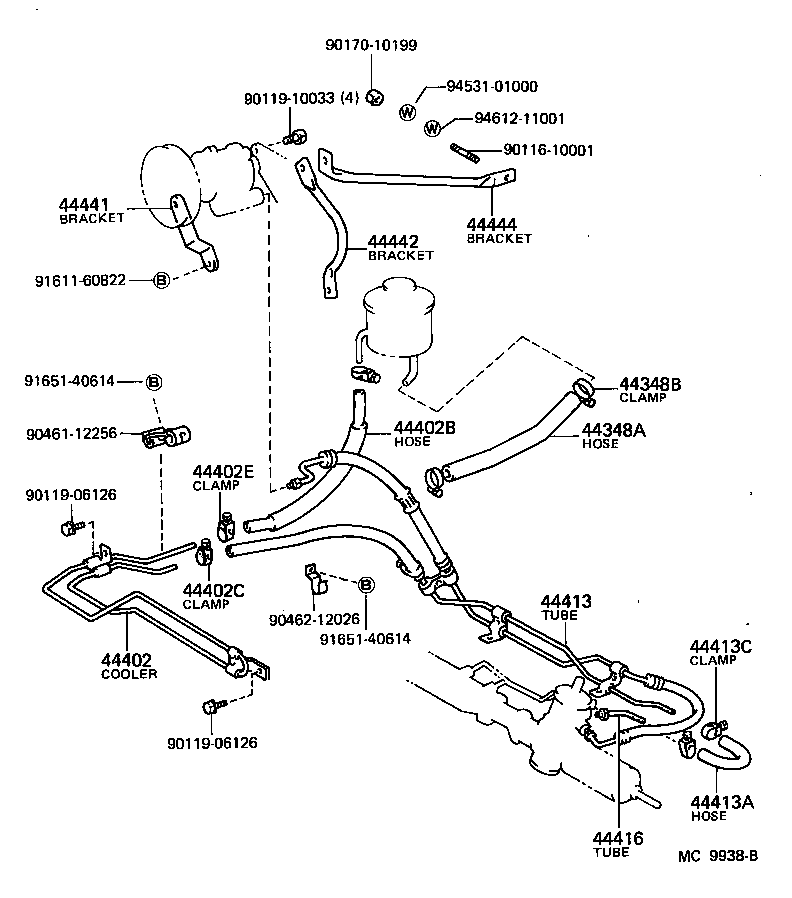

Figure MC9936D MC9936D 1983-08 → 1984-08 Figure MC7783C MC7783C 1981-08 → 1985-07 Figure MCB270A MCB270A 1981-08 → 1985-07 Figure MC8267A MC8267A 1981-12 → — Figure MC8313A MC8313A 1981-12 → — Figure MC9937B MC9937B 1983-08 → — Figure MC9938B MC9938B 1983-08 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44406 Tube Sub-assy, Return
44411 Hose, Pressure Feed
44413 Tube, Pressure Feed, NO.1
44413A Hose(FOR RETURN TUBE OUTLET)
44413C Clamp(FOR RETURN TUBE OUTLET HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44441 Bracket, Pump, Front
44442 Bracket, Pump, Rear
44443 Bracket, Pump
44444 Stay, Pump, Rear
44445 Bracket, Pump, Lower
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
