Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 4 illustrations

Illustrations

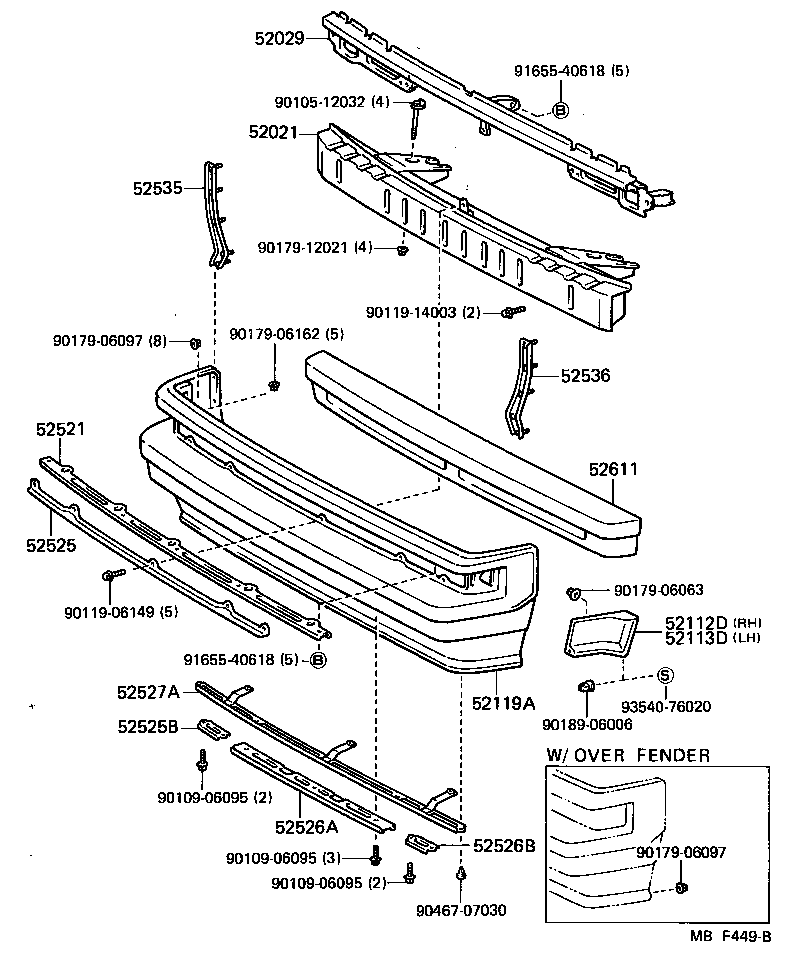

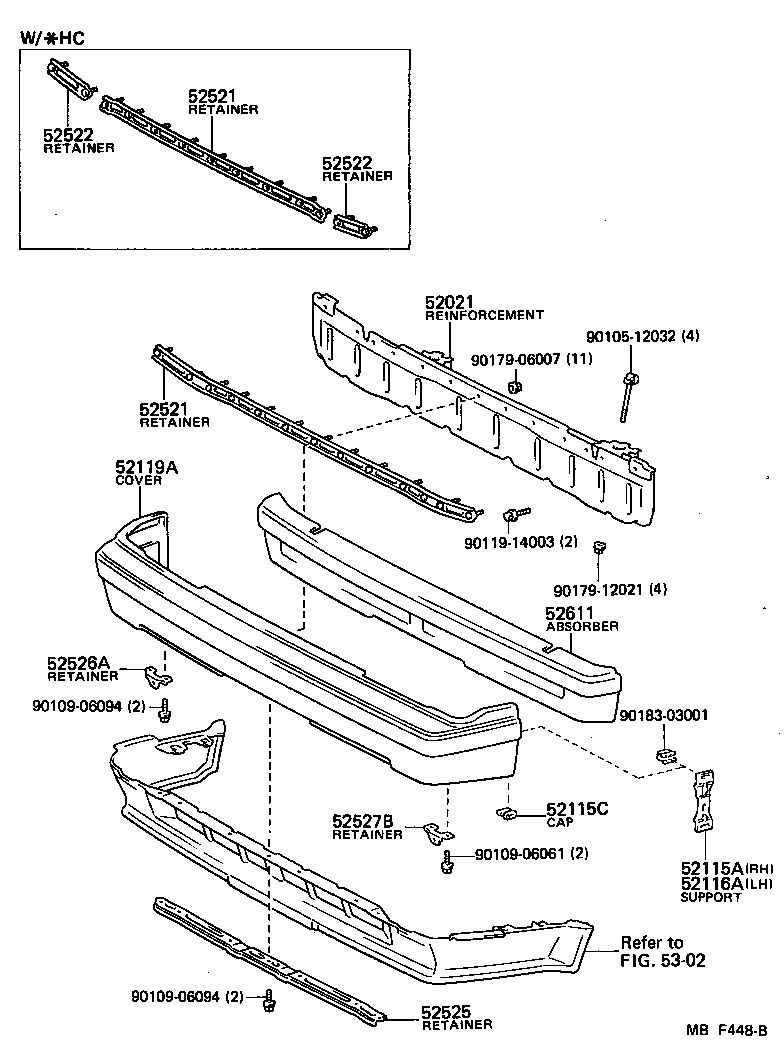

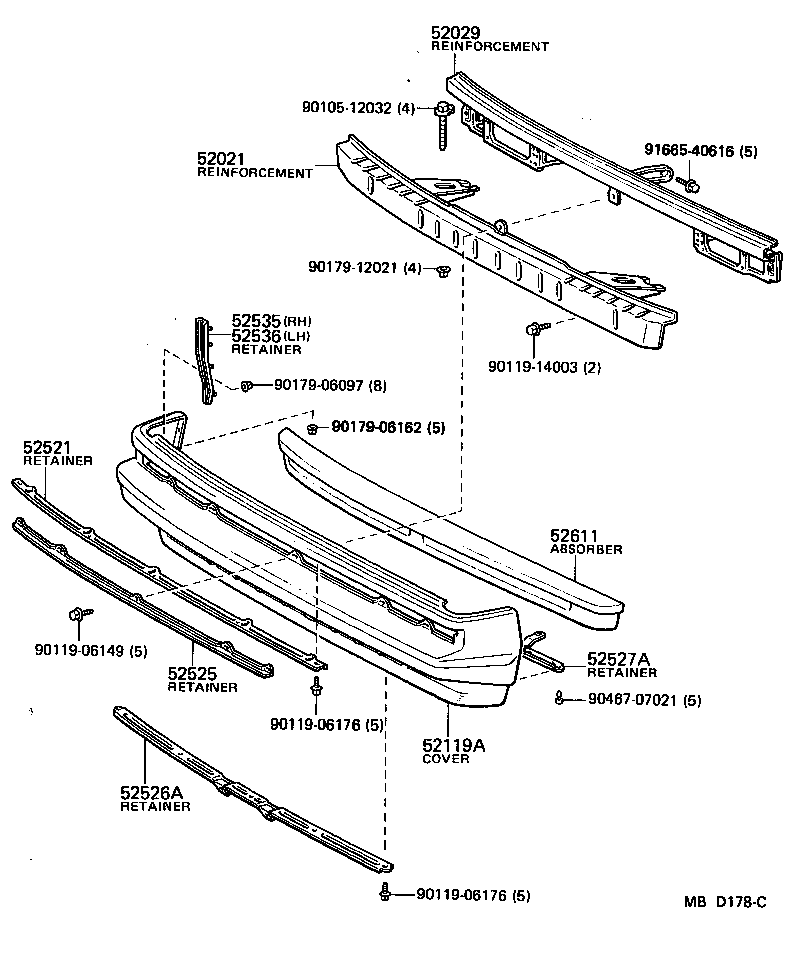

Figure MBC754D MBC754D 1981-08 → 1983-08 Figure MBD178C MBD178C 1981-12 → 1983-08 Figure MBF448B MBF448B 1983-08 → 1985-07 Figure MBF449B MBF449B 1983-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52029 Reinforcement Sub-assy, Front Bumper, Upper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52115C Cap, Front Bumper, Side Support
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526A Retainer, Front Bumper, Lower NO.1
52526B Retainer, Front Bumper, Lower Side LH
52527A Retainer, Front Bumper, Lower Center NO.2
52527B Retainer, Front Bumper, Lower NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
