Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

17 part groups · 3 illustrations

Illustrations

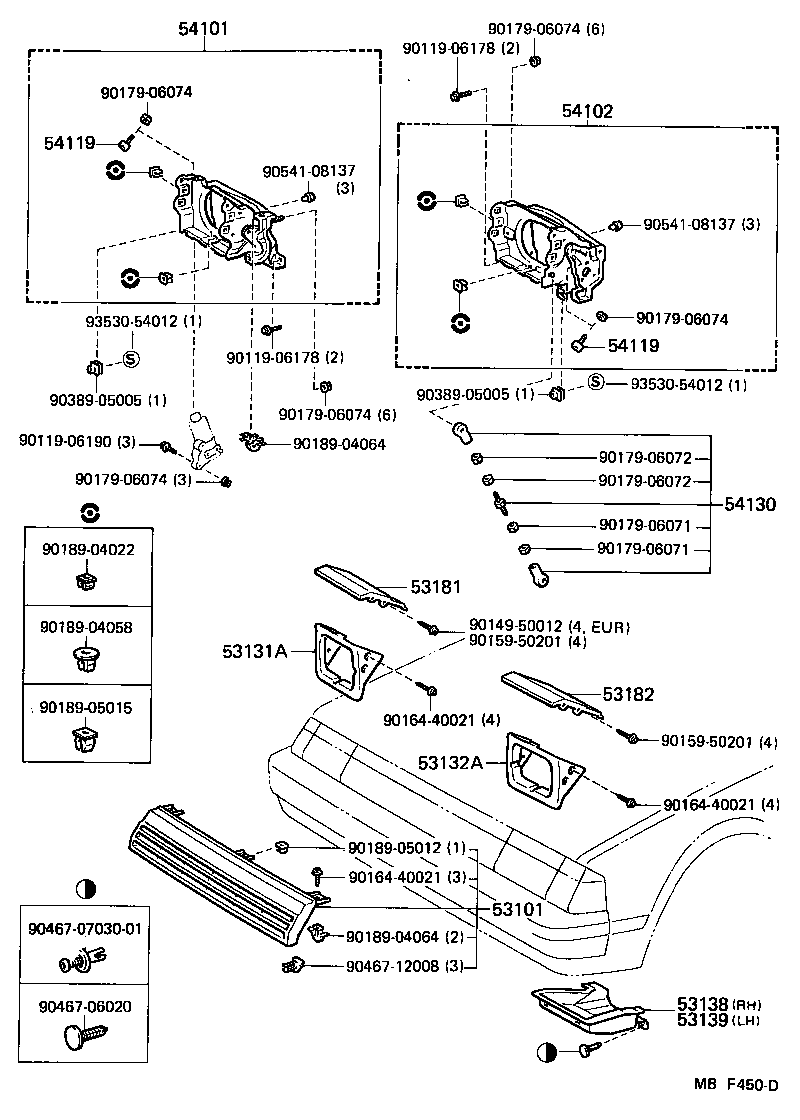

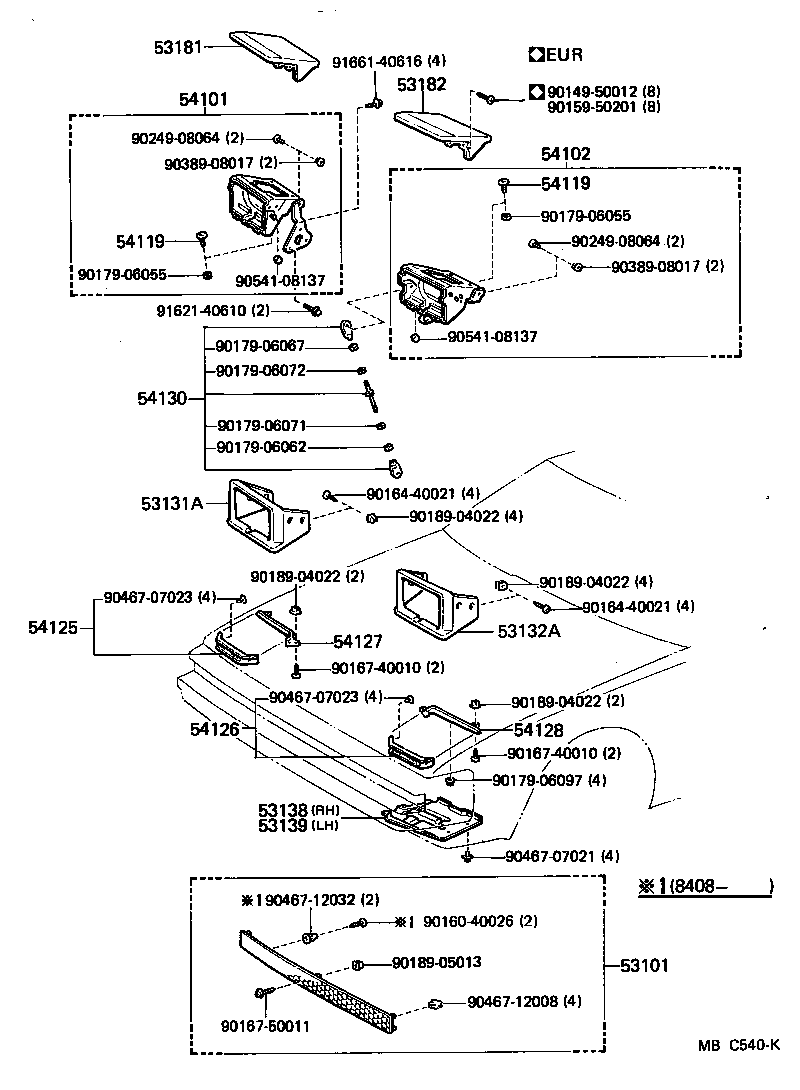

Figure MBC539G MBC539G 1981-08 → 1983-08 Figure MBF450D MBF450D 1983-08 → 1985-07 Figure MBC540K MBC540K 1981-12 → —

Part groups

PNCDescription
53031 Housing, Headlamp, RH
53032 Housing, Headlamp, LH
53101 Grille Sub-assy, Radiator
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53138 Protector, Headlamp Door, RH
53139 Protector, Headlamp Door, LH
53181 Cover, Headlamp, RH
53182 Cover, Headlamp, LH
54101 Bracket Sub-assy, Retractable Headlamp, RH
54102 Bracket Sub-assy, Retractable Headlamp, LH
54119 Stop, Retractable Headlamp Link
54125 Protector, Retractable Headlamp, NO.1 RH
54126 Protector, Retractable Headlamp, NO.1 LH
54127 Protector, Retractable Headlamp, NO.2 RH
54128 Protector, Retractable Headlamp, NO.2 LH
54130 Rod Assy, Retractable Headlamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
