Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

24 part groups · 3 illustrations

Illustrations

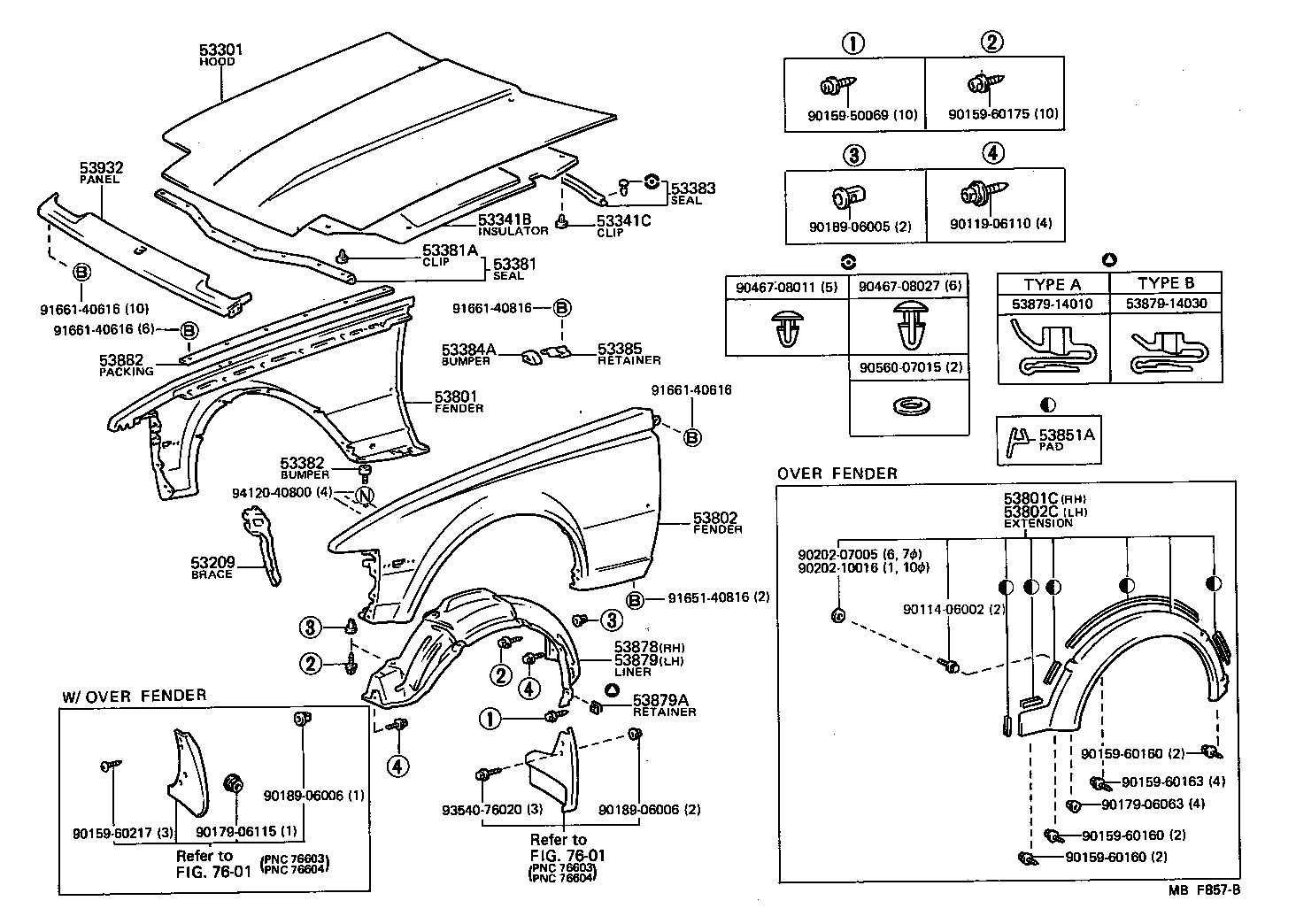

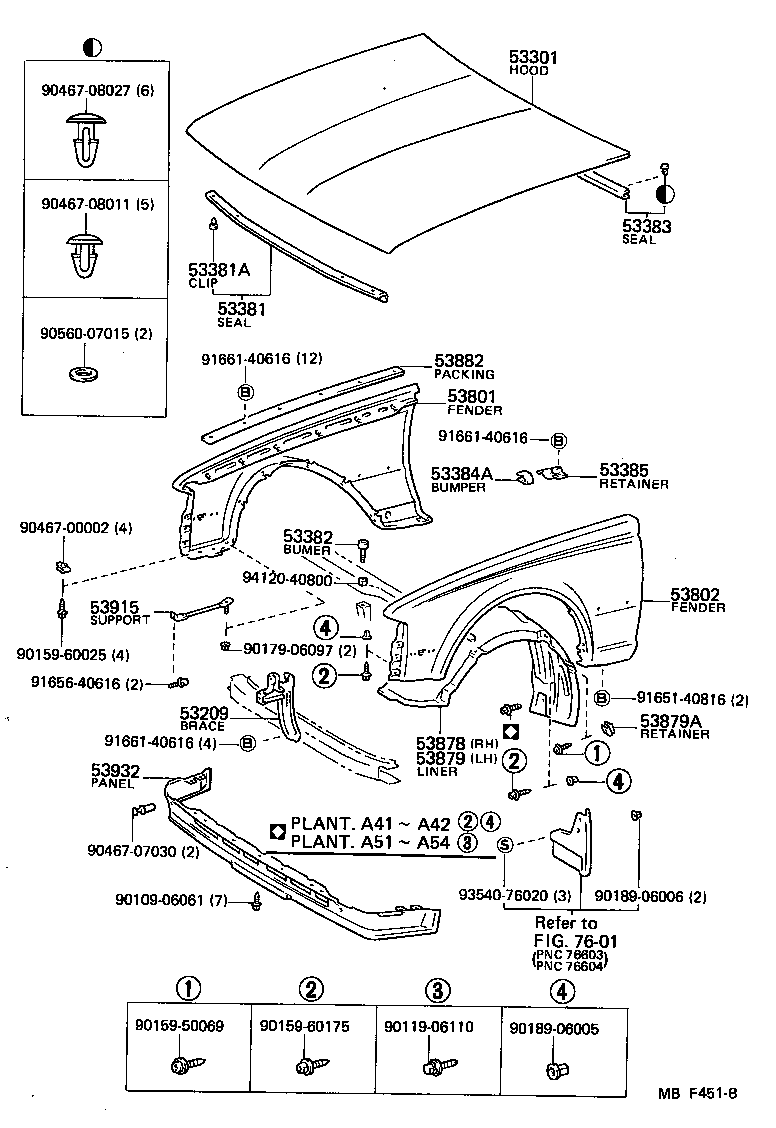

Figure MBF506A MBF506A 1981-08 → 1983-08 Figure MBF451B MBF451B 1983-08 → 1985-07 Figure MBF857B MBF857B 1981-12 → —

Part groups

PNCDescription
53209 Brace Sub-assy, Hood Lock
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382 Bumper, Hood, Front
53383 Seal, Hood TO Cowl Top
53384A Bumper, Fender TO Hood
53385 Retainer, Hood, Bumper
53801 Fender Sub-assy, Front RH
53801C Extension, Front Wing, RH
53802 Fender Sub-assy, Front LH
53802C Extension, Front Wing, LH
53851A Pad, Front Wheel Opening Extension, NO.1
53878 Liner, Front Fender, RH
53879 Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882 Packing, Front Fender Main
53915 Support, Front Valance Panel
53931B Panel, Front End, RH
53932 Panel Sub-assy, Front End
53932B Panel, Front End, LH
75345 Pad, Hood Ornament, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
