Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 4 illustrations

Illustrations

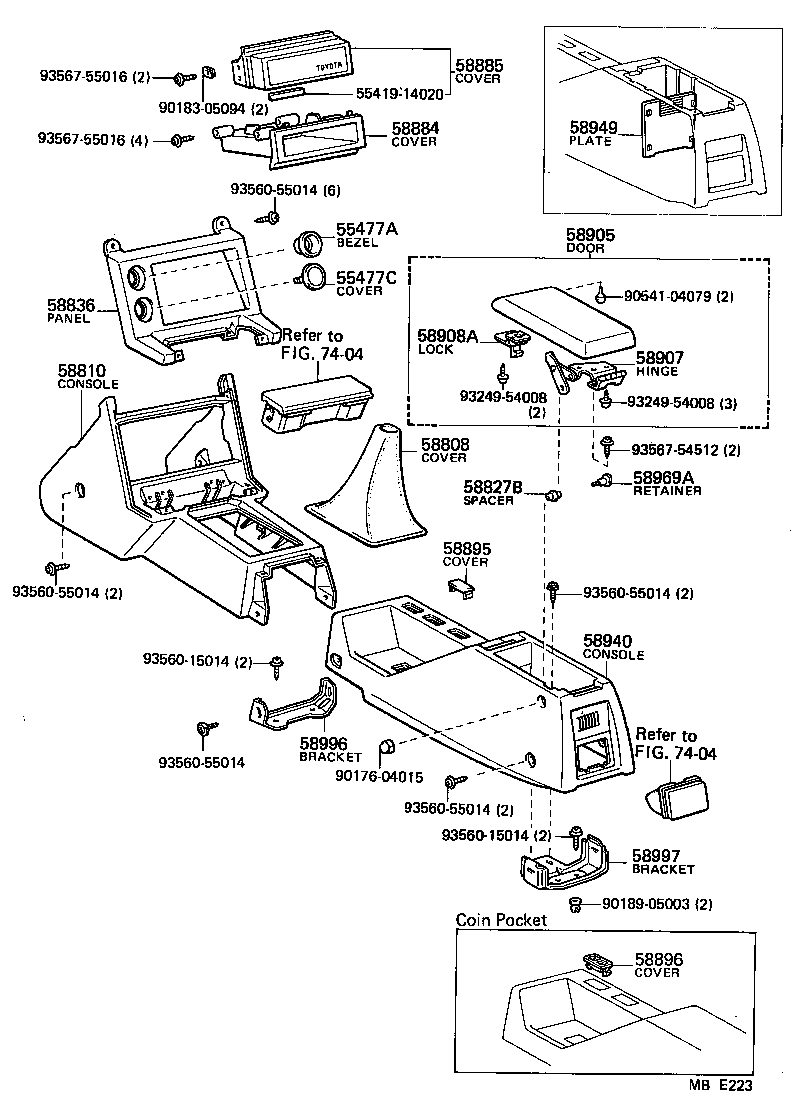

Figure MBC632C MBC632C 1981-08 → 1985-07 Figure MBC632C MBC632C 1981-12 → — Figure MBE223 MBE223 1982-08 → — Figure MBE223 MBE223 1982-09 → 1983-08

Part groups

PNCDescription
55477C Cover, Cooler Switch Hole
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58827B Spacer, Console Compartment Door Stopper
58836 Panel, Console, Upper Front
58839A Cover, Console Box Hole
58884 Cover, Stereo Opening
58885 Cover, Console Box Opening
58895 Cover, Switch Hole, NO.1
58896 Cover, Switch Hole, NO.2
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58940 Console Assy, Rear
58949 Plate, Console Box
58969A Retainer, Console Compartment Door Stopper
58985 Retainer, Console Box
58996 Bracket, Console Box Mounting, NO.1
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
