Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

11 part groups · 2 illustrations

Illustrations

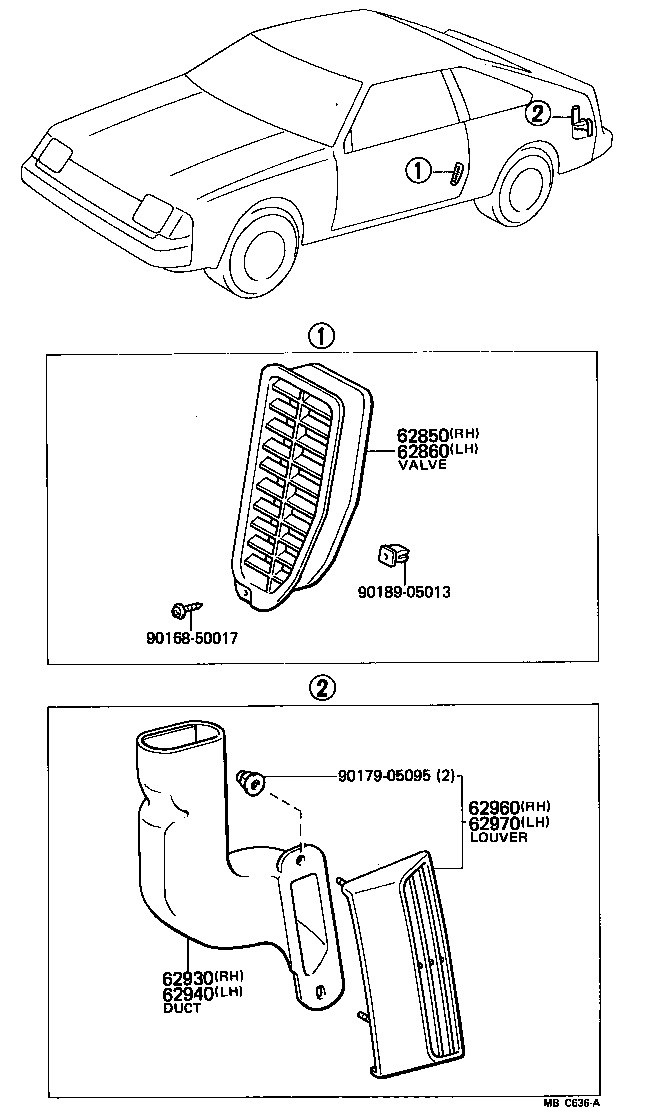

Figure MBC635C MBC635C 1981-08 → 1985-07 Figure MBC636A MBC636A 1981-08 → —

Part groups

PNCDescription
62850 Valve Assy, Room Pressure Relief, RH
62860 Valve Assy, Room Pressure Relief, LH
62930 Duct Assy, Roof Side Vent, RH
62940 Duct Assy, Roof Side Vent, LH
62960 Louver Assy, Roof Side Vent, RH
62961A Grille, Room Vent, RH
62962A Grille, Room Vent, LH
62963A Plate, Quarter Vent Louver, RH
62964A Plate, Quarter Vent Louver, LH
62970 Louver Assy, Roof Side Vent, LH
62991A Pad, Quarter Vent Louver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
