Toyota Celica
1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe
Discontinued model
Data version 1986-05

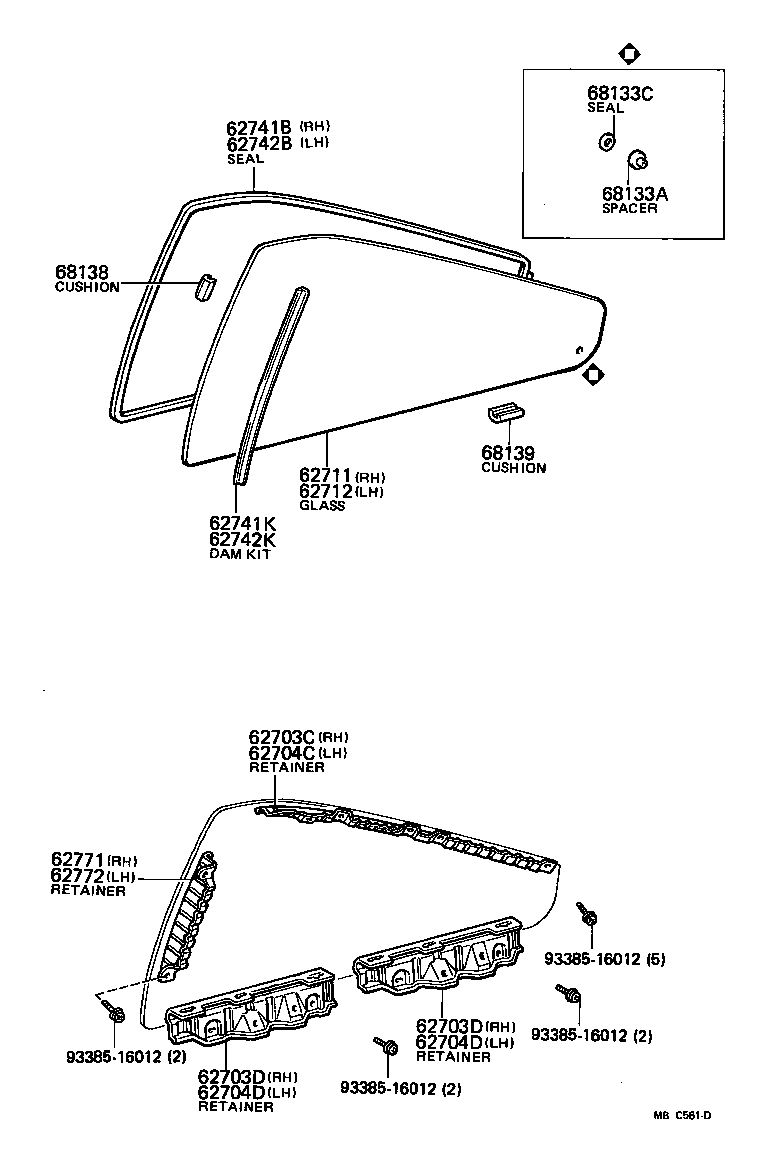

Quarter Window
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62703C | Retainer, Quarter Window Glass, Upper, RH |
| 62703D | Retainer, Quarter Window Glass, Lower, RH |
| 62704C | Retainer, Quarter Window Glass, Upper, LH |
| 62704D | Retainer, Quarter Window Glass, Lower, LH |
| 62711 | Glass, Quarter Window, RH |
| 62712 | Glass, Quarter Window, LH |
| 62741B | Seal, Quarter Window Glass, RH |
| 62741K | Dam Kit, Quarter Window, RH |
| 62742B | Seal, Quarter Window Glass, LH |
| 62742K | Dam Kit, Quarter Window, LH |
| 62771 | Retainer, Quarter Window Glass, Front Inner RH |
| 62771A | Retainer, Quarter Window Glass, Rear RH |
| 62772 | Retainer, Quarter Window Glass, Front Inner LH |
| 62772A | Retainer, Quarter Window Glass, Rear LH |
| 68133A | Spacer, Quarter Window NO.2 Glass |
| 68133C | Seal, Quarter Window Rear Shield |
| 68138 | Cushion, Quarter Window, NO.2 Upper |
| 68139 | Cushion, Quarter Window, NO.2 Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
