Toyota Celica
1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe
Discontinued model
Data version 1986-05

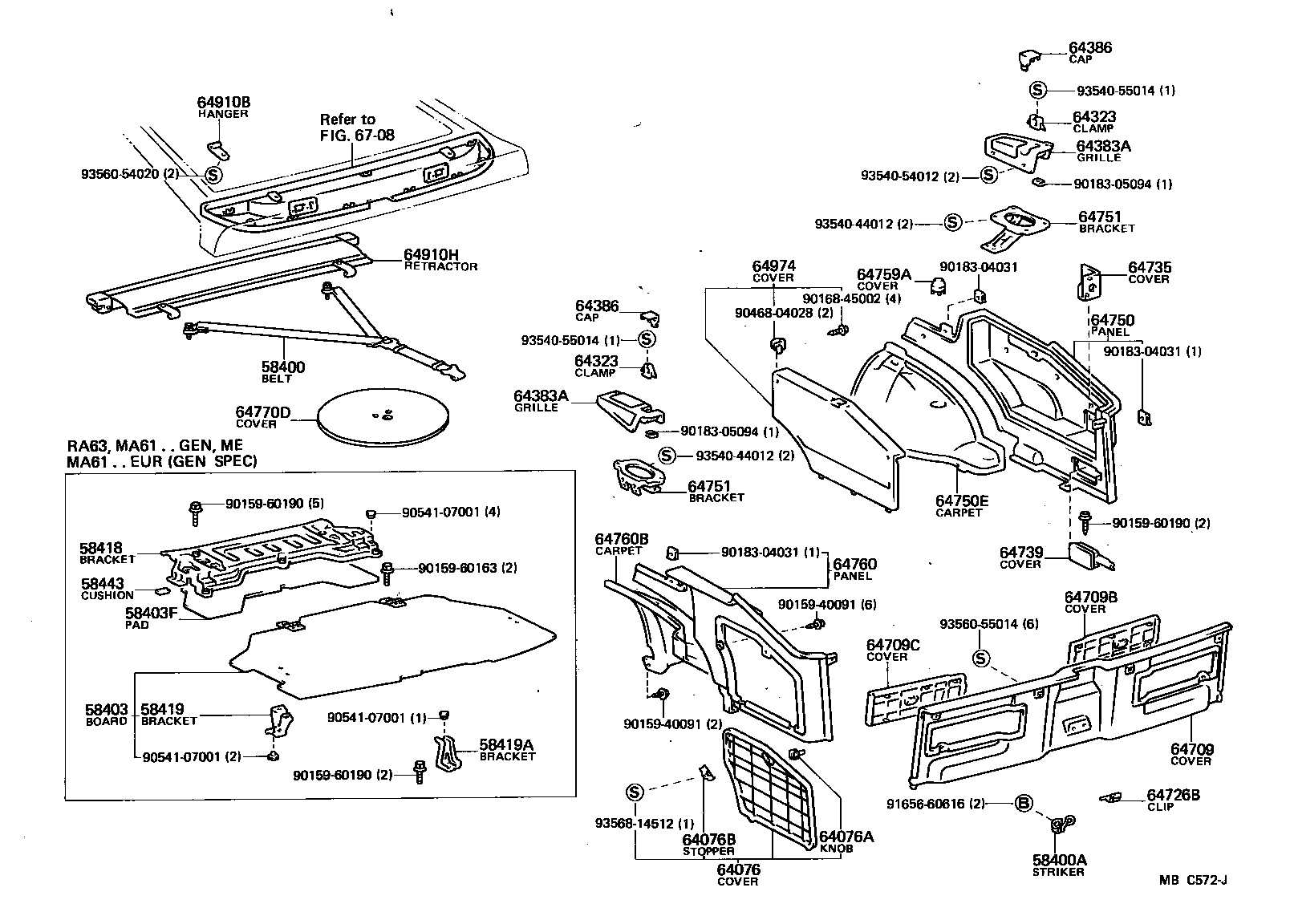

Deck Board & Deck Trim Cover
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58400 | Belt Assy, Luggage Hold, NO.1 |
| 58400A | Striker, Luggage Hold Belt |
| 58403 | Board Sub-assy, Deck |
| 58403F | Pad, Deck Board Silencer, NO.1 |
| 58418 | Bracket, Deck Board, NO.1 |
| 58419A | Bracket, Deck Board, NO.3 |
| 58443 | Cushion, Deck Board, NO.1 |
| 64076 | Cover, Deck Trim Side Jack |
| 64076A | Knob, Deck Trim Side Jack Cover |
| 64076B | Stopper, Deck Trim Side Jack Cover |
| 64323 | Clamp, Package Tray Trim, NO.1 |
| 64383A | Grille, Speaker, Rear(FOR DECK TRIM) |
| 64386 | Cap, Rear Speaker Grille |
| 64709 | Cover Sub-assy, Lower Back Panel |
| 64709B | Cover, Service Hole, NO.1(FOR LOWER BACK PANEL COVER) |
| 64709C | Cover, Service Hole, NO.2(FOR LOWER BACK PANEL COVER) |
| 64726B | Clip, Deck Rear Trim |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64739 | Cover, Deck Trim Side Washer |
| 64750 | Panel Assy, Deck Side Trim, RH |
| 64750E | Carpet Sub-assy, Deck Trim Side, RH |
| 64751 | Bracket, Deck Trim Side Speaker Set, RH |
| 64759A | Cover, Shock Absorber Head |
| 64760 | Panel Assy, Deck Side Trim, LH |
| 64760B | Carpet Sub-assy, Deck Trim Side, LH |
| 64770D | Cover Assy, Spare Wheel |
| 64910B | Hanger, Parcel Cover |
| 64910H | Retractor Sub-assy, Tonneau Cover |
| 64974 | Cover, Deck Trim Pocket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
