Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

14 part groups · 2 illustrations

Illustrations

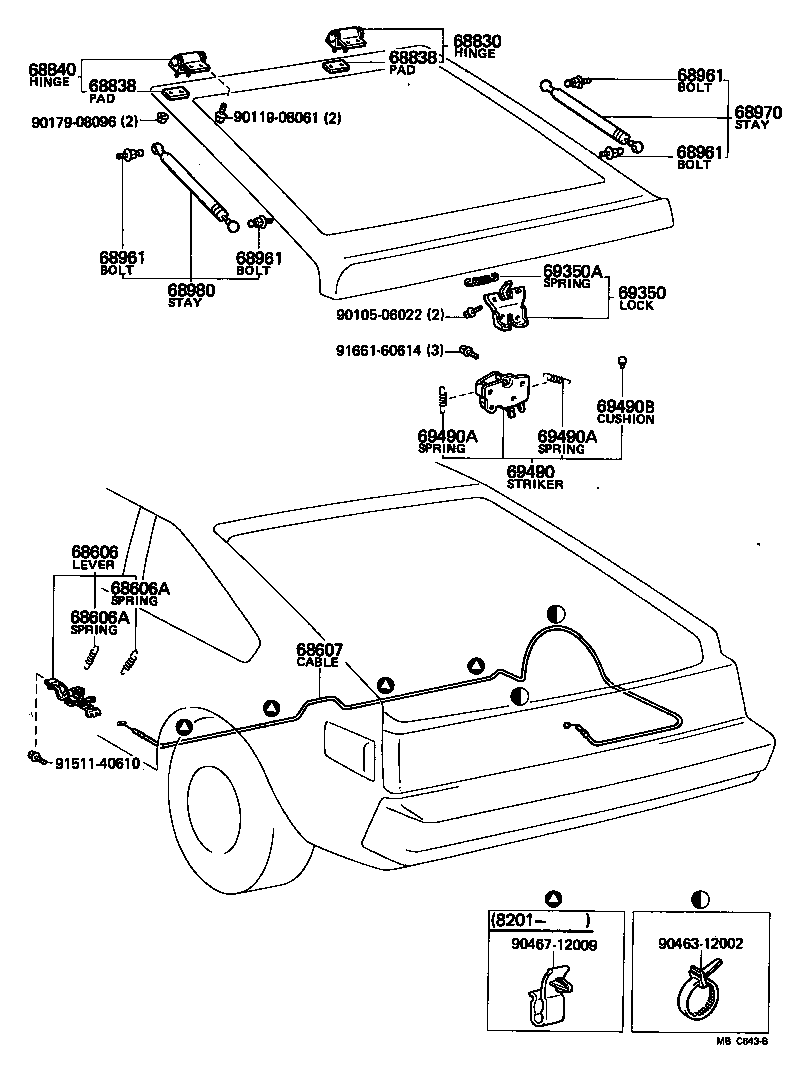

Figure MBC926A MBC926A 1981-08 → — Figure MBC643B MBC643B 1981-08 → —

Part groups

PNCDescription
68606 Lever Sub-assy, Back Door Lock Open
68606A Spring, Tension(FOR BACK DOOR LOCK OPEN LEVER)
68607 Cable Sub-assy, Back Door Lock Control
68830 Hinge Assy, Back Door, RH
68838 Pad, Back Door Hinge, NO.1
68840 Hinge Assy, Back Door, LH
68961 Bolt, Back Door Stay
68970 Stay Assy, Back Door, RH
68980 Stay Assy, Back Door
69350 Lock Assy, Back Door
69350A Spring(FOR BACK DOOR LOCK)
69490 Striker Assy, Back Door Lock
69490A Spring(FOR BACK DOOR LOCK STRIKER)
69490B Cushion(FOR BACK DOOR LOCK STRIKER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
