Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05

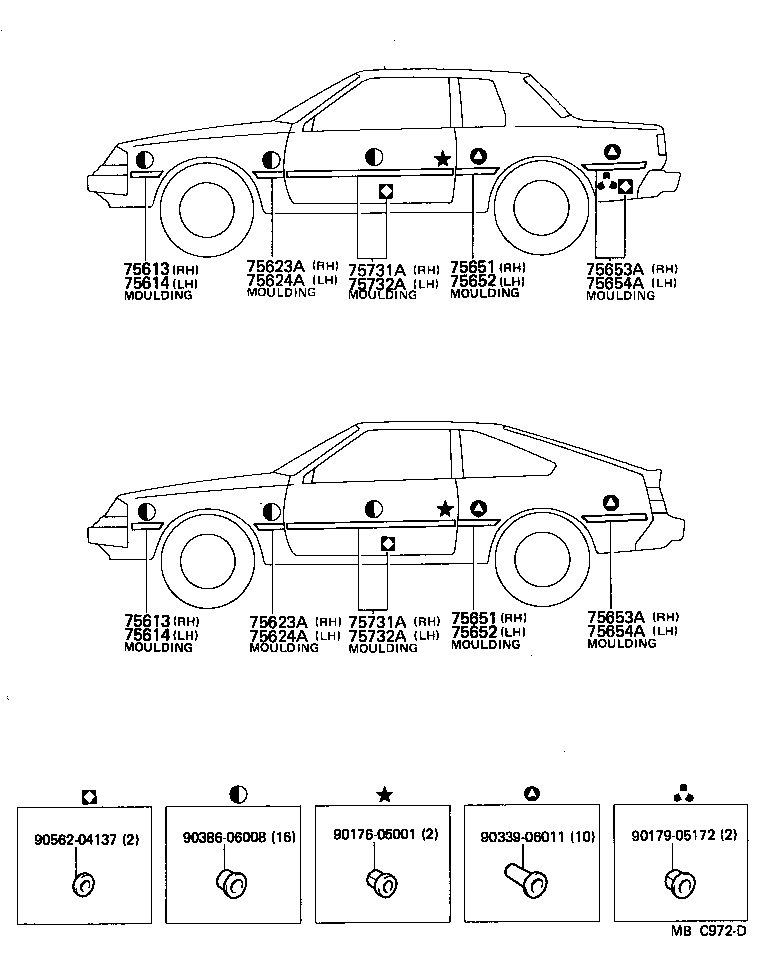

Side Moulding

36 part groups · 2 illustrations

PNC	Description
75057	Garnish Sub-assy, Center Pillar, Outer RH
75058	Garnish Sub-assy, Center Pillar, Outer LH
75307	Ornament Sub-assy, Quarter Panel, RH
75308	Ornament Sub-assy, Quarter Panel, LH
75551	Moulding, Roof Drip Side Finish, RH
75552	Moulding, Roof Drip Side Finish, LH
75553	Moulding, Roof Drip Side Finish, RH
75554	Moulding, Roof Drip Side Finish, LH
75596	Cover, Roof Drip Side Finish Moulding Joint, RH
75597	Cover, Roof Drip Side Finish Moulding Joint, LH
75613	Moulding, Front Fender, Outside RH
75614	Moulding, Front Fender, Outside LH
75623A	Moulding, Front Fender, Outside Rear RH
75624A	Moulding, Front Fender, Outside Rear LH
75641A	Clip(FOR QUARTER WINDOW OUTSIDE MOULDING)
75645	Moulding, Quarter Window, Outside Rear RH
75646	Moulding, Quarter Window, Outside Rear LH
75651	Moulding, Quarter, Outside RH
75652	Moulding, Quarter, Outside LH
75653A	Moulding, Quarter, Outside Rear RH
75654A	Moulding, Quarter, Outside Rear LH
75721	Moulding, Front Door Belt, RH
75721B	Clip(FOR FRONT DOOR BELT MOULDING SET)
75722	Moulding, Front Door Belt, LH
75731A	Moulding, Front Door, Outside RH
75732A	Moulding, Front Door, Outside LH
75733A	Moulding, Front Door Finish Panel, Upper RH
75734A	Moulding, Front Door Finish Panel, Upper LH
75756	Moulding, Quarter Belt, RH
75756A	Clip, Belt Side Moulding
75757	Moulding, Quarter Belt, LH
75851	Moulding, Rocker Panel, RH
75851D	Clip(FOR ROCKER PANEL MOULDING SET)
75852	Moulding, Rocker Panel, LH
75951	Plate, Front Door Scuff, Outside RH
75952	Plate, Front Door Scuff, Outside LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
